Health status: | new | Main selling point: | high productivity |
Line spacing: | 550~670mm | Dimensions (L*W*H): | 1500*2200*980mm |
Seed box volume: | 20L*4 | Core components: | gear |
Line number: | 4 | Matching power: | 29.5-36.5kW |
place of origin; place of origin: | Hubei, China | application: | agricultural machinery |
Fertilizer tank volume: | 235L | payment terms: | Western Union,L/C,D/P,D/A,T/T,MoneyGram |
Applicable industries: | Mechanical Repair Shop, Farm, Home Use, Retail, Construction Work | Supply capacity: | 100 sets per month |
Rows: | 4 | Packaging Details: | Plywood carton or iron box |
brand: | Newly opened | use: | sowing |
Sowing depth: | 20~50mm | Mechanical test report: | if |
Video external inspection: | if | product name: | Pneumatic Precision Corn Planter with Fertilizer |
Warranty: | 1 year | weight: | 450kg |
Core parts warranty: | 1 year | Fertilization depth: | 30-60 (50mm from the seed) |
Packaging Preview: | type: | Tractor installation | |
Showroom location: | not any | port: | Qingdao, Shanghai, Tianjin |
Marketing Type: | New Products 2020 |

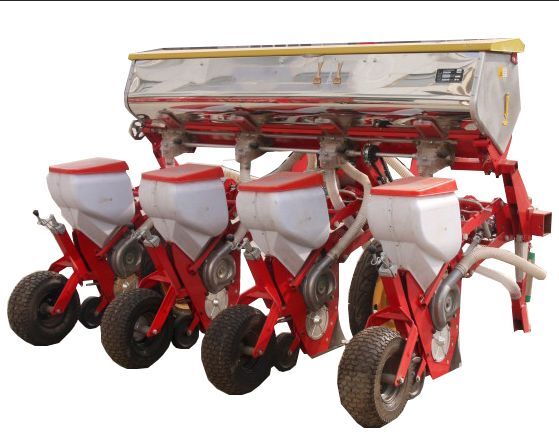

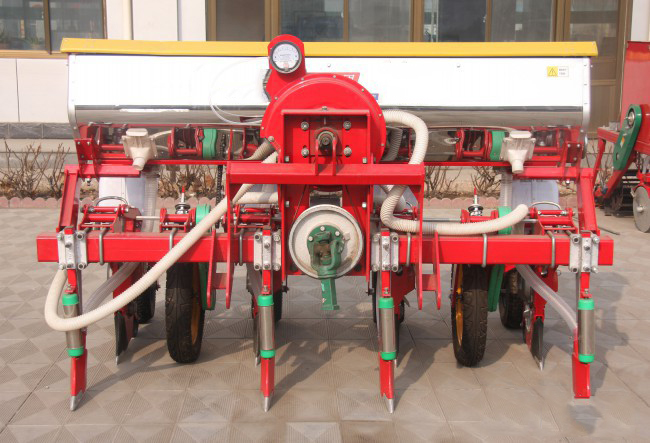

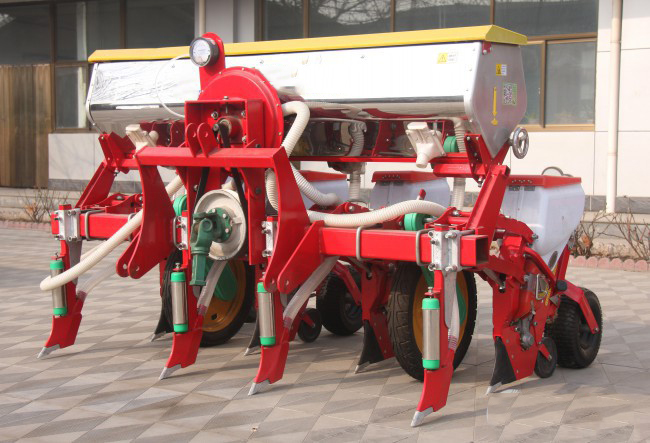

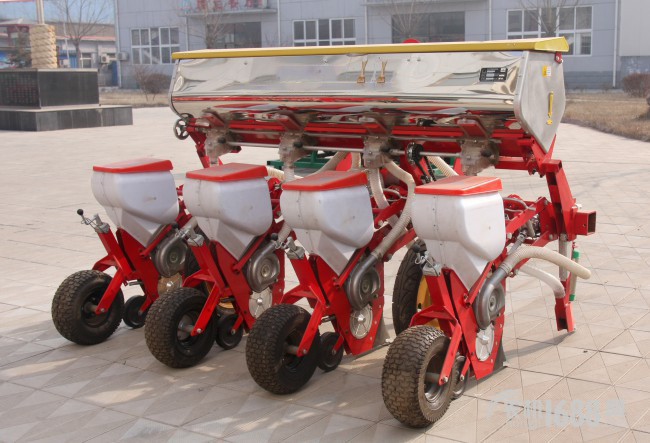

Pneumatic Precision Corn Planter with Fertilizer
1. Adopt a new type of seed suction and seeding device with independent rights, which can increase the filter air inlet chamber and increase the guiding device
Wheels at the bottom of the metering device, seedsThe metering device is raised and kept away from the ground to solve the problem
Problem with sucking stems when working in summer.
2. Adopt four-link profiling structure to ensure consistent seeding depth.
3. The whole seed meter adopts shaft transmission, no chain, and the transmission is stable.
4. The profiling wheel adopts 13/6.5 beach motorcycle wheel.
5. The wheels at the rear of the planter connect the seeds with the soil, which is good for water retention.
Model |
2BYQF-4 |
Dimensions L*W*H |
1500×2200×980mm |
weight |
450kg |
Line spacing |
550~670mm |
line number |
4 |
Fertilization depth |
30-60 (50mm from the seed) |
sowing depth |
20~50mm |
Fertilizer tank volume |
235L |
Seed box volume |
20L×4 |
Maximum working speed (km/h) |
5.0 (seed spacing 14mm) 6.8 (seed spacing 19mm) 7.6 (seed spacing 21mm) 9.5 (species pitch 26mm) 10.6 (species pitch 29mm) 13.0 (species pitch 36mm) |
matching power |
29.5-36.5kW |
Fan impeller speed |
4800~5500 rpm |
Unicast rate |
>92% |
vacancy rate |
<3% |
