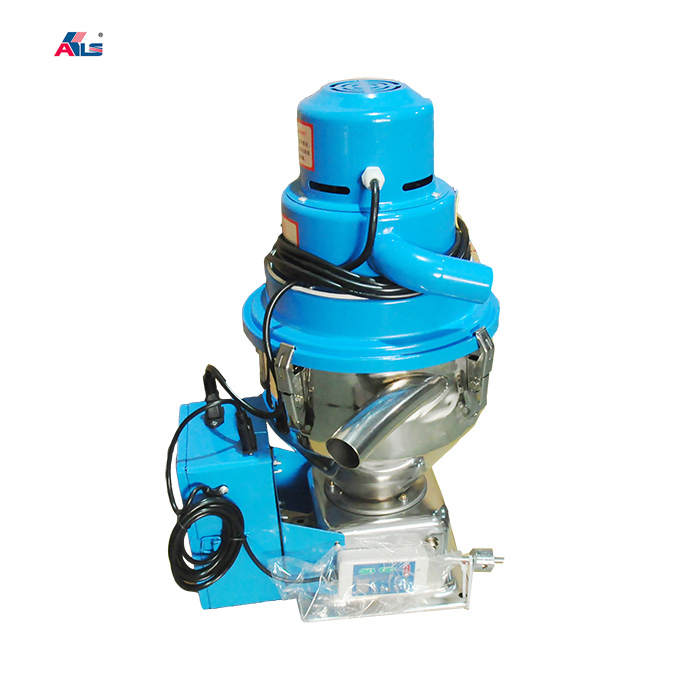

Factory Sale Wholesale Popular Vacuum Hopper Loader 300G Plastic Granules Whole Hot Sale Automatic Vacuum Hopper Loader Customized

Product details
Video external inspection:ifBlower power:1.5 hp
Capacity (kg/hour):350 kg/hDimensions (L*W*H):206*330*545mm
weight:14 kgApplicable industries:manufacturing plant
payment terms:Western Union, wire transferPackaging Details:Standard wooden case
port:Shenzhen/Guangzhoubrand:AKLS@
Conveying height:4.5mAfter-sales service provided:Free spare parts, online support, video technical support
After Warranty Service:Video technical support, online support, spare partsSupply capacity:1000 sets per month
Voltage:220v/single phase, 50hz, 1 phase 220v/50HzPackaging Preview:
Loading distance:6mShowroom location:not any
Weight (kg):14 kgHopper material:SS304
Core Components Warranty:1 yearDiameter of delivery pipe:38mm
Health status:newMechanical test report:if
application:plastic industryFrame Type:indispensable
Hopper capacity:7.5LMarketing Type:Hot Products of 2019
Warranty:1 yearCore components:motor
place of origin; place of origin:Guangdong, ChinaLocal service location:not any
AL-300G
AL-700G
AL-800G
AL-900G

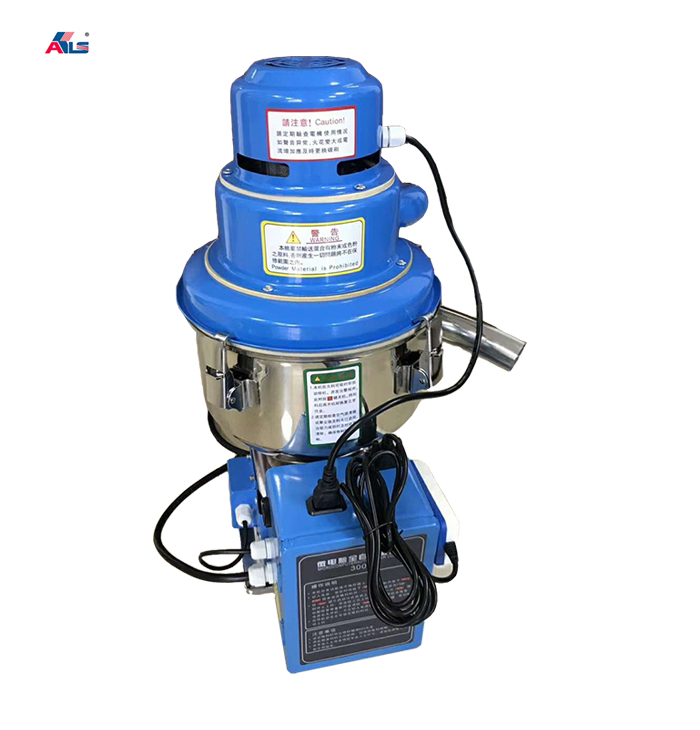

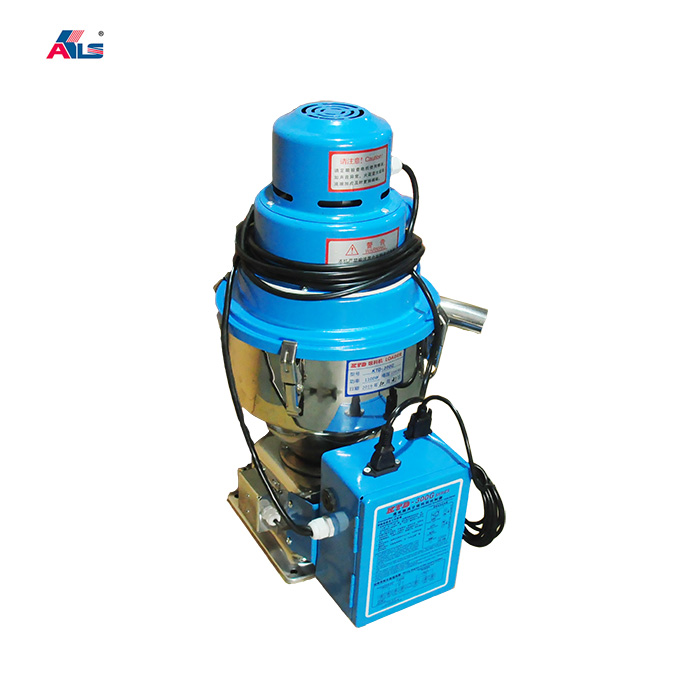

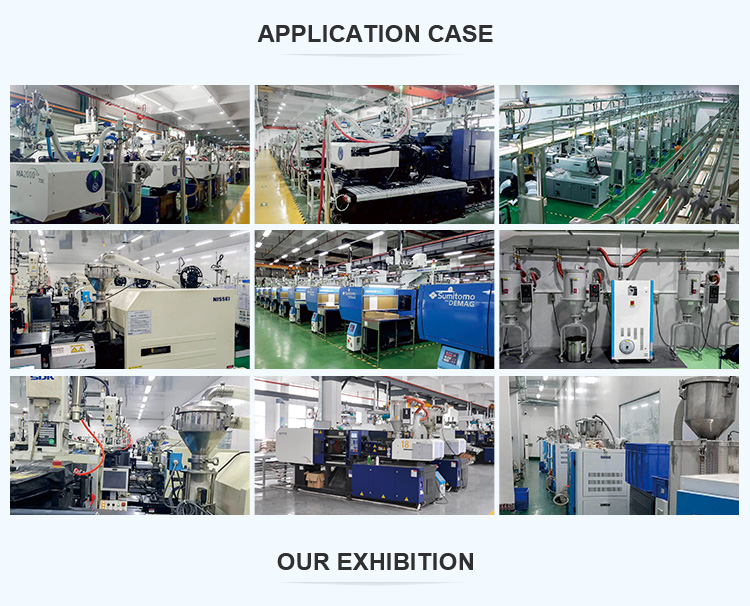

AL series automatic vacuum feeders are widely used in raw material transportation in plastic processing industries such as injection molding machines and extruders.

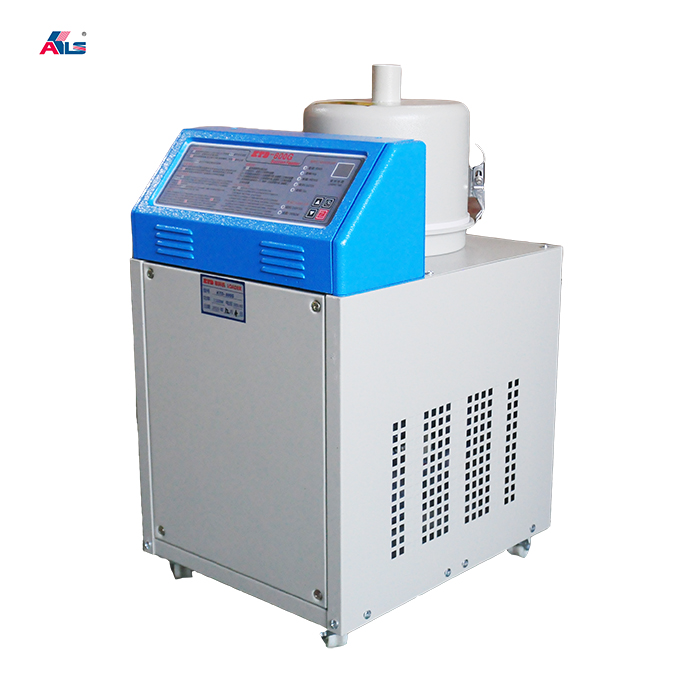

There are two types of structures, one-piece and split-type, and there are 5 models in total: AL-300G.AL-400G, AL-700G, AL-800G and AL-900g
The whole machine is controlled by PLC to ensure high-quality operation, reliable and durable
Specification
Model
motor
Delivery capacity
elevator
Hopper volume
Pipe diameter
size
weight
type
Specification
machine
pack

AL-300G
carbon brush
220v/3Φ1.5hp
350 kg/h
4m
7.5L
Φ38
206*330*545
370*360*640
14 kg
AL-400G
Inauguration
380v/3Φ1hp
400 kg/h
4m
7.5L
Φ38
206*330*670
430*440*730
26kg
AL-700G
carbon brush
220v/3Φ1.5hp
400 kg/h
4m
7.5L
Φ38
365*295*540
700*340*580
25kg
AL-800G1
Inauguration
380v/3Φ1hp
400 kg/h
4m
7.5L
Φ38
445*375*625
740*410*710
47kg
AL-800G2
Inauguration
380v/3Φ1.5hp
550 kg/h
4m
7.5L
Φ38
445*375*625
740*410*710
51 kg
AL-800G3
Inauguration
380v/3Φ2hp
700 kg/h
5m
7.5L
Φ38
445*375*625
740*410*710
53 kg
AL-900G1
Inauguration
380v/3Φ1hp
400 kg/h
4m
7.5L
Φ38
420*470*1080
480*520*1200
55kg
AL-900G2
Inauguration
380v/3Φ1hp
550 kg/h
4m
7.5L
Φ38
420*470*1080
420*470*1080
60kg
AL-900G3
Inauguration
380v/3Φ1hp
700 kg/h
5m
7.5L
Φ38
420*470*1080
480*520*1200
65kg

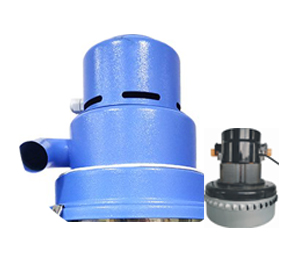

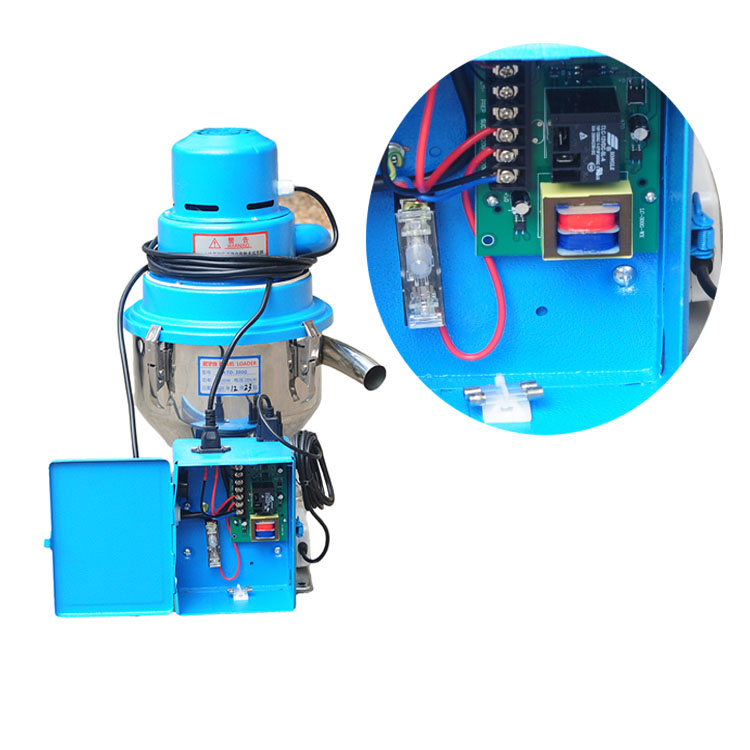

Carbon brush motor
AL-300G adopts high-speed motor with low noise and strong suction, which is suitable for conveying raw materials.

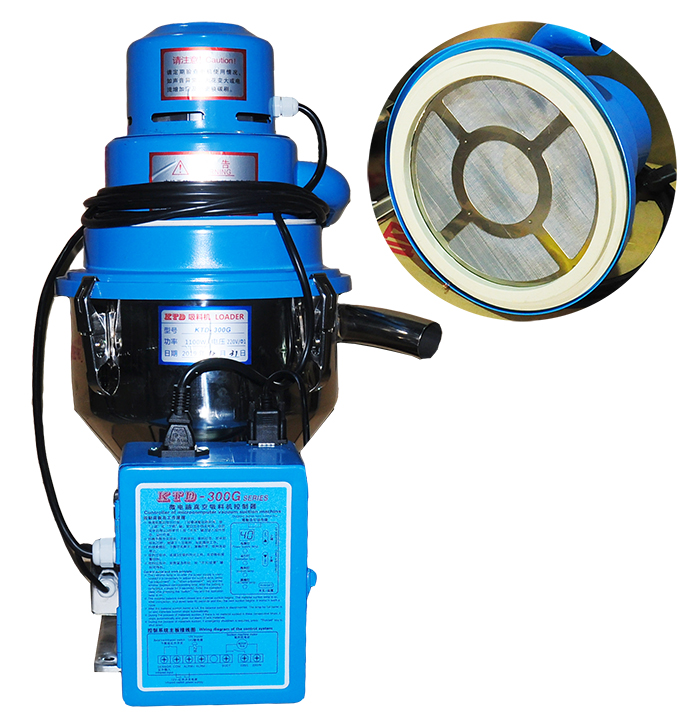

cloth filter
The dense mesh filter can filter even the smallest dust and powder, providing constant and long-lasting protection for the motor

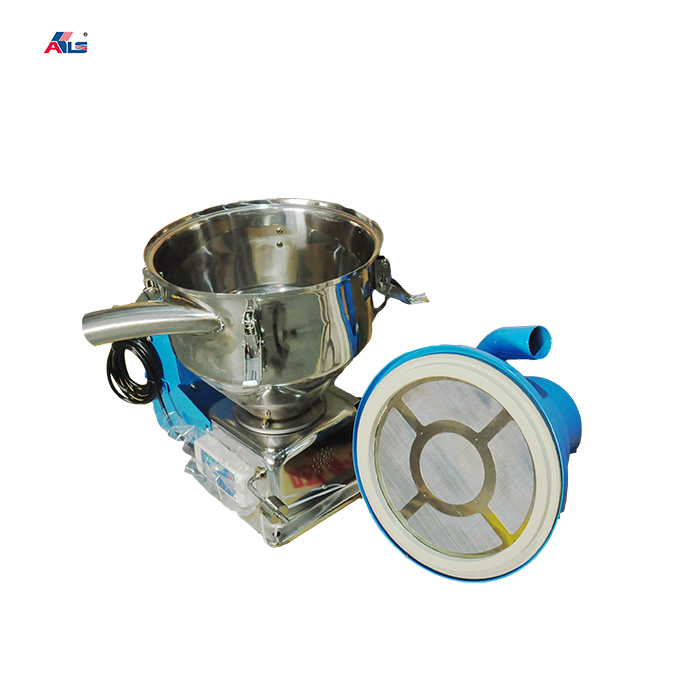

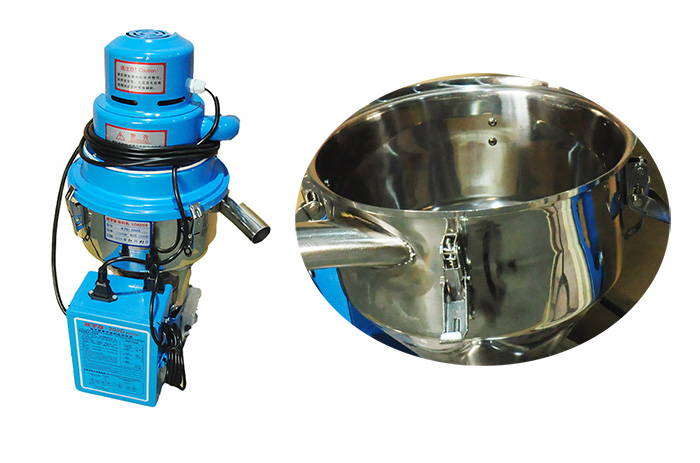

Stainless steel 304 hopper
Open structure, easy to operate and clean, stainless steel material prevents rust and long service life.

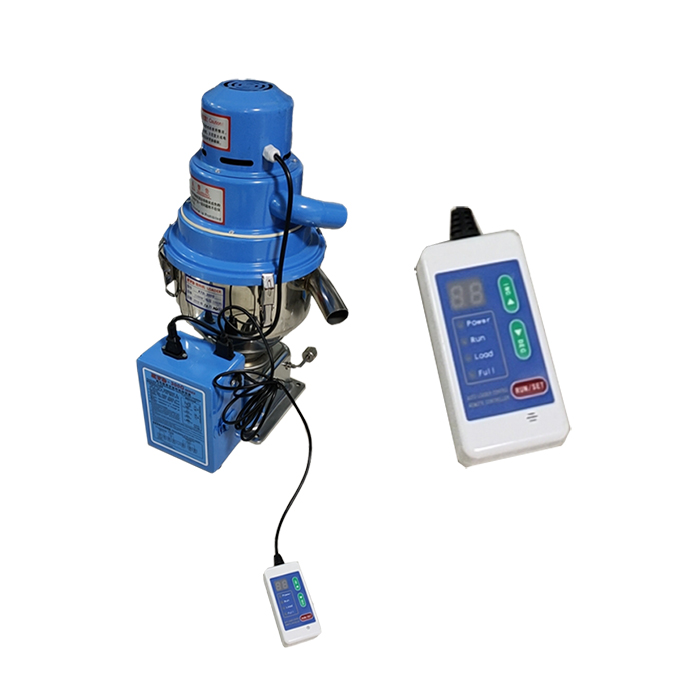

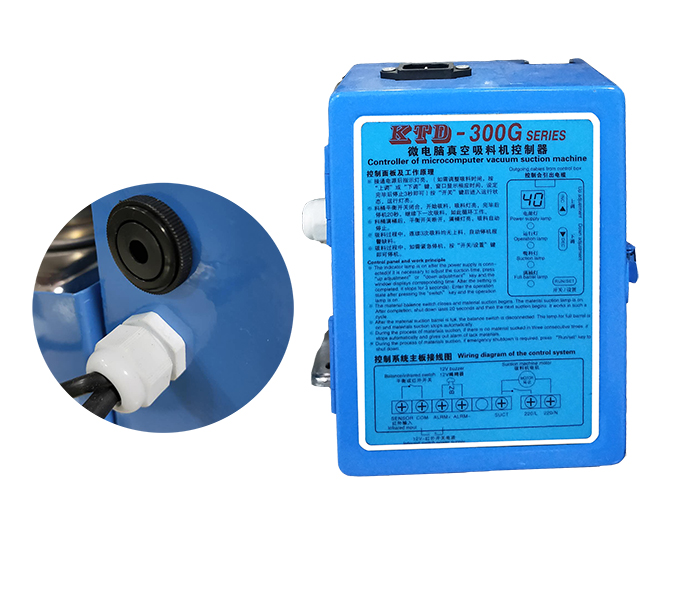

remote control

Microcomputer remote control, equipped with overload and material shortage alarm functions





Audible alarm

Material shortage alarm to ensure motor safety.





cabinet

Simple operation and convenient maintenance.

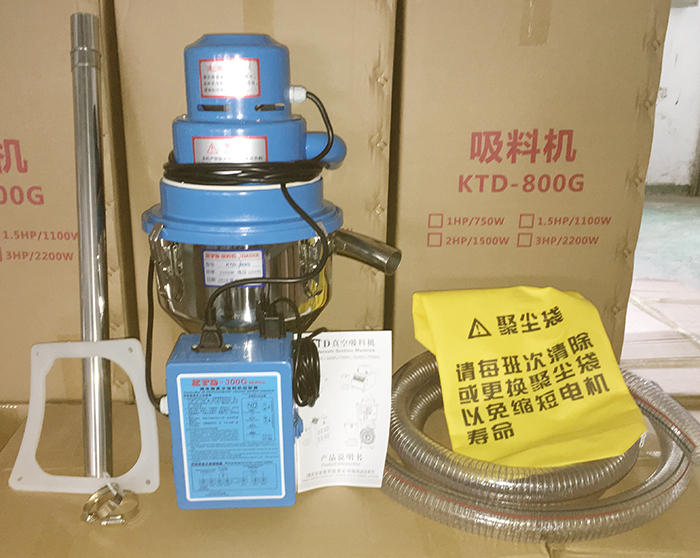

packing list
1
1 loader
2
3m hose 1pc
3
60cm stainless steel tube 1pc
4
1 dust bag
5
1 gasket
6
1 manual
