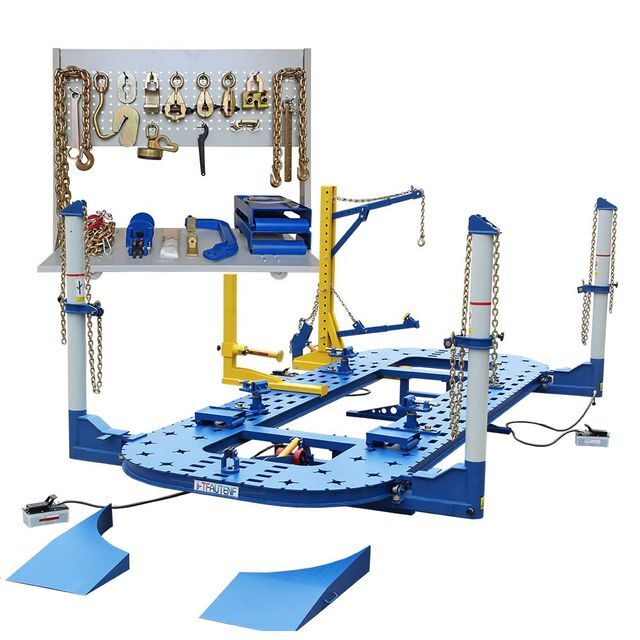

Auto Workbench Collision Repair Equipment/Car Frame Machine/Body Frame Machine

Supplier: Yantai Autenf Automobile Services Co., Ltd.
Region: Shandong, China
Contact: Ms Summer Su
Price: $4150.00 / 1 - 2 sets
$4000.00 / 3 - 5 sets
$3780.00 / >=6 sets
Min. Order: 1 set

Click here to contact

Product details

model:	CB-504LP	Number of towers:	4 or 5 or customized
maximum. Lifting capacity:	3500 kg	color:	blue/dark grey/light grey/custom
Supply capacity:	30 sets per month	Workbench height:	555 mm
Packaging Preview:		weight:	2400kg
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Tower working range:	360 degrees
Packaging Details:	Airworthiness Standard Packaging	Minimum order quantity:	1 set
Model:	A3(8VS),X1(F49),523,X1(E84),3FGC-10,X2(F39),A4 sedan(8EC,B7),3FGL-20,A6 sedan(C5,4B2),4650,335, 3FD-10, Q5 closed off-road vehicle (8R), Q3 (G2B), 1000 (KP3_), 5650, 4660	Lifting Type:	tiltable lift
Warranty:	1 year	port:	Qingdao, Tianjin, Guangzhou, or as required
Auto Parts:	BMW - Europe, BMW (BRILLIANCE), Agco Allis, AUDI (FAW), Toyota	Certification:	CE and ISO
year:	1999-2005, 2005-2008, 2019-, 1991-1997, 2009-, 2006-2010, 1969-1988, 2019-, 1994-2000, 2019-, 1991-1997, 1976-1994, 1978-1983, 2003- 2008, 2012-, 1980-1994, 2014-	Platform Material:	Manganese steel
Table Length:	5600/5800/6000 mm	Power unit:	Pneumatic Hydraulic
product name:	car bench	place of origin; place of origin:	Shandong China
Table width:	2200 mm	brand:	TFAUTENF
Lata Abilities:	10 tons

Product Description

feature

1,Square holes and cross holes on the platform, 4 clamps can be fixed without any blind spots, cross holes and chains can help fix the car.

2, can be tiltedManganese steelPlatform, convenient for vehicles to get on and off.

3. 2 round towers, 1 square tower, and 1 small push tower. The combo expands traction and repair. Each tower can run 360 degrees along the platform.

4. The paint is adsorbed on the surface by high-voltage electrostatic force, with high adhesion and not easy to peel off.
5. Dead car trolley and wheel brackets help to easily load vehicles with damaged wheels onto the platform.
6. Standard air pump, optional electric pump.
7. The hydraulic system has large tractive force, long service life and few failures.
8. High-strength traction accessories can restore any car deformation.

Specification

Product Specifications			work specification
product name	Platform / frame machine	lift	Lift from one side
workbench material	Manganese steel	traction	10 tons
bench length	5600/5800/6000mm/custom	Towing range	360 degrees
table width	2200mm	Push Tower	10 tons
Maximum lift height	555mm	lifting capacity	3500kg
Lata	2/3/4 pieces	power unit	Pneumatic Hydraulic
Push Tower	1	hydraulic	70 MPa
Accessories	fully	air pressure	0.65-0.8MPa

detailed picture

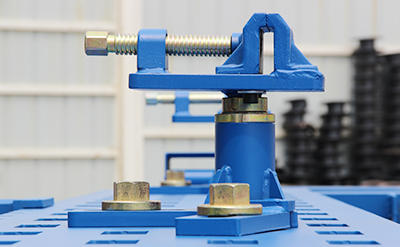

Vice clip

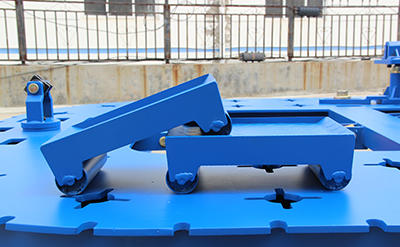

dead car

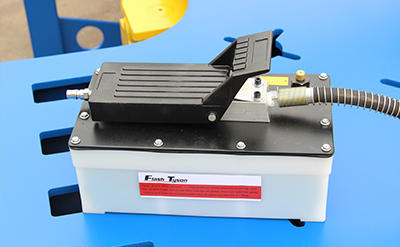

Pneumatic foot pump

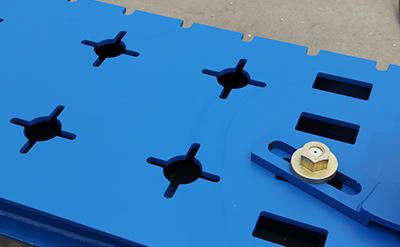

Cross hole on platform

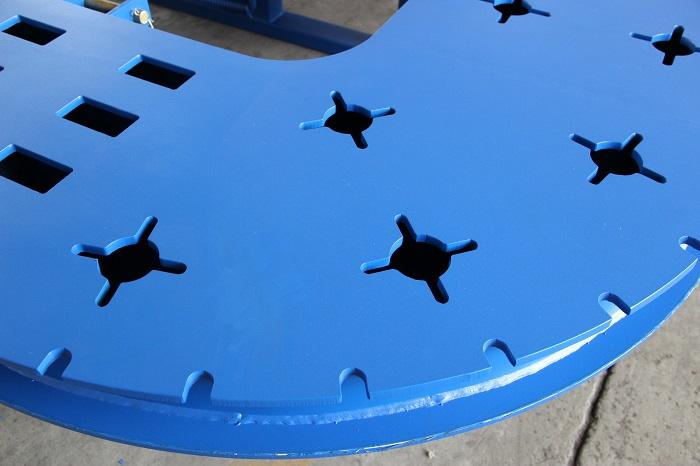

Cross hole in the corner

small push tower

Round Rata

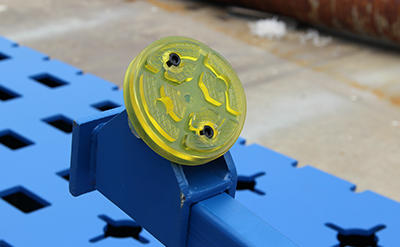

quick fix

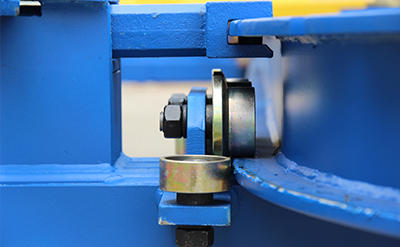

wheel

jack on square rata

Square Rata

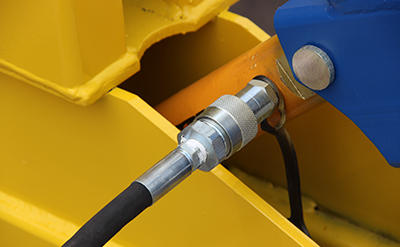

tubing

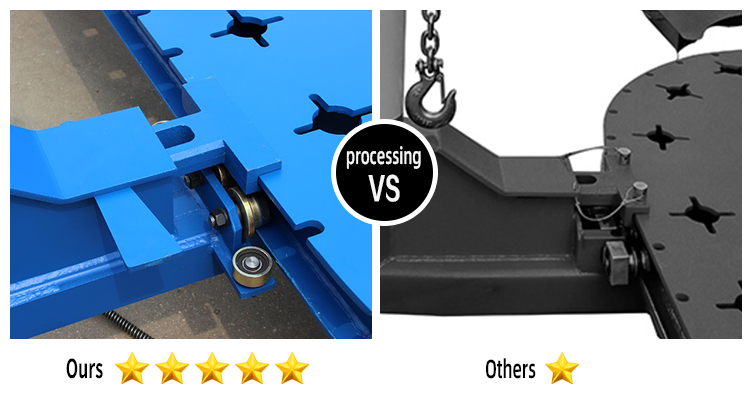

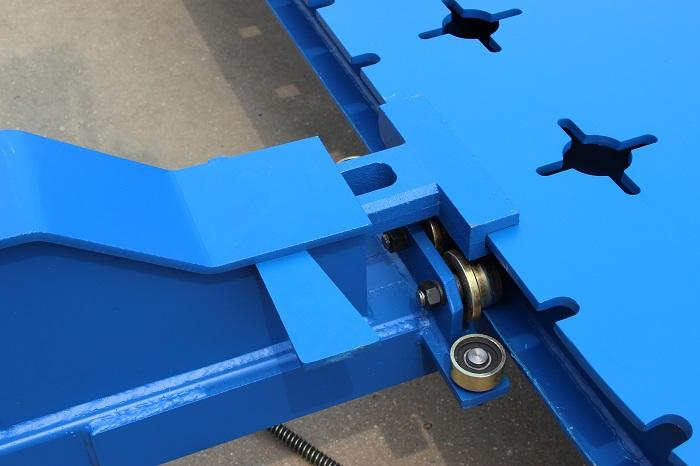

Comparison of Rata Fixing Methods

Our fixings are easy to operate, stronger and have a longer lifespan. However, in the fixing method shown on the right, after a period of operation, the circular hole into which the bolt is inserted is easily deformed into an oval shape, which will lead to instability of the fixed tower.

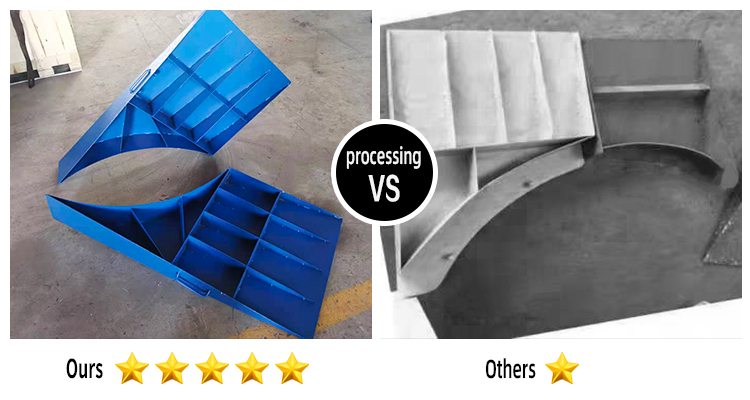

ramp comparison

Our clamps are made of more material and have greater load-carrying capacity.

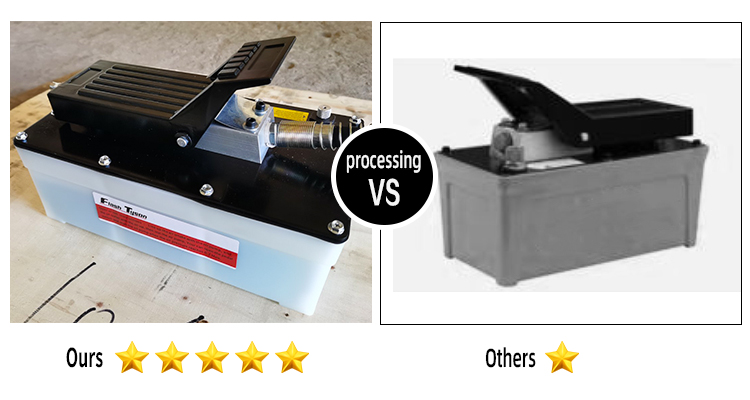

Air Foot Pump Comparison

Our air pump material is PE, durable and anti-drop, it will not be damaged even if it falls many times;

A little transparent, you can observe the amount of oil inside;
The screw will not slip after multiple disassembly and assembly;
The volume is larger and can hold more oil.
And some offer this kind of air pump with a metal casing.
