5 Ton Folding Arm Hydraulic Marine Crane Low Price Marine Harbor Crane
-
Supplier: Xuzhou Haoyi Construction Machinery Technology Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms sunny ji -
Price: $9800.00 / 1 - 1 sets
$9600.00 / 2 - 4 sets
$9400.00 / >=5 sets -
Min. Order: 1 set
Product details
| Mechanical test report: | if | place of origin; place of origin: | Jiangsu, China |
| Maximum working radius: | 8.2m | feature: | floating crane |
| Rated load capacity: | 5 tons | color: | selected |
| brand: | good art | payment terms: | L/C,Western Union,T/T |
| Weight (kg): | 1100 kg | After Warranty Service: | spare parts |
| Core Components Warranty: | 1 year | port: | Lianyungang/Qingdao/Shanghai |
| Packaging Preview: | Core components: | Bearings, Gears | |
| Local service location: | not any | Showroom location: | not any |
| After-sales service provided: | Online support | maximum. Lifting height: | 10.5m |
| Health status: | new | Packaging Details: | Bare parts, spare parts and tools in standard export boxes |
| Warranty: | 1 year | Certification: | ISO9001 |
| application: | ship, port, harbour | Rated lifting torque: | 10T.M |
| Video external inspection: | if | Applicable industries: | construction project |
| Supply capacity: | 50 sets per month | Marketing Type: | New Products 2020 |
Product Description

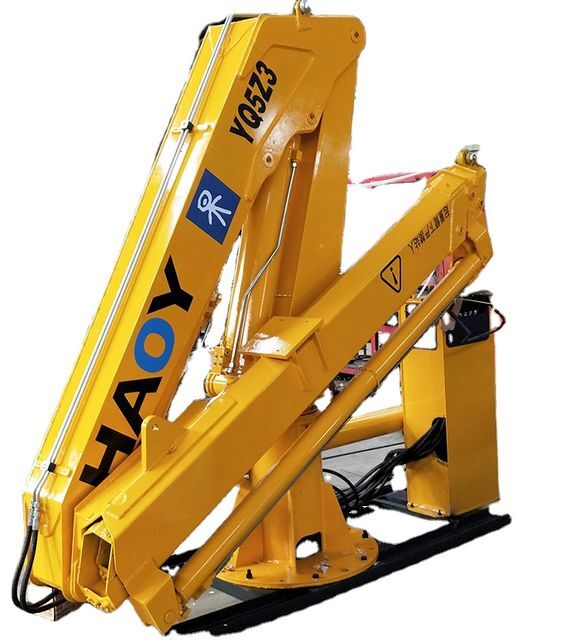

5 Ton Folding Arm Hydraulic Marine Crane Low Price Marine Harbor Crane
Haoyi YQ5Z3 Knuckle Arm Marine The main structure of the crane is made of high-strength steel plates. The crane adopts double telescopic oil cylinders, hydraulic winches, and integral rotary drive; the operating system adopts wireless remote control and bilateral handles to realize remote operation, which is convenient and safe.

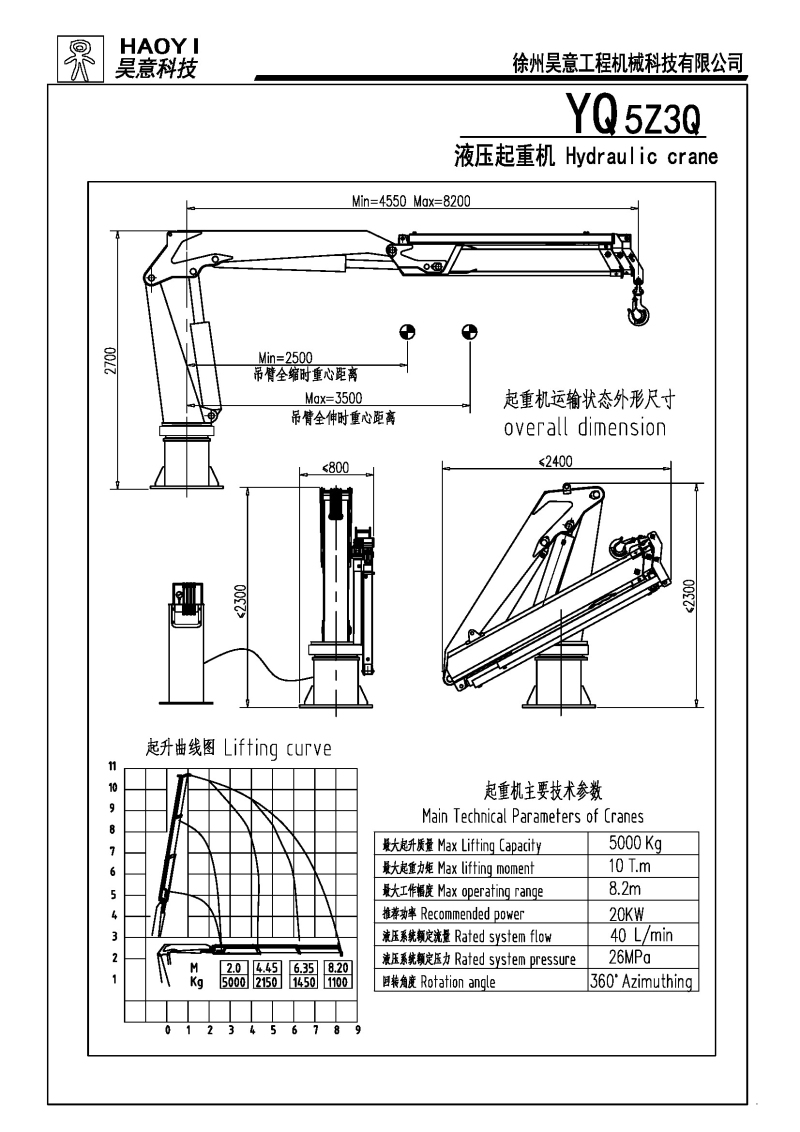

thing | unit | YQ5Z3 |
SWL (Secure Workload) | Ton | 5.0 |
Maximum working radius | Meter | 6.5 |
Minimum working radius | Meter | 0.5 |
winch lifting height | Meter | 10 |
Slewing angle | . | 360° |
Lifting speed | m/min | 0~10 |
Rated system flow | L/min | 40 |
Rated system pressure | MPa | 26 |
Inclination working conditions | . | Vertical 5° Horizontal 3° |
Crane weight | Kilogram | 1450 |

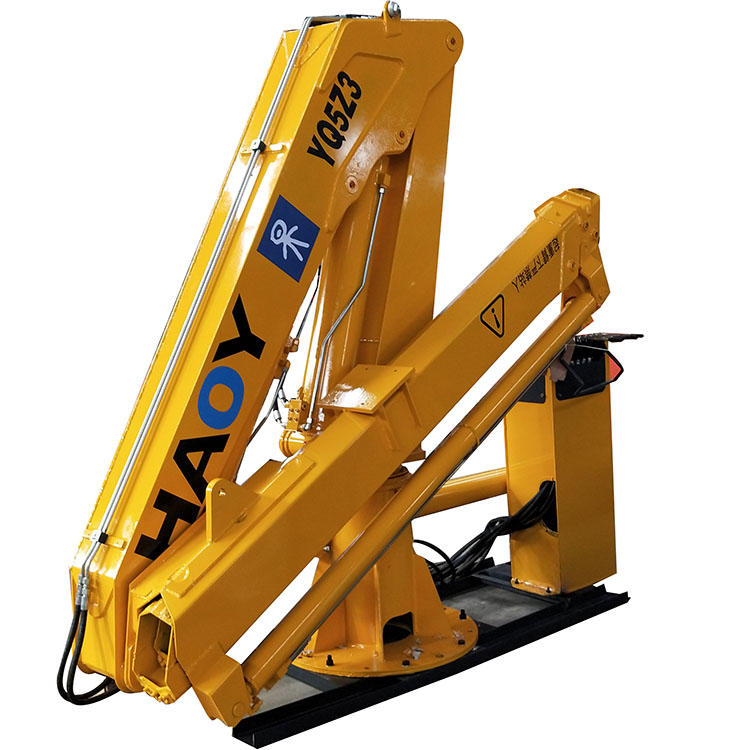

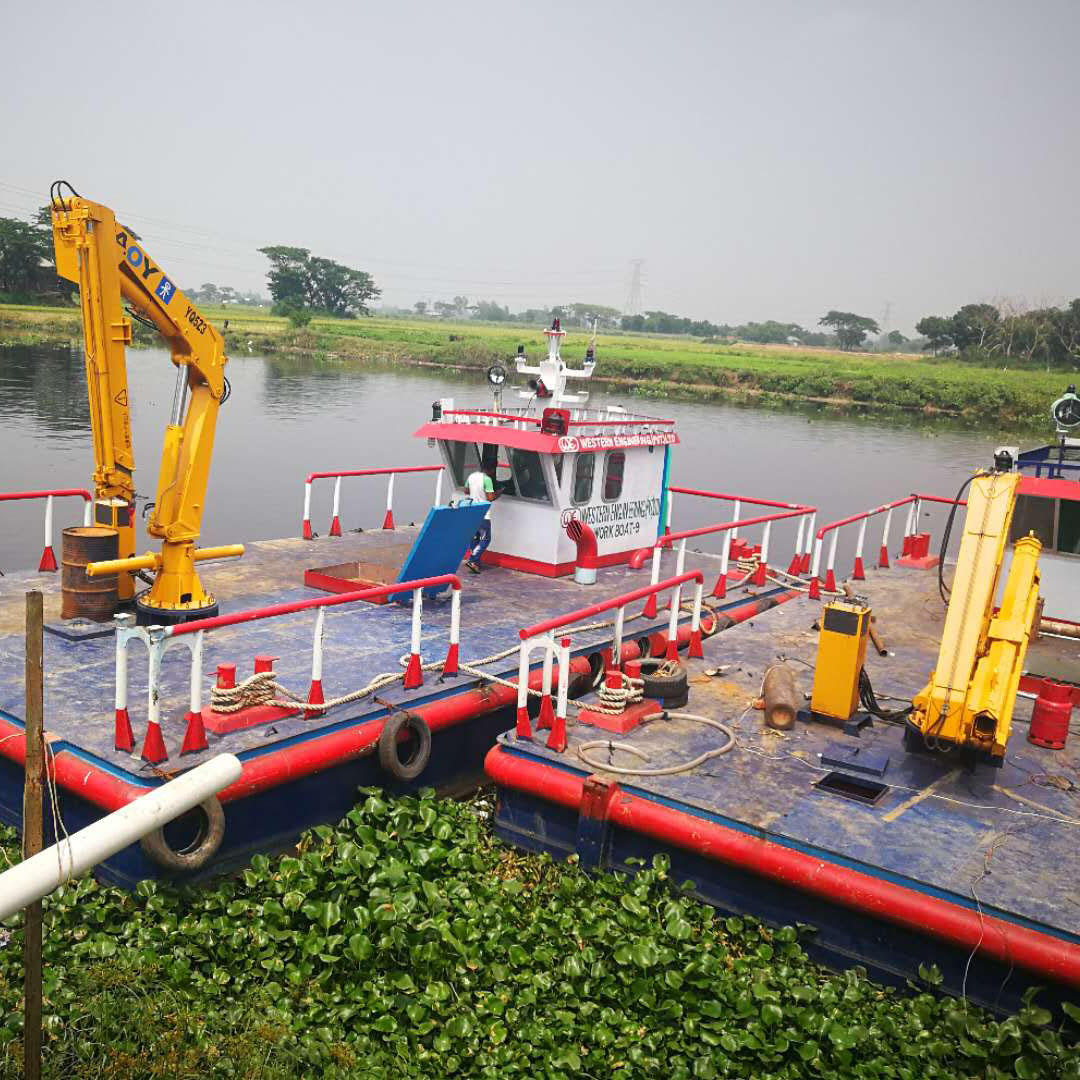

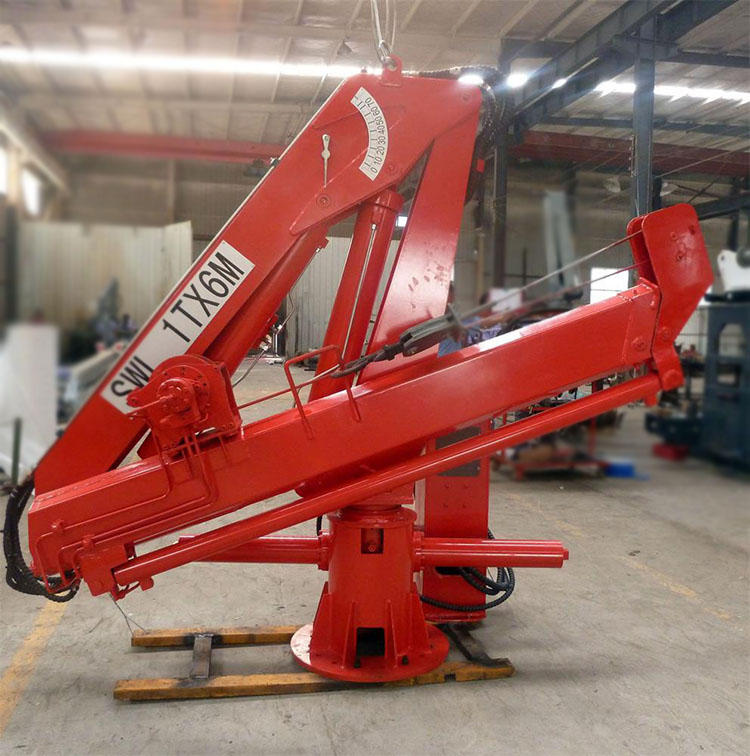

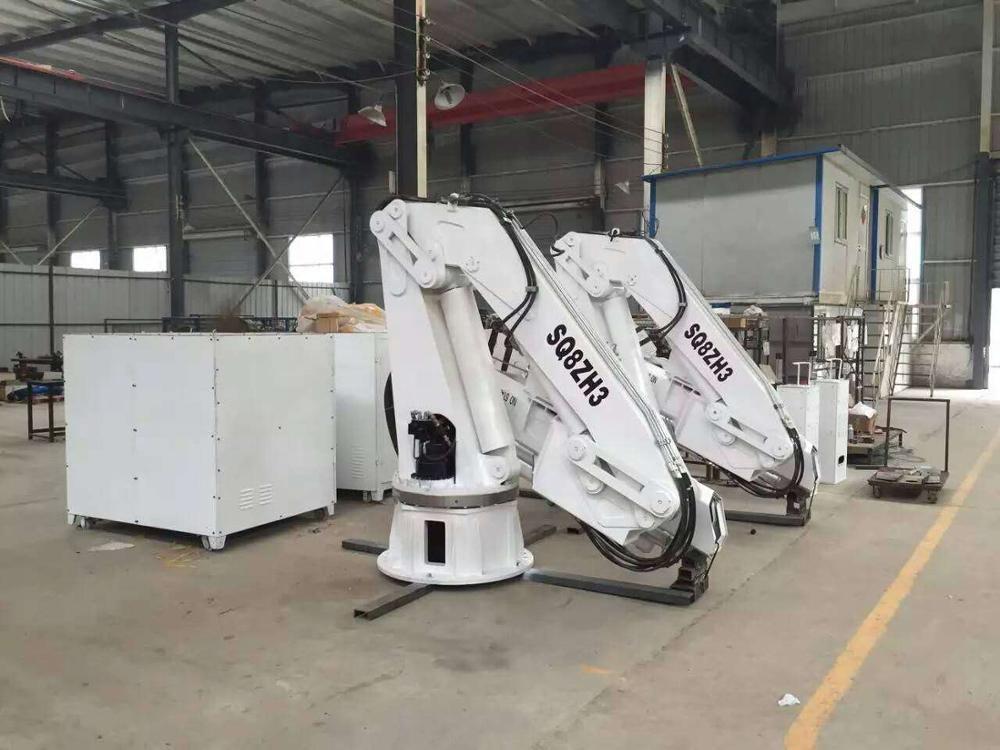

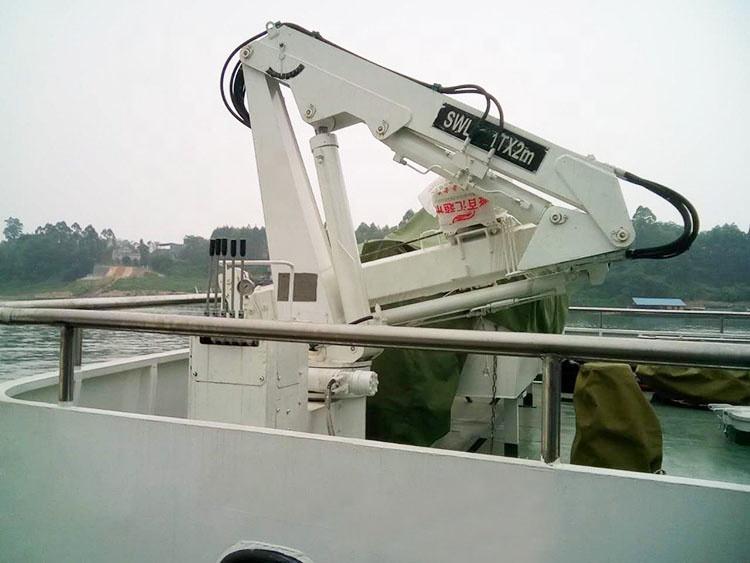

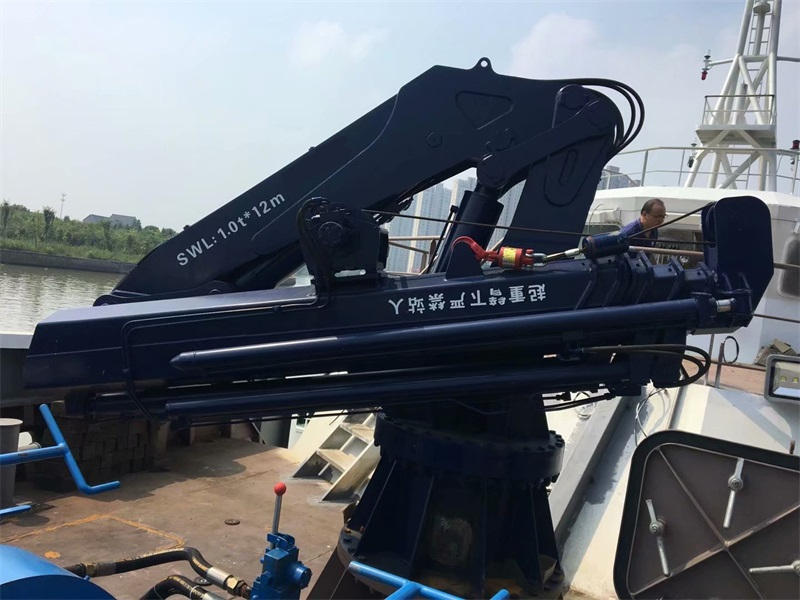

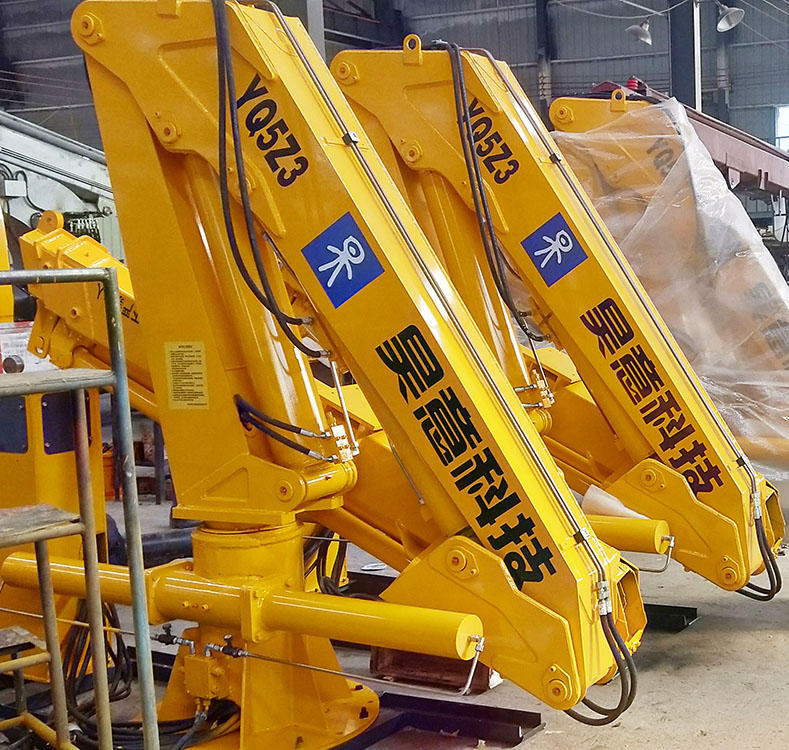

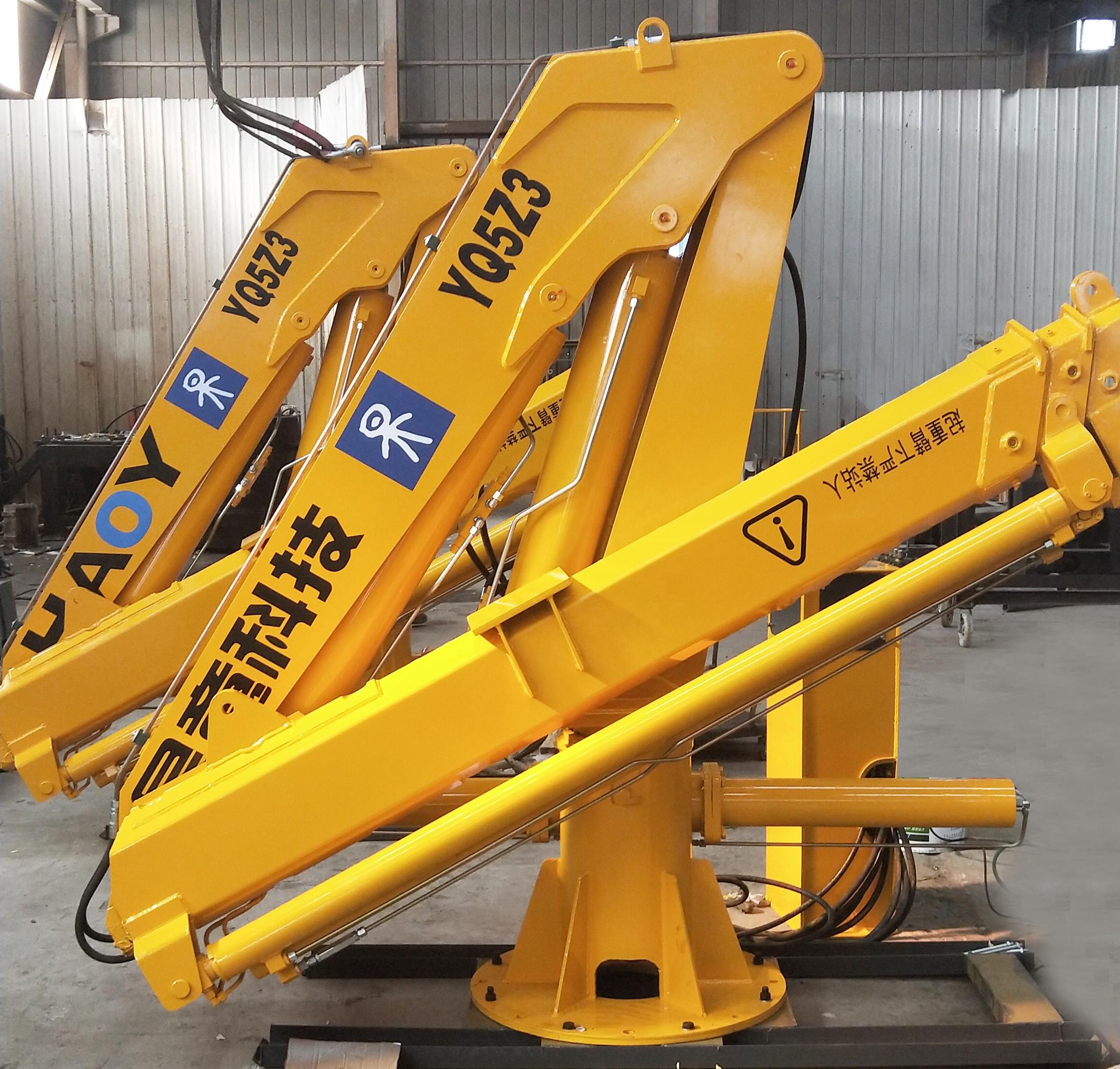

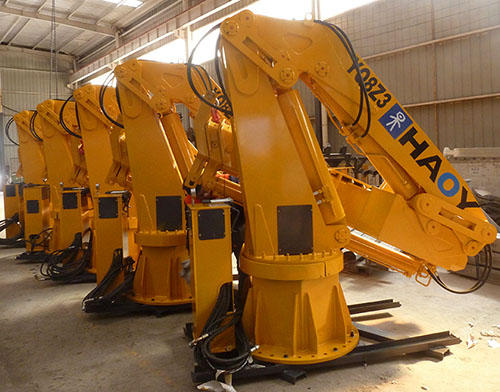

real photos
Our advantage

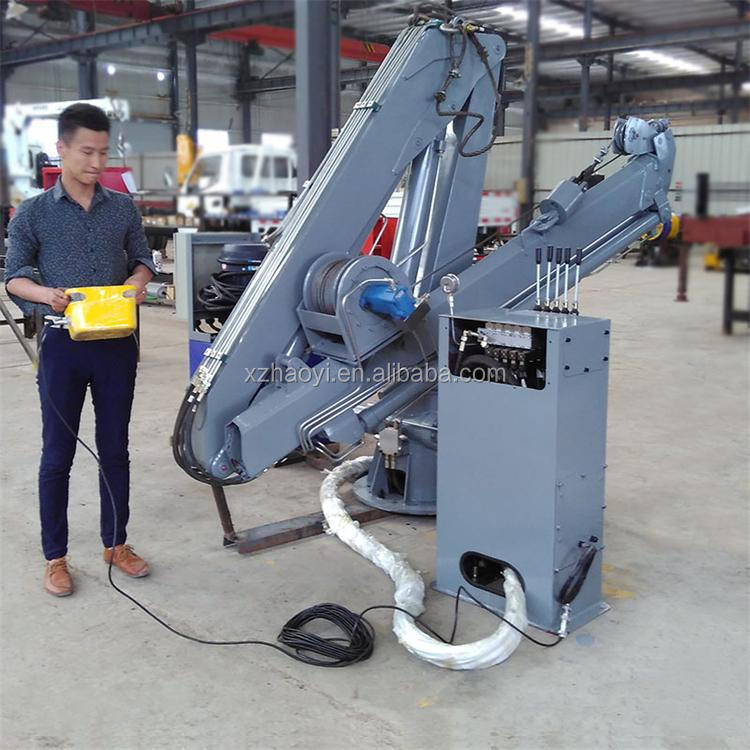

remote control
Can operate truck cranesWireless remote control, safe, convenient and efficient. In addition to lifting operations, aerial work baskets can also be installed to achieve aerial work functions, and one machine can be used for multiple purposes!
