Supply Ability: | 10000 Piece/Pieces per Year; | Power Type: | Diesel; |
Power(W): | 125.0-161.7KW; | After-sales Service Provided: | Engineers available to service machinery overseas; |
keywords: | Plough; | Warranty: | 1 Year; |
Packaging Detail: | COMPLETELY INSTALLED/PALLET; | Delivery Detail: | 20 days; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Port: | QINGDAO; |
Condition: | New; | Place of Origin: | China (Mainland); |

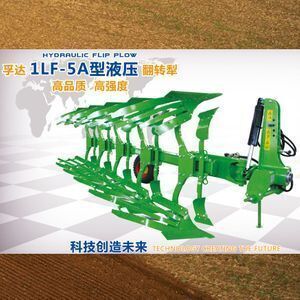

Model Number: | 1LF-5A; | Type: | Farm Cultivator; |
Use: | Ploughing; | Brand Name: | FUDA; |
Certification: | ISO9001; | Dimension(L*W*H): | 5860*3280*1820mm; |
Weight: | 2080kg; |
*To take high quality material and advanced metal machining technology, every detail shows humanization design.
*Fast in pressing into soil, easy to go through, good soil breaking ability,dual direction reverse, easy to be operated and maintained.
*Plow body is made of specialty steel with special thermal surface treatment, which can endure great impact and owns good abrasion performance.
*The assist wheel can be used both for depth regulation and transportation.
*The flexible hydraulic cylinder helps the plow to reverse freely and smoothly.
*The plow is braked by joint chain between frame and regulation wheel which reduce greatly the impact load in reverse action.
*Interbody clearance and high frame height make the plow easy to go through soil.
Technical Datas
Item | Unit | Specification | ||
Type No. | ------ | 1LF-5A | ||
Structure | ------ | Dual Direction | ||
Product Dimension | mm | 5860*3280*1820 | ||
Weight | kg | 2080 | ||
Matching Tractor Power | kw | 125.0-161.7 | ||
Working Depth | cm | 25-35 | ||
Connection Mode with Matching Tractor | ------ | Suspension | ||
Reversible Structure | Type | ------ | Hydraulic | |
Cylinder | Type No. | ------ | DZ 100/50-282 | |
Quantity | pc | 1 | ||
Plough Body | No. of Ploughs | pc | 5+5 | |
Type | ------ | Slat | ||
Working Width | cm | 165,190,220,250 | ||
Adjustable Working Width Per Furrow | mm | 330,380,440,500 | ||
Wheel (Depth Regulation Wheel /Transportaion Wheel/Tail Wheel) | Type | ------ | Rubber Wheel | |
Quantity | pc | 1 | ||
Depth Regulation Range | mm | 0-400 | ||
Other Cylinders | Type No. | ------ | DZ 100/50-120 | |
Quantity | pc | 1 | ||
Type No. | ------ | DZ 80/40-320 | ||
Quantity | pc | 1 |
