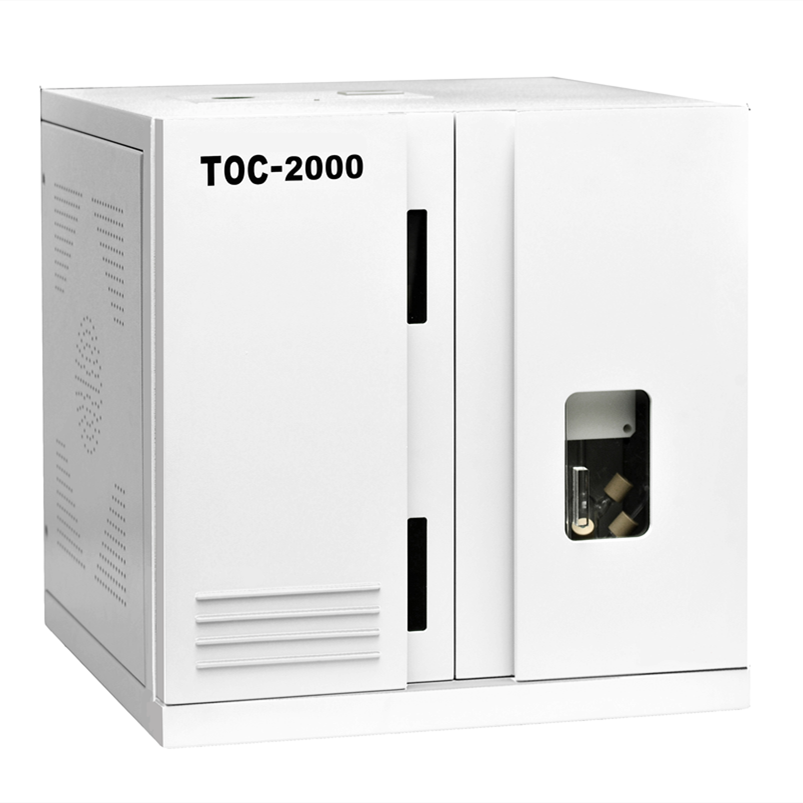

Laboratory Instrument TOC-2000 Total Organic Carbon Analyzer for TC/TIC/TOC

Product details
payment terms:wire transferWarranty:1 year
product name:Catalog-2000Measuring range:0-30000mg/l
parameter:TC/TIC/TOCSupply capacity:1 unit per month
Operation Mode:computer controlaspect:430*455*440mm
Custom Support:OEMport:Shanghai
Certification:Chief Executivemodel:Catalog-2000
brand:Lianhuaplace of origin; place of origin:China Shanghai
type:TOC Analyzer
Product Description

TOC analyzer is an organic carbon analyzer that carbonizes total organic carbon in aqueous solution and measures its content. The total organic carbon in the aqueous solution was quantitatively determined by the corresponding relationship between the carbon content of carbon dioxide and the total organic carbon. It is widely used in the quality control of drinking water, industrial water, domestic sewage, production wastewater, etc., as well as the monitoring of rivers, lakes, oceans, surface water, etc.



feature

1,The signal management system with independent patent law has many advantages such as online setting, real-time monitoring, self-checking, flow rate control, etc., to ensure high performance and safe operation.

2,The low-current system design also ensures safe operation.

3.Different temperature settings for different samples ensure complete digestion of the samples, resulting in more accurate measurement data.

4.Adjust the cooling module power according to the sampling volume, improve the drying performance, and ensure that the drying gas enters the detector.

5.Automatic leak detection system to avoid operational errors, improve instrument performance, and ensure operational safety and instrument safety

6.Flow control system to avoid any impact caused by flow fluctuations and ensure accurate data.

7.TOC detector with 24-bit data solution extends monitoring range. The control system adopts 32bin processing technology, and the performance is greatly improved.





Specification



Model

Catalog-2000

detector

NDIR

parameter

TC, TIC, TOC

Digestive mode

high temperature combustion

operating mode

computer control

application

Liquid samples, gas samples, solid samples

gas demand

Oxygen≥99.995%

Measuring range

0-30000mg/l

detection limit

50 μg/L

Repeatability

3%

maximum salinity

85 g/L

strength

220±10V, 50/60HZ, 1KW

size

430*455*440mm
