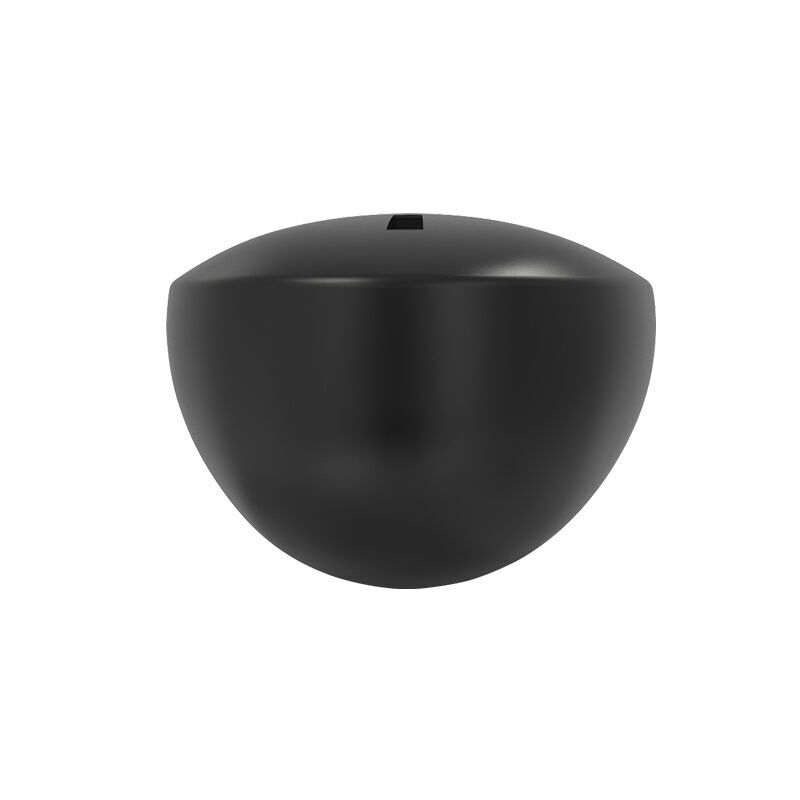

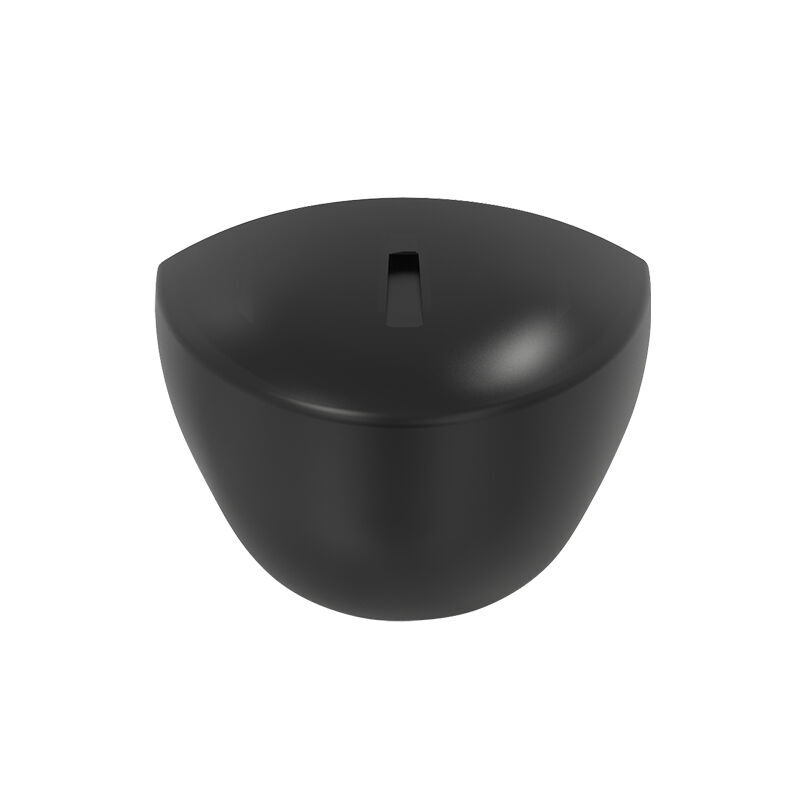

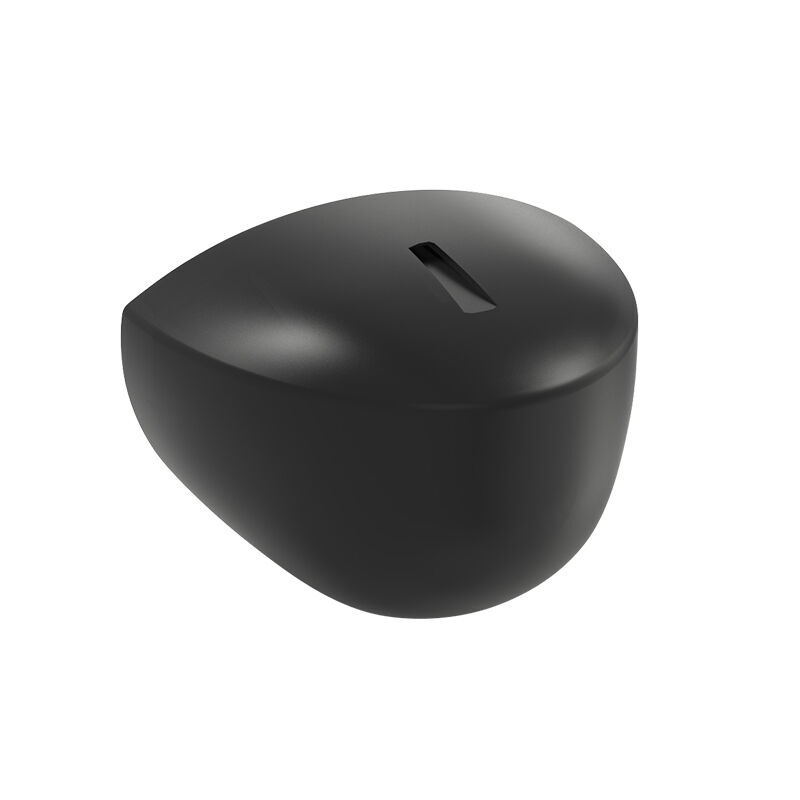

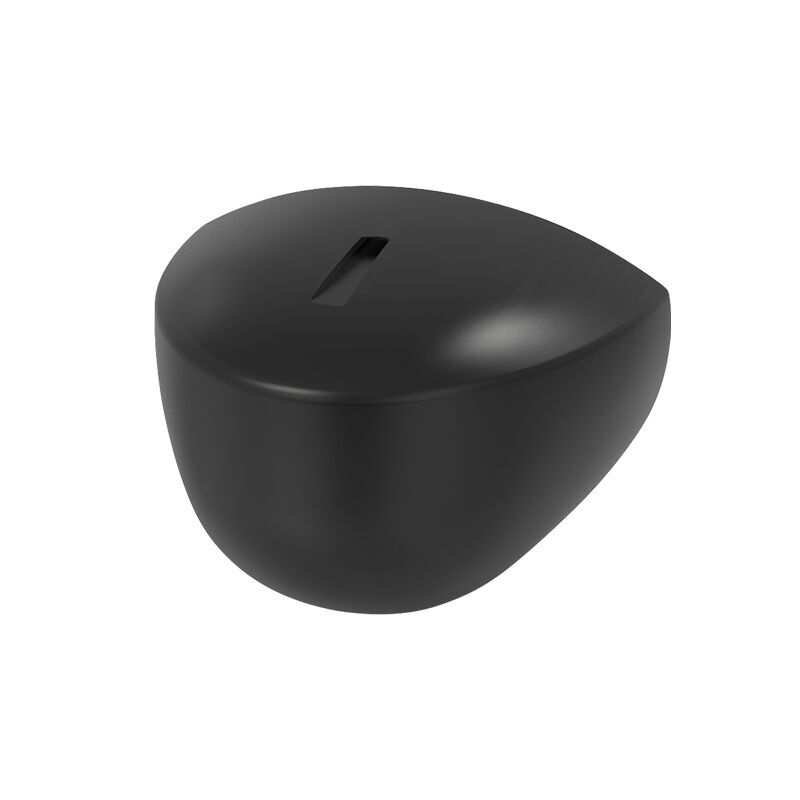

FALCON Automatic Door Microwave Radar Motion Sensor

Supplier: QINUO Electronics Co., Ltd
Region: China
Contact: Mr jerry lin
Price: $23.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Description

Falcon is a radar sensor, which uses microwave doppler technology for activation of door. It can be mounted on all types of standard automatic doors. Falcon 2.0 is with unidirectionality function, to reduce the heat loss from building and save energy.

Feature

Function and Advantages

radar motion sensor for automatic door

Unidirectional and bidirectional detection optional

Intelligently opening & closing

High sensitivity and accuracy

For all kinds of automatic doors

TABLE OF SPECIFICATIONS

Technology:	Microwave doppler radar
Transmitter frequency:	24.150 GHz
Transmitter radiated power:	< 20 dBm EIRP
Transmitter power density:	< 5 mW/cm²
Min. detection speed:	5 cm/s
Supply voltage:	12V - 24V AC -/+10% 12V -24V DC +30%/-10%
Mains frequency:	50 Hz - 60 Hz
Max power consumption:	< 2 W
Output:	solid state relay(free of potential change-over contact
Current max.output:	2A(MAX)
Degree of Protection:	IP54
Mounting height:	1.8 m to 5 m
Temperature range:	-25'C TO +70'c
Dimensions:	80 mm（L) * 60 mm(H)* 50 mm (W)
Angle of inclination:	0' to 90' (vertical direction); -30' to + 30'（lateral direction)
Cable length:	3 M
