type: | Cable crimping and cutting tools | Supply capacity: | 1000 pieces per month |
Battery: | 18V 2.5Ah | Crimping range: | 16 - 300mm2 |
Crimping force: | 19 kN | payment terms: | L/C,Western Union,T/T |
place of origin; place of origin: | middle; philosophy | model: | PZ-300C |
Cutting range: | Diameter 35mm | Packaging Details: | plastic box |
Stroke: | 30mm | Packaging Preview: | |
weight: | 2KG | Charging time: | 50 minutes |
port: | Ningbo/Shanghai |

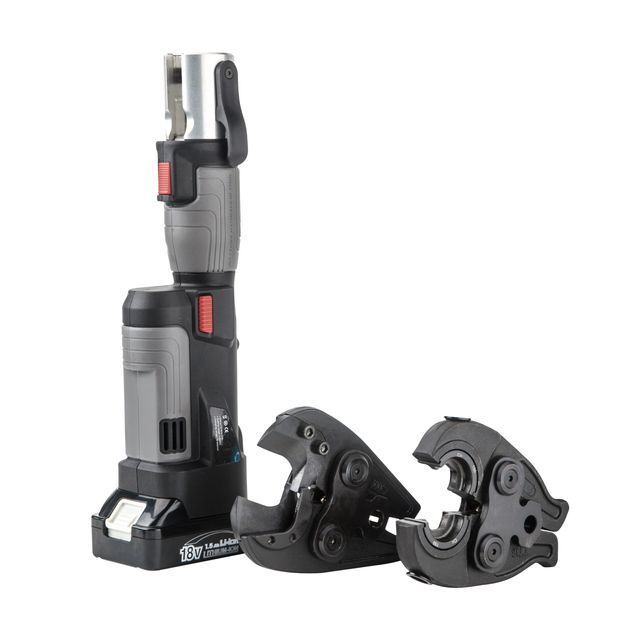

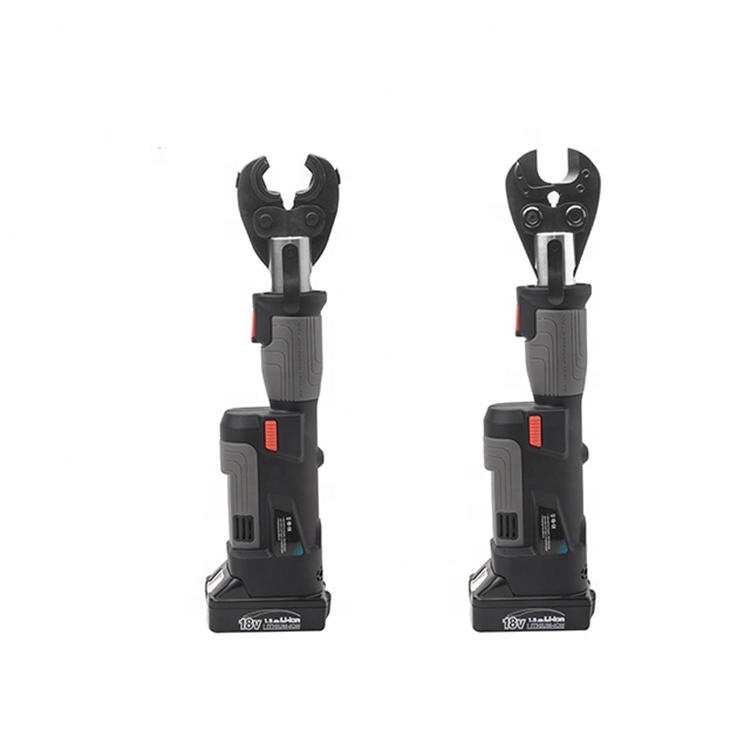

Technical data | PZ-300C | |
preset pressure | 19KN | |
stroke | 30mm | |
crimp range | Copper 300mm²/Aluminium 240mm² | |
Cutting range | φ30mm copper/aluminum cable | |
Voltage/Capacity | 18V/2.5Ah | |
charging time | About. 50 minutes | |
change the voltage | AC 100-240V; 50-60Hz | |

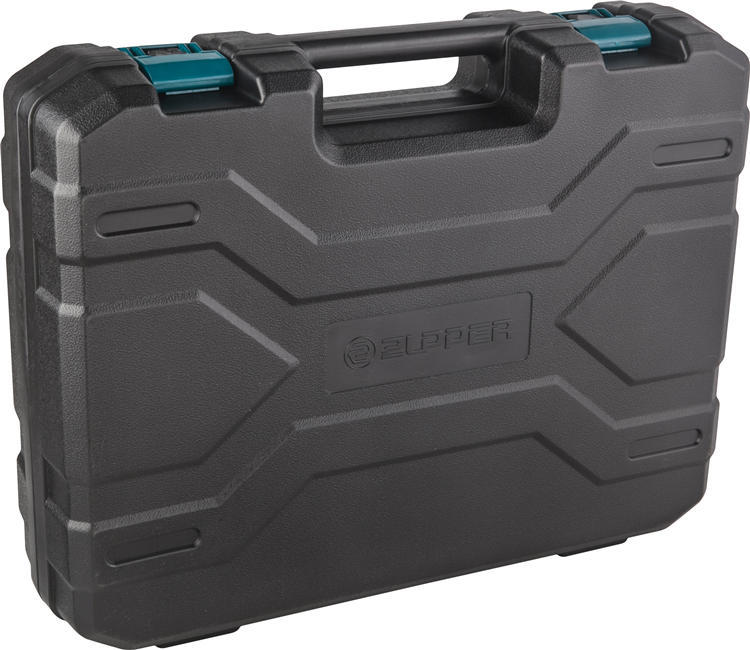

pack | plastic box | |
weight | 2 kg (including battery) | |
3.4kgs (including battery and jaw) | ||
Tool size | 363x119x75mm | |
Accessories | ||
crimping die | 16,25,35,50,70,95,120,150,185,240,300mm² | |
crimp | 1 item | |

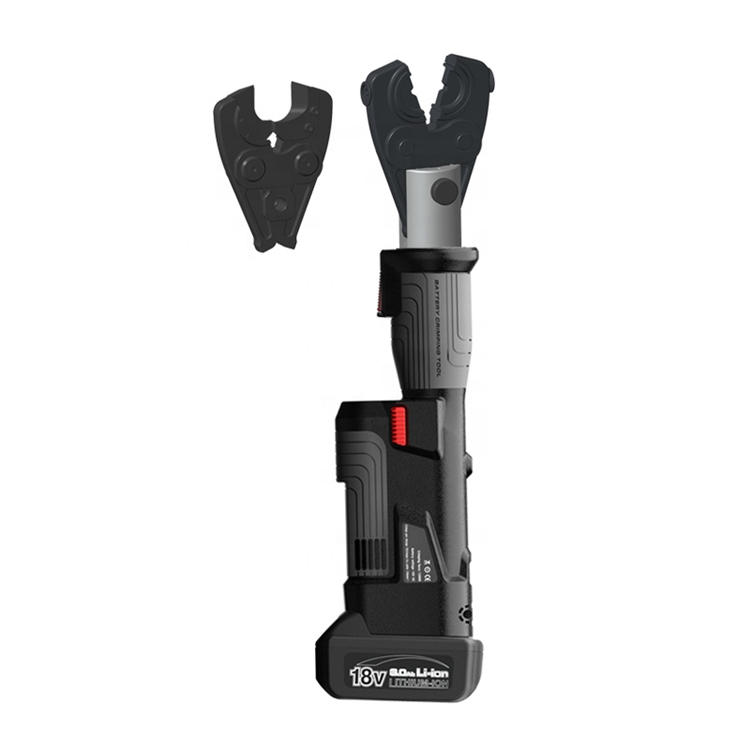

cutting head | 1 item | |
Battery | 2 | |
charger | 1 item | |
sealing ring | 1 set |
