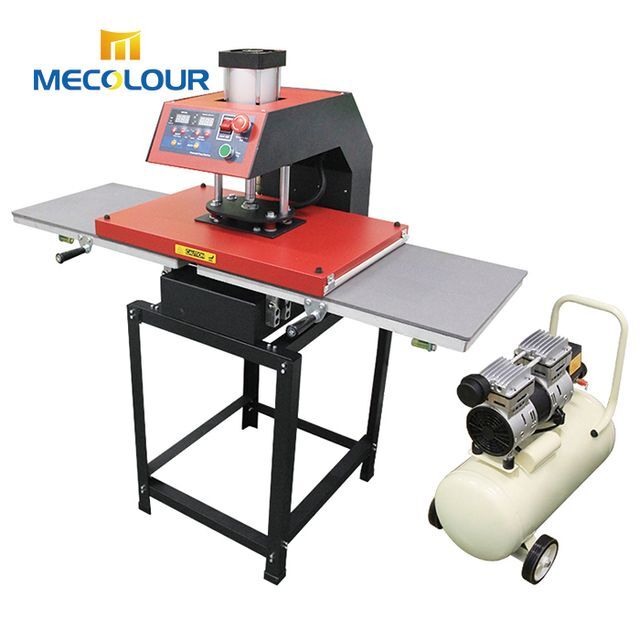

Mecolour Pneumatic Double Station Heat Press (40*60cm)

Product details
type:heaterplace of origin; place of origin:China
Packaging Details:1 set per boxSupply capacity:10000 sets per month
port:Shanghai, Ningbo, Guangzhou, QingdaoDimensions (L*W*H):68 x 70 x 73 cm / 18 x 13 x 115 cm
Voltage:110V/220V, 110V/220Vbrand:OEM Mecolor
payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGramPackage dimensions:68 x 70 x 73/18 x 13 x 115cm
product name:Mecolour Pneumatic Double Station Heat Press (40*60cm)Certification:ISO CE
usage:multifunctionaltemperature range:0 - 399 degrees
color:RedPrinting area:40x60cm
Product Category:cosmetictime limit:0-999S
Health status:newMaterial:Iron plate, aluminum plate, silicone plate, LED display
model:Hot PressWarranty:one year
Delivery Details:7-15 days after receiving depositAfter-sales service provided:Does not provide overseas services
strength:1500W/3200W, 1500W/3200Wweight:80/97KG

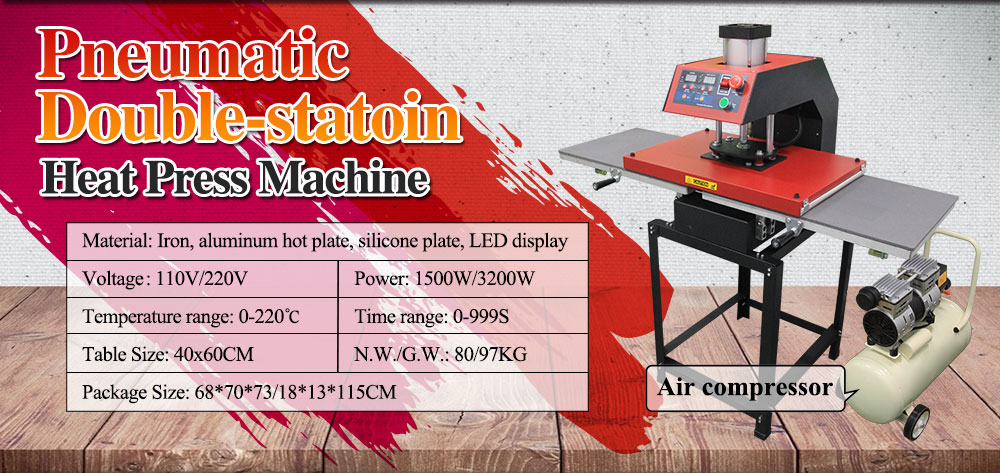

Product Description

Pneumatic double station heat press machine, manual and semi-automatic can be switched automatically. This machine can carry out various thermal transfer printing on cotton, linen, chemical fiber and other fabrics by thermal transfer technology, and can also be used for heat treatment processes such as silk screen printing, mortar, and foaming.


Name:
Pneumatic Double Heat Press (40 x 60cm)
Material:
Iron plate, aluminum plate, silicone plate, LED display
Voltage:
110V/220V
strength:
1500W/3200W
temperature range:
temperature range:
time limit:
0-999S time
Stamping area:
40 x 60 cm
Net/Gross:
80/97KG
Package dimensions:
68 x 70 x 73/18 x 13 x 115cm

feature:

1. Electronic digital control, automatic constant temperature, convenient pressure adjustment, reliable performance and easy operation

2. Good stamping effect, high-quality aluminum heating plate, electric heating pipe and plate casting, fast heat transfer, uniform heating, energy saving and environmental protection

3. The pressure mechanism is made of first-class components, with high pressure, labor-saving, labor-saving, convenient operation, small size and flexibility

4. Brand pneumatic components, accurate action, durable, digital display constant temperature control system, temperature control accuracy (±1 degrees Celsius)

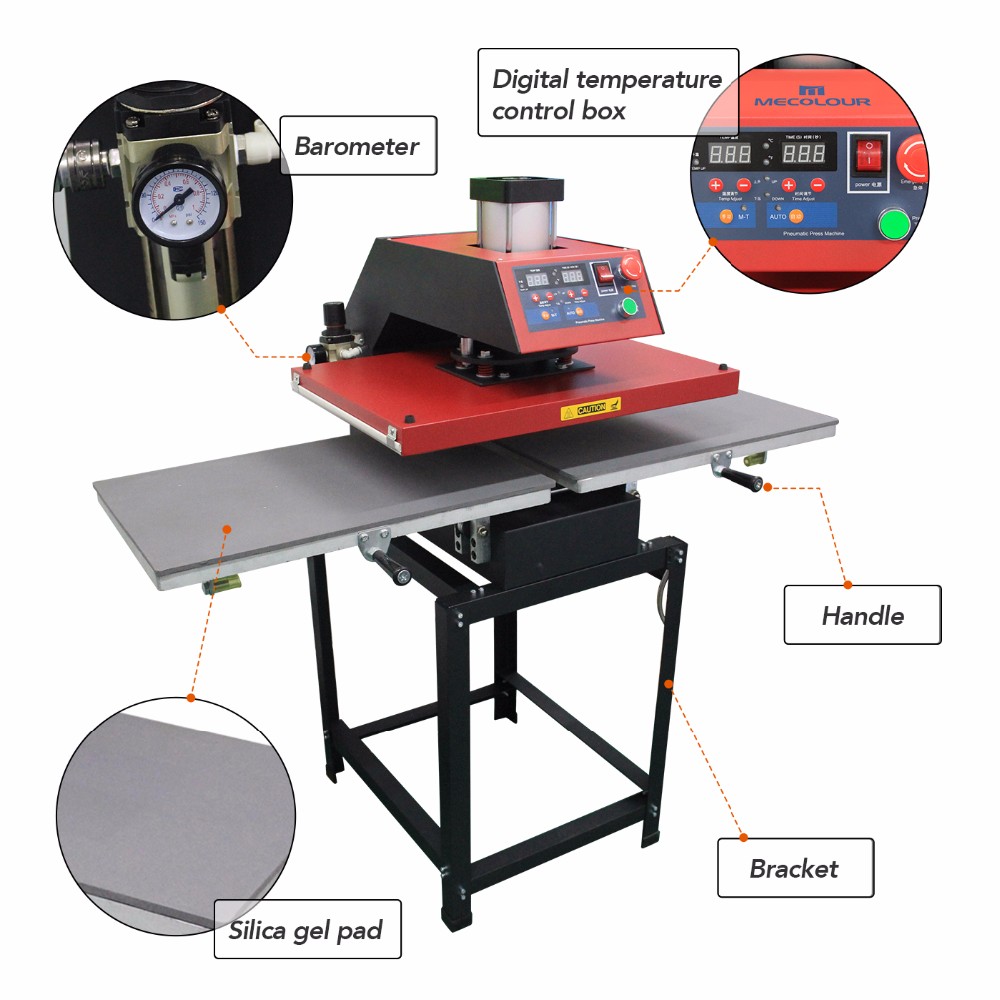

detailed image
Related Products
Setup and Maintenance

Instructions:

1. Plug in the power supply and turn on the power switch; (rated voltage 220V, maximum input power 3200W)

2. Set the temperature, time, and operating procedures: (The temperature of this device is in degrees Celsius)
A. Temperature setting: Press the SET button once, the SP window will light up, press (▲ represents the plus key) (? represents the minus key) to set the temperature, and the setting is completed
B. Time setting: Press the SET button twice, the SF window indicator light is on, press the increase button or decrease button to set the time, the setting is completed, press SET to return to the heating interface

3. Mechanical equipment:
A. Select automatic or manual operation mode; if automatic operation is selected, as long as the worktable slides pneumatically under pressure, the time will automatically return; if manual operation is selected, the middle station slides to the working position of the heating plate, the manual start button, pneumatic pressure, to automatically returns.
B. If the position is found to be incorrect during the stamping process, press the "emergency stop" to stop the pressurization, and modify the clockwise rotation of the "emergency stop" machine to automatically answer the work
C. Pressure: If the pressure is not enough or too large, you can adjust the upward pressure valve of the gas cylinder, increase the pressure in the (+) direction, and reduce the pressure in the (-) direction (please pay attention to whether there is lubricating oil in the cylinder)


maintain:

1. When the heating plate does not heat up or the heating is uneven after setting the temperature, the thermostat and thermocouple should be checked. If the thermostat displays "1", the thermocouple should be replaced.

2. Time: when switching to "manual", press "manual start" will not be pressed, then check the "manual" switch, when switching to "automatic", the pressure plate will not be pressed in place, should check the contact switch Is it in place, if not, adjust it.

3. In case of quality problems, please contact our company in time
