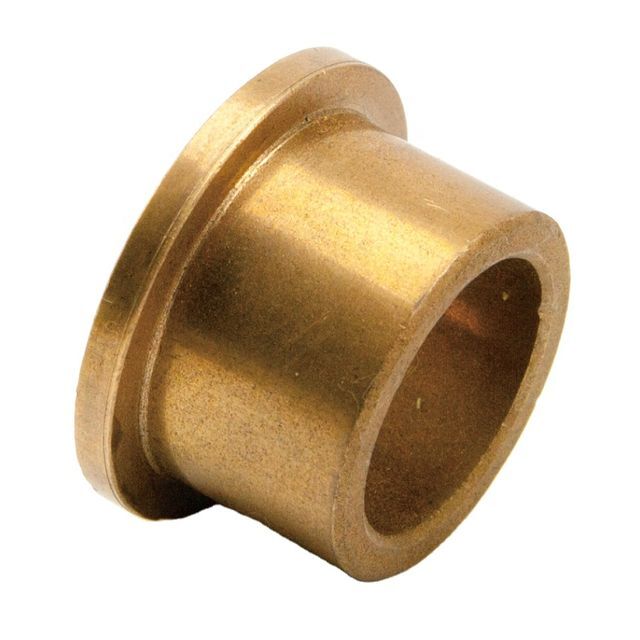

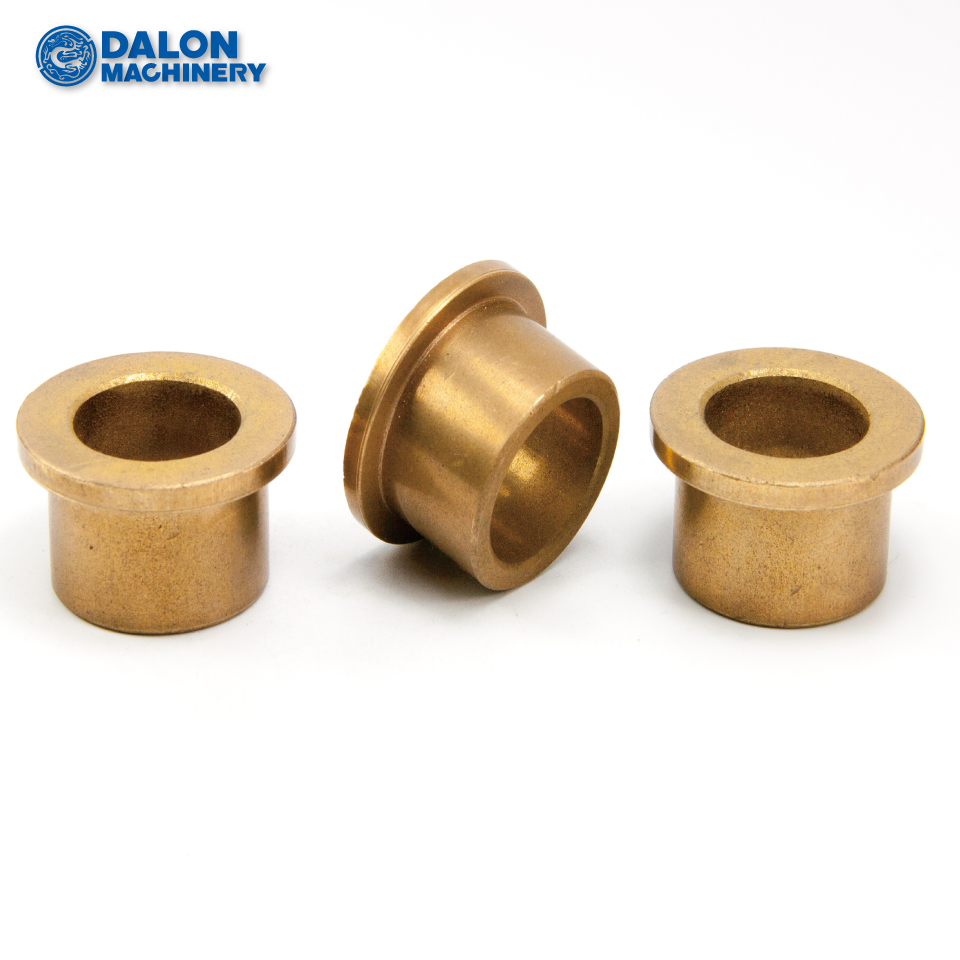

Sintered Brass Oil Impregnated Graphite Bronze Flange Bearing Bushings for Sale

Impregnated Oil Sintered Powder Metallurgy Bushings

Start-up friction causes these porous bronze bearings to release a thin layer of oil on the bearing surfaces. They are also called porous bearings.

NOTE: Dynamic load capacity is the maximum load that the bearing can carry at a given shaft speed. If the load and speed of the bearing are below the listed values, the bearing should be suitable for your application.

DALON self-lubricating sintered bearings have some advantages over other types of dry plain bearings:

– Reliability.The constant oil presence eliminates the risk of seizing and allows the bearing to operate without wear for thousands of hours.
- economy.Maintenance free, no lubricant required.
- Performance.Capable of working with loads up to 10 MPa and speeds up to 2.5 m/s. The maximum working PV is in the range of 2.45 N/mm2•m/s, but can be exceeded in special cases. Very high dimensional accuracy (diameter up to IT 5) and very low noise.

The main applications of DALON self-lubricating sintered bearings are:
1. Automotive electrical or mechanical equipment, such as:
- Starter.
– Active driving elements:Brakes, steering, gearbox, shock absorbers...
- cool down:Radiators, fans, cooling systems...
– EGR system.
– fuel pump.
– Comfort and safety:Wipers, window regulators, mirrors, seats, sunroofs...
2. Generic or customized low and medium power motors and gearboxes.
3. Linear and rotary actuators, pneumatic, hydraulic and electromagnetic.
4. Household appliances: washing machines, fans, range hoods, shaving machines, hair removal machines, juicers, barbecue machines, air conditioners, hand tools, coffee machines, wishing machines, vacuum cleaners, lawn mowers, boilers, etc.
5. Household appliances: locks, garage doors, awnings, roller shutters, sliding windows, office swivel chairs, trolley wheels, hinges, furniture, gardening, etc.
6. Industry: bottling machinery, woodworking machinery, general assembly machinery, automation, key duplicating machines, sewing machines, industrial vehicles, electrical switchgear, mobile, medical, catering, agricultural machinery, toys, etc.

Dalong can also provide the above series of powder metallurgy products

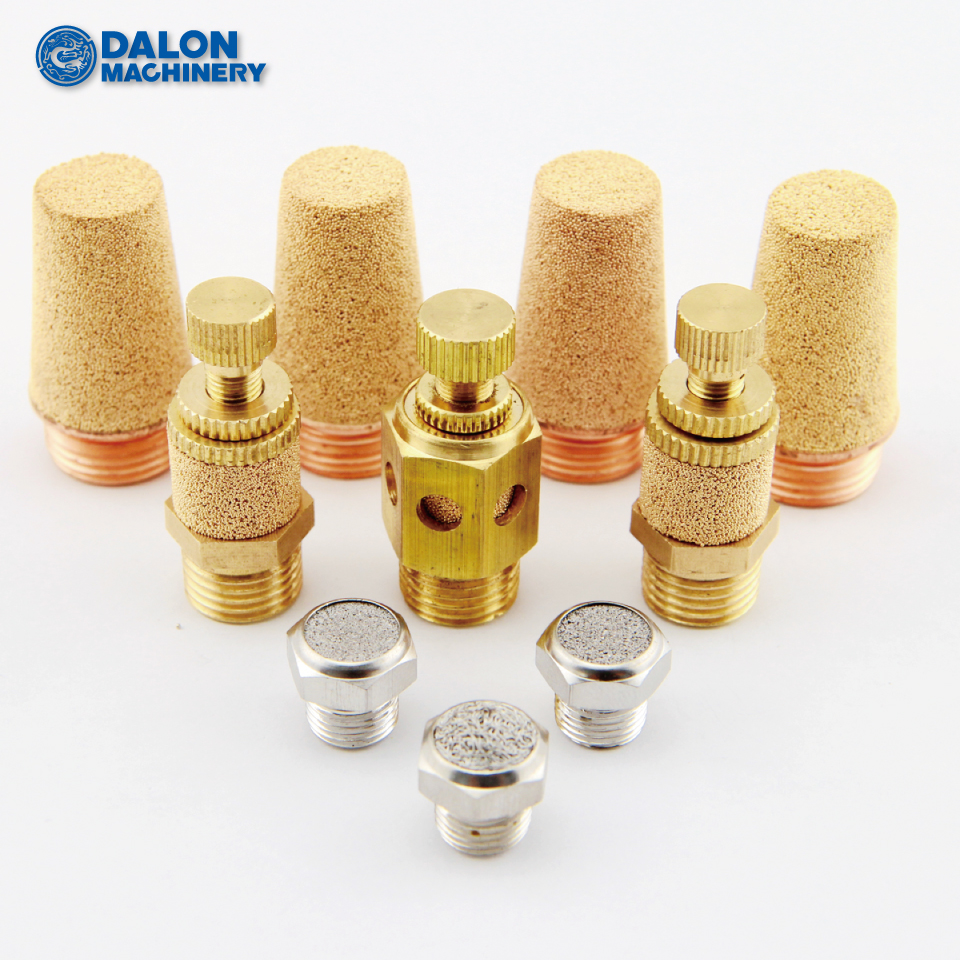

- Plug-in Muffler Pneumatic Muffler

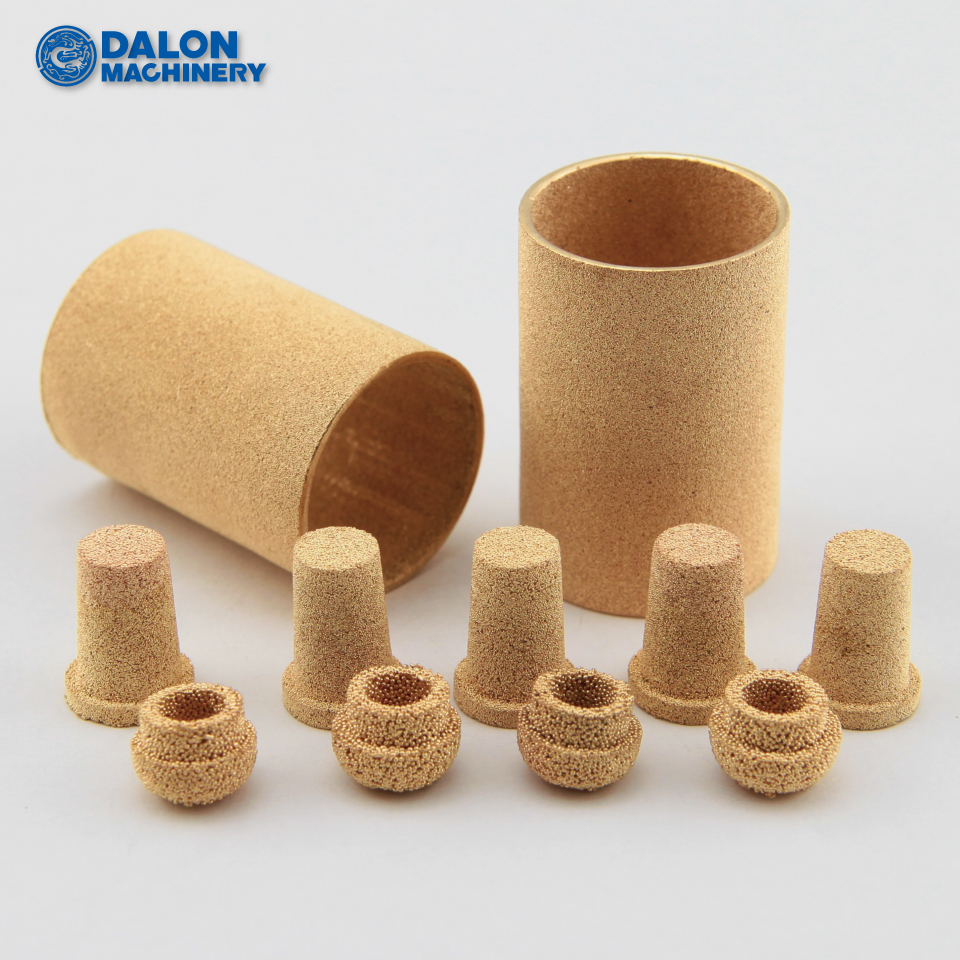

- Material Bronze/stainless steel/PE sintered powder metallurgy filter

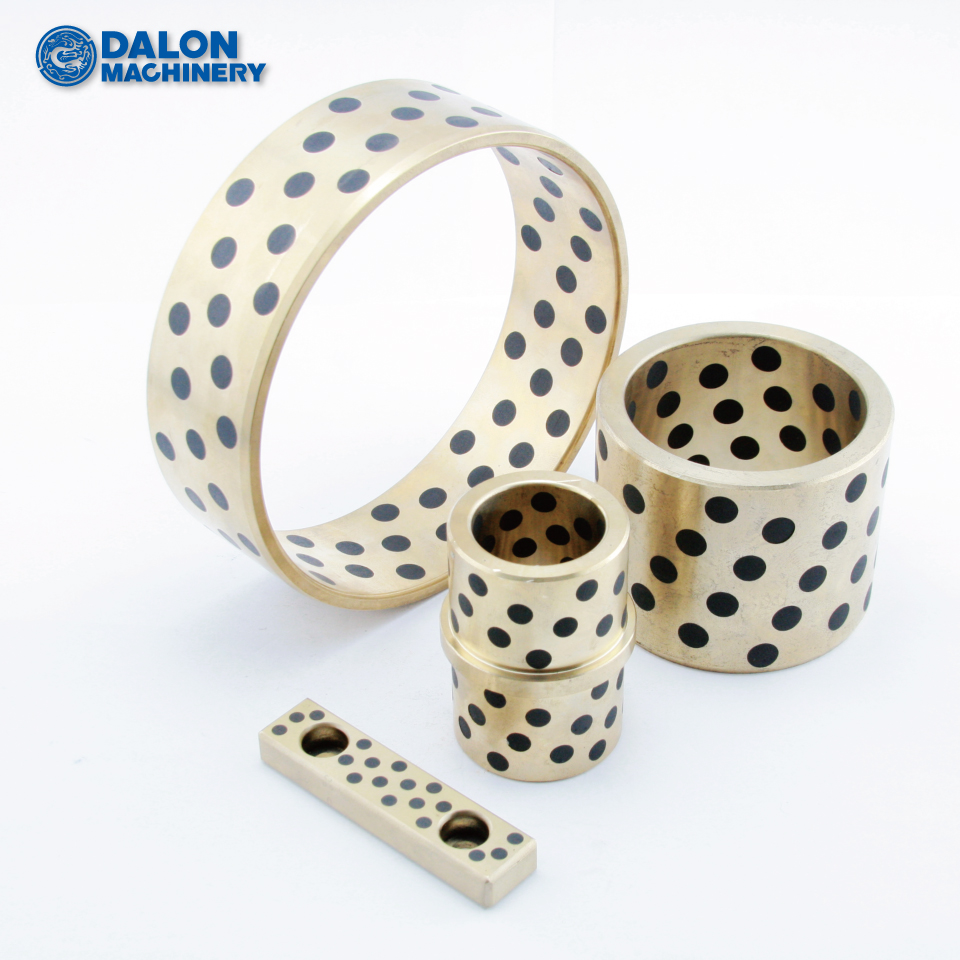

- Oil-free plain bearing with sintered bronze layer / PTFE

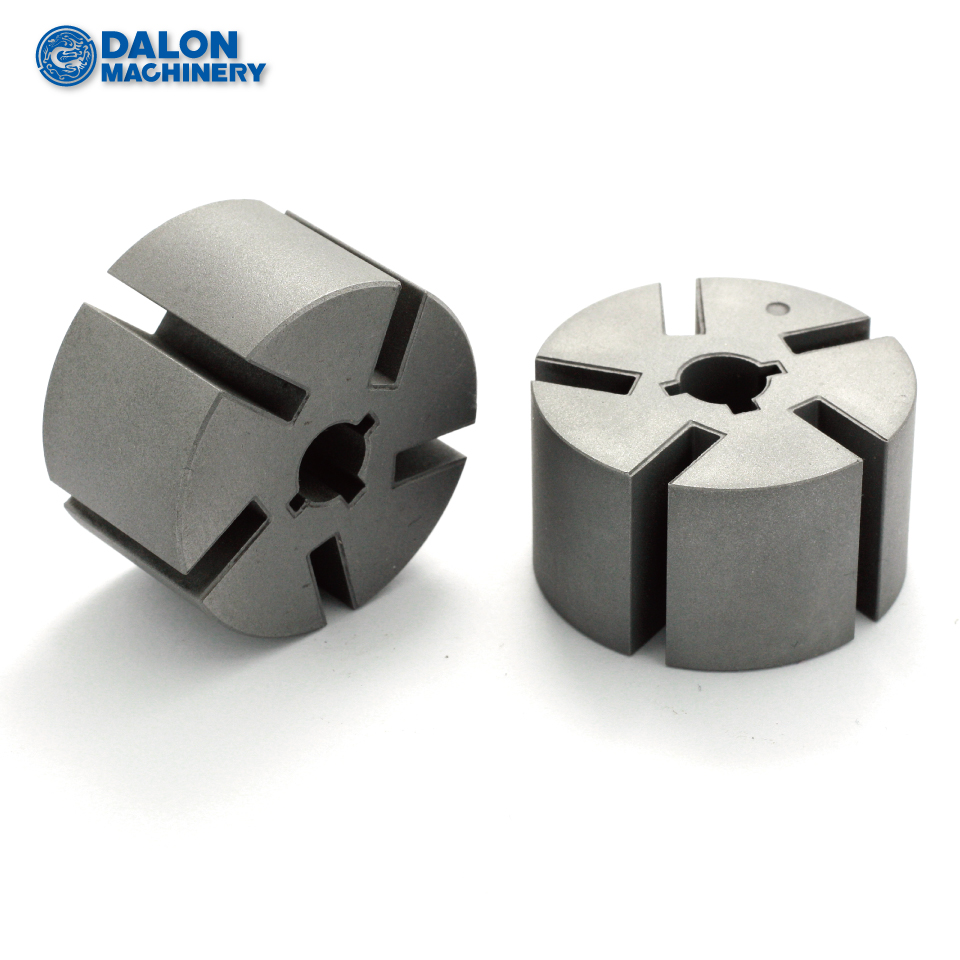

- Sintered parts/gears/rotors/special design parts

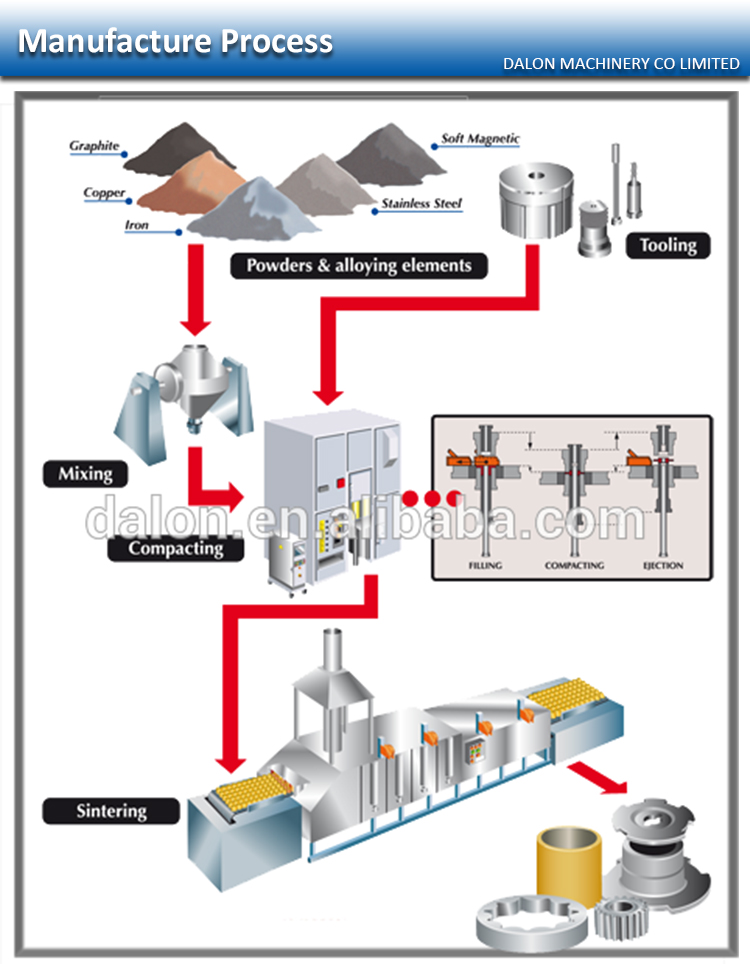

The manufacturing process of sintered components proves to be ecological, as material waste is very low, the product is recyclable, and because the material does not melt, it is energy efficient.

1. Raw materials/mixing

Sintered powders can be pure metals (iron, copper) or alloyed powders (bronze, steel, etc.) mixed with different alloying elements, depending on the composition of the final material (eg graphite, nickel, copper...), with organic solid lubricant.

2. Tools/Compact

The powder mixture is compacted inside the mold, which has the negative shape of the final part. The tool is a very precise and durable element. The powder is filled by gravity into the tool cavity of the mixer and is subjected to a pressure of 200 to 1500 MPa depending on the final density to be achieved.

3. Sintering/Inspection

Sintering in a continuous furnace at controlled speed, in a chemically controlled atmosphere, at temperatures between 750 and 1300°C, depending on the material

The result of these basic operations is a metal part with a certain microporosity, high dimensional accuracy and perfect functionality.
