Wireless 2.1 power amplifier board TPA3116 TPA3116D2 digital subwoofer HIFI subwoofer audio power amplifier board 50W*2+100W

Product details
port:Shenzhenchannel:3 (2.1)
Frequency response:20Hz to 20KHzsize:101*100*25mm
model:TPA3116D2Work efficiency:90%
place of origin; place of origin:Guangdong, ChinaPackaging Details:Yes
type:home amplifierbrand:The original
Quiescent Current:50mARated output power:2*50W+100W
Supply capacity:10000 pieces per weekwork method:Class D
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,paypal RMBOperating Voltage:DC 11-25V

Product Description

Wireless 2.1 power amplifier board TPA3116 TPA3116D2 digital subwoofer HIFI subwoofer audio power amplifier board 50W*2+100W



this is a supportBT 4.2 audio receiver with preamp, Bass crossover processing. With bass, left and right channel volume adjustment, treble adjustment, total volume potentiometer control 2.1 power amplifier board.

Use DC power supply: 12-24V power supply, maximum support 50W (left channel) + 50W (right channel) + 100W (bass channel) three-channel output.

It adopts TPA3116D2 high-performance digital power amplifier chip of American TI company as the core, parallel bridge subwoofer output, and do left and right channel output.

Wide operating voltage, power saving design, efficiency up to 90%. You can use a switching power supply with good performance, a notebook switching power supply, a charging bottle, or a car power supply, etc.

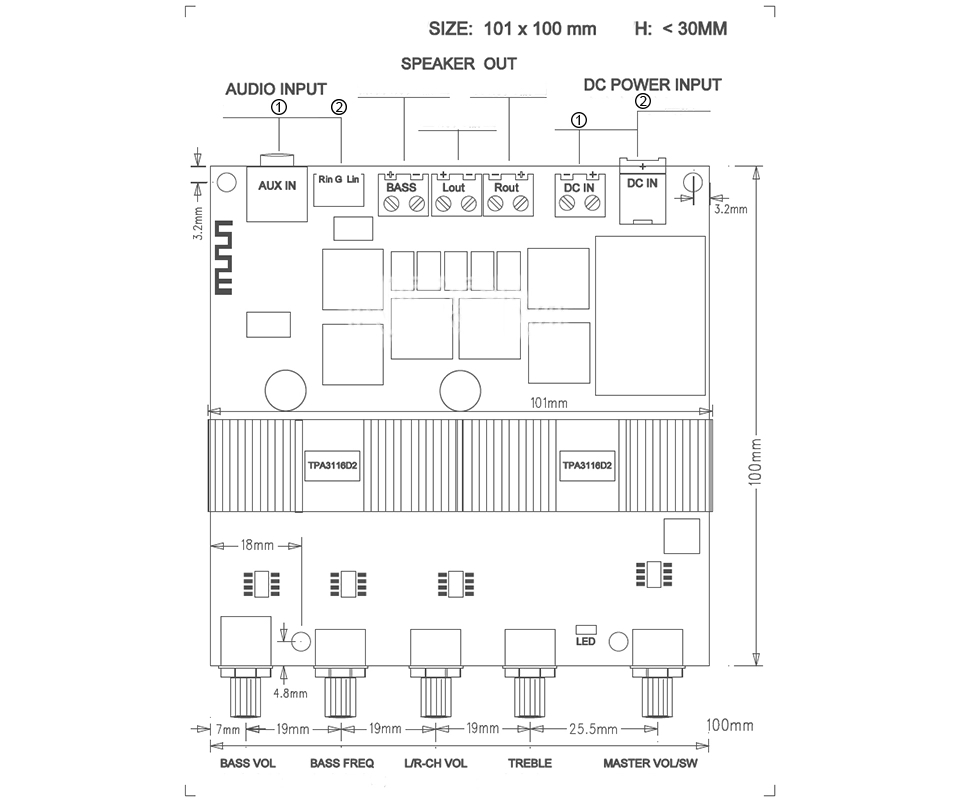

The board is to test whether the finished board is soldered well. Connect the speakers, audio input or BT audio equipment and power supply according to the picture to use.

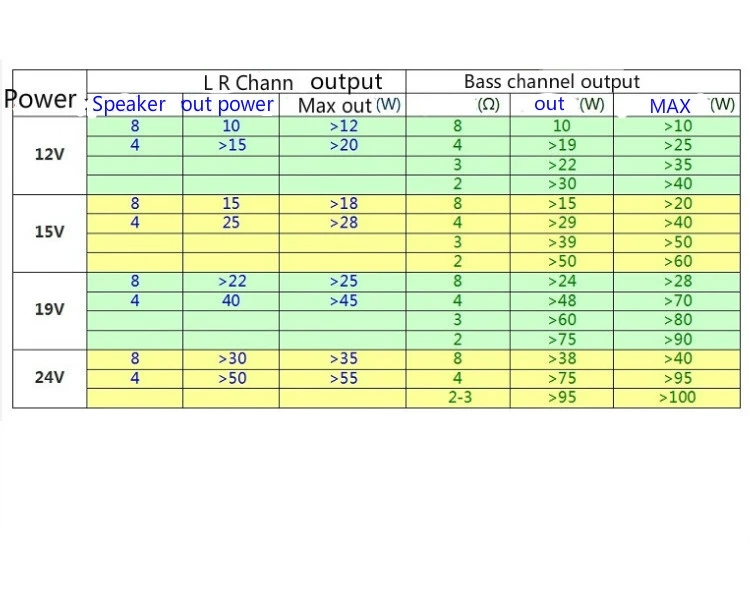

The main technical parameters:

aspect:

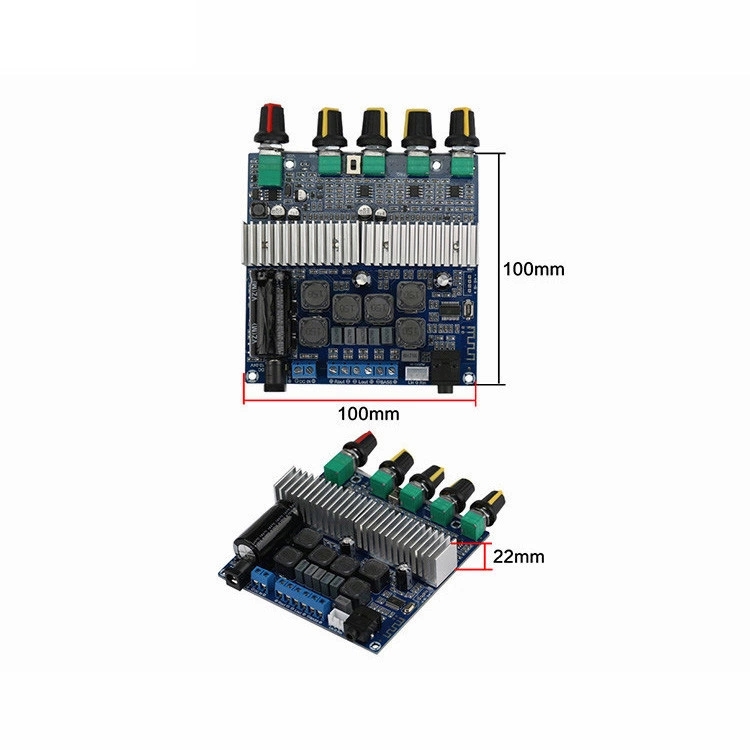

101*100*25mm, without potentiometer and socket protruding part
Voltage range: DC 11-25V (current 3-4A, or 19-24V/4-5A, if high power requires 20-24V/8-9A or more)

Subwoofer frequency range: 20Hz~200Hz
Wireless reception distance: >8 m (meters)
Audio input sensitivity: 600-800mV, frequency response range: 20Hz-20KHz,
Speaker impedance: left and right channel speakers: 4-8 ohms, woofer impedance: 2-8 ohms,

pack

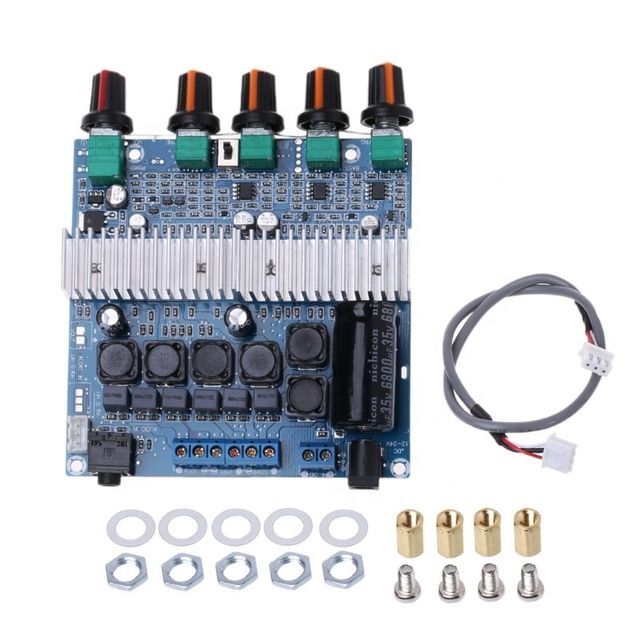

1* 2.1 TPA3116 Wireless Class D Power Amplifier Board
