Analogue Mechanical Track Gauge for Switch Rail and Check Rail Gauge Measurement

Supplier: Xiangyang Lianjie Mechanical&Electrical Co., Ltd
Region: Hubei, China
Contact: Mr Jodie Yuan
Price: $120.00 / 1 - 9 pieces
$100.00 / 10 - 49 pieces
$80.00 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

Product Description

Factory Supply Mechanical Track Gauge/Railway Measuring Equipment /Gauge Ruler For Railway

1.Used to measure the railway speed is not greater than 160km/h line.

2. In the measurement process is simple, fast, the workers are easy to accept. 3.Built-in temperature compensation and reduce error 4. Product lightweight, easy to carry, less buttons, simple operation

Detailed Parameter

Model	JTGC-1000	JTGC-1067	JTGC-GW 1435	JTGC-1520	JTGC-1676
Track gauge(mm)	975-1030	1042-1102	1410-1470	1493-1560	1650-1712
Check Rail Gauge(mm)	950-970	1013-1033	1381-1401	1466-1486	1622-1642
Back to back distance(mm)	907-927	970-990	1338-1358	1423-1443	1579-1599
Super-elevation range(mm)	-150~+150	-150~+150	-150~+150	-160~+160	-160~+160
Super-elevation resolution(mm)	1	1	1	1	1
Track gauge resolution(mm)	1	1	1	1	1

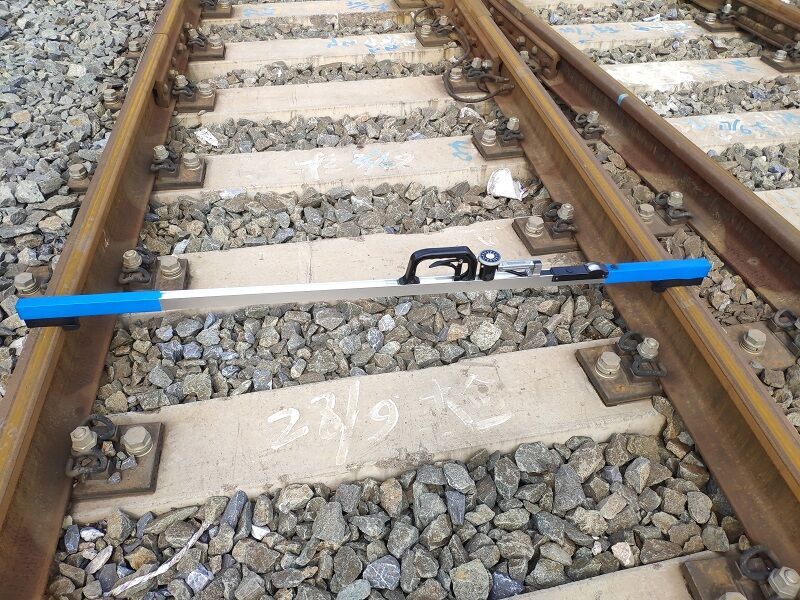

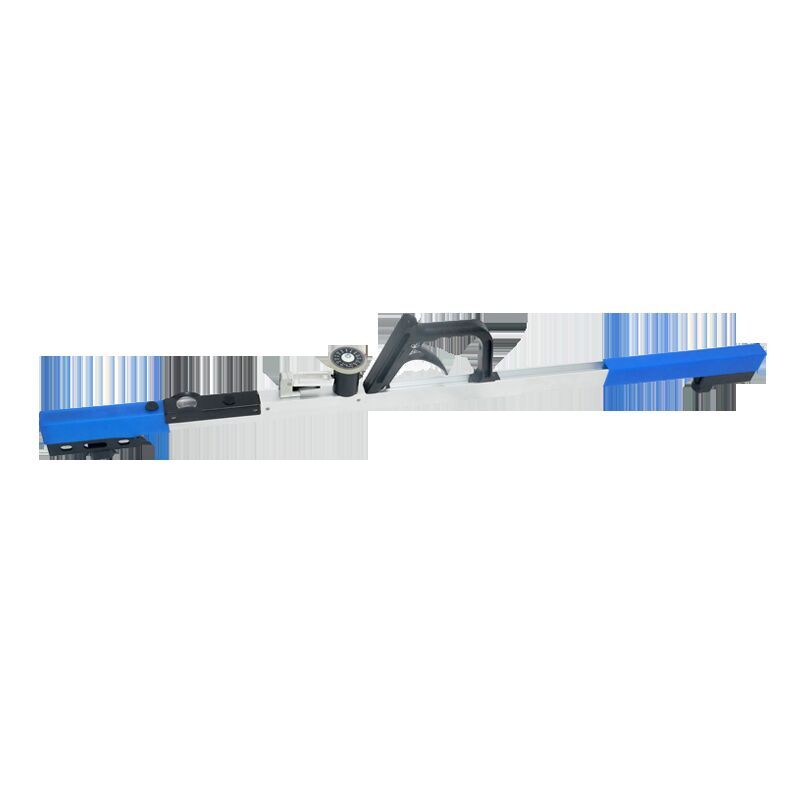

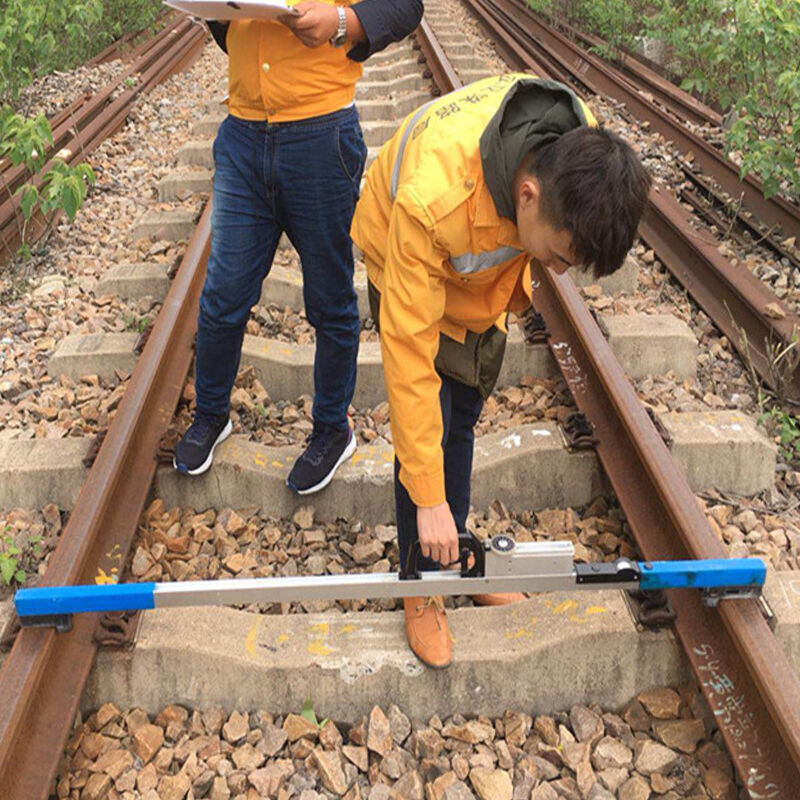

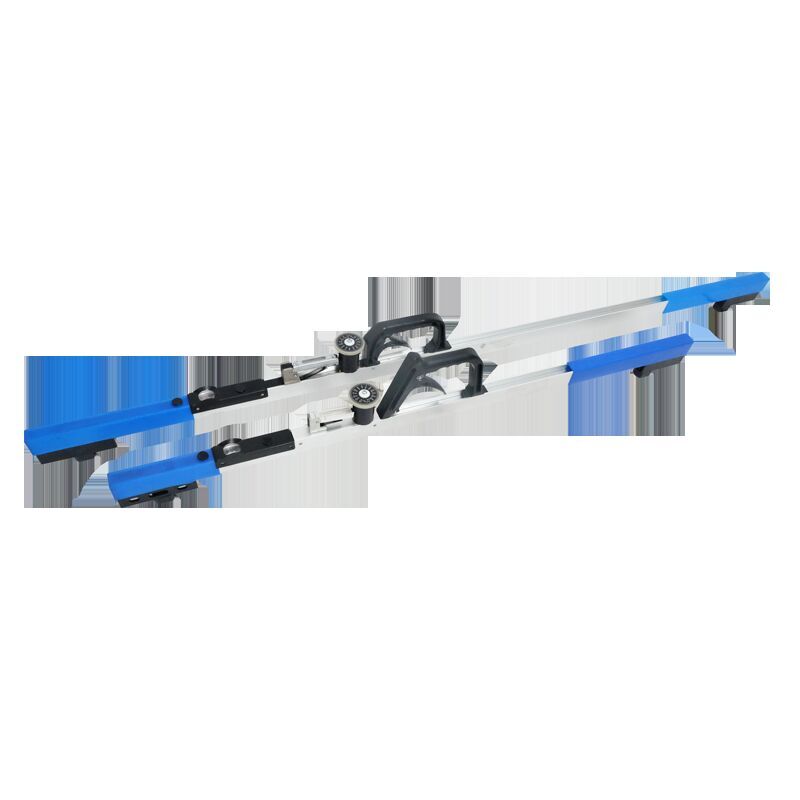

Details Images

Package & Delivery

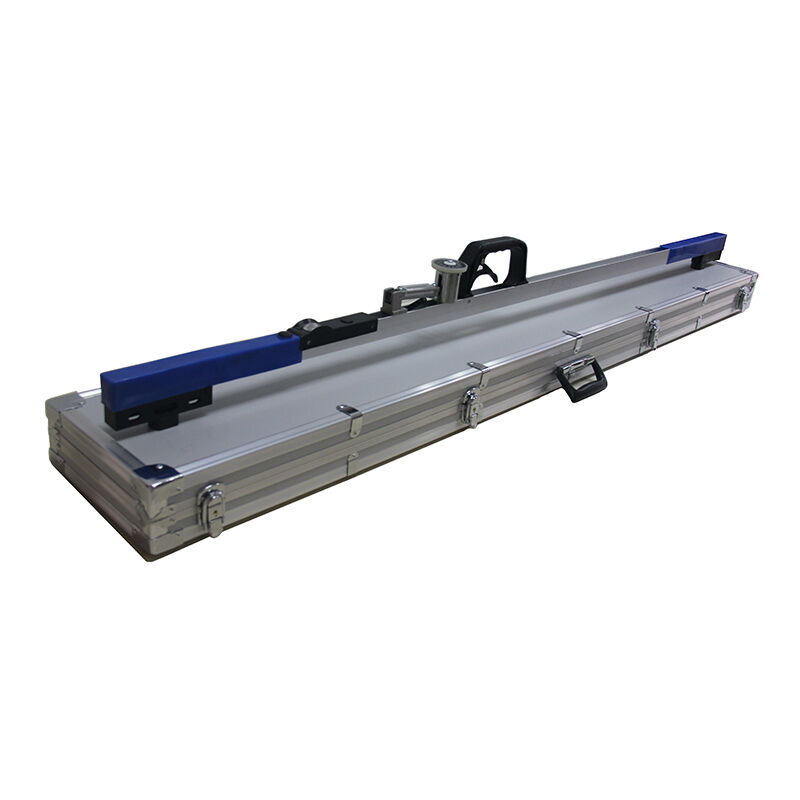

PE bag+pe foam+paper carton box/wooden case/alluminium case or as customer required

Company Profile

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd.

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd. Established in 2013,specialized in designing and manufacturing of the geometry measurement systems for the railway,including digital track gauges,mechanical gauge,rail wear gauge,turnout measurement gauges ect. Our products are China Railway Construction Corporation Limited (CRCC) approved.The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe and the ASEAN countries.The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them to maintain & operate a safe railway system.
