Health status: | new | Dimensions (L*W*H): | 3160mm*3160mm*4200mm |
Supply capacity: | 60,000 tons/month | weight: | 1530KG/2700KG |
Fan Diameter: | 2000mm | Material: | FRP |
Drain pipe diameter: | DN65 | filler: | PVC |
strength: | kilowatt | Main selling point: | long lasting |
flow: | 150 cubic meters/hour | Automatic paper feed: | DN25 |
Inlet diameter: | DN150 | Core Components Warranty: | 1 year |
Marketing Type: | Hot Products of 2019 | Packaging Details: | 1. Factory installed wooden box. 2. Spare parts in the carton. 3. Wooden box spare parts |
Mechanical test report: | if | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
Core components: | Bearings, Gearboxes, Motors, Gears | payment terms: | L/C, Western Union, T/T, Credit Card |
Outer diameter: | DN200 | Video external inspection: | if |
place of origin; place of origin: | Zhejiang, China | nozzle: | ABS |
brand: | osua | Packaging Preview: | |
Warranty: | 1 year | Voltage: | 380V |
Local service location: | U.S. | After-sales service provided: | Engineers can service machinery overseas, free spare parts, video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, online support |
Showroom location: | U.S. | Applicable industries: | Hotels, Building Materials Stores, Mechanical Repair Shops, Manufacturing Plants, Food and Beverage Plants, Restaurants, Retail, Food Stores, Construction Works, Cooling Towers |

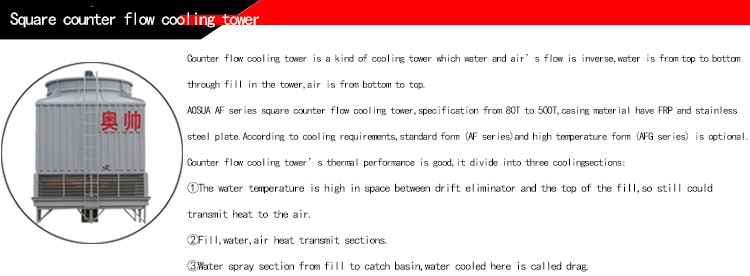

Cooling Type: | countercurrent | use: | Cooling Tower |
Certification: | CTI/ CAS/ ISO 9001 | port: | Ningbo or Shanghai |

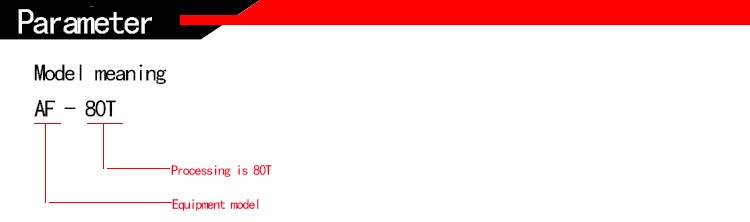

Model | cell | aspect |
fan (mm) |
motor (mm) |
pressure kPa |
weight (Kilogram) |
noise (16m) |
DN1 |
DN2 |
|||
One | Second | H | ||||||||||
standard Model |
AF-80 | 80-C1 | 2280 | 2280 | 3535 | 1500 | 2.2 | 37 | 740 | 47.0 | 150 | 200 |
AF-100 | 100-C1 | 2530 | 2530 | 3655 | 1800 | 4.0 | 38 | 1020 | 48.0 | 150 | 200 | |
AF-125 | 125-C1 | 2830 | 2830 | 3785 | 1800 | 4.0 | 38 | 1270 | 49.0 | 150 | 200 | |
AF-150 | 150-C1 | 3080 | 3080 | 3860 | 2000 | 4.0 | 39 | 1530 | 50.0 | 150 | 200 | |
AF-175 | 175-C1 | 3330 | 3330 | 4060 | 2400 | 5.5 | 40 | 1840 | 51.0 | 150 | 200 | |
AF-200 | 200-C1 | 3530 | 3530 | 4150 | 2800 | 7.5 | 42 | 2040 | 52.0 | 200 | 250 | |
AF-225 | 225-C1 | 3730 | 3730 | 4220 | 2800 | 7.5 | 43 | 2400 | 53.5 | 200 | 250 | |
AF-250 | 250-C1 | 3930 | 3930 | 4495 | 2800 | 7.5 | 44 | 2398 | 54.5 | 200 | 250 | |
AF-300 | 300-C1 | 4330 | 4330 | 4765 | 3400 | 11 | 45 | 3760 | 55.0 | 250 | 300 | |
AF-400 | 400-C1 | 4980 | 4980 | 5315 | 4200 | 15 | 49 | 5800 | 57.5 | 250 | 300 | |
AF-500 | 500-C1 | 5580 | 5580 | 5685 | 4600 | 18.5 | 50 | 6480 | 58.5 | 300 | 350 | |
AF-600 | 600-C1 | 6080 | 6080 | 5825 | 4600 | twenty two | 52 | 7760 | 60.5 | 300 | 350 | |
AF-650 | 225-C3 | 3730 | 11030 | 4220 | 2800 | 7.5x3 | 43 | 7220 | 61.0 | 200x3 | 250x3 | |
AF-700 | 175-C4 | 3330 | 13080 | 4060 | 2400 | 5.5x4 | 40 | 7360 | 61.5 | 150x4 | 200x4 | |
AF-800 | 200-C4 | 3530 | 13880 | 4150 | 2800 | 7.5x4 | 42 | 8180 | 62.0 | 200x4 | 250x4 | |
AF-900 | 225-C4 | 3730 | 14680 | 4220 | 2800 | 7.5x4 | 43 | 9630 | 62.5 | 200x4 | 250x4 | |
AF-1000 | 200-C5 | 3530 | 17330 | 4150 | 2800 | 7.5x5 | 42 | 10230 | 63.0 | 200x5 | 250x5 | |
AF-1100 | 225-C5 | 3730 | 18330 | 4220 | 2800 | 7.5x5 | 43 | 12000 | 63.5 | 200x5 | 250x5 | |
AF-1250 | 250-C5 | 3930 | 19330 | 4495 | 2800 | 7.5x5 | 44 | 11990 | 64.0 | 200x5 | 250x5 | |
AF-1500 | 300-C5 | 4330 | 21330 | 4765 | 3400 | 11x5 | 45 | 18800 | 64.5 | 250x5 | 300x5 | |
ease temperature Model |
AFⅡ-80 | 80-C1 | 2280 | 2280 | 4035 | 1500 | 3.0 | 42 | 1140 | 56.0 | 150 | 200 |
AFⅡ-100 | 100-C1 | 2530 | 2530 | 4155 | 1800 | 4.0 | 43 | 1330 | 57.0 | 150 | 200 | |
AFⅡ-125 | 125-C1 | 2830 | 2830 | 4285 | 1800 | 4.0 | 43 | 1620 | 58.0 | 150 | 200 | |
AFⅡ-150 | 150-C1 | 3080 | 3080 | 4360 | 2000 | 5.5 | 44 | 1880 | 59.0 | 150 | 200 | |
AFII-175 | 175-C1 | 3330 | 3330 | 4560 | 2400 | 7.5 | 45 | 2380 | 60.0 | 150 | 200 | |
AFⅡ-200 | 200-C1 | 3530 | 3530 | 4650 | 2800 | 7.5 | 47 | 2940 | 61.0 | 200 | 250 | |
AFⅡ-225 | 225-C1 | 3730 | 3730 | 4720 | 2800 | 7.5 | 48 | 3150 | 62.0 | 200 | 250 | |
AFⅡ-250 | 250-C1 | 3930 | 3930 | 4995 | 2800 | 7.5 | 49 | 3450 | 63.0 | 200 | 250 | |
AFⅡ-300 | 300-C1 | 4330 | 4330 | 5265 | 3400 | 11 | 50 | 4160 | 63.5 | 250 | 300 | |
AFⅡ-400 | 400-C1 | 4980 | 4980 | 5815 | 4200 | 15 | 54 | 6350 | 64.5 | 250 | 300 | |
AFⅡ-500 | 500-C1 | 5580 | 5580 | 6185 | 4600 | 18.5 | 55 | 7180 | 65.5 | 300 | 350 | |
AFⅡ-600 | 600-C1 | 6080 | 6080 | 6325 | 4600 | twenty two | 57 | 9820 | 65.5 | 300 | 350 |
