Chain Tooth Making Machine for Nylon Chain Wrap Forming

Product details
operator:simpleWarranty:1 year
Zipper material:nylonproduct name:coil forming zipper teeth nylon zipper making machine
After-sales service provided:Video technical support, online supportbrand:380v
Voltage:380VPackaging Preview:
Applicable industries:Clothing stores, manufacturing plants, machinery repair shopsGross weight per piece:38.000 kg
Single package size:70X58X68 cmmotor:1500W
Health status:newProduct Category:Nylon Zipper Coiler
Material:PA, PET, PBT, monofilament centerlineany color:Brown
Machine name:Nylon Zipper Coilerweight:305KG
Machine application:Making Long Chain Nylon Zipper MachineSales unit:single product
place of origin; place of origin:Guangdong, ChinaPackaging Details:Plywood case
Dimensions (L*W*H):88*100*160CMMachine function:nylon zipper teeth
speed:1450-1600 rpmstrength:1500W
Certification:Chief Executive

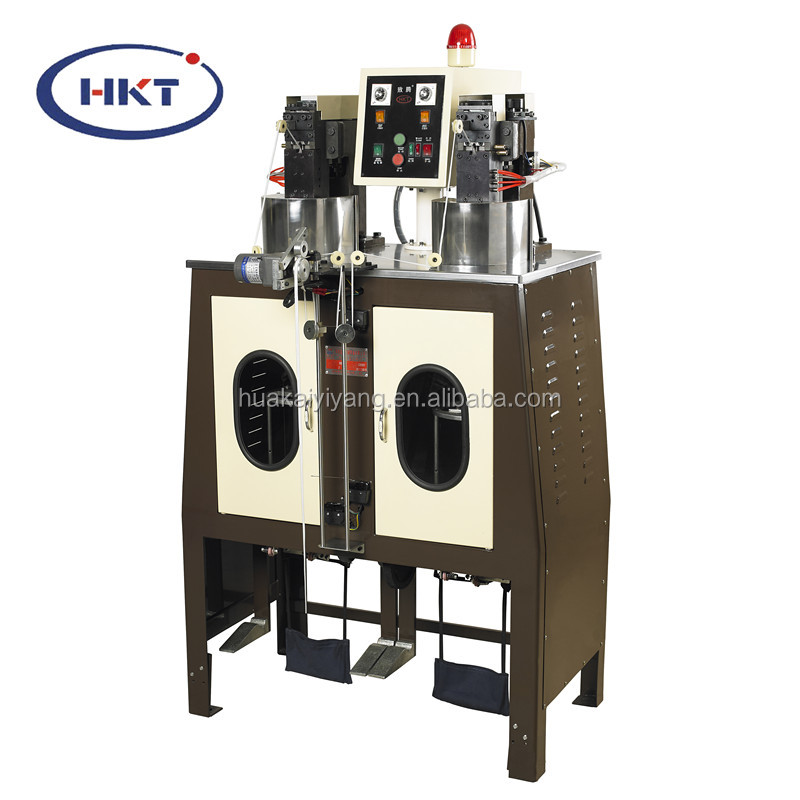

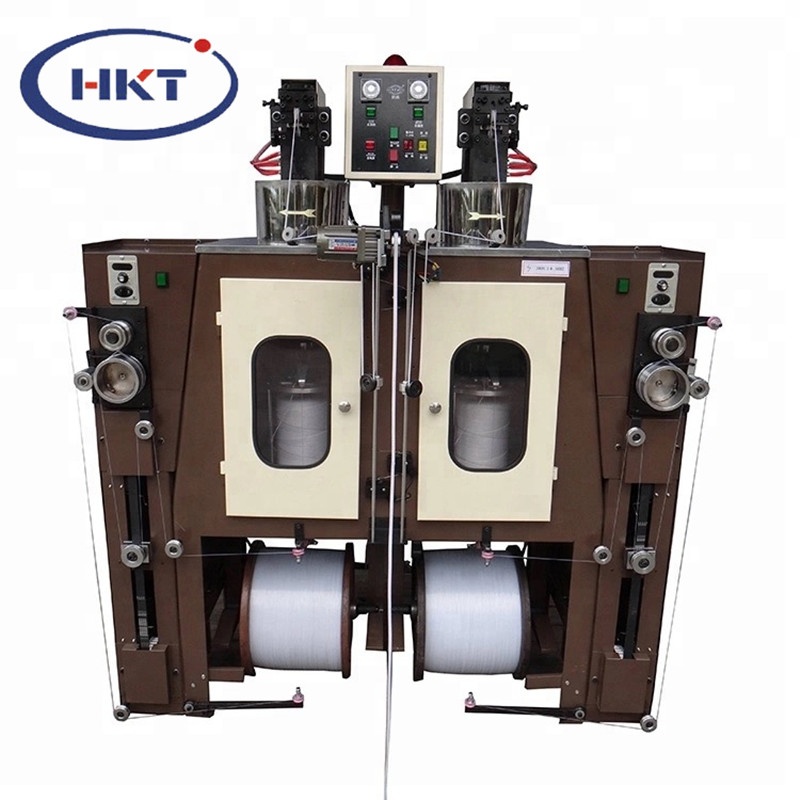

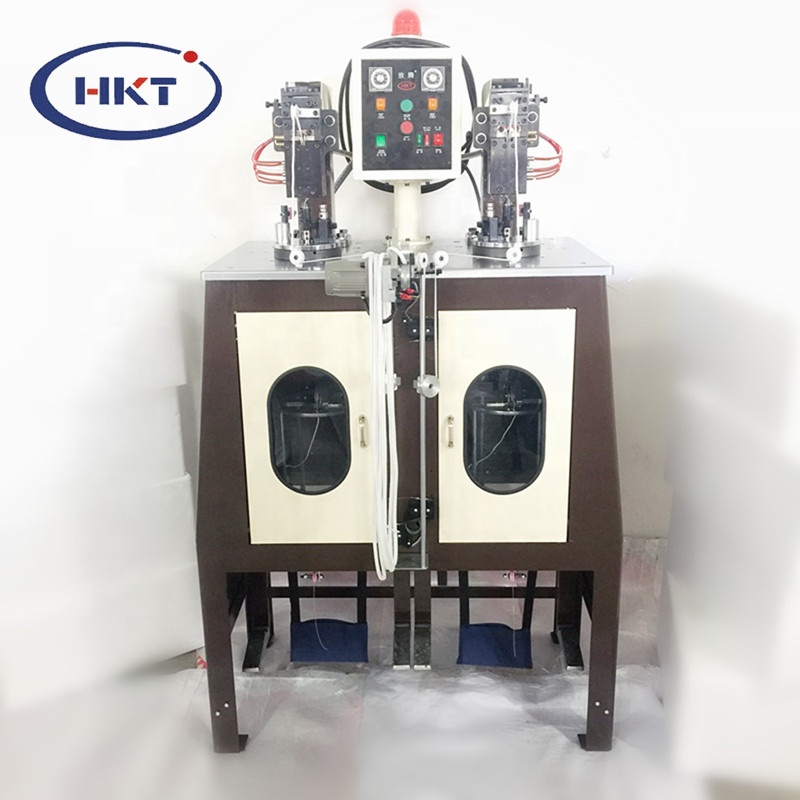

coil forming zipper teeth nylon zipper making machine



advantage

1. High output value, low noise and stable quality.

2. Large-scale feeding device that can carry a weight of more than 25kg, and the design can also be changed according to customer requirements.

3. The centerline feeding device can bear 5kg. And designed to be smooth and frictionless, making the chain elastic and stable.

4. Each component is easy to maintain. Nylon monofilament and core wire are broken, the left and right zipper teeth have a large difference, winding screws, the machine stops running, and a sound warning of more than 100 decibels is issued.

5. Using high quality nylon monofilament can produce straight zipper, the zipper will not curl after dyeing. Fewer replacement parts, lower cost, double feeding device, improve the stability of sprockets;

Coil Forming Zipper Teeth Nylon Zipper Making Machine Specifications

model.

HKT-0502

Mainly motor power

2HP

Heating pipe

1500W

collection motor

6W

volt

220/380

net weight

305 kg

gross weight

350kg

Machine size

88cm*100cm*160cm

Package dimensions

95cm*88cm*172cm

construction area

1.5m*1.5m




Coil Forming Zipper Teeth Nylon Zipper Making Machine Features:



1. High output value, low noise and stable quality.

2. Each component is easy to maintain. Using nylon monofilament and core wire, the left and right zipper teeth have a large difference,

Tighten the screw and the machine will stop with an audible warning over 100 decibels.

3. The large feeding device can bear the weight of more than 25kg, and the design can also be changed according to customer requirements.

4. The center line feeding device can bear 5kg. And designed to be smooth and frictionless, making the chain elastic and stable.

5. Using high quality nylon monofilament can produce straight zipper, the zipper will not curl after dyeing.

Fewer replacement parts, lower cost, double feeding device to improve the stability of sprocket teeth

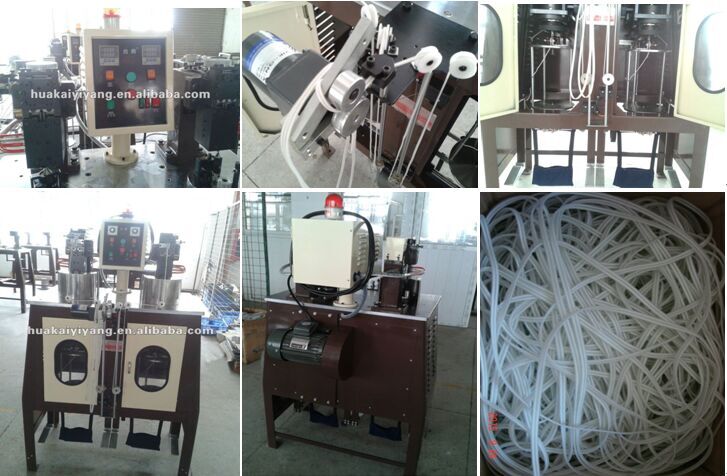

Winding machine picture:
