Low temperature plasma treatment machine Corona plasma treatment equipment Plasma surface treatment machine

Plasma processor

Plasma cleaning removes nanoscale contaminants and alters surface chemistry without affecting bulk material performance. Plasma cleaning is performed at near ambient temperature to minimize the risk of damage to heat-sensitive materials. Depending on the process gas used and process conditions, plasma cleaning can be usedFor cleaning, activation, etching and surface modification.It can be applied to a wide range of materials as well as complex surface geometries and a variety of applications including materials science, polymer science, biomedical materials, microfluidics, optics, microscopy, dentistry, medical research, precision components including semiconductors, crystals, Cleaning in the production and processing of electronic devices such as resistors, capacitors, PCBs, IC chips, connectors, silicon wafers, transistors, electronic circuit boards, computer motherboards, piezoelectric ceramic substrates, and picture tubes. It mainly deals with materials with small area, high machining track accuracy and many edges and corners. As a product surface printing, packaging, lamination, coating, welding, adhesive, coating and other processes, plasma cleaning is an important link in product upgrading, production expansion and cost reduction.

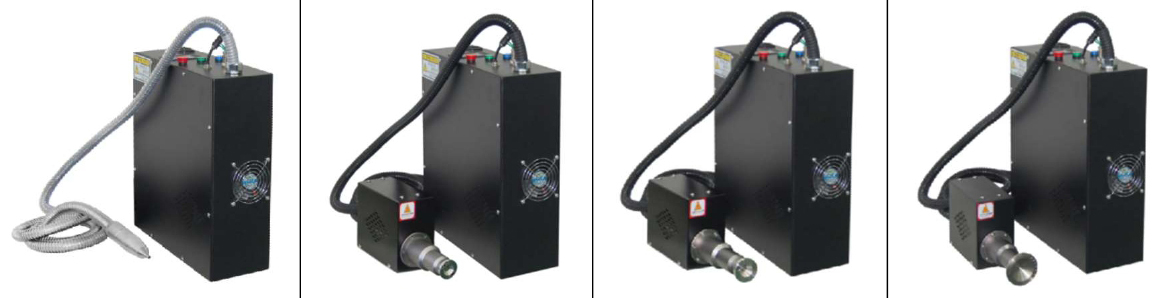

product photo
Numbering.	AP-BK-D04	AP-BK-D30	AP-BK-D50	AP-BK-D80
Processing width	4mm	30mm	50mm	80mm

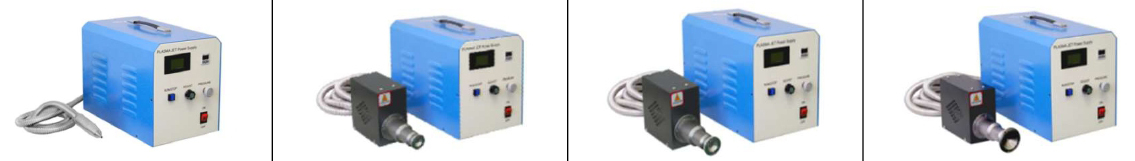

product photo
Numbering.	AP-BE-D04	AP-BE-D30	AP-BE-D50	AP-BE-D80
Processing width	4mm	30mm	50mm	80mm

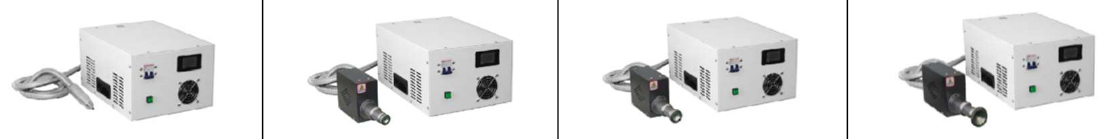

product photo
Numbering.	AP-WH-D04	AP-WH-D30	AP-WH-D50	AP-WH-D80
Processing width	4mm	30mm	50mm	80mm
Comment	1) For installation location: (easy to operate) *AP-WH-D## and AP-BE-D##: They are suitable for high positions, because the control panel in front of the main unit, for example, is placed on a table. *AP-BK-D##: Since the control panel is located on the top of the main unit, it is suitable to be placed in a low position, such as under a conveyor belt. 2) Ambient temperature: (stable work) *AP-WH-D##: suitable for working in low temperature workshop, because the mainframe shell is too small, such as the ambient temperature is lower than 20 degrees. *AP-BE-D## and AP-BK-D##: They are suitable for working in general temperature workshops, because the host is larger and the cooling effect is high, for example, the ambient temperature is lower than 25 degrees, but the cooling effect of AP-BK-D## Better than AP-BE-D##. 3) For the function: * Same, detailed specificationsas follows. * You just need to choose the machine that suits the processing width you need.
Input voltage	AC220V/50Hz (or customized)
power output	500W	550W	700W	1000W
frequency	20K-50KHz
air pressure	4kg/0.4MPa
use gas	Air/N2
cable length	3m (or customized)
control method	local control, remote control
host size(L*D*H)	140*370*420mm
Host weight	11.3kg
place	vertical or horizontal placement
gun size	D30*H200mm	W80*D140*H300mm
gun weight	0.8kg	4.0kg	4.2kg	4.5kg
Protective function	Over temperature protection, overload protection, short circuit, open circuit, overload, leakage protection
Certification	CE, ROHS, FCC
Warranty	1 year
Packaging Information.	1 set/box Box size: 56*43*30cm Gross weight: 14kg	1 set/box Box size: 56*43*30cm Gross weight: 16.5kgs	1 set/box Box size: 56*43*30cm Gross weight: 17kg	1 set/box Box size: 56*43*30cm Gross weight: 17.5kgs

We have a large selection of plasma surface treatment machines for you, contact us for more product details.

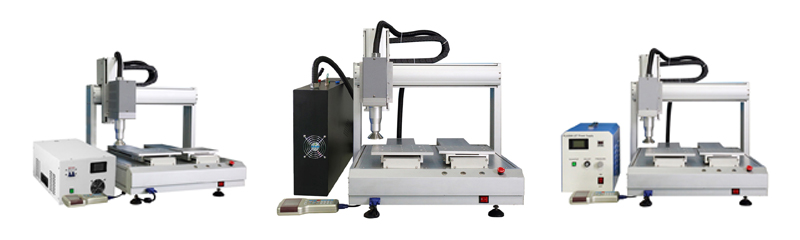

1. Different 3/5 axis plasma workstations for your choice.

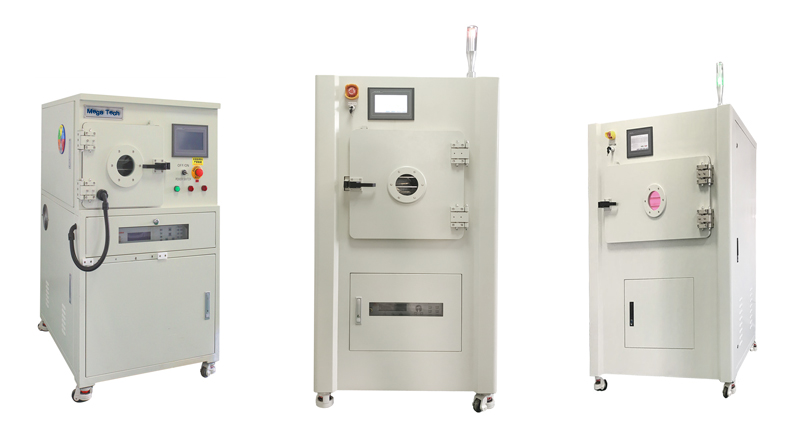

2. Different vacuum plasma machines are available for your choice.

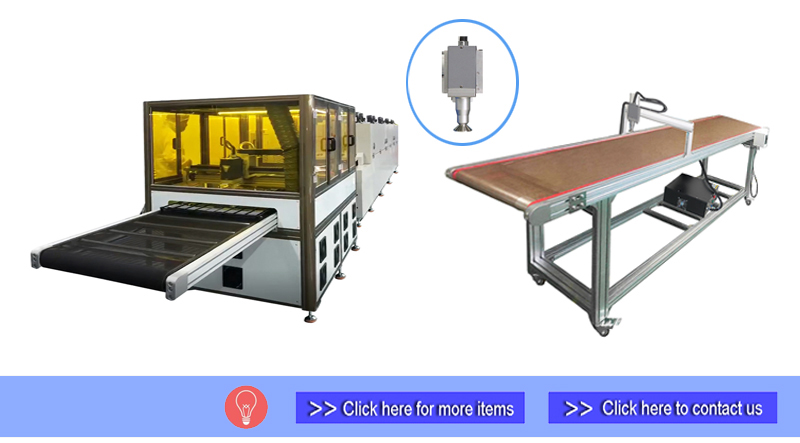

3, Different conveyor belt plasma cleaners for you to choose.

Bale:
- Will be packed in a carton or wooden case;
- Available in neutral and custom packaging.
Shipping:
- The goods can be shipped by sea, air, train or international express (such as DHL, UPS, TNT, FedEx, EMS, etc.), you can also choose the right one according to your time and budget. Also, you can choose your own shipping agent.
