Ergonomic modular light crane system with hollow aluminum profile for mounting

Supplier: Shandong Jndo Hoisting Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Daisy su
Price: $65.00 / 50 - 99 meters
$60.00 / >=100 meters
Min. Order: 50 meters

Click here to contact

Product details

Material:	natural aluminum	temperature range:	-10°C to +40°C
maximum. Lifting load:	2000kg	port:	Tianjin harbor
Supply capacity:	1000 sets per month	style of working:	Manual or Electric
Marketing Type:	New Products 2020	Packaging Details:	wrapped in plastic wrap
Weight (kg):	400 kg	span:	Minimum span 2m
payment terms:	wire transfer	Rated lifting moment:	125-2000kg
brand:	JNDO	Mechanical test report:	if
Warranty:	1,1 years	Maximum capacity:	2000kg
Profile Type:	6	Showroom location:	not any
Health status:	new	feature:	Bridge crane
Core Components Warranty:	1 year	Core components:	rail
Applicable industries:	Manufacturing plants, food and beverage stores	surface:	Anodizing
place of origin; place of origin:	Hebei china	product name:	Aluminium Light Crane System
Video external inspection:	if	maximum. Lifting height:	8m

Product Description

Ergonomic aluminium hollow profile modular light crane system for assembly

The aluminum light crane system is a flexiblehollow profileandmodularThe lifting solution easily adapts to low-headroom work environments and can withstand loads of up to 2000 kg.

Ergonomics:
Light rail means that users can handle heavy and bulky loads with great ease and ease.

economy:

Aluminium profiles are also usedReduce the cost of support structuresBecause it is 2 times lighter than equivalent steel, easy to use/install, and economical for lifting structures.

precise:

Through high-quality manufacturing and ensuring accuracySmoothaction.

Anticorrosion:

Aluminium profiles on the outside and insideAnodized Corrosion Resistant.

Safety:

Make sure that the beam is not welded.

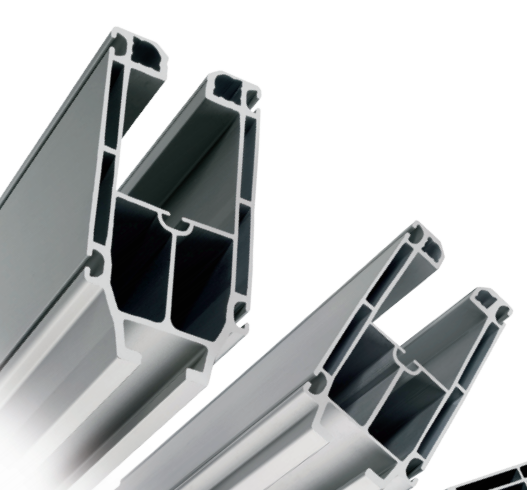

beam size:KI K-II Two kinds of hollow profiles

track: Overhead rails consist of profiles and are used for the crane bridge to move along its length.

crane bridge: Crane bridges are also made up of profiles and are used for lifting gear to move along its length.

lock plateRemovable, as a buffer, dustproof, they complete the installation.

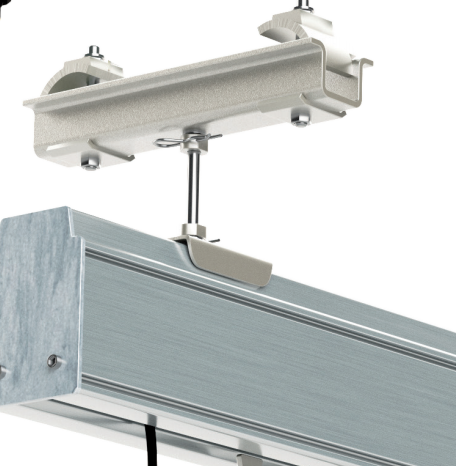

SuspensionMeans that the entire handling system can be fixed on the lifting structure. There are several types to choose from depending on the type of beam used.

rail connectionIs a perfect cut, pin pointer, 16 point locking system, easy to implement

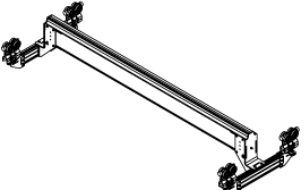

Crane bridge trolley

The crane bridge is mounted on a trolley that can run inside the rail profile.

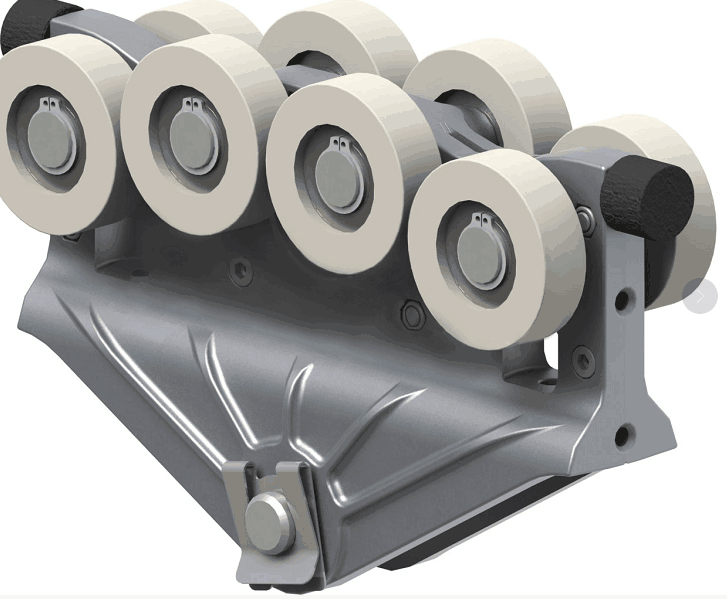

cart

The hoisting device is mounted on a trolley that runs inside the crane bridge profile.

power supply system

The power supply system supplies power to the lifting device and the electric trolley.

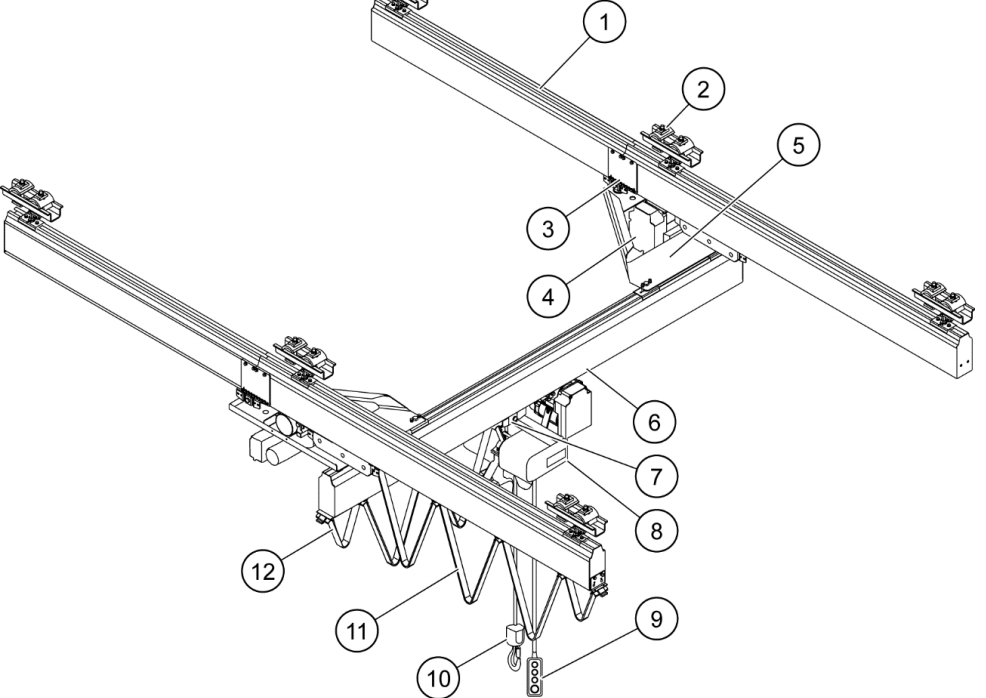

Do not.	Element	Range of crane kits
1	Track Profiles and End Baffles and End Plate Sets	Yes
2	Suspension	Yes
3	connection group	Yes
4	motor vehicle	Yes
5	Crane Bridge Kit	Yes
6	Crane bridge profiles	Yes
7	cart	Yes
8	Lifting device	Do not
9	pendant controller	Do not
10	hook	Do not
11	rail power	Yes
12	Suspension Bridge Power Supply	Yes

application

MonorailFor linear conveying of materials. The length of the monorail is limited by power supply and thermal expansion, with a maximum setting of 100 meters for standard applications.

beam craneFor 2D trips. Manual crane bridge movements are recommended using an articulated crane.

Cranes with single girder articulated crane bridges are very light and efficient tools for manual assembly work.
