JST SH MX GH Zh Ph Eh Xh VH 1.0 1.25 1.5 2.0 2.54 3.96 mm pitch 2/3/4/5/6 pin connector harness cable assembly

Product details
Connector:Jst Zh Ph Eh Xh VH Connectorapplication:Home appliances, electronic products, smart products, electronics
Pin:2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 20 P Pinproduct name:Jst Xh Connector Harness Cable Assembly
port:Shenzhengender:female male
Supply capacity:30000000 pieces/monthmodel:CH-AK-N-JX-128
Packaging Preview:Material:Silicone/PVC copper + nylon Pa66 connector
brand:HaishengLength and Color:custom made
Wire gauge:#18 #20 #22 #24 #26 #28 #30 #32 AWGplace of origin; place of origin:Guangdong, China
Packaging Details:Standard cartonasphalt:2.54 mm 2.54 mm
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramOptional:Heat Shrink Tubing/Acetate Fiber/Corrugated Tubing/Nylon Braided Tubing
Product Details

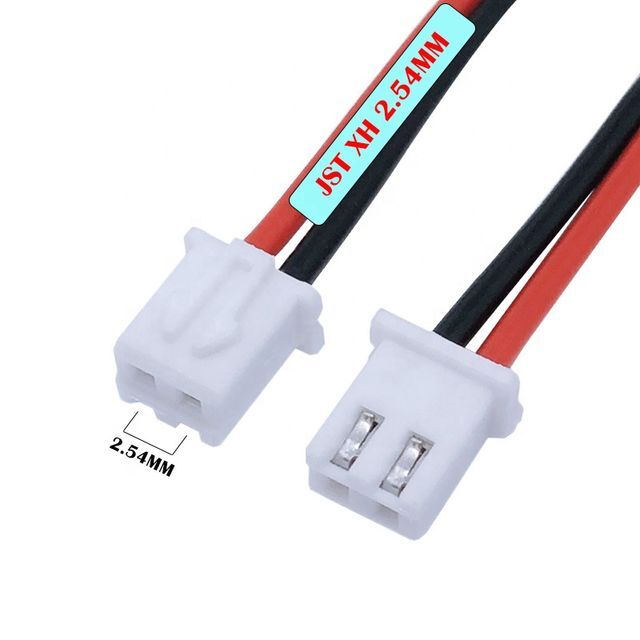

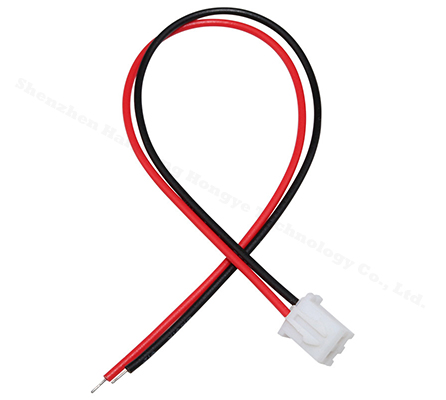

JST XH Single-Ended Plug Connector Cable

●Customized JST XH series 2.54mm pitch single-ended plug bracket 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 20-pin P connector electronic harness cable assembly
●Apply to home appliances, electronic products,Industrial Appliances, Lithium Batteries

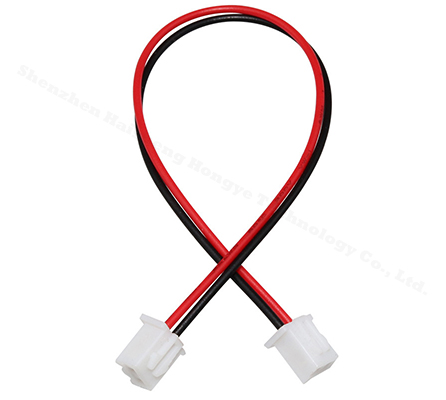

JST XH Double Plug Connector Cable
●Customized JST XH series 2.54mm pitch double-ended header frame 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 20-pin P connector electronic wiring harness

●Customized JST XH series 2.54mm pitch single-ended plug bracket 2Pin 3Pin 4Pin 5Pin 6Pin 7Pin 8Pin 9Pin 10Pin 11Pin 12Pin 13Pin 14Pin 15Pin 16Pin 20Pin male and female connector electronic wiring harness
Current rating:
3A AC/DC (#22 AWG)
Rated voltage:
250V AC/DC
temperature range:
-25°C to 85°C (including temperature rise when powered on)
Contact resistance:
Initial value / 10 mΩ max. Environmentally tested / 20 mΩ MAX.
Insulation resistance:
1000 mΩ minimum
Pressure resistance:
1000V AC/min
Applicable wire:
AWG #22 #24 #26 #28 #30
Applicable PC board thickness:
1.6mm

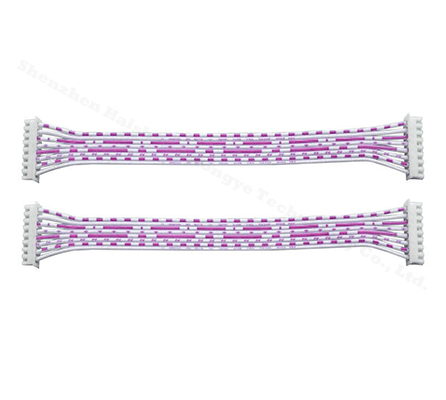

JST XH Flat Ribbon Cable
●Customized JST XH series 2.54mm pitch single-ended or double-ended header frame 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 20-pin P connector electronic cable assembly wiring harness
●Customized JST XH series 2.54mm pitch single-ended plug frame 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 20P connector male to female electronic harness cable

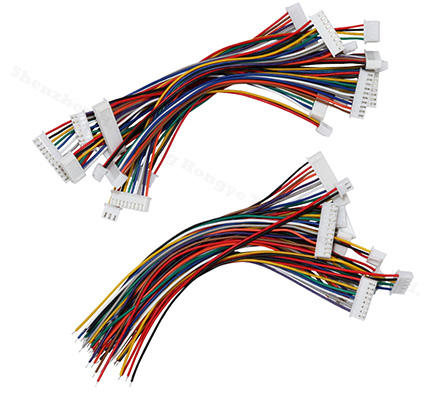

JST XH series multi-core wire and cable
●Customized JST XH 2-core 3-core 4-core 5-core 6-core multi-core shielded wire

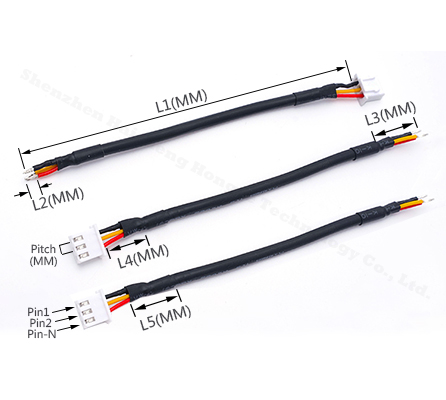

L1(MM):
Wire and cable length can be customized
L2(MM):
Peeled and tinned length can be customized
L3(MM):
Multi-core cable stripped pigtail length can be customized
L4(MM):
Connector end stripping length can be customized
L5(MM):
Heat shrinkable tube, nylon braided tube, high temperature tube, acetate tape length can be customized
Pin:
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 20 P Pin
asphalt:
2.54 2.5MM 2.5MM 2.54MM
Line order:
The order of the wiring harness at both ends of the connector can be customized
Connector type:
Selectable connector type (JST SH MX GH ZH PH PHB PA XH XA XHB VH EL VL .Etc)
