Guangzhou 12 inch aluminum cutting machine saw

Product details
After-sales service provided:Online support, video technical supportSignature function:Roulette

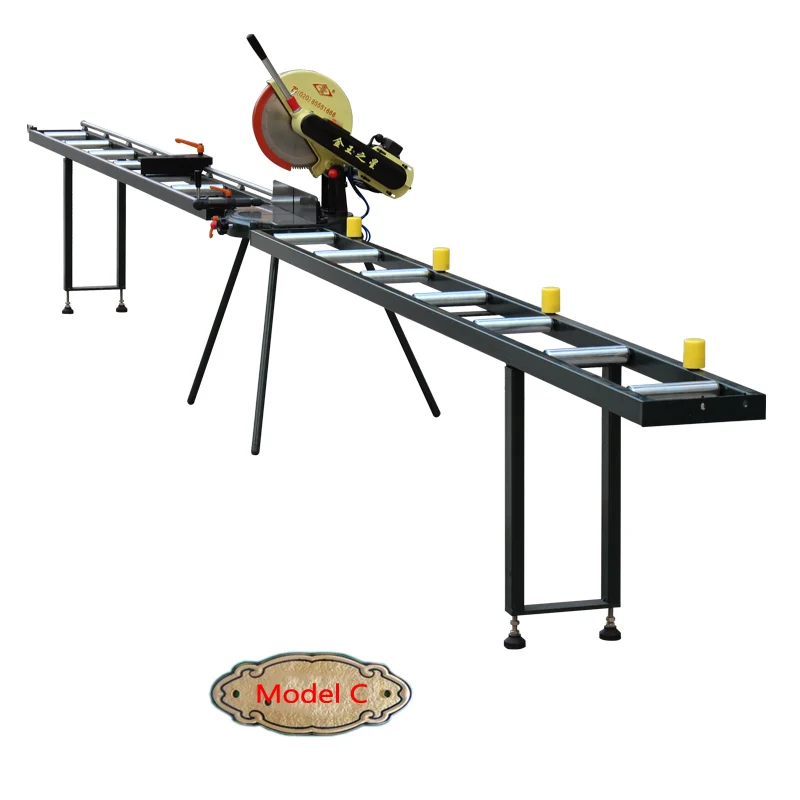

Sawing style:manualOptional parts:6 meters profile conveyor
Cutting angle:45° / 90°Dimensions (L*W*H):650 x 560 x 680 mm.
Warranty:1 yearbrand:Jinwang
Production capacity:needs-basedPackaging Details:wooden packaging
Voltage:220V/380Vpower supply:380v/220v
input power:1.1kwCooling and Lubrication:diesel spray
Packaging Preview:strength:1.1Kw
Saw diameter:305 mm/12 inchespayment terms:wire transfer
port:Guangzhou, Guangdong, ChinaTarget material:Aluminum profile
weight:50kgApplicable materials:PVC, stainless steel, aluminum
place of origin; place of origin:Guangzhou, Guangdong, China
Product Description

The current machine is a wide range of products recently developed for our entry to intermediate customers and migrant construction workers. We developed our current product based on the ingredient benefits of earlier products similar to Comall International. It has shown impressive efficacy and has become one of our company's best-selling products due to its exquisite ingredients and preparation. This is something that the shoddy imitators can't match.



Product structure and features:

  • The unique ball bearing wheel composition ensures convenient and accurate swing angle and firm structure
  • Minimal gap between operating platform and seat panel to facilitate the remnants to slip slightly rather than bump them
  • The original swing head is supported by a sophisticated bearing combination to ensure satisfactory cutting results

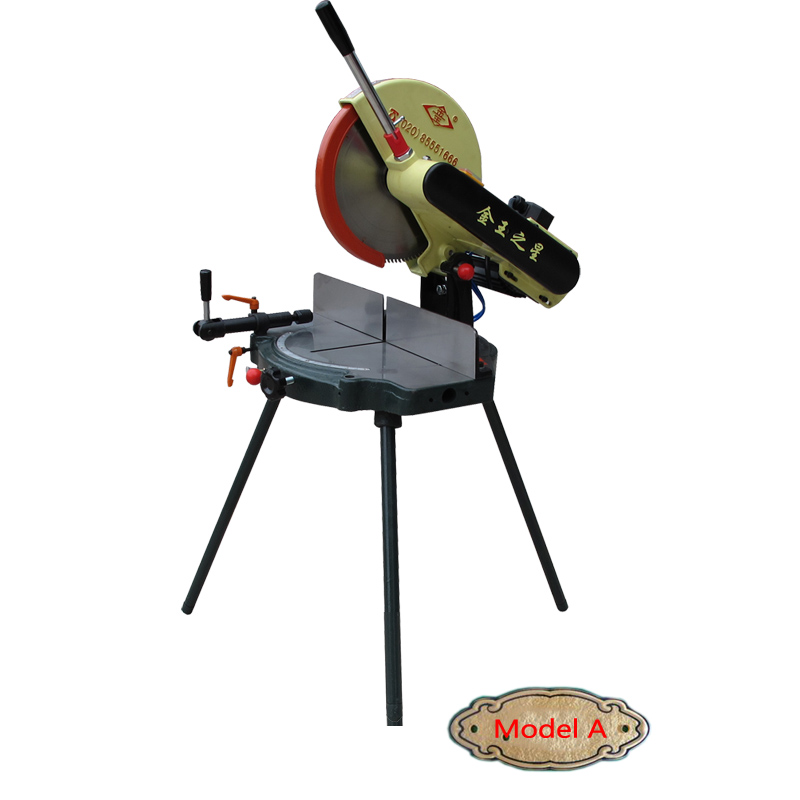

  • Equipped with detachable stand, adjustable operating platform height, suitable for sedentary and mobile use



Four major breakthroughs in the three-generation transformation:

  • The saw blade stop device and the operating handle are combined into one, the appearance is simple and the beautification effect is better
  • Due to the eccentricity of the stop of the blade, the bearing wheelbase of the blade axis is increased; this improvement is very critical because it increases the stability of the saw, ensures better cutting results, and guarantees a longer service life
  • The stable swing device of the head is changed from a screw lock to a thumb lock, which is more convenient to control and avoid loss
  • When cutting, it is supplemented by diesel automatic spray device, which makes the cooling spray function more reasonable and humanized



The main technical parameters

Operating Voltage

380V/220V.

Motor Power

1.1 kW.

Motor speed

3600 rpm.

sawSpecification

Ø305×o25.4mm x 3mm.

45°Cutting range

80 x 80 mm.

90°Cutting range

100 x 100 mm.

table height

100/700 mm.

weight

50 kg.

Dimensions

650 x 560 x 680 mm.

Special rack size

3000 x 260 x 700 mm.

Packaging and Shipping



our service



♥ Buyers must read:

Please read carefully before buying!

By paying, you agree to the following rules!



Delivery Instructions

Prices quoted here are FOB GUANGZHOU, excluding shipping and taxes. Items should be unloaded by yourself, please check the product before signing to see if there is a problem with the product, in case there may be discrepancies.



About after-sales service

All products in the store are certified products. Our company provides a twelve-month warranty on machining accuracy and three-month warranty on the motor. Provide lifelong after-sales maintenance services, excluding door-to-door service fees.



Photos are 100% real

All photos in the store are taken by professional photographers, what you see is what you get. Our designers compared the actual products while editing the photos and minimized their chromatic aberration. Please shop with confidence.



About exchange or refund

All products in our store are certified and quality assured. We do not accept exchanges or refunds unless quality problems are found after sale. Please call our customer service regarding any aspect of the product before confirming your order. If the customer service does not reply immediately, please leave a message, our customer service will reply to you as soon as possible.



About delivery

Under normal circumstances, we will ship in the order in which the customer pays, so there is no need to remind us of your order. This store does not accept expedited orders, if you think our logistics is too slow, we recommend that you shop carefully.
