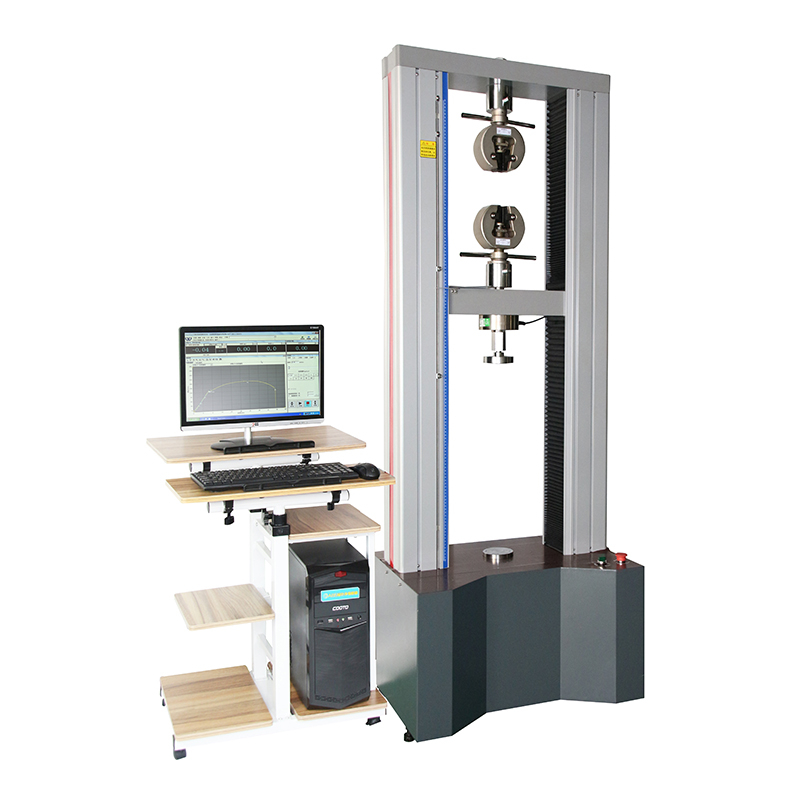

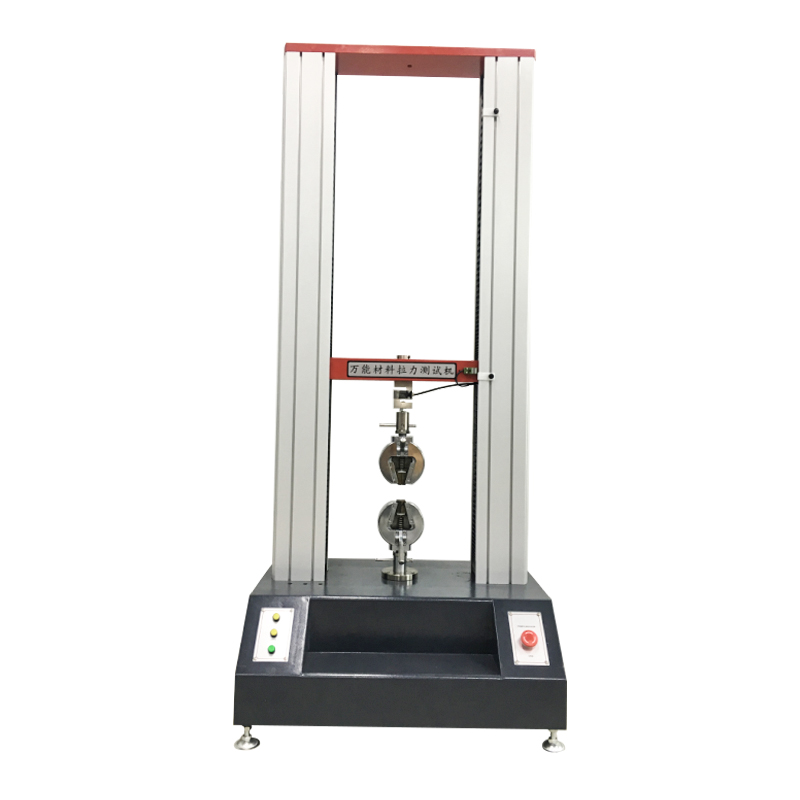

monitor rate: | 1KW, AC220V±10%, 50HZ | product name: | Universal Electronic Tensile and Compression Testing Machine |
Host weight: | 168kg | place of origin; place of origin: | Fujian China |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Warranty: | 1 year |
maximum. Load force: | 10KN | Force resolution: | 1/250000 |
brand: | East YQ | Packaging Details: | Standard export wooden box |
model: | ST-S50K | strength: | Electronics |
Supply capacity: | 200 pieces per month | Measuring range: | 1-100%(60N-50000N) |
Beam displacement speed: | 0.01~500mm/min | application: | Metals and Nonmetals |
Packaging Preview: |
1.application
One.testing sample: Laminate materials, wood, leather, rubber and plastic, metal materials, etc.

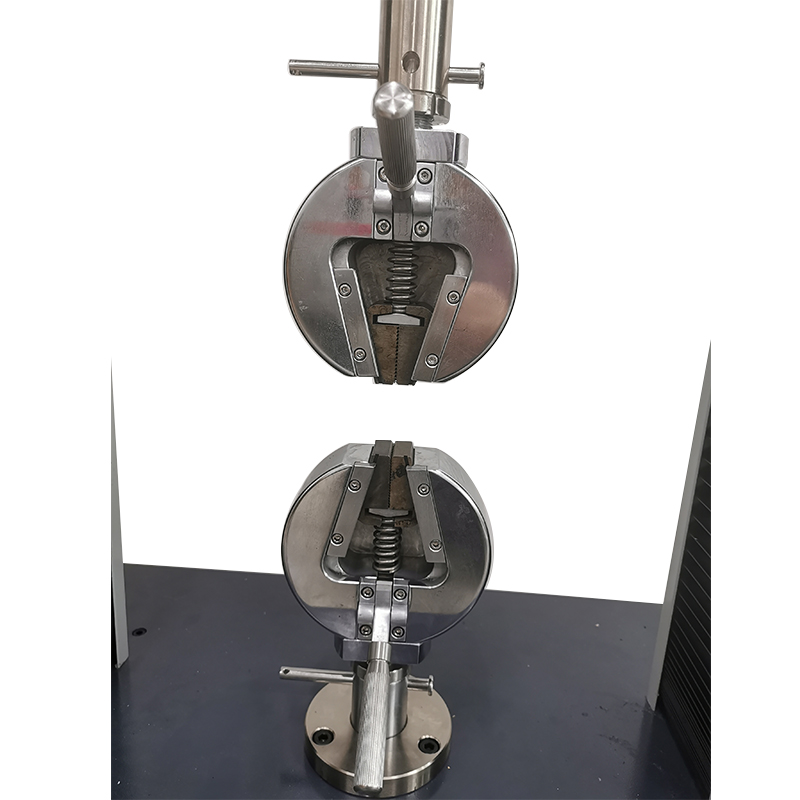

b.Different test different grips:Stretch, peel, tear, heat seal, bond, bend and open forces.
C.Deformation under specified load: Test deformation of test sample under specified load
D.Defining loads under deformation: The test load of the test sample under the specified deformation
softwarecan be issuedword/excel reportmaximum result. force, elongation, tensile strength, peel strength, tear strength, compressive strength, etc.
2.standard:
Including but not limited to ASTM, JIS, CE, ISO, EN, BS EN, SAE, FTM...etc.
3. Technical features:
3.1. Imported motor, low noise, precise control
3.2. Computer LCD, Chinese menu, HP printer
3.3. Real-time display of tensile time and maximum test force during the test; and can be displayed.
3.4. In the measurement range of 0-50N, the accuracy can reach 0.001N, and the resolution is 0.001N. It is professionally used to measure the corresponding parameters of waterproof materials.
3.5. The degree of automation is high. The instrument design adopts advanced devices at home and abroad, and the single-chip microcomputer performs information sensing, with automatic reset, data memory, and overload protection.
3.6. Direct access to measurement results: After completing a set of tests, you can easily display measurement results directly and print statistical reports including mean, standard deviation and coefficient of variation
3.7. Optional standard serial RS232 interface, which can provide data communication for the host computer comprehensive report system
3.8. Multi-function and flexible configuration: the instrument is mainly used for the measurement of metal and non-metallic materials, changing the configuration of the instrument can be widely used in the measurement of other materials
Model |
STS10K |
maximum. strength |
1000kg (10KN) |

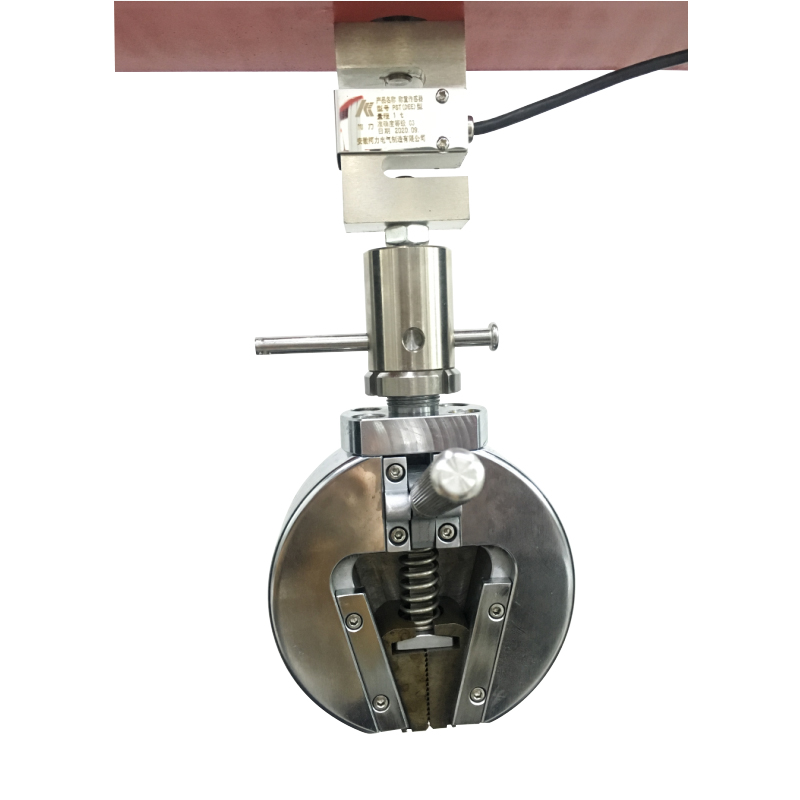

load cell |
German brand load cell with high precision |
Control System |
computer with windows 7 system |
motor |
Panasonic servo motor with DC variable speed drive system, high precision mechanical ball screw |
forced reading |
kgf, Ibf, N, KN, T, etc. |
Stoke |
1200mm including clamp |
Load Cell Resolution |
1/250,000 |
Load accuracy |
≤0.5% |
Test speed |
0.1~500mm/min (adjustable) |
Test width |
400mm |
software |
TM 2101 |
host size |
750*520*1740mm (size can be customized) |
weight |
168kg |
power supply |
220V, 50Hz, 1.5kW |
