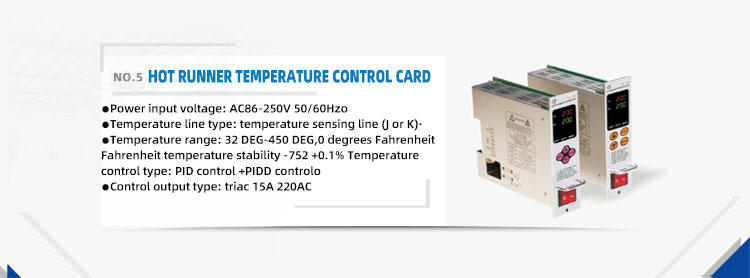

Yudo Hot Runner LCD Pid 1-24 Digital Zone Temperature Controller Price

feature:
1. Wide power supply range, AC86~240V
2. Thermocouple input protection to prevent misconnection from damaging the module
3. Thermocouple & heater reverse connection protection to prevent misconnection of thermocouple damage
4. The temperature control error is 0.5 degrees, FUZYY+PID control algorithm, there are two ways for PID parameters: online automatic setting
and manual settings.
5. The output power is displayed, and the output power can be automatically detected when heating.
6. The hot runner soft-start heating method is adopted to achieve the effect of heat flow dehumidification, and the heating tube can be
To protect the effect of prolonging the service life, the soft start heating power and heating time can be set freely.
7. K-type and J-type thermocouple sensor signals can be set. Accurate temperature nonlinear processing and integration
Cold junction compensation control mode is zero-cross trigger mode, PWM pulse width modulation output
8. There are two ways to set and display temperature and Fahrenheit.
9. Temperature upper limit alarm function, temperature lower limit alarm function, upper/lower temperature limit can be set.
10. In addition to automatic control, the system is also equipped with manual control mode for heating under special circumstances.
Diagnostic function
Alarm when the following situations occur
1. Ultra-high temperature or ultra-low temperature
2. Thermocouple disconnection, short circuit or reverse connection
3. The thermocouple is not in place
4. Heater disconnection, short circuit or overload
5. The output device is damaged
