shape: | round | type of packaging: | through hole |
Voltage - Rated: | 440V | brand: | Medium cool |
place of origin; place of origin: | Zhejiang, China | model: | CBB65 |
Capacitance Tolerance: | ± 5% | Supplier Type: | Original factory, ODM, agent |
Specification: | M12 thread | application: | Air conditioner |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | port: | Xiamen |
application: | Air conditioner | Package: | boxed |
Rated voltage: | 110-440V | Supply capacity: | 1,000,000 pieces/month |
shell: | aluminum | Impregnation material: | Epoxidized soybean oil |
Voltage - Breakdown: | Not applicable | Operating temperature: | 40/70/21, 40/85/21 |
tolerant: | 0.1UF | Packaging Details: | Brown carton, 50PCS/CTN |
Card: | CBB65 | Circuit Type: | Not applicable |
Capacitance Range: | 0.1UF | type: | Polypropylene Film Capacitors |
temperature range: | -40°C to 90°C | Available media: | Data sheets, photos, EDA/CAD models |

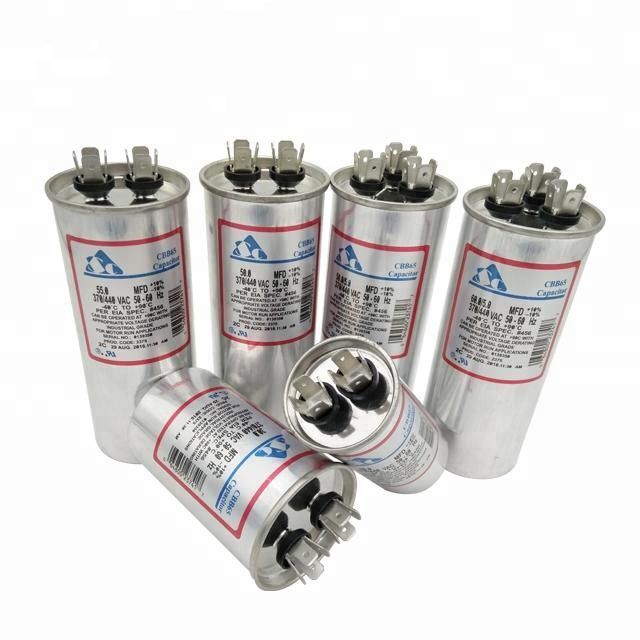

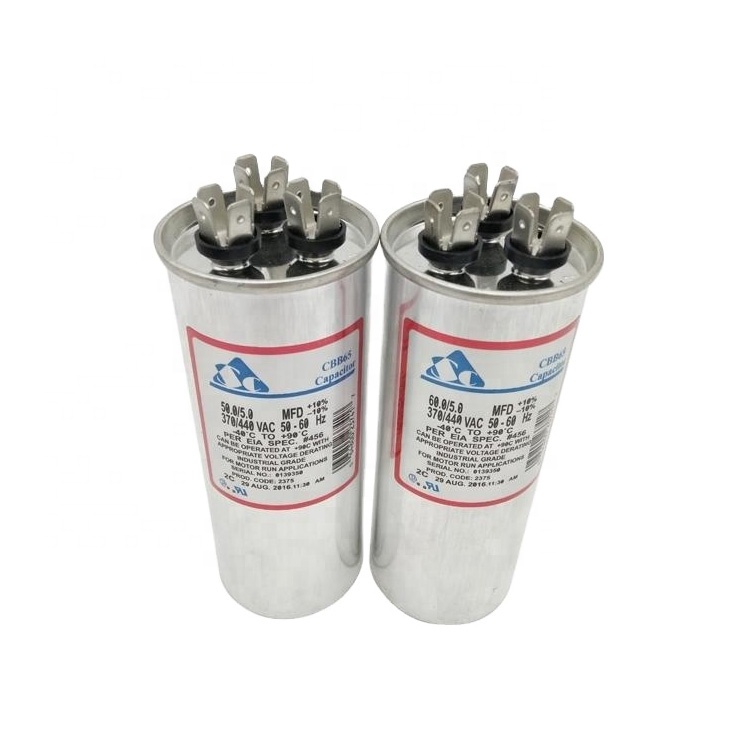

CBB65 Metallized Polypropylene AC Capacitor
feature:
The capacitor has the advantages of low loss, high insulation resistance, good self-healing, anti-rush current, strong overload current capability, stable electrical performance, internal explosion-proof device and other safety and reliability. Used in air conditioners, refrigerators, motors, compressors, and is conducive to the start and operation of motors.
technical parameter | ||
ambient temperature | -40~+90 degrees Celsius | |
Rated voltage | 150-500VAC | |
Capacitance range | 2-100uF (2 pole) & 1+1 - 80+15uF (3 pole) | |
Test voltage | TT: 2Un/2s TC: 2200VAC/2s | |
dissipation factor | Tan δ ≦ 0.0018 (1000HZ) | |
Capacitance Tolerance | ± 5% |
