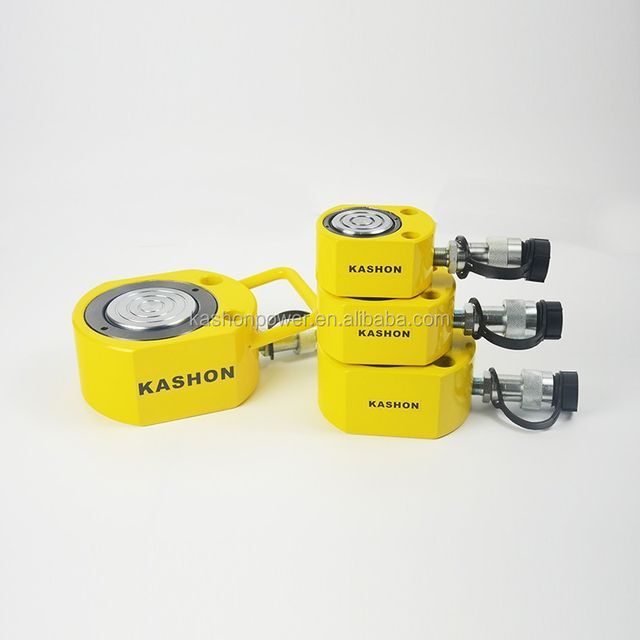

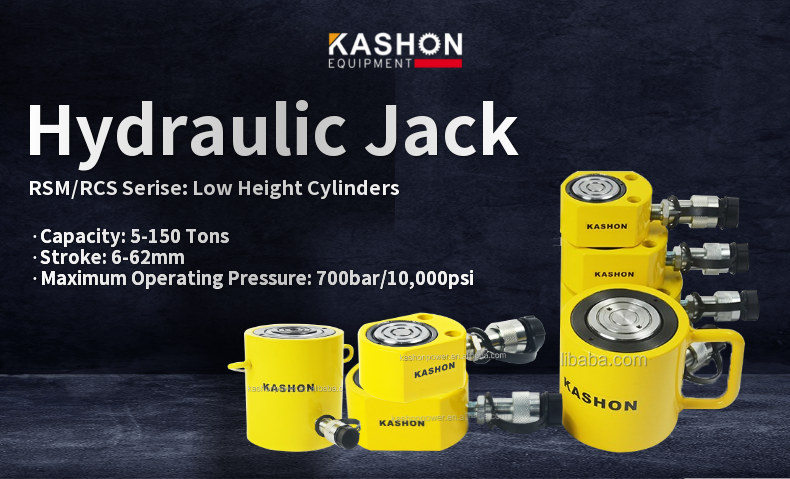

Key words: | Hydraulic Flat Cylinder | Capacity (load): | >50T |
Material: | Carbon steel | maximum height: | 101mm |
brand: | Kaishan | type: | Hydraulic Flat Cylinder Jack |
operate: | with manual or electric pump | port: | Shanghai |

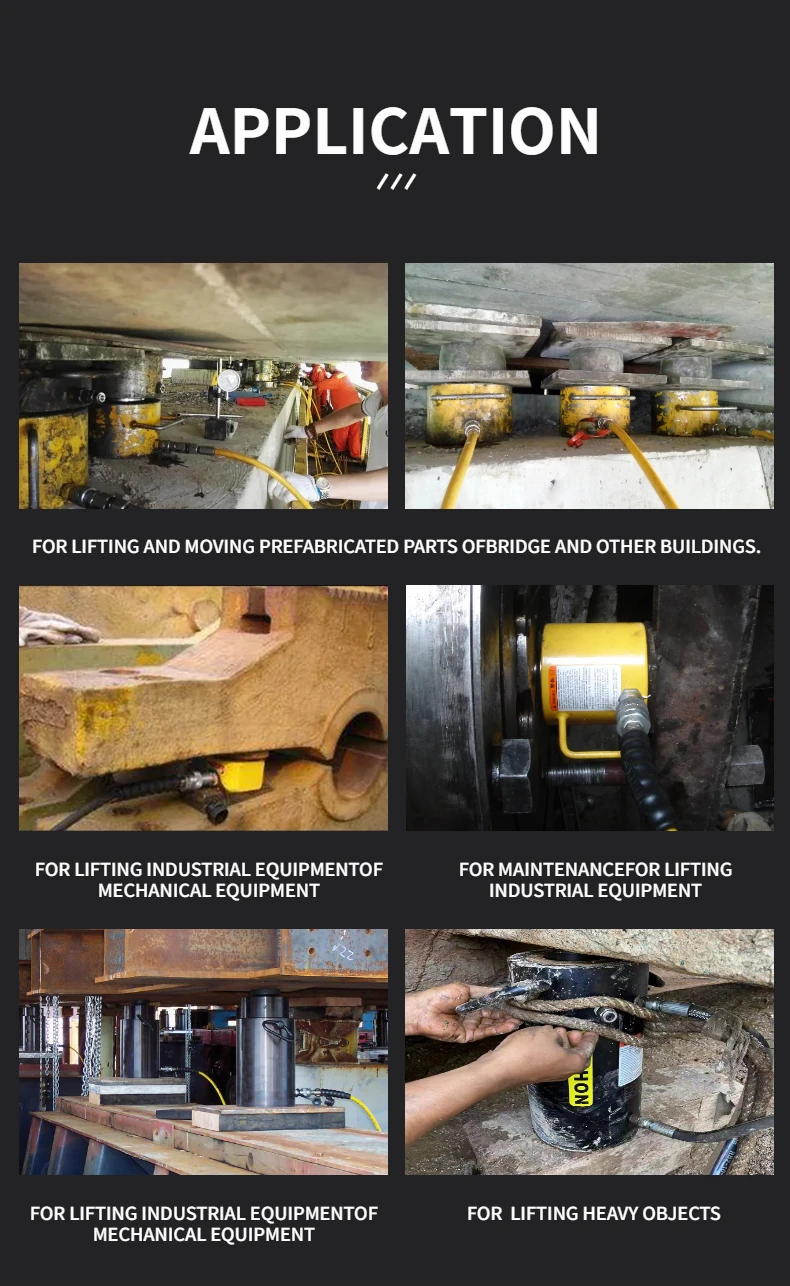

application: | lift, push, pull | Supply capacity: | 100 hydraulic flat cylinder jacks per month |
place of origin; place of origin: | Jiangsu, China | OEM service: | can put the customer's brand |
greatest pressure: | 700bar/10,000psi | Packaging Details: | Carton or plywood box for hydraulic flat cylinder jacks |
color: | Follow customers (yellow, green, red…) | ferry: | International |
Minimum height: | 30mm | Certificate: | ISO, TUV |
payment terms: | L/C,Western Union,T/T,PAYPAL | model: | RSM |
Key words: | Hydraulic plate jack | | |
1. Maximum working pressure 700 bar.
2. Single-acting cylinder with heavy duty return spring, designed for use in all directions.
3. These flat cylinders will fit where other cylinders cannot be placed at their folded height.
4. Coated with corrosion-resistant enamel.
5. Steel cylinder piston rod is plated with hard chrome.
6. No saddle required due to grooved cylinder rod end.
7. The stop ring avoids over-extension of the piston rod and maximizes the extension of the cylinder.

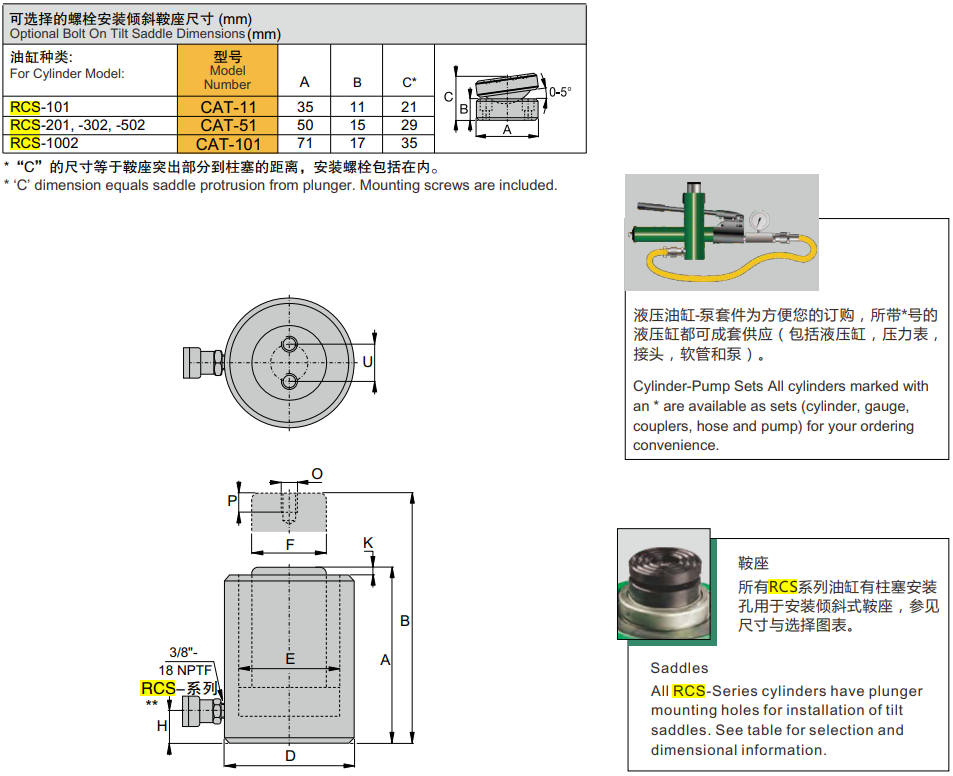

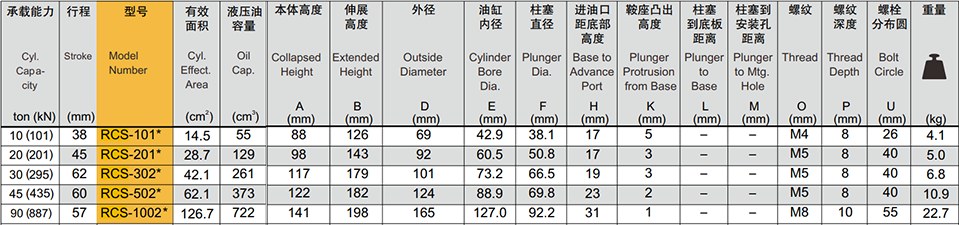

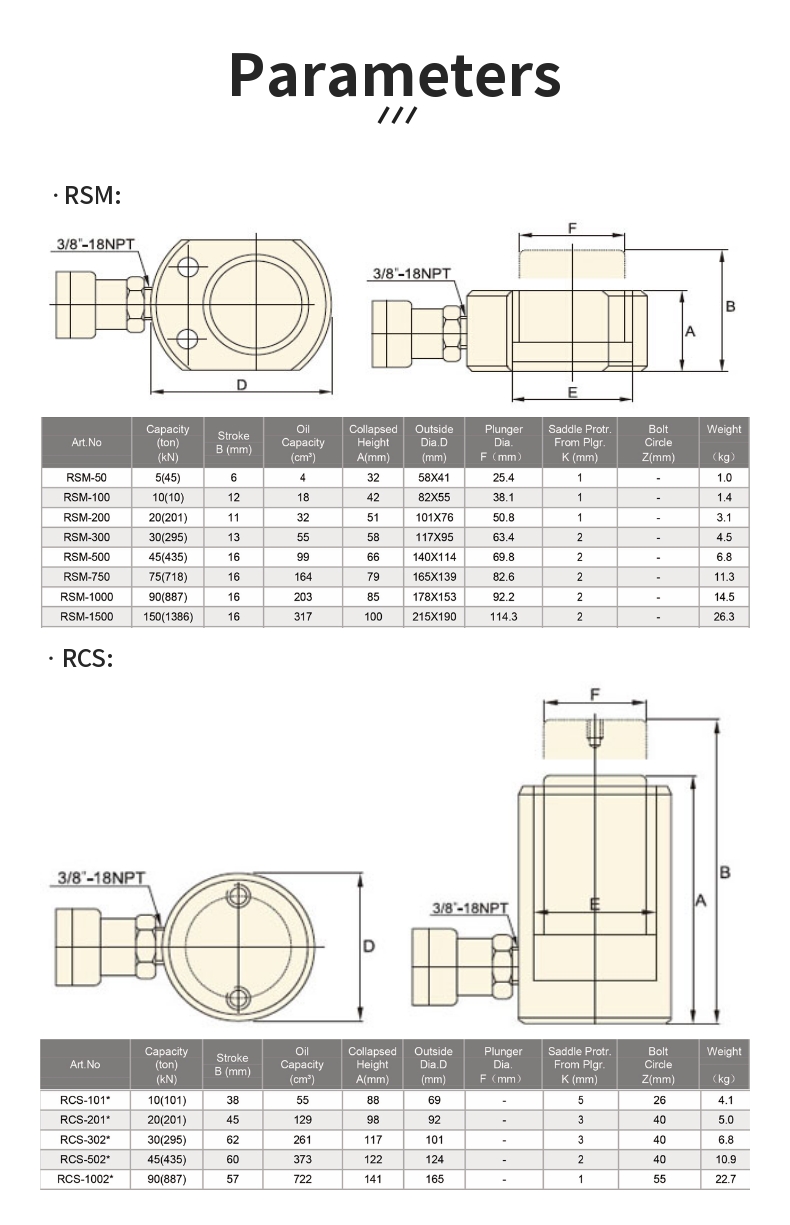

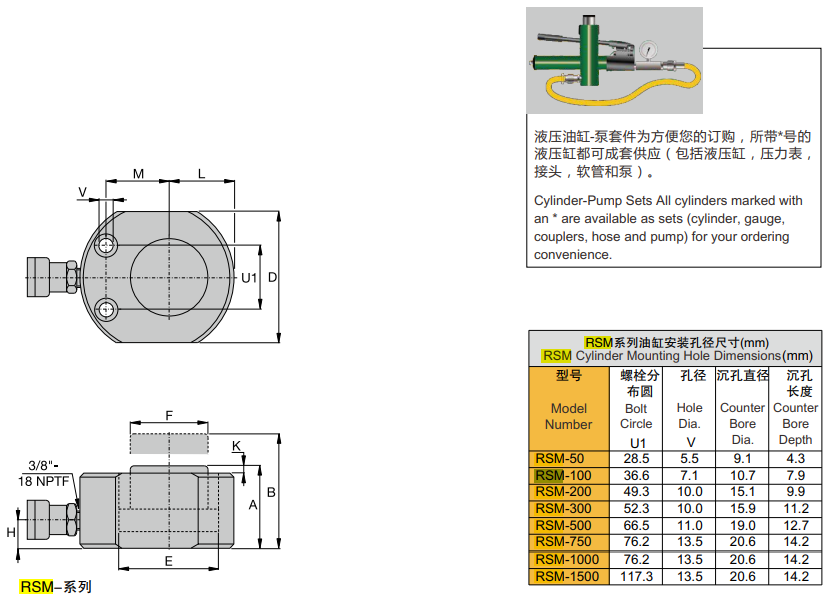

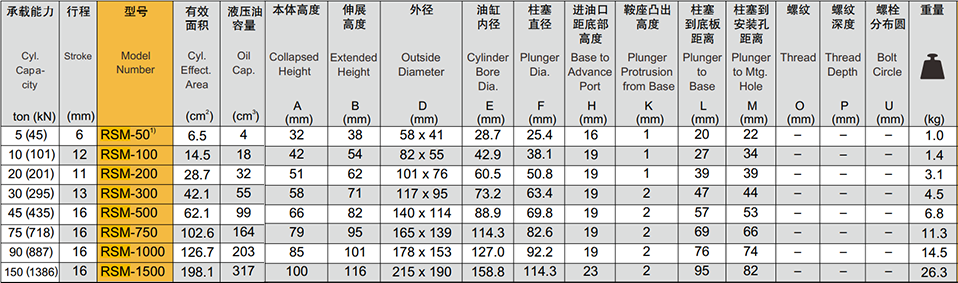

Quick pick table:For complete technical information, please contact sales.
Applicable Products:

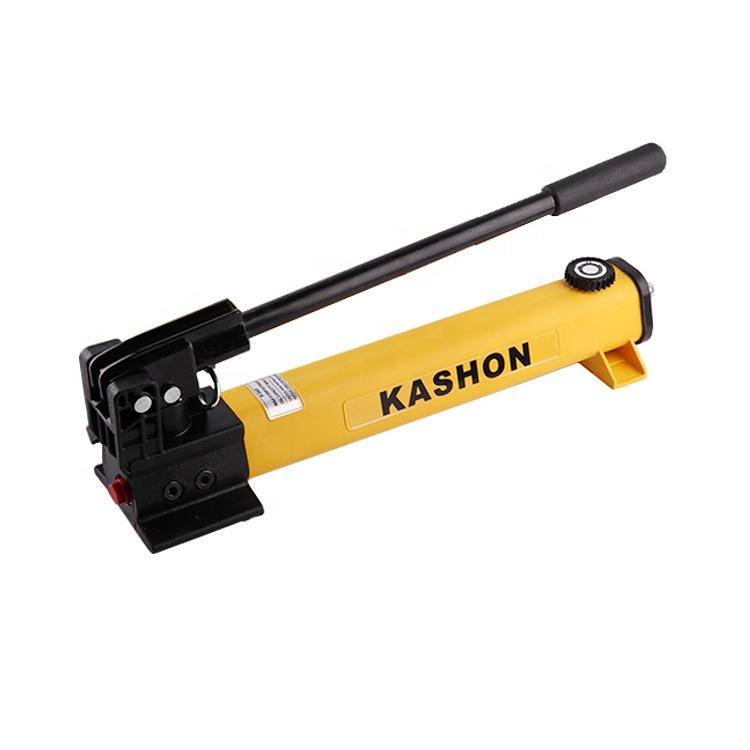

suitable hydraulicmanualPump: | |
Model | P-392 |
Pump type | Two-speed single-acting |
oil capacity | 700ml |
maximum. pressure | 700bar(10,000Psi) |
weight | 6.7kg |

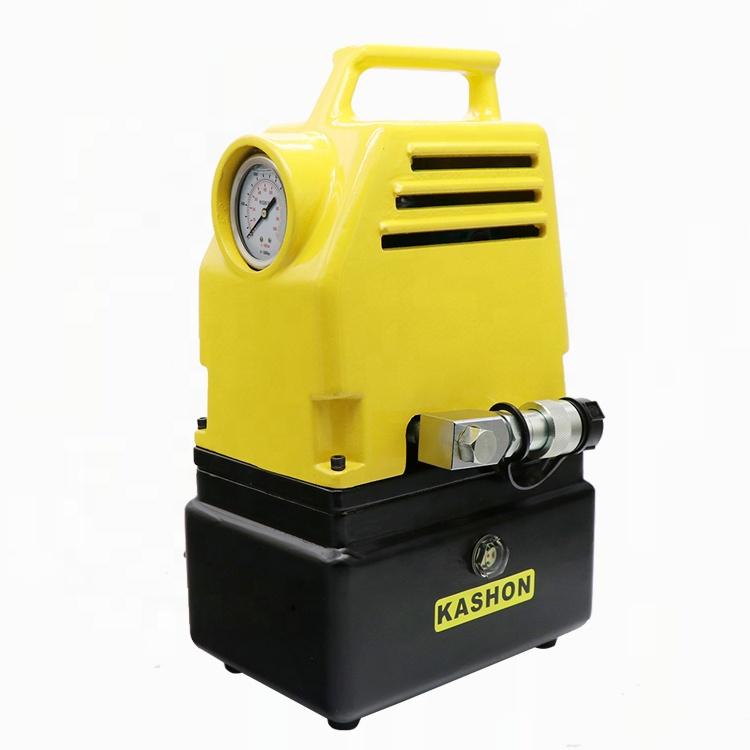

suitable hydraulicelectricalPump: | |
Model | KSP-25S |
power supply | 1ph/220V/50hz |
oil capacity | 4L |
low flow | 3L/min |
high liquidity | 0.32L/min |
Motor Power | 1 kW |
maximum. pressure | 700bar |
size | 250*170*360mm |
weight | 16kg |

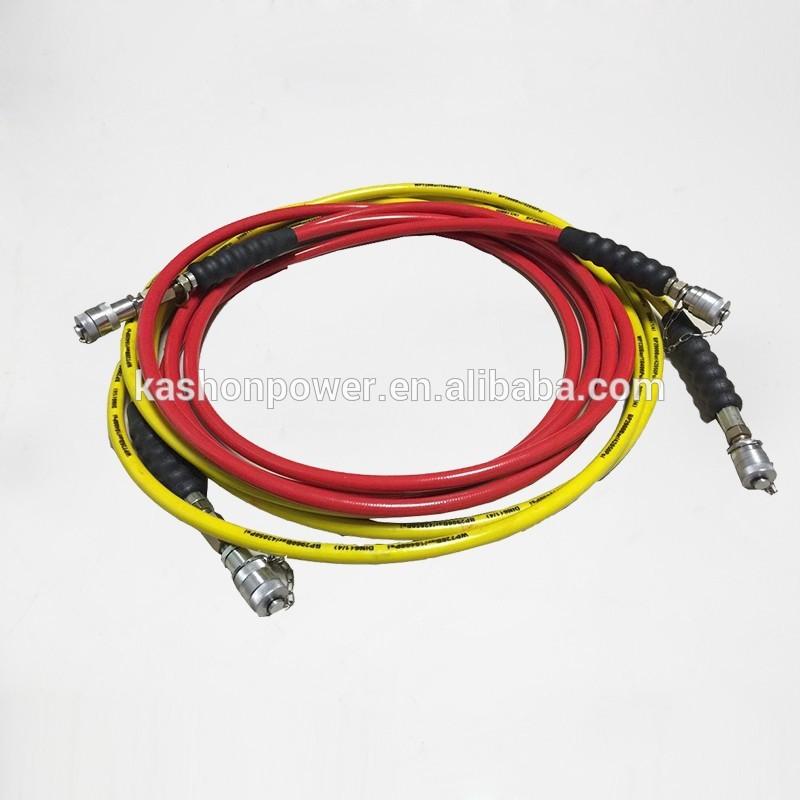

Hydraulic connection hose: 3/8 | |
coupler | 3/8" or 1'4'' screw connection (ball or pin) |
work pressure | 10,000 psi (700 bar) |
burst pressure | 40,000 psi (2800 bar) |
put up | steel braid |
length | 2m, 4m, 6m, 7.5m, 10m, 15m and any available length |

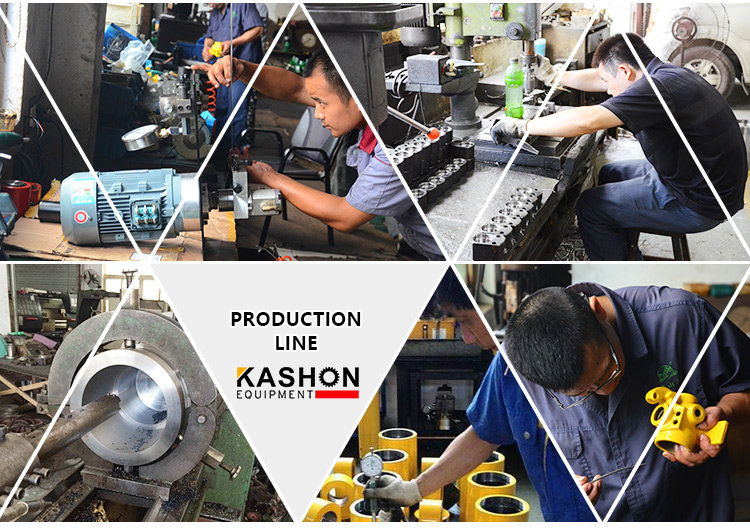

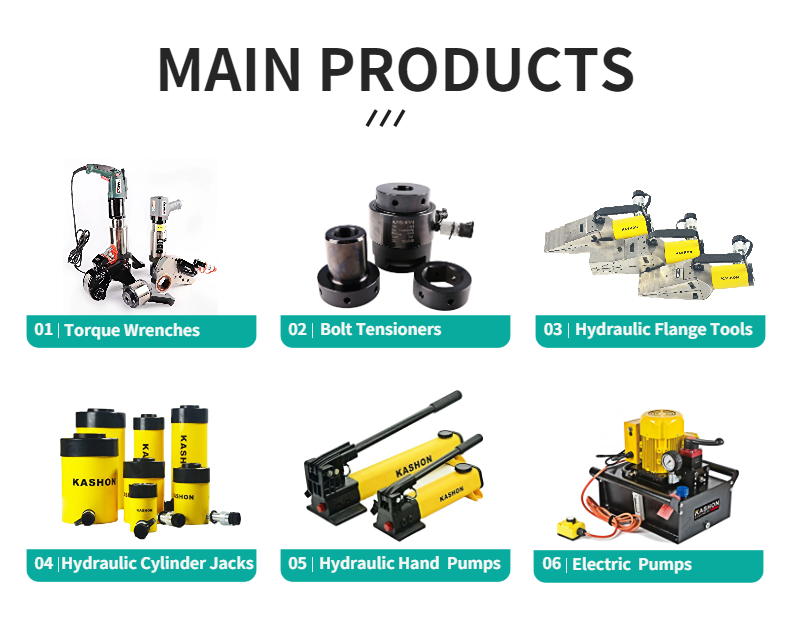

Kashin equipmentHas been in the hydraulic tool industry since 2002. Main exports:
Hydraulic cylinder/jack/plunger (5-1500 tons), single and double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrench (100-72000Nm);
Hydraulic lift pump, manual and electric;
Hydraulic pullers, manual and hydraulic;
Hydraulic flange spreaders, manual and hydraulic;
Hydraulic wire rope press
Hydraulic accessories (hoses, couplers, oil distributors, etc.)
Over the years, we have grown into a diverse market and now serve clients all over the world. we like to hear
Our customers need and think while striving to provide the best service and deliver the highest quality parts.
we believe"Serve” is our No. 1 customer. We hope that our commitment will serve our customers quickly and efficiently
Competitive prices will keep you coming back.
Q1: How to contact sales?
A1: Please pass Email davina at kashoneequipment dot com Or call: +86-199-5169-4295 for pre-sale
Q2: How to pay?
A2: Paypal, Western Union, Moneygram or T/T transfer.
Q3: How long does it take to process an order?
A3: It usually takes 10-14 working days to process most out-of-stock orders, and only 2-3 working days if in stock.
Q4: What is the packaging method?
A4: For small pieces, we use carton boxes; for large pieces, we use export grade plywood boxes.
Q5: How to ship?
A5: Sea, air or international express (DHL, FEDEX, UPS...) are all available.
Q6: What is the warranty?
A6: 12 months from the date of the bill of lading.
