Application: | Grinde concrete surface; | Weight: | 4kg; |
Packaging Detail: | COLOR BOX OR BMC; | Color: | Required; |
Certification: | GS CE EMC; | Model: | XM-120; |
Place of Origin: | Zhejiang China (Mainland); | Supply Ability: | 10000 Piece/Pieces per Month; |
Usage: | Breaking; | Power: | 1200; |
Engine: | Electric Motor; | Delivery Detail: | 5-30DAYS; |
Type: | Hand Push; | Port: | NB/SH; |
Packing: | BMC+CARTON BOX; | Payment Terms: | L/C,D/A,T/T,Western Union; |

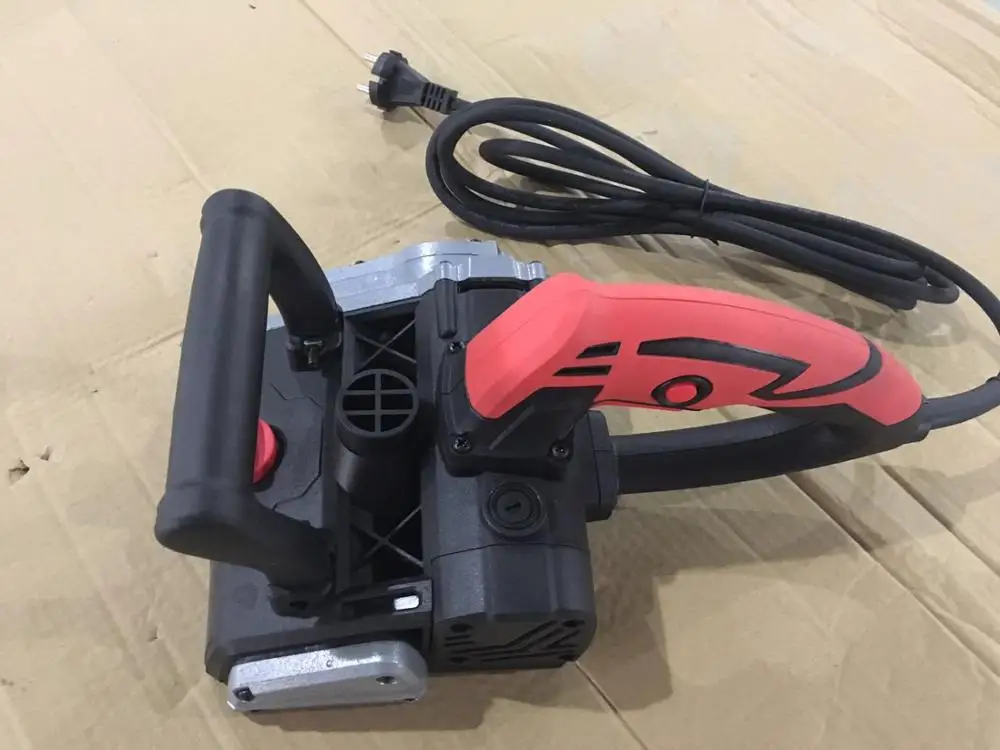

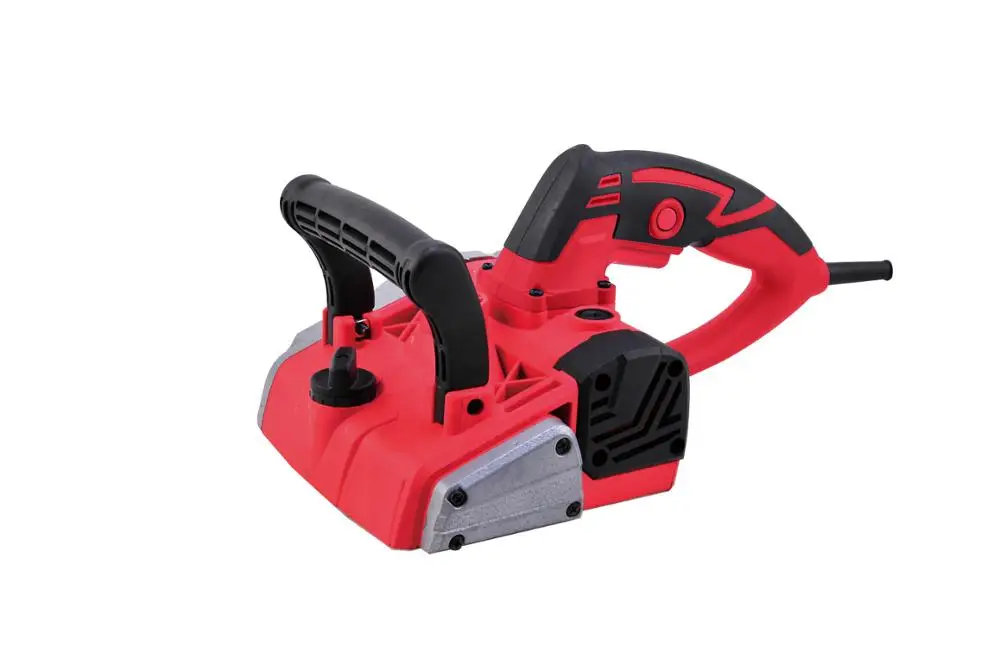

Scouring Machine /Concrete grinder
Item no.: XM-120
PROFESSION MACHINE
Technical Specifications :
Rated voltage 230~240(V)
Current 50(Hz)
Rated power 1200(W)
No-load frequency speed 9600(r/min)
Blade Width φ125(mm)
SPECIFICATION:
XM-120 Scouring machine is class Ⅱhandheld tool, designed and produced according to the standard of GB3883.1.
It is with features of series motor driving, light weight, strong power, high efficiency, easy to operate, safe.
The machine is intended for scouring walls, ceiling or other surfaces of concrete, gravel, paint, plaster or putty coated without using water.
The machine is with soft start, constant power control and overload protection.
Soft start could protect motor from excessive current shock, enhance motor lifetime.
Constant power control ensures power stable while machine work with different load.
Overload protection, machine will automatically shut down if machine is over load, prevent machine from motor burnt
BMC packing:
Packing quantity:2PCS/CTN
G.W/N.W: 8kg /7KGS
Measurement for BMC : 43x19x14 CM
Loading capacity:750PCS/20’,1550PCS/40’
Maintenance
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
If the machine is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

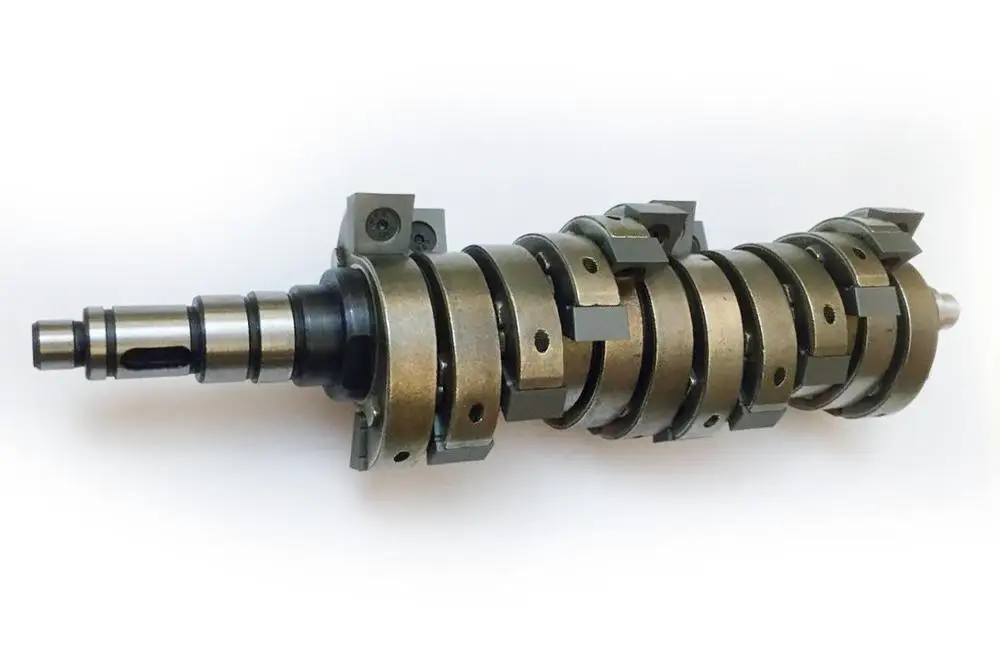

Carbide blade replacement

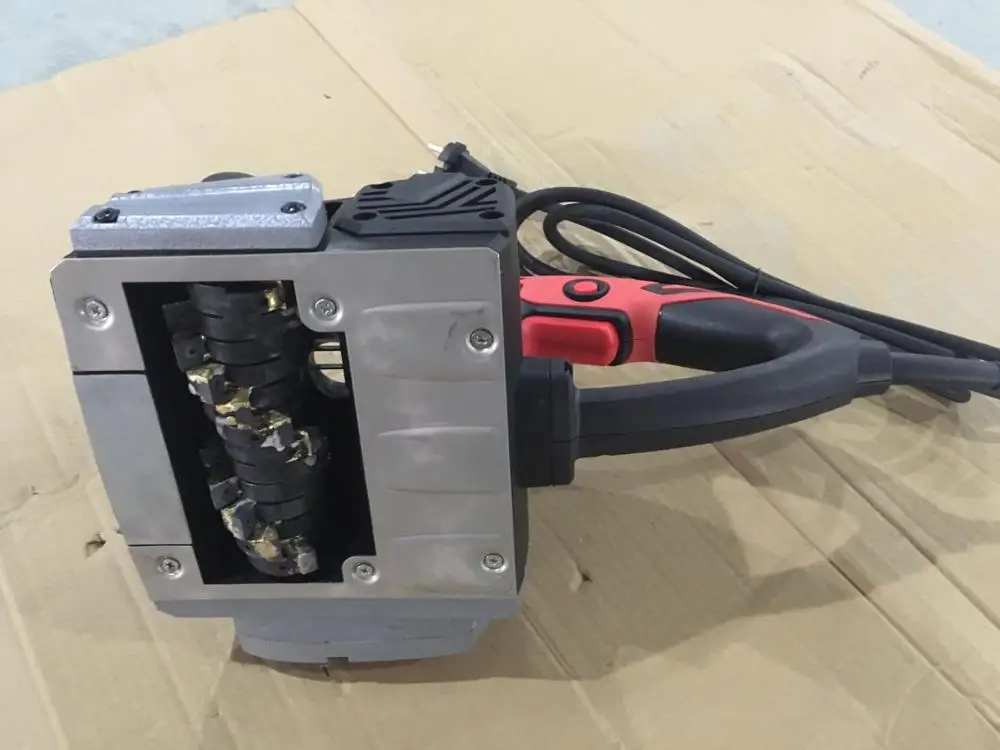

Unscrew 4 screws with screw driver, use a wooden hammer to gently tap aluminum cover and take off it with inner dust cover as figure 1.
Use socket wrench and Open-end spanner to loosen screw and take off spiral blade as figure 2. Blade should be taken off one by one.
Assemble and disassemble blade as figure 4.
Suggest to check whether blade is loose regularly everyday before work.
SERVICE
Have your tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
