DIN338 Full Grinding Power Tool Attachment HSS INOX Drill Bits For Stainless Steel Metal Jobber Twist Drill Bit Set

  • Supplier: Foshan Songqi Technology Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Danica Huang
  • Price: $0.11 / 1 - 99 pieces
    $0.10 / 100 - 9999 pieces
    $0.07 / >=10000 pieces
  • Min. Order: 1 piece
Product details
Warranty:northwestSupply capacity:100000 boxes per month
Custom Support:OEM, ODM, OBMproduct name:DIN 338 Twist bit set
port:Guangzhou/Foshan/Shenzhenpayment terms:L/C,Western Union,D/A,T/T,PAYPAL
process:Full grinding/milling/roll forgingPackaging Preview:
place of origin; place of origin:Guangdong, Chinabrand:loose
Shank Type:straight handlestandard:DIN 338
color:Gold/Black/Yellow/Otherflute:2 flutes
Finish:Black Oxide, Zinc, Plain, Gold, Tintype:Twist Drill
use:metal drillingmodel:SQ-0102
Packaging Details:Cobalt Parallel Shank Bit Inner Packing: PVC Box (5pcs) Outer Packing: Carton (50pcs) Carton Size: 14*9*17cm PVC Box Size: 2.5*3.0*10.5cmWorking Length (mm):118 degrees, 135 degrees
application:stainless steel, stainless steel, metalusage:metal drilling
Point angle:135/118 degreessize:0.5-16mm

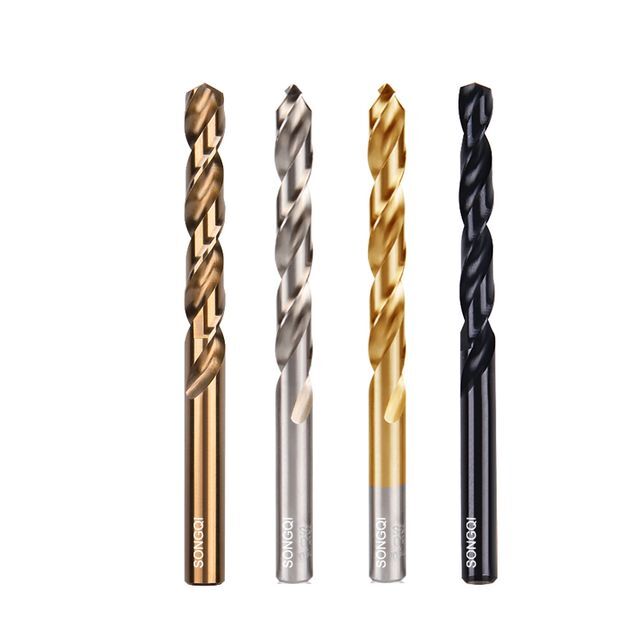

DIN338 Full Grinding Power Tool Attachment HSS INOX Drill Bits for Stainless Steel Metal Jobber Twist Bits

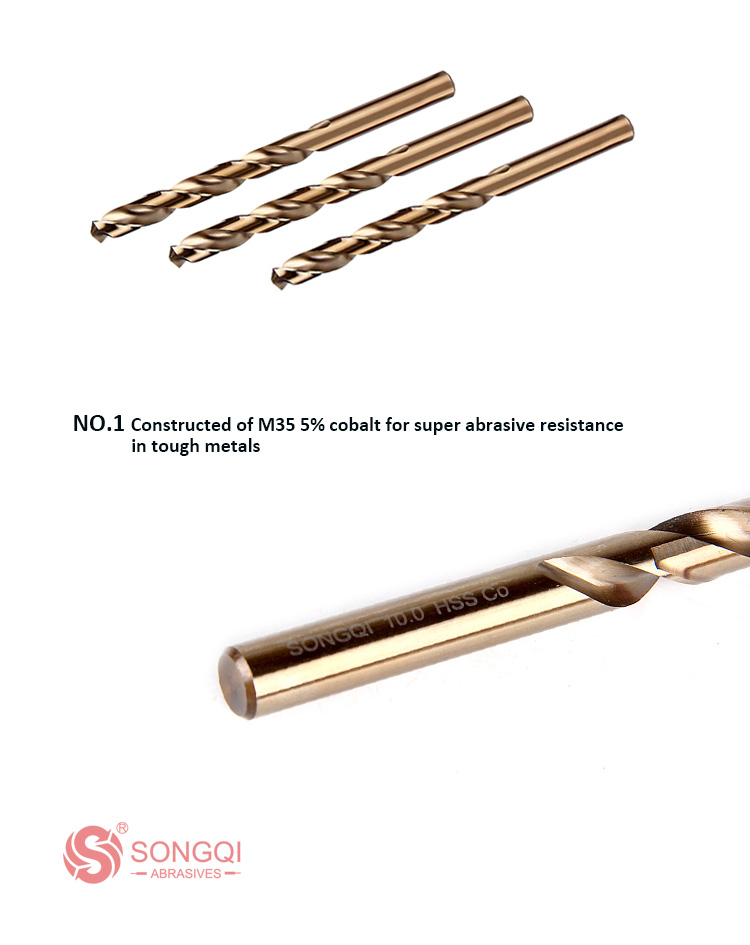

product: High-grade high-speed steel M35 cobalt twist drill
Card: Songqi/OEM/ODM
standard: DIN 338
Shank Type: Parallel Shank / Straight Shank

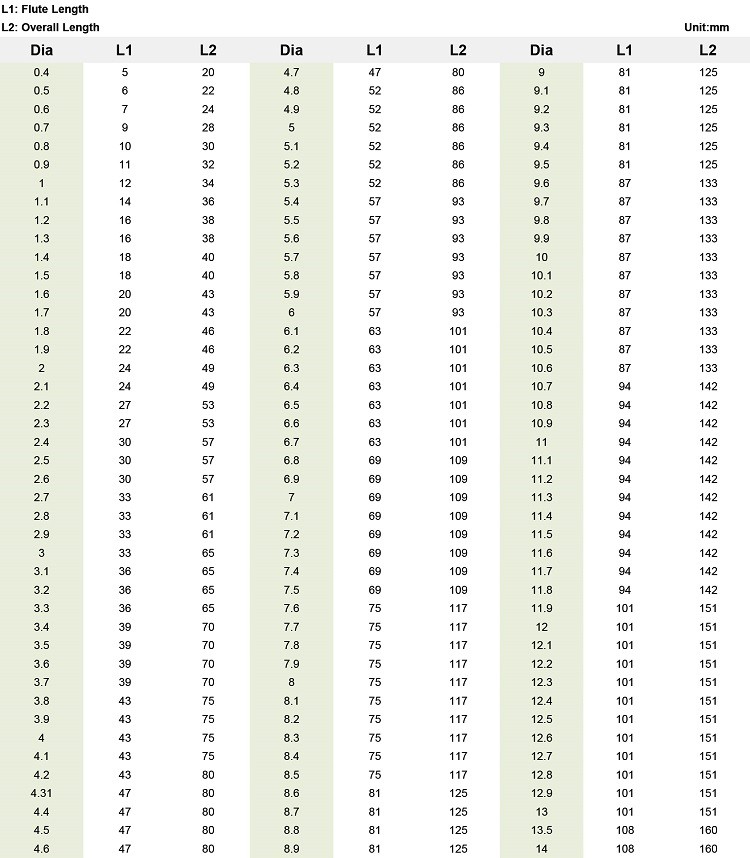

size: 0.5mm to 20mm
Material: HSS Cobalt M35 / HSS Cobalt M42 / HSS M2 / HSS
color: Gold/Titanium/Black Oxide
Split point: 135° /118°
process: all over the place
hardness: 58-68HRC

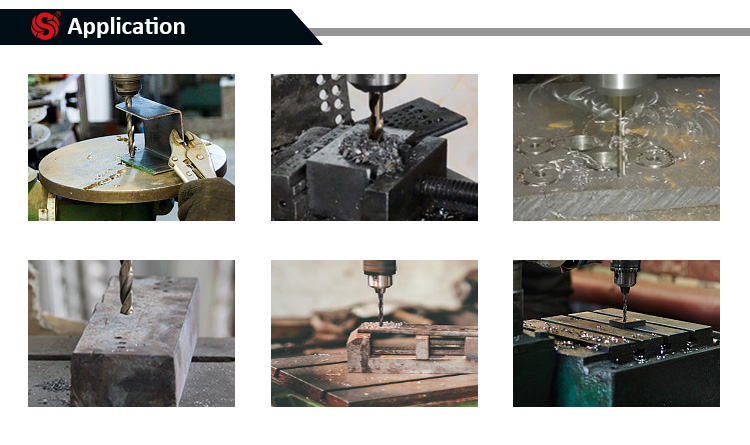

application: Suitable for stainless steel, high temperature alloy, titanium alloy, high strength steel and carbon fiber composite materials, etc.
pack: 5 or 10/plastic box, 50/inner box
delivery time: Within 3-30 days according to your order quantity





Recommended speed:

Specification
Rotating speed
Specification
Specification
1-2mm
3000-1800MAX RPM
8.1-9mm
500-400MAX RPM
2.1-3mm
1800-1400 maximum speed
9.1-10mm
350-300MAX RPM
3.1-4mm
1400-1000MAX RPM
10.1-11mm
300-280MAX RPM
4.1-5mm
1000-800MAX RPM
11.1-12mm
300-280MAX RPM
5.1-6mm
800-700MAX speed
12.1-13mm
280-250MAX speed
6.1-7mm
700-600MAX RPM
14mm
220MAX speed
7.1-8mm
600-500MAX RPM
15mm
200MAX speed

Product Description:

1. Hammer drill for three-jaw system

2. Copper solder has high heat resistance, which can better reduce the loss of cutter head

3. High-quality material M35 HSS, higher hardness than ordinary materials

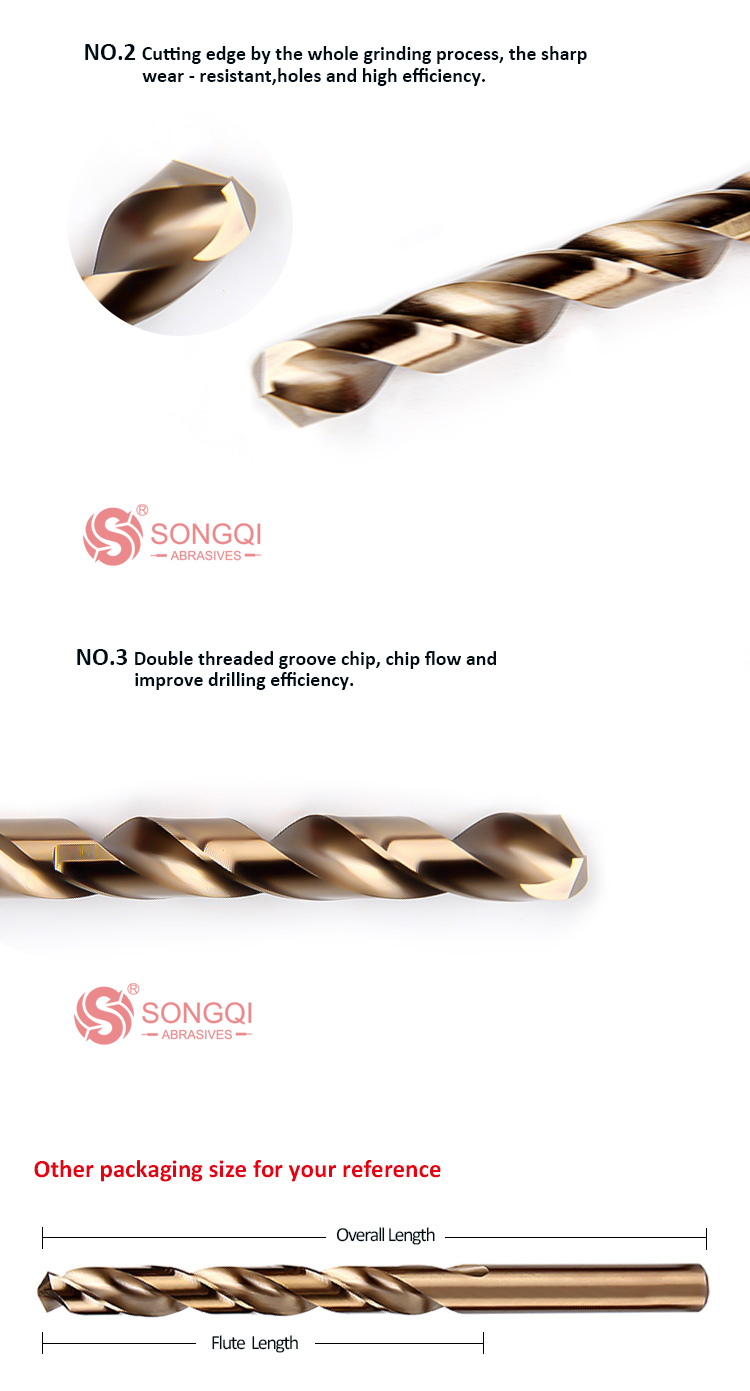

4. The blade is sharp and the hole opening efficiency is high

5. Precision grinding technology, strong wear resistance
