cabinet doors mdf plywood woodwork calibration broadband sander sanding wood

Product details
Health status:newport:Qingdao Port, or as your request.
Showroom location:Egypt, Turkey, United Kingdom, United States, Italy, Vietnam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, Russia, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Romania, South Africa, Kazakhstan, Ukraine, Uzbekistan, Tajikistan Stan, MalaysiaVideo external inspection:if
Warranty:2 yearstype:Other woodworking machinery
Supply capacity:100 pieces per monthFeeding speed:6-30m/min
product name:sanderWorking thickness:3-110mm
Dust Amount:9600Mechanical test report:if
Power (kW):64kWpayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,Alibaba Sander Trade Assurance
Working width:1300mmType of machine:wood sander
Power (W):64kWApplicable industries:Hotels, Building Materials Stores, Mechanical Repair Shops, Manufacturing Plants, Food and Beverage Plants, Restaurants, Home Use, Construction Works, Energy and Mining, Advertising Agencies
Minimum working length:500mmbrand:WFSEN
The first motor:37kWPackaging Details:R-RP1300 heavy duty broadband sander, packed in plastic film and wooden case, or as your request.
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpworking pressure:0.6MPa
Weight (kg):3400kgMarketing Type:normal product
Core Components Warranty:2 yearsMain selling point:automatic
place of origin; place of origin:Shandong China

cabinet doors mdf plywood woodwork calibration broadband sander sanding wood

Product Description

To ensure smooth surface, automatic speed control, Siemens Schneider Electric, Taiwan sandpaper.

Safety protection, heavy duty frame, easy-to-replace belts, easy-to-operate control panel, 2-year warranty.



Broadband Sander Planer + Sander Water + Sander

SE7F Side Polisher Name Brand Sander Primer Sander

SK brush polishing machine SF brush polishing machine wire polishing machine

MF202 Small Edge Banding MachineMF360B Automatic Edge Banding MachineMF60S Manual Edge Banding Machine

Horizontal Panel Saw Combination Small Saw CNC Router

Hot Press Cold Press 4 Sides Planer Forming Machine



 ———technical parameter



working width 450,630,1000,1300,1600mm first motor 5.5, 11, 22, 37, 45kw
Minimum working length 500mm second motor 5.5, 7.5, 15, 22, 30kw
Working thickness 3-110mm third motor 11. 22kW
Feed rate 6-30m/min Feed motor 0.75, 1.5, 4.5kw
first roll 190, 240mm Lifting motor 0.37, 0.55kw
two rolls 190, 240mm working air 0.6Mpa
third roll 210mm Dust amount 8000, 9600, 14000m³/h
Belt size 470*1930, 650*1930, 1020*2020, 1320*2220mm, 1620*2220mm
Dimensions 1800*950*2100, 2700*2100*2100, 3000*2400*2100mm
weight 1100, 2200, 3200, 5300, 6500kg

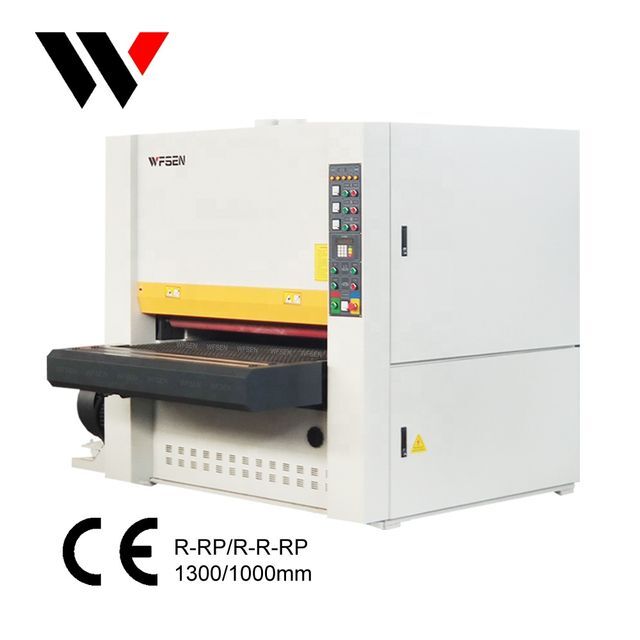

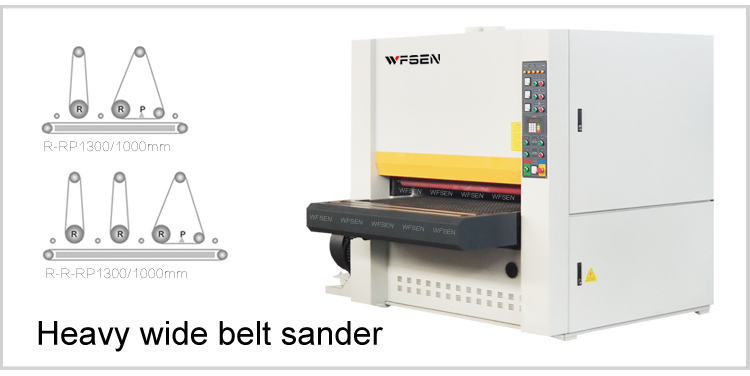

R-RP1000/1300mm RR-RP1000/1300mm



——— please choose



1 model R-RP, RR-RP, RRR-RP, RR, PR-R
2 working width 450, 630,1000,1300, 1600MM
3 Control System  Buttons and Digital Display, or touch screen
4 electrical appliances Chint China or German Bosch
5

sandpaper

Taiwan or Germany
6 Motor brand Standard or Premium
7 dust collector together or not
8 Voltage 220V, 380V, 415V or 400V, three-phase or single-phase
9 price  FOB or CIF price
10 your port name CIF price including shipping to your port

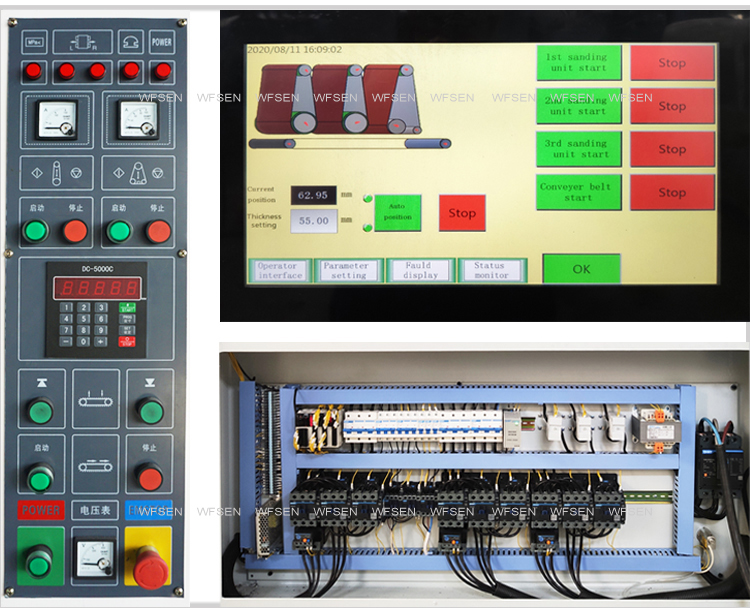

——— function display



Buttons and digital touch screen

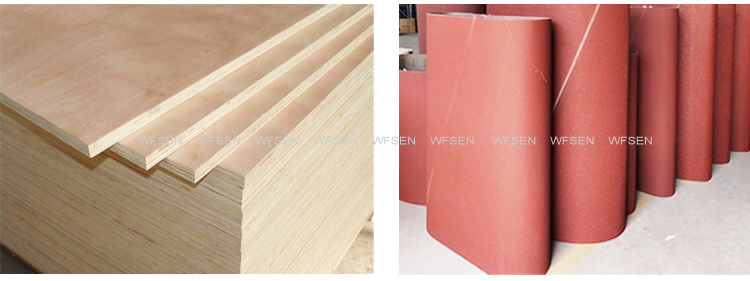

——— suitable for planks





Different boards, choose different sanding belts.

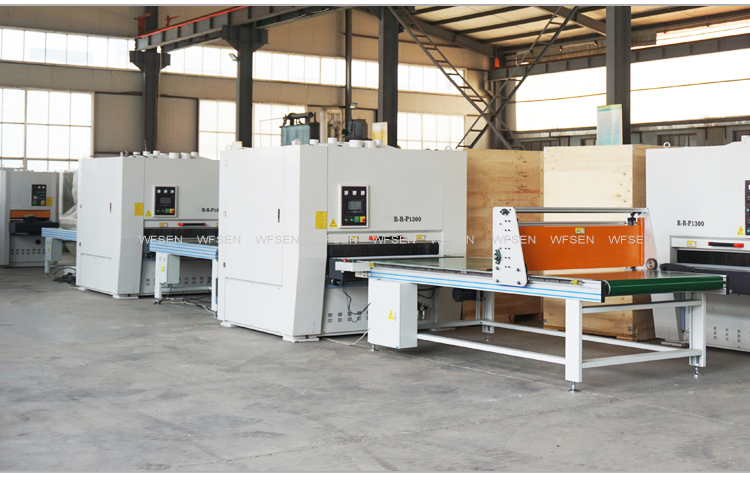

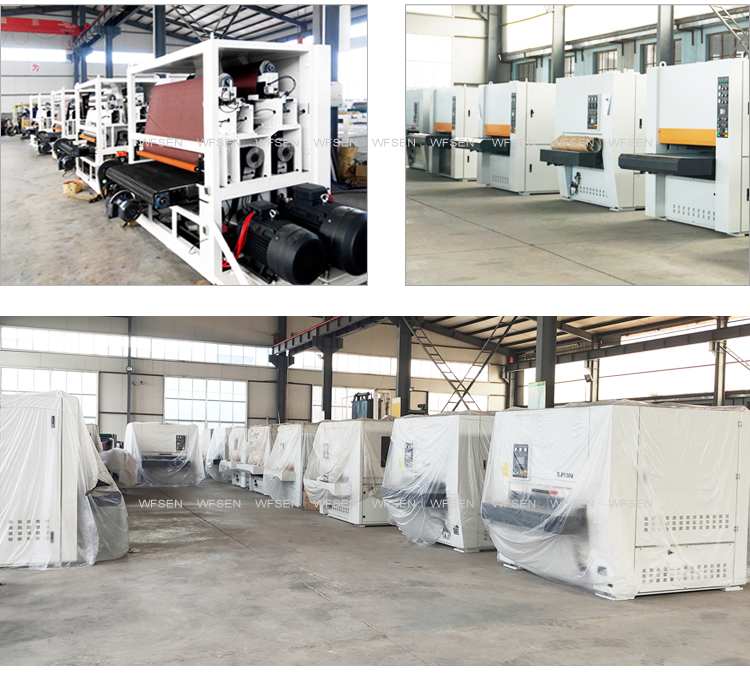

——— Workshop display
