Packaging Preview: | | application: | poultry |
Marketing Type: | New Products 2020 | weight: | 60kg |
Showroom location: | not any | Core parts warranty: | 1 year |
place of origin; place of origin: | China Shanghai | Supply capacity: | 100000 pieces/month |
port: | Shanghai Port | Voltage: | 380V/220V/110V |
Dimensions (L*W*H): | 70*70*92CM | After-sales service provided: | Free spare parts, video technical support, online support |
Core components: | motor, engine | Certification: | CE certificate |
Warranty: | 1 year | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
Packaging Details: | Inner box: with foam inside, each machine is packed in a carton High quality packing export packing Standard outer box: carton size: 48*48*54cm Gross weight: 15 KG | Video external inspection: | if |
Mechanical test report: | if | brand: | tolkat |
Applicable industries: | Manufacturing plants, farms, home use | Local service location: | not any |
Health status: | new | Main selling point: | high productivity |
Product Description
type | TC-CP-60 |
Ability to work | 7-8 chickens/time |
Hair removal net rate | 96% |
Package weight | 70kg |
Spindle speed | 260 rpm |
Motor Power | 2200W |
Cylinder diameter | 600mm |
Machine size | 67*93*63cm |
Hair removal object | Chicken and duck. Goose. |
Accurate with chicken | 7-8 only |
1. Description

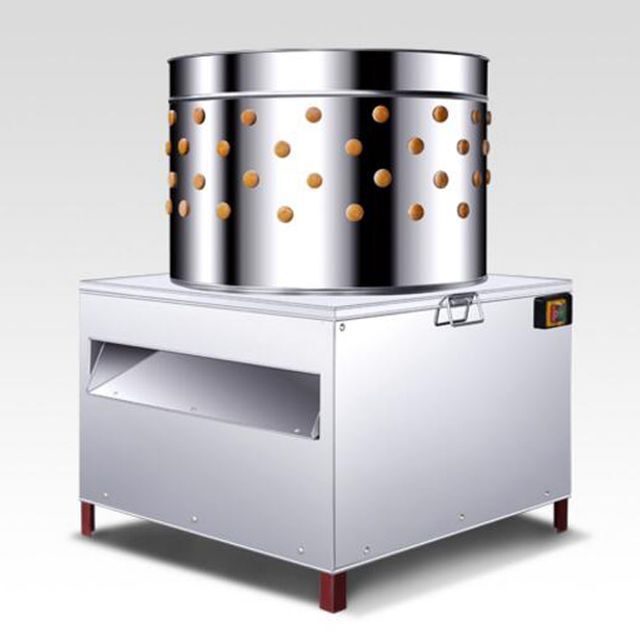

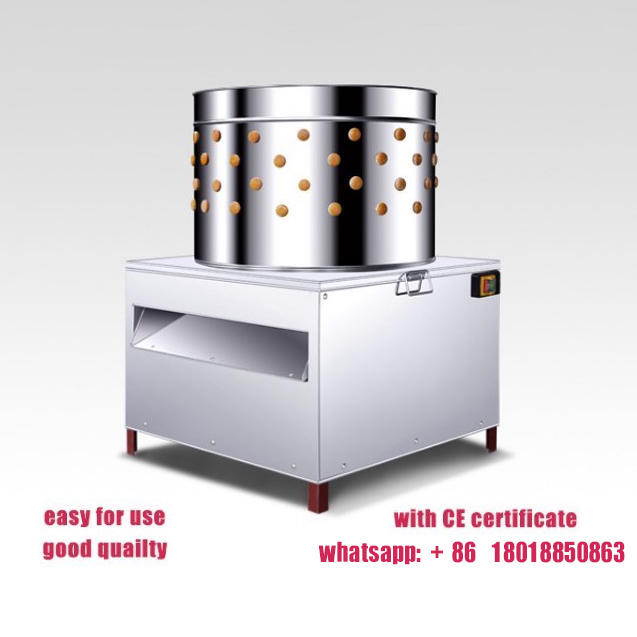

There are three types of poultry plucking machines produced by our factory. The design is basically the same as the above picture.

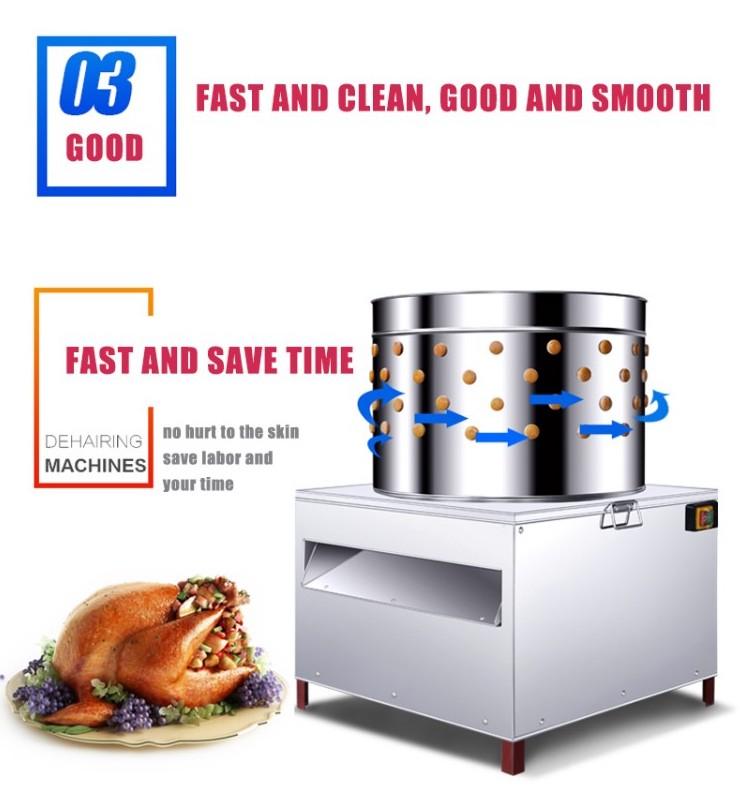

Compared with the traditional hand-picking method. Our chicken pluckers are very productive.
Taking the TC-50 model as an example, it can pull 2-3 chickens at a time, and it can be completely pulled out in 0.5-1 minutes.
Although it is called a hair pluck, it can also be used to pluck duck feathers, goose feathers, bird feathers, etc.

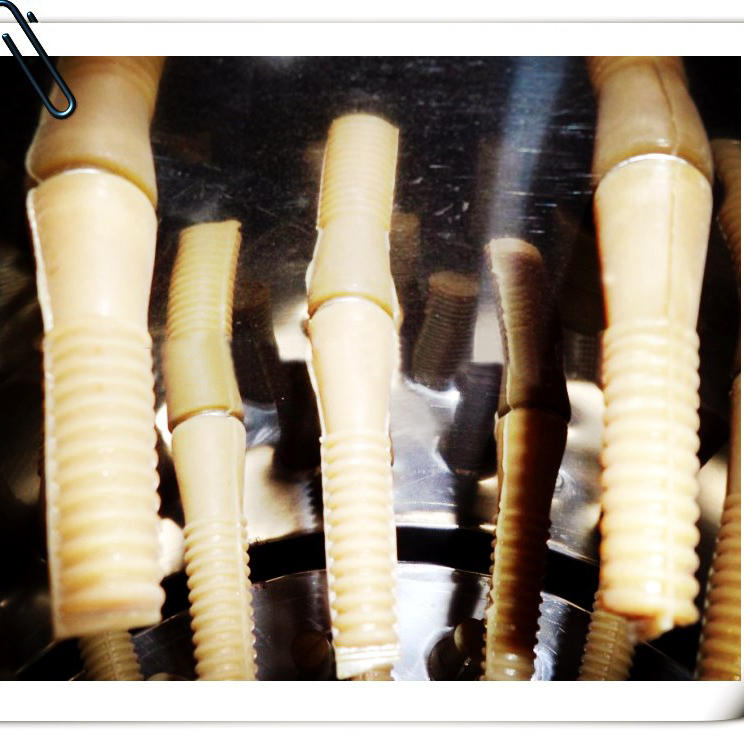

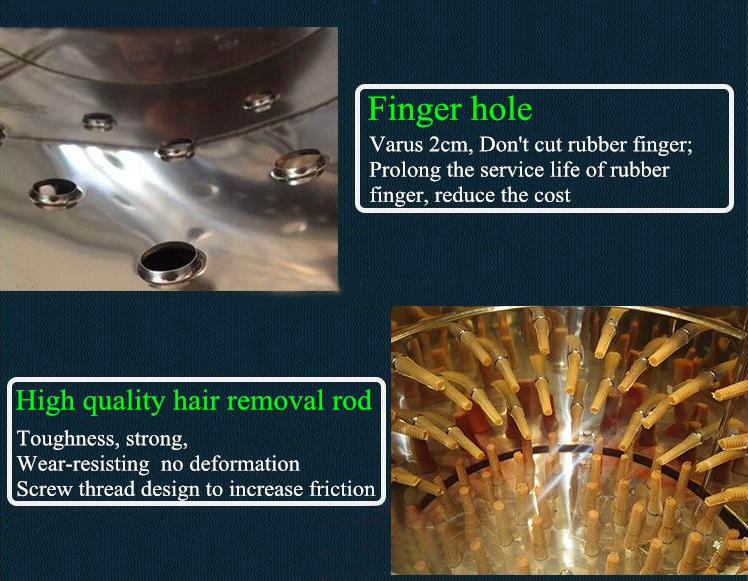

High-density plucking rubber fingers for complete plucking of poultry feathers.

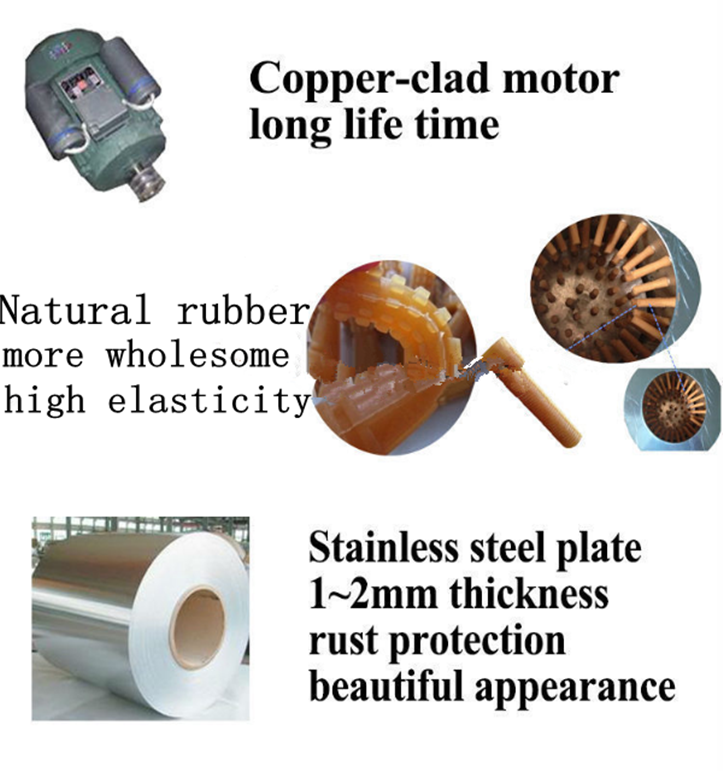

Main ingredients:
1. Stainless steel 201, stainless steel 304;
2. The thickness of stainless steel plate is from 1mm to 2mm.
attention:
1. Install a leakage switch on the ground wire
2. Turn on the switch and check whether the machine is running normally before use.
3. Wash the tube thoroughly after use.
4. After long-term use, please replace the worn or damaged thief stick. Thereby ensuring work efficiency.
5. After using for a period of time, if the roller becomes slow, it may be the belt screw slide rail. Then please adjust the nut of the base, but be careful not to be too tight.
Operation of automatic chicken puller
1. After slaughtered poultry, scald with 65-80 degree hot water.
2. Then turn on the machine and put the blanched poultry into the machine
(Ginger, potatoes and fish can be added directly).
3. After working for 10 seconds, turn on the faucet and wash off the removed water
Feather, then remove the poultry.
4. The whole chicken process takes about half a minute.
5. After use, clean the black mold with water and dry it to prolong the service life of the machine.
6. Keep out of reach of children
7. Do not put your hand into the pan when the machine is working to avoid injury
8. If the feathers cannot be pulled out under normal operation, it is a sick bird, and it is recommended not to eat.
