Cabinet Standard: | ANS/EIA RS-310-D; | Port: | Ningbo; |
Products Status: | Used; | Brand Name: | cabinet; |
Type: | 19" Standard Server Cabinet; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Application: | Data Center Server Rack; | Model Number: | 601S-cabinet; |
Feature: | Floor Standing Server Cabinet; | Certification: | ISO 9001:2008; |
Capacity: | 20u-47u; | Depth: | 600/800/900/1000mm; |
Degree of protection: | Network Rack IP20; | Size: | 19 Inch; |
Supply Ability: | 500 Piece/Pieces per Day cabinet; | Place of Origin: | Zhejiang China (Mainland); |
Surface finish: | Phosphating; | Material: | SPCC Cold Rolled Steel; |
Packaging Detail: | 1 set/box network cabinet; | Product Name: | cabinet; |
Color: | Black; |

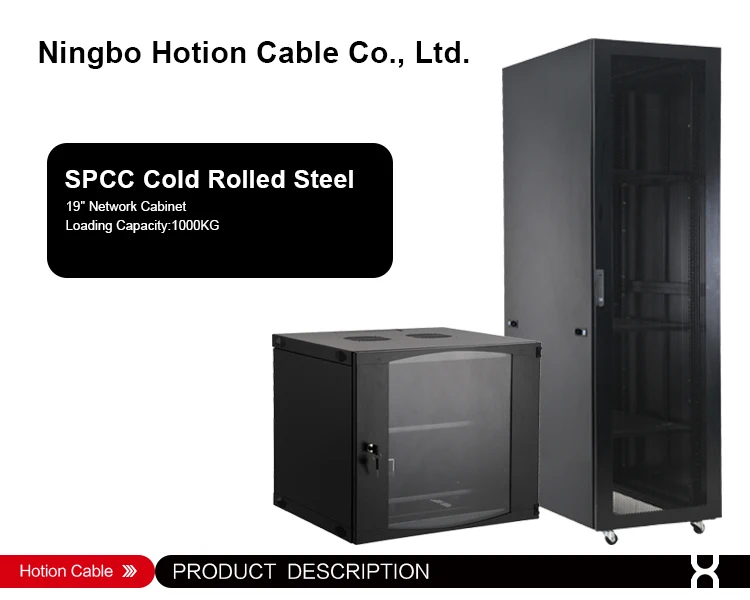

19 inch cabinet glass door 15u 20u 24u 38u 42u server cabinet professional manufacturer data network cabinet

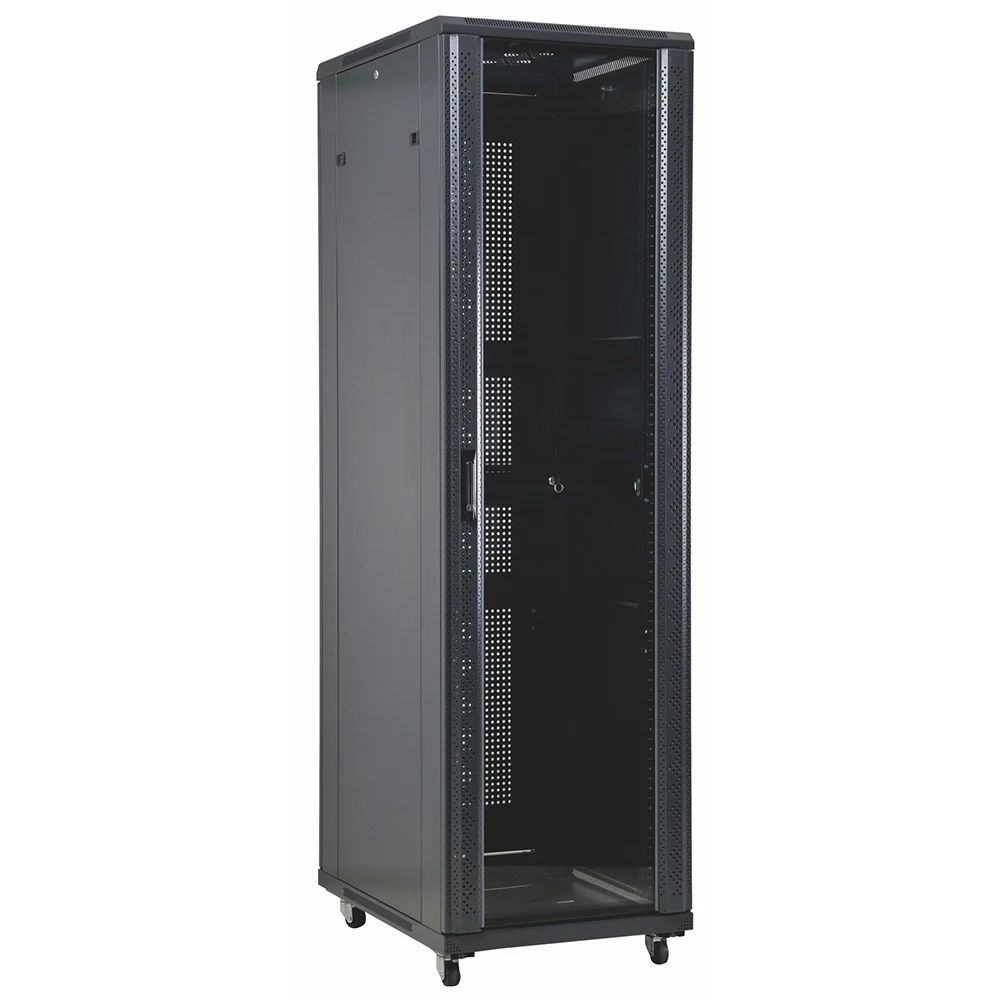

601S Cabinet
Standard:
Comply with ANSI/EIA RS-310-D,IEC60297-2,DIN41494
Part1,DIN41494,Part7
Material:
SPCC Cold Rolled Steel;
Thickness:19” rails:2.0mm
Side panel:1.0mm,others:1.2mm
Color:
JB601S0:RAL7035
JB601S1:RAL9004
Loading Capacity:
Static loading:800KGS
Feature
Exquisite design with precise dimension and craftsmanship;
Several styles of front and rear doors options available;
Adjustable feet and heavy duty castors are available simultaneously;
Cable entry on the top cover and bottom panel with adjustable sizes;
Optional installation of plinth to enable cabinets fixation,under-base cable entry/ventilation;
Efficient and reliable cabinet connection by baying kit;
Removable side panels to ease maintain
Main Part:
S/N | Specification | Qty | Material | Surface Finish | Remark |
1 | Rear door | 1 | see front&rear door type | ||
2 | Side panel | 2 | SPCC t1.0 | Powder coated | Small round lock |
3 | 19" rails | 4 | SPCC t2.0 | zinc-plated | |
4 | Mounting angle | 4/6 | SPCC t1.2 | Powder coated | 6pcs for over 33U |
5 | Top cover | 1 | SPCC t1.2 | Powder coated | |
6 | Frame | 2 | SPCC t1.2 | Powder coated | |
7 | Cable management slot | 2 | SPCC t1.0 | Powder coated | Only used for 800 width cabinet |
8 | Front door | 1 | see front&rear door type | ||
9 | Mounting spacer | 8/12 | SPCC t1.2 | Powder coated | Only used for 800 width cabinet 6pcs for over 33U |
10 | Bottom | 1 | SPCC t1.2 | Powder coated | |
11 | cable entry panel | 4 | SPCC t1.2 | Powder coated | |
12 | 2" heavy duty castor | 4 | |||
hardware kits with cabinet: | |||||
A | M12 adjustable feet | 4 | Steel | zinc-plated | Height:100mm |
B | M6 screw&nuts | 20/40 | Steel | zinc-plated | 40pcs for over 33U |
C | Trox tooling | 1 | Steel | zinc-plated |
Q1: Are you a manufacture or a trading company?
A1: Ningbo Hotion Cable Co.,Ltd is a professional cable manufacturer with 15 years production experience.not a trading company.Welcome to visit our factory at any time.
Q2: What kinds of products does Ningbo Hotion Cable Company manufacture?
A2: We specialize in supplying lan cable,alarm cable,fire alarm cable,coaxial cable,speaker cable,telephone cable,patch cable,face plate,keystone jack,surface box,hdmi cable,usb cable,dvi cable,vga cable,dp cable,av cable,fiber optic cable,cctv cable and other products.
Q3: Can you send a sample for us to test?
A1: If we have inventory and total amount is small,it's free.
A2: If we don't have inventory, sample and freight cost had to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
Q4: How can I get your price list?
A4: Please leave your contact way such as Email/Skype/Wechat to us. We will contact to you and sent our quotation sheet to you.
Q5: Do you accept OEM and ODM ?
A5: Of course OEM and ODM is accepted. We are a specialized manufacture in Shanghai China. We had accepted many OEM and ODM orders.
Q6: How to pay for the order?
A6: Alibaba Trade Assurance,Alipay /TT/paypal/western union/L/C and so on.
Q7. What's ur MOQ?
A7: The MOQ of cables is 30 KM,lan cable is 100 boxes or we can negociate.
Q8. What's ur delivery time?
A8: Our delivery time is about 20-30days after comfriming the deposite ,it is based on the quantity of the order.
Q9. What's ur payment terms?
A9: By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account. However, the terms can be negotiated according to quantity., as for other payment term,we can negociate.
Q10. What's ur trade term ?
A10: We can accept FOB,CIF,CFR,EXW term.
