AUMA's versatile electric multi-turn actuators SA and SAR for automation of gate or globe valves in power plants

Supplier: Xiangjing (Shanghai) M&E Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr Edward Zhao
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

port:	Shanghai	Available SARs:	Available for 3-ph AC, 1-ph AC motors
Supply capacity:	999 sets per month	model:	Multi-turn actuators SA and SAR
Available SAs:	3-phase AC, 1-phase AC and DC motors	Torque Range SAR:	15 Nm to 4,000 Nm
steering wheel:	Manual operation of the handwheel	payment terms:	L/C,Western Union,T/T,MoneyGram
Certification:	pcoc,Reach,IECEE,scoc,EPA,GS	Output Speed SAR:	4 to 90 rpm
maximum. Number of starts SAR:	1,200 degrees Celsius/hour	Packaging Preview:
place of origin; place of origin:	China Shanghai	Torque range SA:	15 Nm to 4,000 Nm
Output speed SA:	4 to 180 rpm	Warranty:	3 years
Packaging Details:	A set of multifunctional electric multi-turn actuator SA and SAR by AUMA for power plant gate valve or globe valve automation packaging brown box, WG: 4.5Kg size: 30cm30cm30cm	brand:	Omar
Environmental conditions:	High case protection / high quality corrosion protection	Name:	Multi-turn actuators SA and SAR

AUMA's versatile electric multi-turn actuators SA and SAR for automation of gate or globe valves in power plants

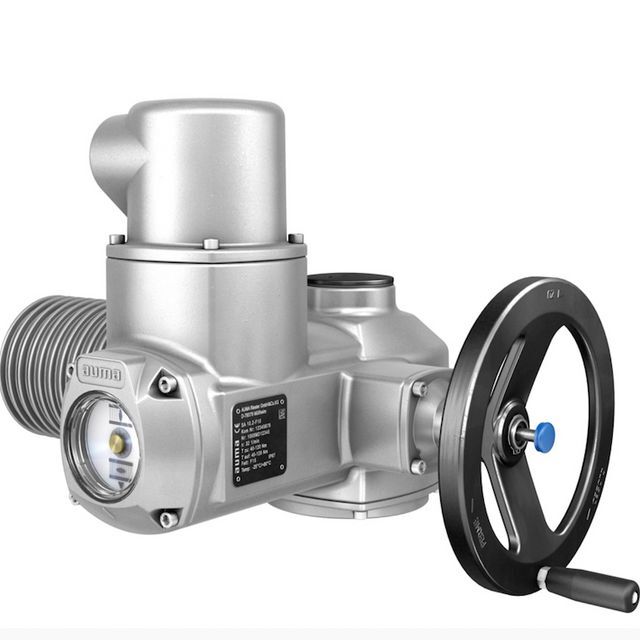

Actuators SA and SAR

The SA Type range of open-close and positioning actuators are rated for Class A and B or S2 - 15 minutes. For S2 - 30 minute loads, special versions for longer runs are available.

The regulating actuators of the SAR series are rated for Class C or S4 - 25 % duty type. Special versions S4 - 50 % and S5 - 25 % are also available.

Actuators of the SA/SAR type can be combined with various controls, from simple OPEN-CLOSE controls to microcontroller versions with operating data records or fieldbus interfaces.

Design Features SA

l Torque range from 10 Nm to 32,000 Nm

l Output speed from4 to 180 rpm

l Limit and torque sensing

l Can be used with 3-ph AC, 1-ph AC and DC motors

l Manual operation of the handwheel

Design Features SAR

l Torque range from 15 Nm to 4,000 Nm

l Adjustable torque range from 15 Nm to 1,600 Nm

l max. Number of starts 1,200 c/h

l Output speed from4 to 90 rpm

l Limit and torque sensing

l Can be used with 3-ph AC, 1-ph AC motors

l Manual operation of the handwheel

environmental conditions

l High shell protection

l High quality corrosion protection

l Wide ambient temperature range

options

l Intermediate position switch

l Series switch

l Remote position transmitter

l Magnetic limit and torque transmitter

l Mechanical position indicator

l Functional safety: up to SIL 2 in selected configurations

interface

Electrical connection via AUMA plug/socket connector (optional terminal)

Cable entries in different versions

ISO and DIN Compliant Output Driver Types

Product Description

Application field: energy

Include:

Fossil power plants (coal, natural gas, oil)

Nuclear Power Plant

Combined heat and power plant

District Heating Power Plant

solar thermal power plant

Biogas power plant

Modular design for extreme requirements

Power plants consist of systems such as water and steam circuits, flue gas cleaning, cooling towers, boiler systems and turbines. Control systems regulate processes within these systems for visualization within the control room. Electric actuators mounted on the valve control the flow of water and steam within the piping system.

AUMA actuators provide interfaces for all automated valves suitable for power plant control systems. When used in power plants, AUMA actuators are characterized by their excellent resistance to voltage, vibration and temperature, and can be adapted to any desired installation position.
