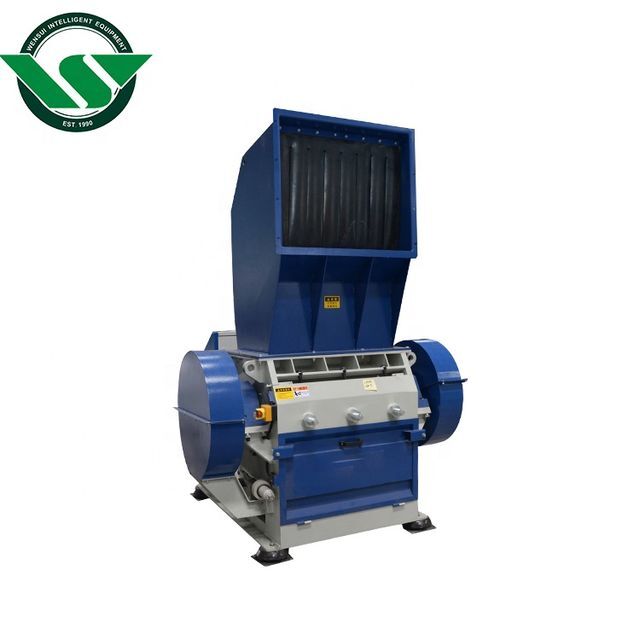

Plastic block heavy duty crushing granulator

Product details
Core components:motorWarranty:1 year
Marketing Type:Hot Products of 2019Core parts warranty:6 months
Certification:CE/ISO9001brand:Wen Sui
Mechanical test report:Not availablePackaging Details:plywood luggage
Showroom location:not anyAfter Warranty Service:Video technical support
Applicable industries:plasticMain selling point:high productivity
place of origin; place of origin:Guangdong, ChinaWeight (kg):600
payment terms:L/C,Western Union,T/T,PaypalLocal service location:not any
After-sales service provided:Online supportVideo external inspection:if
Crusher:GranulatorHealth status:new
Packaging Preview:Supply capacity:30 sets per month
Dimensions (L*W*H):1450*1450*2300mmport:Guangzhou
Product Description

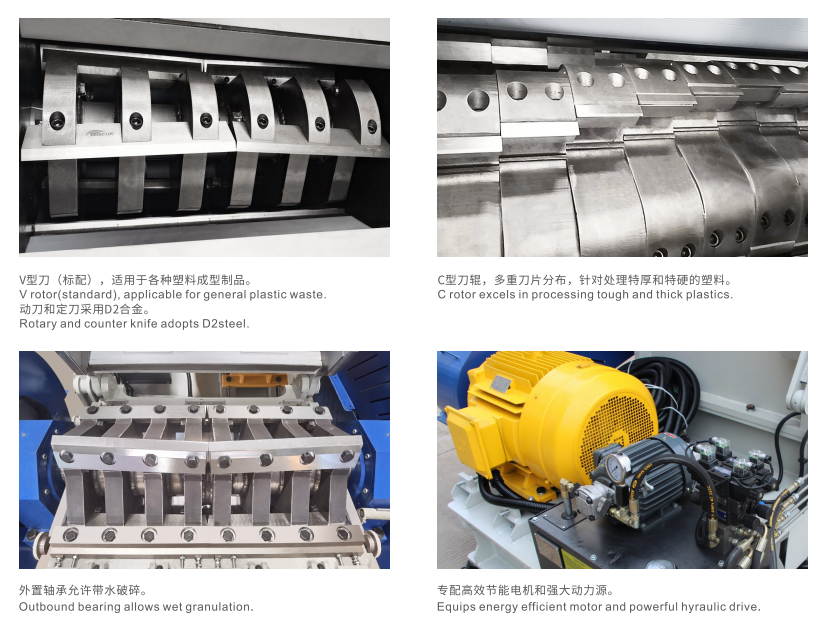

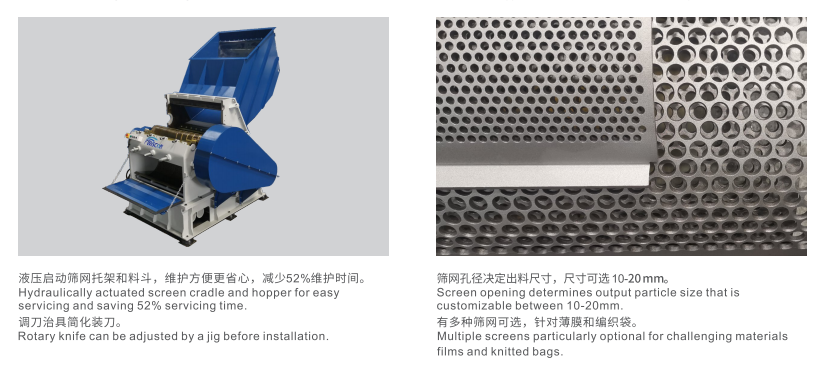

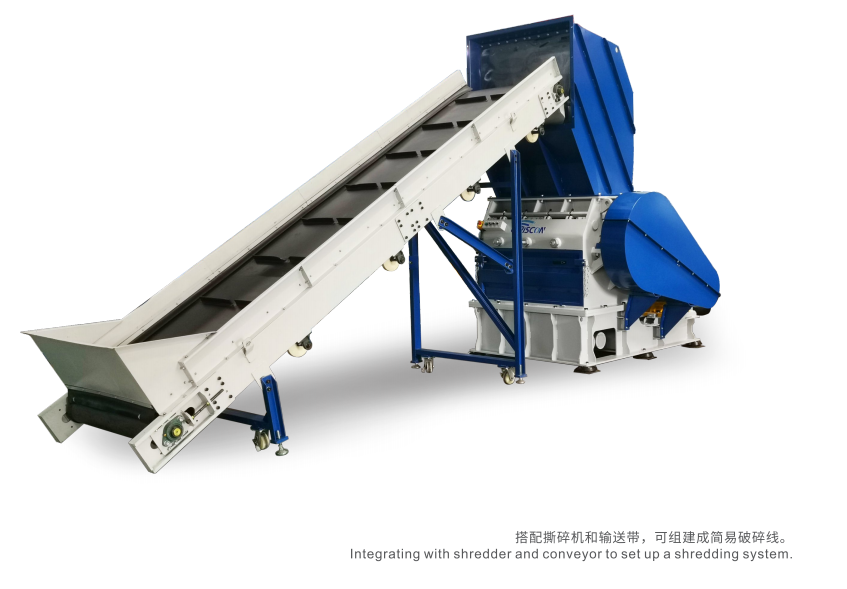

Ensure smooth shredding of plastic and rubber products of all sizes. Crusher is often used as secondary crushing due to its high rotational speed and sharp blades. It has a solid welded steel structure and stable operation, but during the crushing process, metal and similar hard foreign objects are not allowed to be discarded into the crushing cavity. The 4 rotors are designed for a variety of applications and produce a uniform regrind, the size of which is determined by the mesh opening. The resulting recycled material can be conveyed and collected pneumatically to form a simple dust-free recycling line, reducing labor costs.
Specification

Model
Hopper opening
(mm)
Rotor diameter (mm)
counter
blade(s)
Rotary Blades (pcs)
strength
(kW/hp)

Dimensions (mm)

Net weight (kg)
CS360
600*320
320
3*2
2*1
22KW
11450*1450*2300
2200
CS480
800*420
420
2*13*2
12
37KW
1650*1700*2400
2700
Product display
