Supply capacity: | 1500 sets per month | Packaging Details: | Iron frame or no packaging |
Drive Type: | gear drive | usage: | agricultural tractor |
PTO speed: | 540/760rpm 540/1000rpm (optional) | Engine Brand: | Quan Chai |
Advertised price: | Rotary machine | clutch: | two-stage clutch |
Warranty: | 1.5 years | Core components: | Motors, gearboxes, engines, gears |
Type of engine: | 4 cylinder diesel engine | Showroom location: | Australia |
Main selling point: | high productivity | Card: | Marne |
Mechanical test report: | if | Health status: | new |
Certificate: | foundry | place of origin; place of origin: | Shandong China |
Local service location: | not any | Packaging Preview: | |
Wheeled: | 4WD | engine: | Quan Chai |
product name: | FL404 Tractor | Applicable industries: | Farm, Home Use, Construction Work |
brand: | Horsen | After Warranty Service: | Video technical support, online support, spare parts |
Tractor price: | Contact Horsen International | Rated power (HP): | 55 hp |
Video external inspection: | if | spread: | 12F+12R shift |
payment terms: | L/C,T/T,Western Union | Dimensions (L*W*H): | 3970*1620*2130 |
port: | Qingdao | type: | wheeled tractor |
Core Components Warranty: | 1 year | Marketing Type: | New Products 2020 |

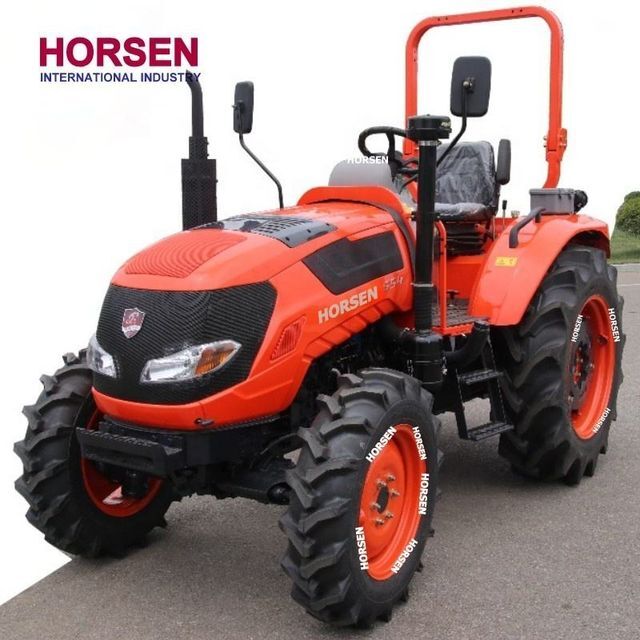

FL554 series
Hot selling technical features:
The main parameters | ||
type | FL554 | |
drive type | four-wheel drive |
|
engine | ||
engine brand | ||
engine type | QC4105T55 | |
maximum. Torque (Nm @ engine speed) |
227~233/1700 | |
Fuel tank capacity (L) | 48L+22L=70L | |
Engine rated power KW/RPM |
44/2400 | |
Fuel consumption@nominal power(g/kw.h) |
≤248 | |
Intake type | inhale naturally | |
Displacement L | 4/2.977 | |
air filter | Oil bath (optional dry inner) | |
torque reserve | 25% | |
Transmission system | ||
Clutch Type/Size | One Piece, Dry, Double Action/10" |
|
Number of gears (F+R) | 12F+12R | |
shift method | Mechanical sliding sleeve |
|
maximum. speed | 34.78 | |
gear | Lateral | |
Hydraulic system | ||
Hydraulic output flow (L/MIN) |
38.4 | |
Hydraulic output valve |
One group/two groups/three groups/simple hydraulic output |
|
Hydraulic filter type and capacity |
Screen/63μm | |
working equipment | ||
three-point linkage | 2 types |
|
PTO speed | 540/760 rpm 540/1000rpm (optional) |
|
Lifting capacitykn | 11KN/15KN (forced lift) |
|
Tillage depth adjustment | Draft, Position, Position and Draft Mix Control/Position, Float (Forced Lift) |
|
scope | ||
Machine size (dimension) mm |
3970×1620×2130 |
|
(Kilogram) minute. Operational quality |
with cab | 2640 |
without cab | 2360 | |
Wheelbase (mm) | 2041 | |
Small turning radius (m) | 4.3 | |
Rated traction (N) | 15 | |
deck | flat deck | |
Minimum ground clearance (mm) | 325 | |
Heated Ventilation Cab | optional | |
front/rear track | 1250/1300 (Normal 1300) |
|
tire size | 8.3-20/12.4-28 | |
Braking and Steering | ||
Braking System | Wet, disc brake |
|
steering type | hydraulic steering |
|
Steering angle (4x4) |
|
|
(Options: All these types can be equipped with ROPS, sun visor, swing lever, front/rear ballast, cabin) |
About Horsen International
Shandong Haosen International Industrial Co., Ltd. is a professional tractor and other agricultural machinery manufacturer integrating design, manufacture, sales and service. Hansoh products cover tractors, tractors, combine harvesters, agricultural machinery, agricultural machinery, forestry machinery, garden machinery from 25hp to 300hp. As a professional machinery and equipment manufacturer in China, Hansoh is committed to providing comprehensive solutions for global modern agricultural mechanization Solution. Hansoh integrates global high-end products and technical resources, and gradually enhances Hansoh's global reputation and market share through technological upgrades, quality upgrades, service upgrades, and innovative product innovation concepts.
After-sales service policy:
There are more than 70 dealers and service channels covering the entire market area. With the goal of "satisfying customers", we provide "three full" (Full course, Full time, Full hearted) services.
