Packaging Detail: | 1. Full container: Standard Export Carton(Foam+Carton) 2. LCL Order: Special Packing(Wooden Pallet)+Standard Export Carton(Foam+Carton) 3. Customize. Shipped in 7 days after payment; | vacuum tube: | 58*1800mm ALN/ALN-SS/CU three targets coating; |
Header flow Channel: | Material:Copper/Diameter:35/38mm/Wall thickness:1.0/1.2mm; | Tube holder: | Santi-dust seal and side cove; |

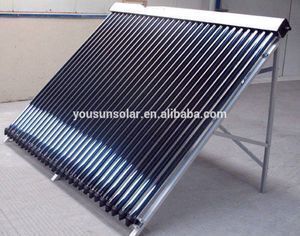

Model name: | Heat pipe solar collector; | Port: | shanghai or ningbo; |
Supply Ability: | 100000 Set/Sets per Year; | Application: | Solar Thermal; |
Model Number: | YSSC-SERIES; | Manifold & Bracket: | Material: Aluminium Alloy/Thickness:2.0mm; |
Heat copper pipe: | Best TU1 copper/Wall thickness:0.6/0.7mm; | Aluminium fin: | compact type/Thickness:0.25mm; |
Payment Terms: | L/C,T/T; | Brand Name: | OOC/OEM/ODM; |
Place of Origin: | Zhejiang China (Mainland); | Screw and nut: | SUS304 Stainless steel, never rust; |
Insulating layer: | Material:High density rockwool,/Thickness 35mm; | Type: | Manifold Collector; |
Seal plug of vacuum tube: | SUS304 stainless steel with Silicone ring; | Delivery Detail: | Shipped in 7 days after payment; |
Pipe Material: | Copper; |
Vacuum tubes | SS/CU/AL-N AL selective coating, 58X1800mm glass tube, 1.6mm thickness 58X1800mm glass tube, 1.6mm thickness |
Insulation | Glass fabric, 32mm |
Outer cover material and thickness: | aluminum alloy, Thickness2.0mm |
Diameter and thickness of header pipe: | Ø35mm, T1mm,cooper manifold |
Heat pipe | High standard TU1 Copper, L1700* Ø 8*T0.6mm |
Aluminum fins length and thickness | L1620mm, T0.275mm |
Bracket material and thickness | Flexibility for flat or slope roof,Aluminum alloy with 2.0mm thickness |
Caliber of cooper manifold | Ø 22mm Thickness 0.8mm |
Anti-freezing | > -35 degree |
Seal | High quality silicone rubber polymer |
1. Packing: Standard export carton with foam or wooden box, Wooden Box Packing for Sample
6. Supply ability: 5000 sets per month
7.life time : more than 20 years
