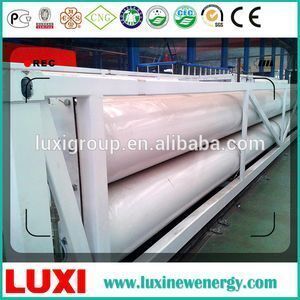

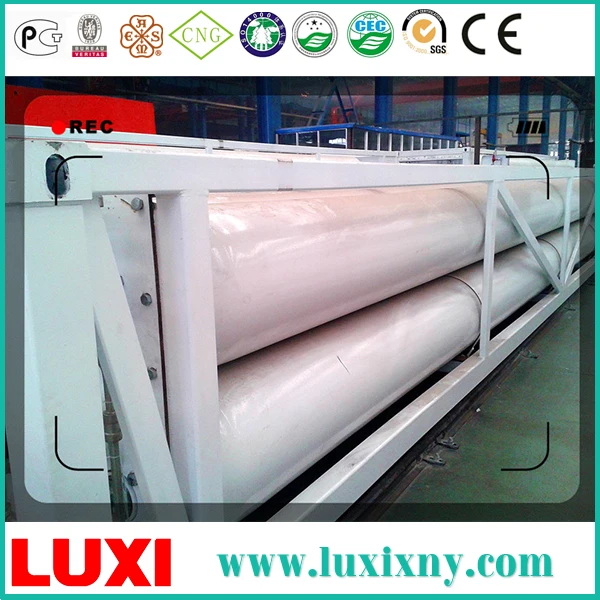

LUXI CNG Container with OD920mm/ 4 Tube /Container Manufacture

Supplier: Luxi New Energy Equipment Group Co., Ltd.
Region: Shandong, China
Contact: Mr. LUXI NEW ENERGY
Price: $80000.00 /unit
Min. Order: 1 unit

Click here to contact

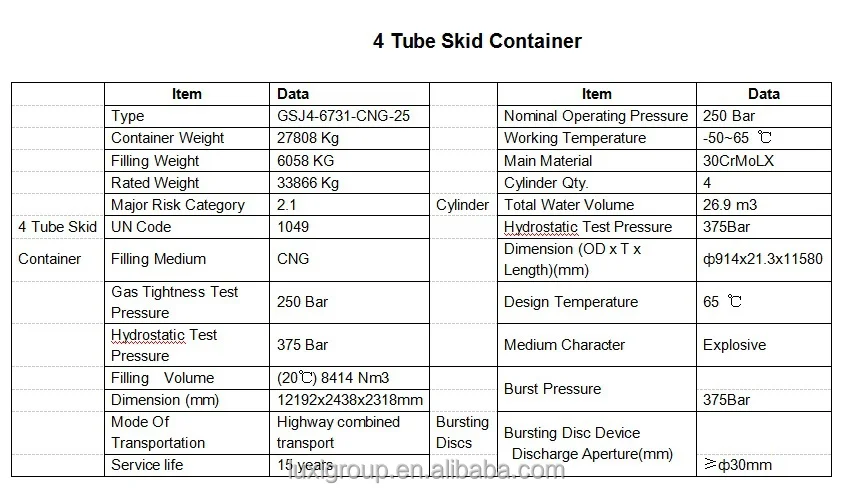

Product details

Port:	Qingdao;	Working Pressure:	200~250 Bar;
Brand Name:	LUXI;	Gas Filling Volumen:	8414 Nm^3;
Total Water Capacity:	26.9 m3;	Working Temperature:	-50~65 ℃;
Payment Terms:	L/C,T/T;	Tube Quantity:	4;
Length (feet):	40';	Place of Origin:	Shandong China (Mainland);
Cylinder Dimension (OD x T x Length):	914x21.3x11580 mm;	Total Weight with CNG:	33866 Kg;
Use:	CNG Storage/Transportation/Gas filling Station;	Hydrostatic Test Pressure:	375 Bar;
External Dimensions(l x W x H)(mm):	(LxWxH)12192x2438x2318mm;	Supply Ability:	1000 Unit/Units per Year;
Type:	Tank Container;	Packaging Detail:	Standard Seaworthy Packing;
Container Net Weight:	27808 Kg;	Model Number:	GSJ4-6731-CNG-25;

China Professional 25Mpa 4130X Gas Transporting

Product Description

Product Description of Gas Transporting

Company Information

♦Our Company

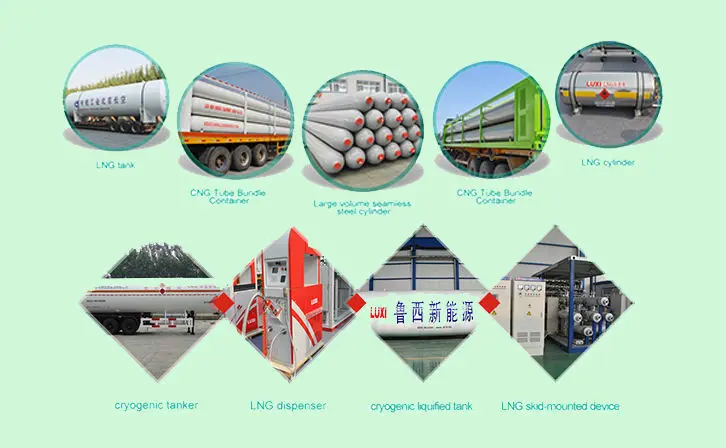

Luxi New Energy Equipment Group Co., Ltd. is specialized in producing all types of CNG, LNG cylinders and gas equipment. Our company belongs to Luxi Group Corp., which is a large, state-owned chemical enterprise group. We are an integrated chemical enterprise of compound fertilizer, chemical engineering and chemical equipment. Our company is one of the largest pressure vessel factories in China, with trademark "Luxi" as brand name.

Our company is one of the largest pressure vessel factories in China, with trademark "Luxi" as brand name. Our high quality products are widely used in China market, as well as oversea markets: Armenia, Colombia, Malaysia, India, Indonesia, Iran, Peru, Russia, Thailand, Uzbekistan, etc.

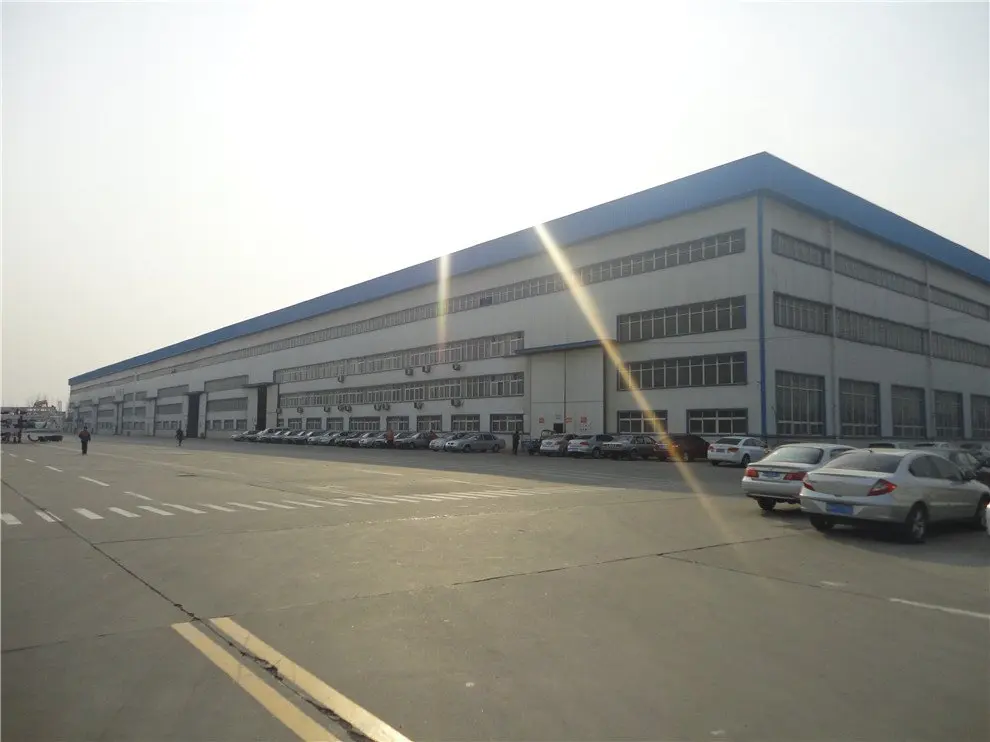

Factory

♦Factory Show

We use the most advanced production line equipment, large punching machine, large rolling machine, CNC automatic welding machine, vacuum unit, CNC spinning shut, closed end equipment, automated heat treatment equipment, CNC winding equipment, electrostatic spraying equipment, helium mass spectrometer leak detector, spectrum analyzer, automatic ultrasonic flaw detector, X-ray detection machine, universal testing machine, impact testing machine and other sound sophisticated detection equipment.

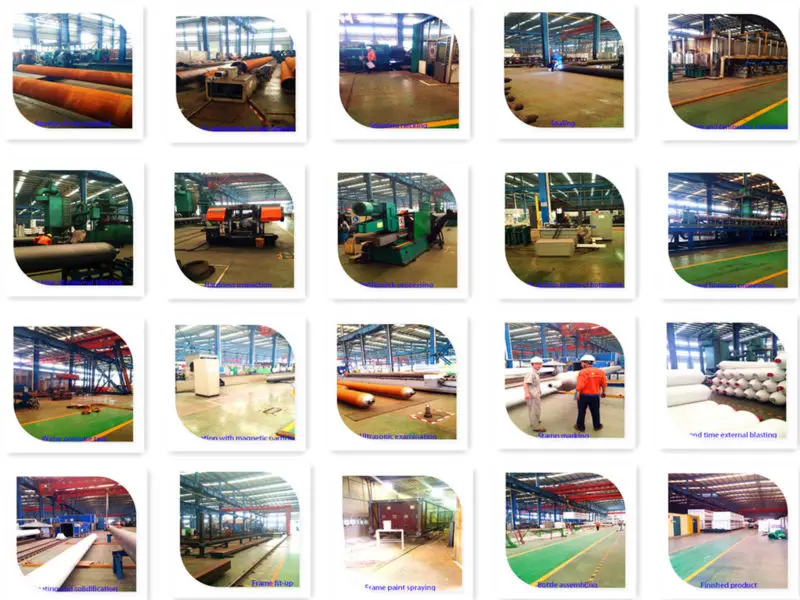

◊ production process

Why Choose

◊ Certifications

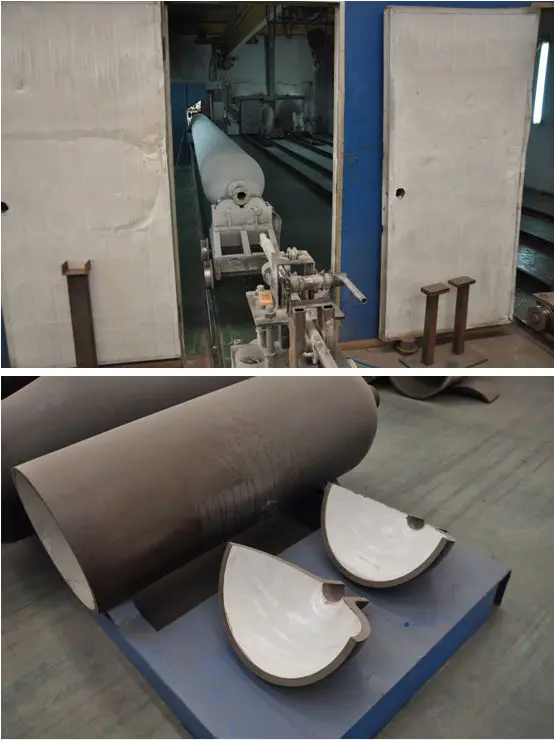

◊ Internal coating

A layer of special powder on the inner wall will prevent the filling medium from contacting with the inner wall directly. The special power is non-metal material that is compatible with the filling medium in the cylinder, and has the resistance to erosion and the ability to isolate hydrogen so as to maintain the cylinder’s mechanical behaviors. This method would significantly lengthen the service life and improve the operation safety. This technology is generally applied in CNG containing higher hepatic gas and petroleum pipelines. After the coating process , the steel cylinder’s service life will be doubled even if erosive impurities are contained in the filling gas.
