size: | M2-M10 | Supply capacity: | 10000 pieces per week |
Custom Support: | OEM, ODM, OBM | Certification: | ISO2009 |
Warranty: | / | port: | Shenzhen |
Package: | PE bag + carton | grade: | 4.8/8.8/10.9/12.9 |

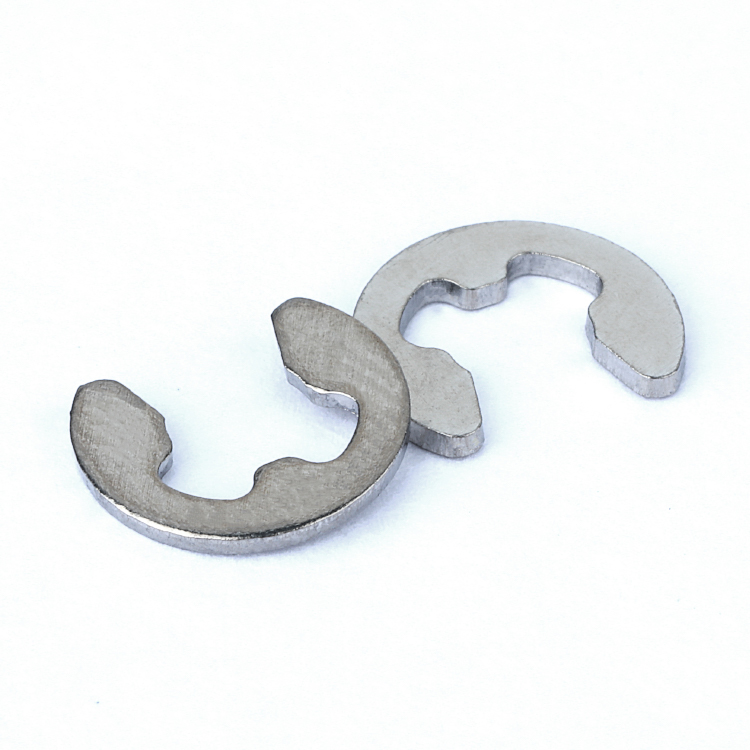

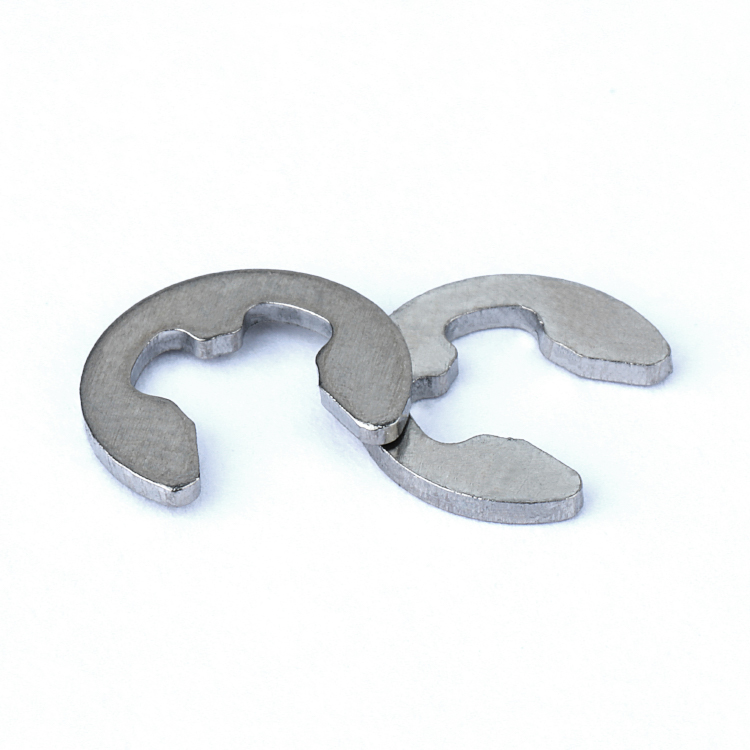

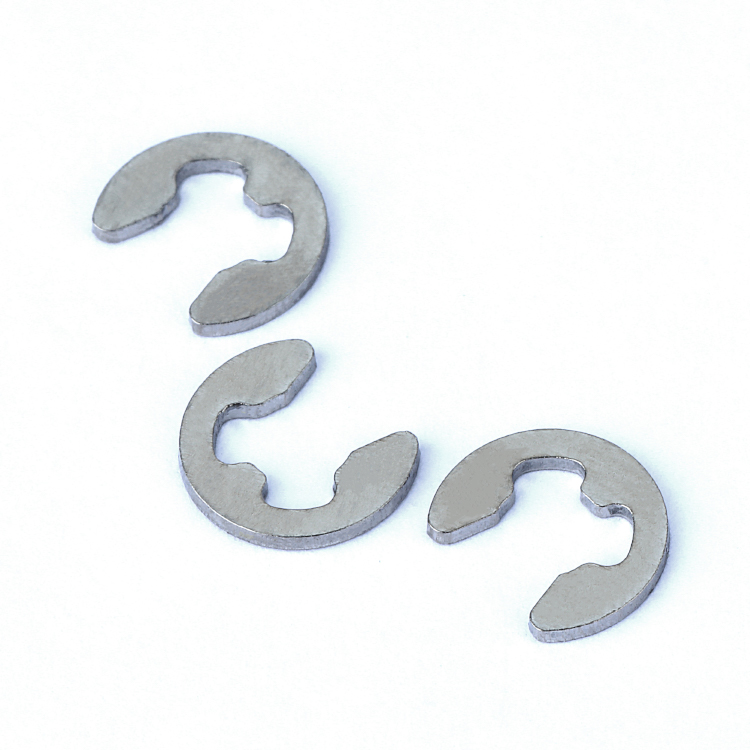

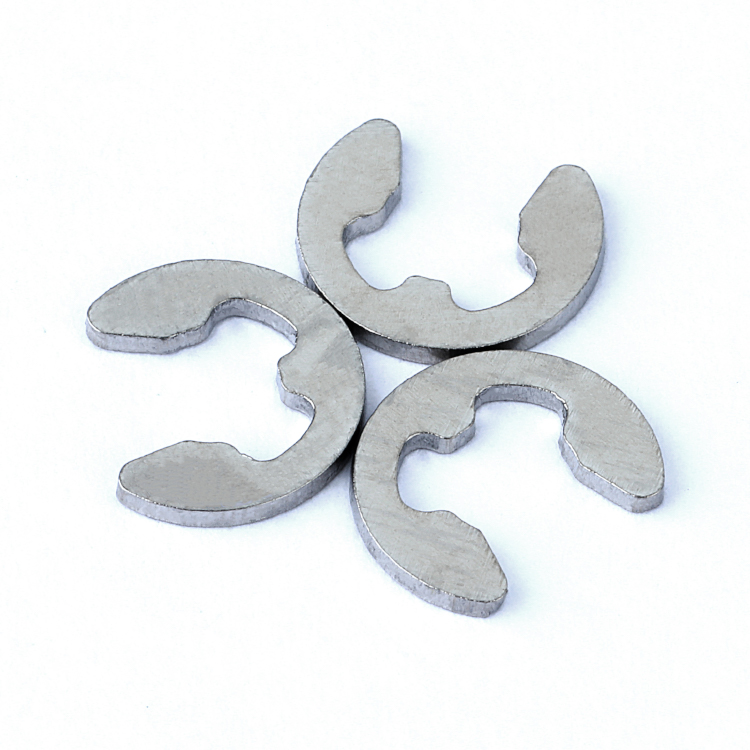

product name: | "E" ring | payment terms: | wire transfer |
application: | Healthcare, Food & Beverage, General Industry, Heavy Industry, Mining | measuring system: | / |
Surface treatment: | Galvanized | Finish: | black, zinc |
color: | customer's request | payment terms: | Wire Transfer/PayPal/Bank |
sample: | sample | Material: | Stainless Steel / Brass / Steel / Aluminum / Titanium |
Available materials |
1. Carbon steel: C1006, C1008, C1010, C1018A, C1022, C1035K, C1045K, etc. |
2. Stainless steel: SS301, SS302, SS303, SS304, SS316, SS410, SS416, SS420, SS430, etc. |
|
3. Steel: C15, C35, C45 (K1045), S45C, C46 (K1046), C20, etc. |
|
4. Copper: Brass (C3602, C3604, H59, H62, H65, H68, H70, H90, etc. Phosphor bronze, silicon bronze, red copper, beryllium copper and copper, etc. |
|
5. Iron: 12L13, 12L14, 12L15, etc. |
|
6. Aluminum: AL6061, AL6063, 7075, etc. |
|
7. Titanium or titanium alloy: TAD, TA1-TA8, TB2, TC1-TC10, etc. |
|
8. Silver or silver alloy: AgCu3, agCu7.5, AgSn3-5, AgPb0.4-0.7, AgPd3-5, AgNi10, etc. |
|
9. Alloy steel: SCM435, 10B21, 40Cr, etc. |
|
surface treatment | Zinc, Nickel, Bronze, Copper, Black Oxidation, Anodizing, Polishing, Matte, Passivation, Tin, Dacromet, Gold, Chrome, Silver, Zinc-Ni Alloy, etc. |
heat treatment | Tempering, spheroidizing, quenching, spheroidizing annealing, etc. |
hardness | Low carbon steel: HRC: 25-60, HV450-700; Alloy steel: HRC: 32-39 (grade 10.9), HRC: 39-44 (grade 12.9) |
Specification range | Diameter range: M0.8-M24mm, length range: 1.0mm-200mm, can also be produced according to customer requirements. |
manufacturing process | Raw materials, cold heading, wire rolling, heat treatment, surface treatment, full inspection. Packing and shipping |
Sample Availability | Free within 7 days if we have a tool available. |
delivery time | 3~15 days after the order is confirmed, subject to the detailed order quantity |
carton size | 260*180*150mm. according to your request |
Warranty | We confirm that our goods will meet your requirements 100% |
Certificate | GB/T19001-2008/ISO9001:2008 can match ROHS, SGS, environmental protection |
After-sales service | We will follow up the goods for each customer and help solve after-sales problems |
OEM/ODM | We can make goods according to customer's drawings or samples |
application | Scope of application: Precision turning parts are widely used in chassis cabinets, sheet metal, Compers, household appliances (refrigerators, TVs, ovens, etc.) plastic casings, automobiles, audio and other industries. |
