Rectangular: | 100x150mm; | Angle Cuts: | 0°-45°; |
Certification: | GS/CE CSA; | After-sales Service Provided: | No after-sales service; |
Brand Name: | MENGMAT/THM; | Supply Ability: | 5000 Carton/Cartons per Month; |
Payment Terms: | T/T; | keywords: | metal cutting saw; |
Weight (KG): | 60; | Port: | shanghai; |
Round: | 125mm; | Dimension(L*W*H): | 1007*382*385mm; |
Blade No-load speed: | 3 speed, 27, 46, 64m/min; | Motor: | 230V~/50Hz; |
Warranty: | 1 Year; | Key Selling Points: | Easy to Operate; |
Applicable Industries: | Home Use; | Length x Width: | 1640*13mm; |
Place of Origin: | Jiangsu China (Mainland); | Power (kW): | 0.55; |
Motor No-load speed: | 1720rpm; | Packaging Detail: | CARTON BOX+POLYFOAM; |

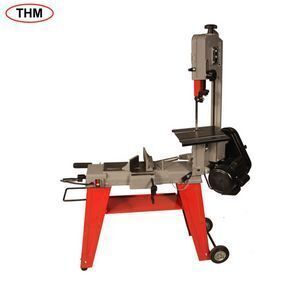

Horizontal/Vertical Metal cutting band saw Metal Saw
Specifications for this item:
Model No. G40121
Power: 3/4~1 HP
Cutting angles (deg) 0-55°
Cutting capacity 4 in. x 6 in. (rectangle), 4-1/2 in. (round)
Speed (max) 80, 120, 200 feet per minute
Number of speeds 3
Teeth per inch (TPI) 14
Blade length (in.) 64-1/2 in.
Blade width (in.) 1/2 in.
Shipping Weight 131.00 lb.
Size(s) 4 in. x 6 in.
Table dimensions 11-1/2 in. L x 7-1/2 in. W x 23-1/2 in. (horizontal),
9-5/8 in. L x 9-1/2 in. W x 33-1/2 in. (vertical)
Throat depth (in.) 4-1/2 in.
Accessories Included Stand
Approvals:GS/CE/CSA
Features:
You'll be able to quickly and accurately cut workpieces up to 4 in. x 6 in. (rectangle), 4-1/2 in. (round)
using the band saw's adjustable horizontal and vertical positions. Choose from 3 speeds to cut everything
from brass and aluminum to rugged alloy and tool steels. Includes a 1/2 in. x 0.025 in. x 64-1/2 in. blade (14 TPI),
plus a heavy-duty stand with two wheels.
~Three speeds to cut everything from brass and aluminum to rugged alloy and tool steels
~Gravity feed cutting pressure adjustment in horizontal position
~Comes with blade and heavy duty stand
~0-55° left miter cuts on horizontal
~Two-position rocker switch with safety lock-off
~Overweight Item subject to 14.95 additional Freight Charge.
Customer Sample:
Features:
Metal Cutting Band Saw Items List | |||||
Item | Motor | Power(W) | Length x With | TPI | Cutting Capacity |
G4012 | 230v-50Hz | 3/4 HP | 64-1/2" X 1/2" | 14 | Rectangular @ 0degree 4''×6''(100×150mm) Rectangular @ 45degree R 3-3/4''×3''(95×76mm) Rectangular @ 60degree L 2''×2-3/16''(50×56mm) Round @ 0degree 5''(125mm) Round @ 45degree R 3-3/4''(95mm) Round @ 60degree L 2''(50mm) Angle Cuts Right 45-Left 60 Degree |
G40121 | 120v-60Hz | 3/4~1 HP | 64-1/2" X 1/2" | 14 | Rectangular 4''×6''(100×150mm) Round 5''(125mm) Angle Cuts 0°-45° |
