mini tc crane 80t tower crane with hot lift

Product details
usage:construction worksPackaging Details:Bare packaging with rain cloth
Unique Selling Points:Remote monitoring systemAfter-sales service provided:Video technical support
Applicable industries:Building materials stores, manufacturing plants, construction projectsplace of origin; place of origin:Hunan, China
Weight (kg):2000 kgCore components:PLC, bearing, gearbox, motor
feature:tower craneport:Shenzhen
Marketing Type:New Products 2020Core Components Warranty:6 months
Supply capacity:500 units per monthpayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
product name:tc tower craneFunction:pouring concrete
Video external inspection:ifShowroom location:Indonesia, Vietnam, Philippines, Saudi Arabia, India
Warranty:1 yearMechanical test report:if
maximum. Lifting height:25M, 30MPackaging Preview:
Placement Type:hydraulic or manualRated load capacity:1.8 tons, 450 kg, 1.5 tons
Health status:newapplication:construction engineering, construction site
Hunan Tan Construction Machinery
18 years + production experience

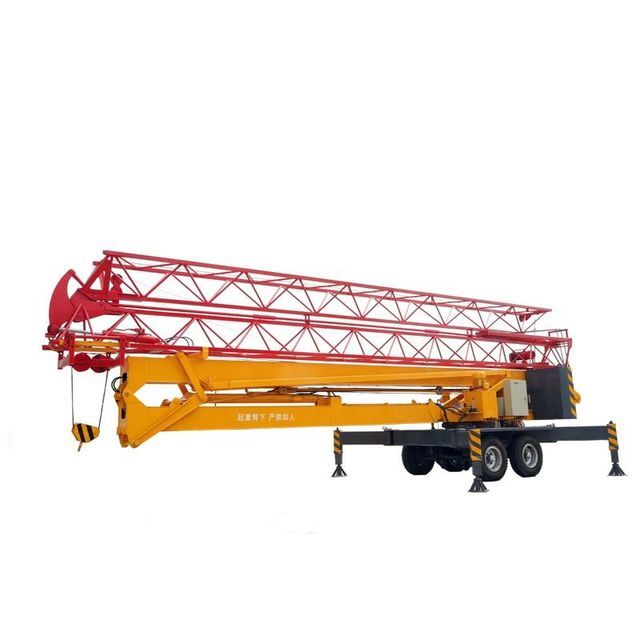

mini tc crane 80 ton self erecting tower crane hot sale

The main parameters
Model TK13 TK26
maximum load 1500kg 2000kg
Rated maximum lifting moment 13tm/9m 26tm/13m
Lifting height 15.5m 22m
Maximum lift height 21m 28m
maximum working range 21m 30m
Minimum working range 2.3m 2.5m
Traction speed 15m/min 12/24 m/min
No-load speed 0-0.5r/min 0-0.5r/min
Max lift speed 13m/min 10/30/min
Rotation radius 2.45m 2.55m
Outrigger span 4 meters x 4 meters 4.2mx 4.2m
Boom 20 degrees 500kg 550kg










Hunan Tan Construction Machinery
Hunan Tante Heavy Machinery Co., Ltd. is located in Miluo Enclave Industrial Park, Changsha Economic Development Zone. The company specializes in the research and development, production and sales of concrete pumping equipment, such as truck concrete pumps with/without mixers, trailer pumps with/without mixers, truck-mounted concrete pumps with/without mixers, and concrete mixing such as truck mixers equipment. , hydraulic concrete pouring arm, truck mounted crane, construction lift, folding tower crane, etc. Tante Heavy Machinery was established in 2003, and the company's leadership has been changing for nearly 20 years. After optimization and reorganization, our company has developed into a large-scale modern enterprise integrating R&D, production and sales, with annual domestic sales of more than 300 million yuan. The factory covers an area of ​​60 acres and the workshop area is 21,000 square meters. There are more than 200 employees, including more than 90 research and marketing personnel. There are 5 branches and 25 offices in the country. The machines have been exported to more than 40 countries and regions such as Southeast Asia, Africa, South America, and the Commonwealth of Independent States. "If you want to do good work, you must have a sharp tool" - a solid technical foundation is the key to ensuring product quality, and advanced technology is the driving force for enterprise development. Our products use well-known brand components from Germany, Italy, Japan, France and other countries, such as German Rexroth hydraulic oil pump, Italian Manuli hydraulic oil pipe, etc., and strive to achieve the best combination of mechanical components; We use CAD/PRO/CAPP/CAM integrated system for Product design and manufacturing, the whole process and comprehensive quality control ensure the perfection of every link. In the future, Tante Heavy Machinery will continue to give full play to the technical advantages of independent innovation, build an efficient and high-quality manufacturing system, create value for customers, and continuously introduce newer and better construction machinery and equipment, and strive to meet the needs of each customer.
Transportation: Can be transported by ship, road or train



Payment method: T/T, L/C at sight
