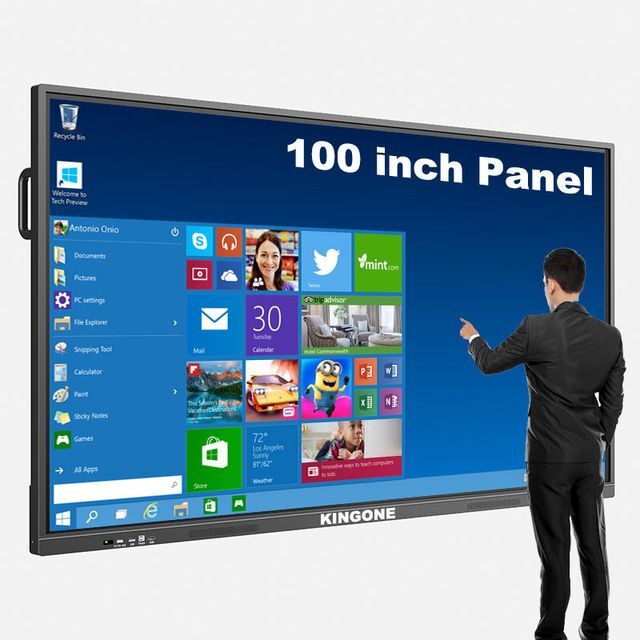

65/75/86/100/110 inch finger multi-touch smart LCD display conference room electronic digital interactive smart whiteboard

Click here to contact
Product details
weight:100kgport:Shenzhen
life:50000 hourspayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
Resolution:3840*2160Supply capacity:100000 pieces/month
ROM:120G (256G optional)place of origin; place of origin:Guangdong, China
Packaging Details:wooden boxProduct Size:170x100x10cm
Panel Type:LCD MonitorWriting:Pen/finger touch
brand:Jintongcolor:Black
Package dimensions:250*150*110cmmodel:GQ-ZH-110y
Panel Type:LCD Monitortype:Capacitive/Infrared
Certificate:ISO9001 CE FCC ROHStouch screen:20-point infrared touch panel
Whiteboard Type:Interactive whiteboardproduct name:meeting whiteboard
Installation method:Wall Mount (Optional Floor Stand)Packaging Preview:
fold:Do notCPU:Intel i3 (i5/i7 optional)
screen size:110 inchesMemory:4G (8G optional)
aspect ratio:16:9Panel size:110 inches
Jintong Factory 55 65 75 86 98 100 110 inch TFT multi-size intelligent interactive whiteboard dual system
Dual system
Windows 10 Operating System
Intel Core i3/i5/i7 options,
Memory 4G/8G/16G options
Hard disk: 128G/256G/512G/1T option
Android operating system
Quad core, 3G RAM, 32G ROM, Android 8.0/9.0 version
LCD panel
size
110"/55"/65"/75"/85"/98" optional
Panel brand
LG, BOE, AU (A screen)
type
TFT-LCD S-PVA
Resolution
3840 × 2160 (UHD) @60hz, 4K Ultra HD screen
brightness
450cd/m²
ratio comparison
2000:1
Viewing angle (horizontal/vertical)
178°/178°
Response time
8ms
Visible area (mm)
1649.7(W)×928(H) mm
Color Gamut (NTSC)
72%
Backlight
White LED
Zoom
16:9
Response time
<8ms
Life
>60000H
Infrared touch features
touch specification
Infrared touch frame
Glass
4mm tempered glass
glass transmittance
> 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Object Sensing Number (IR)
20 touches
Infrared sensing line number (WD)
32767 × 32767
positioning accuracy
More than 90% of the touch area is 2mm
Interface definition
USB 2.0 (full speed)
touch power
zero pressure touch
Lightfastness
it is lightfast
Induction life
6 million times
Response time
<8ms
Power supply
Full duplex USB powered DC +5V up to 500mA
switching power supply
Power consumption (typ.)
AC100-240V~(+/-10%), 50/60Hz
Standby power consumption
270W
Power interface
1W
switching power supply
European standard 220V two-phase three-wire system
Mechanical Specifications
net weight
52 kg
gross weight
63 kg
Bare Metal Form Factor (W x D x H)
1715.8×1024.1×96.8mm
Package Dimensions (WxDxH)
1813×1126×190mm
Shell material (face frame/back shell)
Plastic/Sheet Metal
Shell color (face frame/back shell)
Black
To protect the glass
4mm tempered glass/7 earthquake resistance
installation type
Bracket/Wall Mount
cooling method
Temperature-controlled fan cooling
surroundings
Operating temperature
0℃~50℃
Working humidity
20%~80% (no condensation)
Storage temperature
-20℃~60℃
Storage humidity
10%~90% (no condensation)
display mode
S-ips, always black screen, transmission
Maximum service time (hours/day)
24 hours
feature
The speaker
2×8Ω/5W (built-in)
Support input mode
stylus writing keyboard
appendix
User Manual
Manual, Warranty Card, Certificate of Conformity
cable
power cable
Others (optional accessories)
Remote control, base/stand, WiFi
touch screen smart boardIs an interactive TV with built-in LCD/LED and touch screen (and PC optional).
We use the most popular infrared touch technology for user interaction with the display.
The all-in-one touch display is also a liquid crystal whiteboard, using liquid crystal instead of a projector for image presentation.
Connect with built-in or external PC, it is a large touch PC, finger control and operation PC to present advertisements,
Conference PPT, classroom lessons, playing movies, etc...
<<<<<<<<<<<<<
Kim IlEstablished in 2010 as a research and development and sales company, known for our high quality standards and reliable service. The smart board has passed ISO9001/CCC/CE?ROHS/FCC?CNAS and other tests. Don't worry about the quality, especially we have a dedicated after-sales service department to answer your questions
1) Are you a factory or a trading company? What is the MOQ for the touch screen?
A: Yes, we are factory direct sales, there are some items in stock, you can order 1 piece for testing.

2) What is the delivery time? Where do you ship touchscreens?
A: Generally speaking, small orders can be delivered within 5-7 days, and the production time for more than 10 pieces is about 15 days. In addition, our factory is located in Wangniudun, Dongguan. If you have a forwarder in Shenzhen or Guangzhou, we can help you ship to your forwarder.

3) Can you provide OEM&ODM service for touch screen?
A: Of course, including software, packaging, product logo, etc., please consult customer service for details.

4) How long is the warranty period for the touch screen?
A: Generally 1 year, we have a professional after-sales service team, you can consult customer service for specific details.

5) How do you guarantee the quality of the touch screen?
A: Our products comply with ISO9001 quality system and CE/FCC/ROHS standards. All our products pass strict quality control
Inspection during production. Especially export products need to complete a 72-hour aging test to ensure that there is no problem before shipment.

6) How do you arrange the shipping of the touch screen?
A: It is recommended to express (7-10 days) or air (10-15 days) for small sample orders. If mass production is recommended, it is better to ship by sea. For details, please contact customer service!
