use: | Copper to Copper Welding - Phosphor Copper Brazing Alloys | Key words: | Phosphor Copper Brazing Alloy |
product name: | Alibaba Hot Selling Phosphorus Copper Brazing Alloy | Sales unit: | single product |
Type of company: | factory | brand: | Central China |
application: | Brazing, Air Conditioning/Refrigeration Systems | Certification: | SGS / ROHS / ISO9001:2008 / ISO900014001:2004 |
Single package size: | 54X14X9 cm | Material: | copper/copper alloy, copper/copper alloy |
model: | HZ-CuP7 | Original Equipment Manufacturer: | Provide OEM service |
Working current: | 130-220A | Operating temperature: | 710℃-820℃ |
Welding current: | international standard | Advantage: | Good ductility and smooth incision |
place of origin; place of origin: | Anhui, China | Well-known customers: | Gree/Midea/LG/Haier/Carrier, etc. |
Packaging Details: | 1kg/bag 20kg/box 1000kg/pallet 2kg/bag 20kg/box 1000kg/pallet International export standard according to your requirements | Welding Type: | flame welding/brazing |
Gross weight per piece: | 21.000 kg | | |
All products
Selling

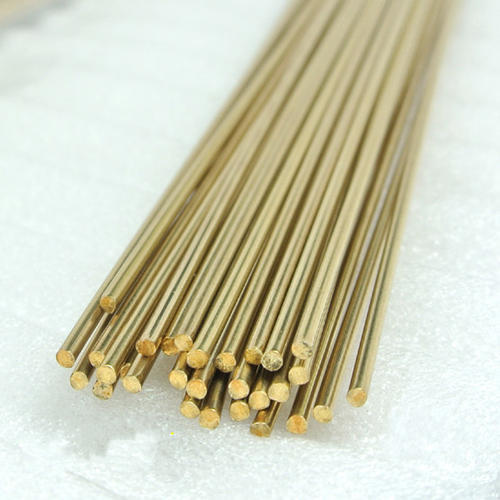

Brass drill rod
AWS 5.8 RBCuZn-A More Details

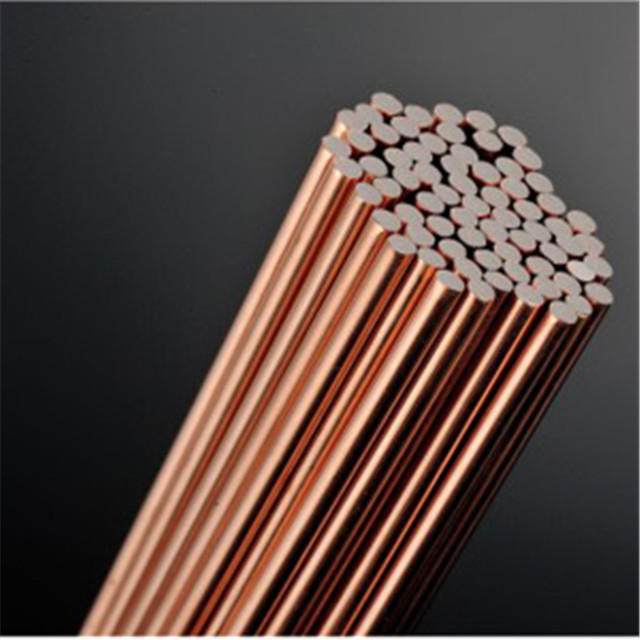

Copper phosphorus brazing rod
AWS 5.8 BCuP-2 More Details

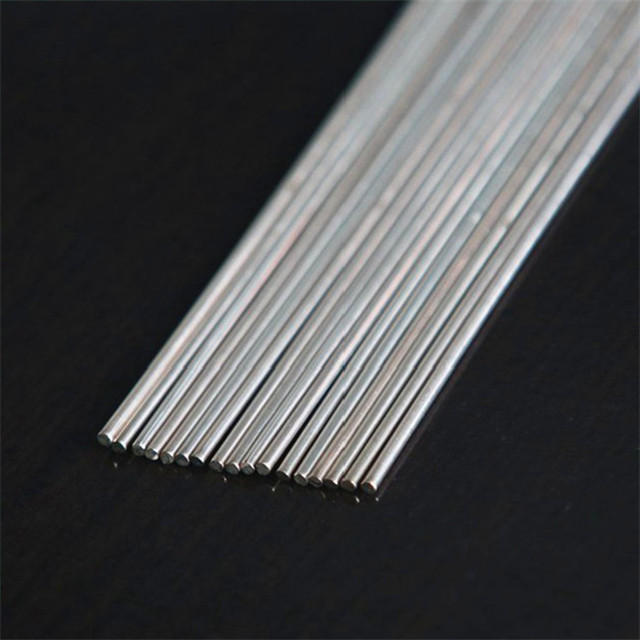

Silver drill rod
AWS 5.8 BAg-22 More Details
Product Description
Phosphorus copper brazing alloy, also known as 0% silver brazing alloy and copper alloy, is a copper brazing filler metal mainly composed of copper and phosphorus. Generally according to international standards, the content of phosphorus is about 4%-8%, and the melting point of the material is about 700-820 degrees. Ideal for copper-to-copper and copper-to-copper alloy brazing. The phosphorus content in the phosphorous copper alloy acts as a flux. In addition, there is a tin-phosphorus copper brazing alloy, which has a lower melting point (600-700 ° C) than ordinary copper-phosphorus brazing alloys, good fluidity and high strength. It has been widely used around the world. Sometimes an alternative to phosphor bronze and silver phosphor bronze for brazing applications. Copper-phosphorus brazing alloys are inexpensive and versatile, suitable for a variety of brazing processes, such as flame brazing, furnace brazing, induction brazing, and resistance brazing. It can be made into round rods, flat rods, square rods, solid wire, chaff, rings, and even granules, powders, pastes, etc.
application | | | | |

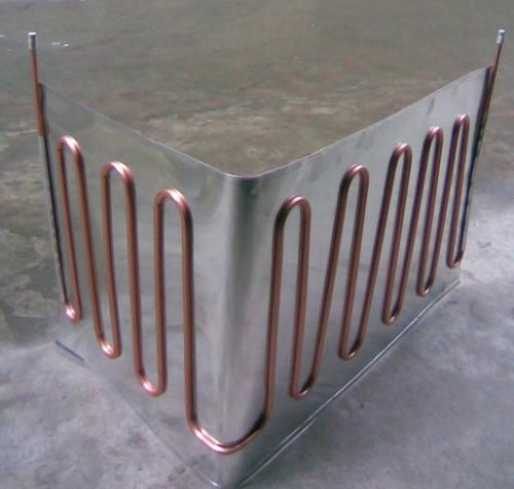

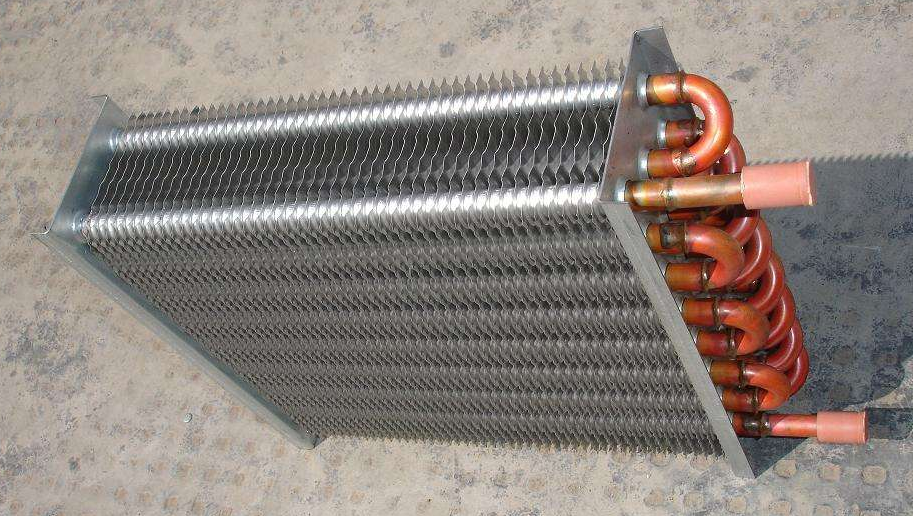

Phosphor bronze brazing alloys are widely used in HVAC industry applications for brazing copper and copper alloys. Such as: air conditioners, refrigerators, freezers, evaporators, radiators, heating and cooling, copper pipe connection industries, etc. | | | | |
Hertz | Melting point range (ºC) | chemical composition% | | |
| | copper | phosphorus | other |
HZ-CuP6 | 710-890 | 93.8 | 6.2 | - |
HZ-CuP7 | 710-820 | 93 | 7 | - |
HZ-CuP | 710-793 | 92.7 | 7.3 | - |
HZ-CuP6Sb | 690-825 | 92 | 6 | Antimony: 2.0 |
HZ-CuPSn | 650-700 | 86.2 | 6.8 | Tin: 7 |

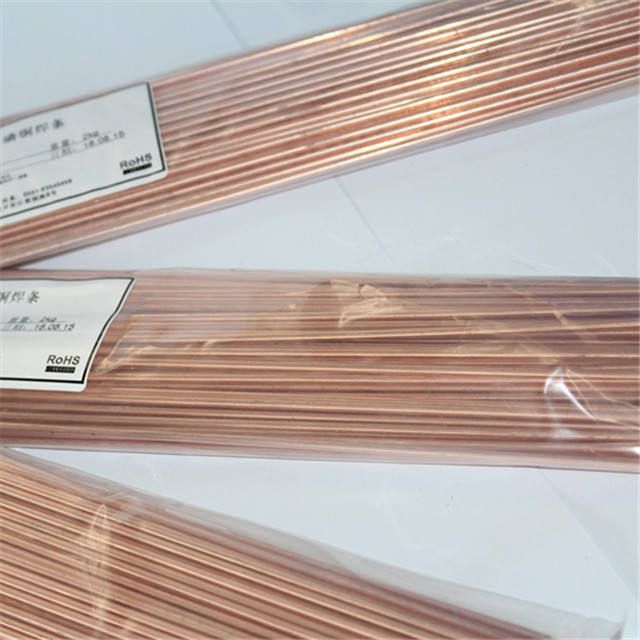

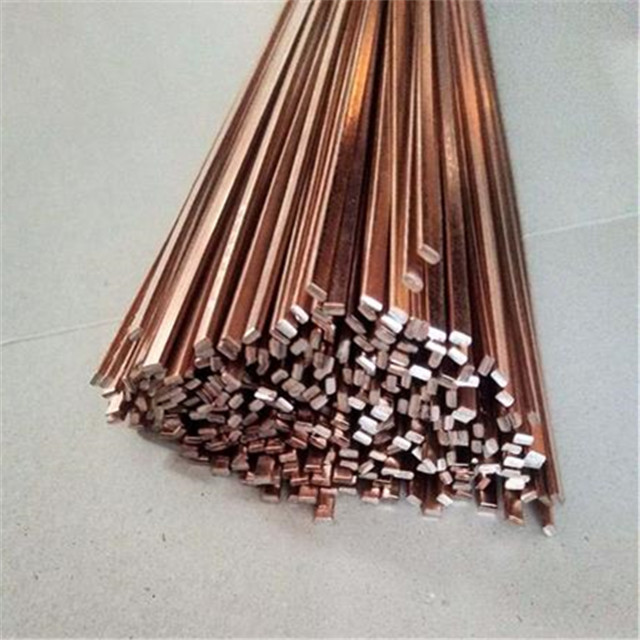

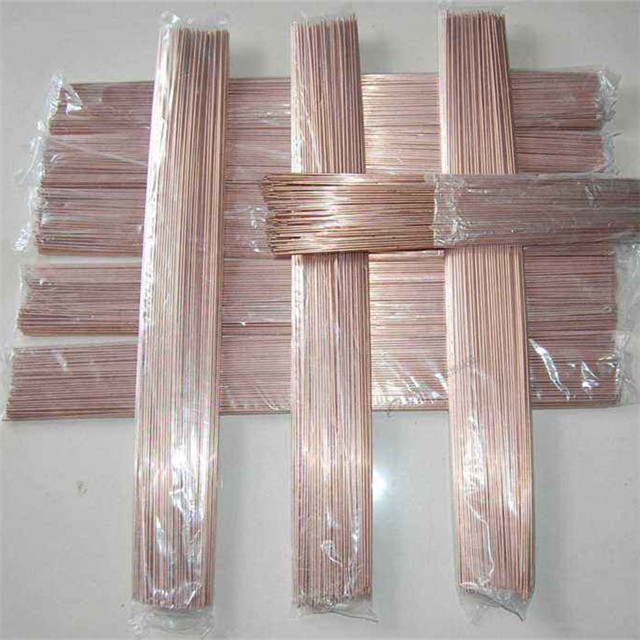

detailed picture

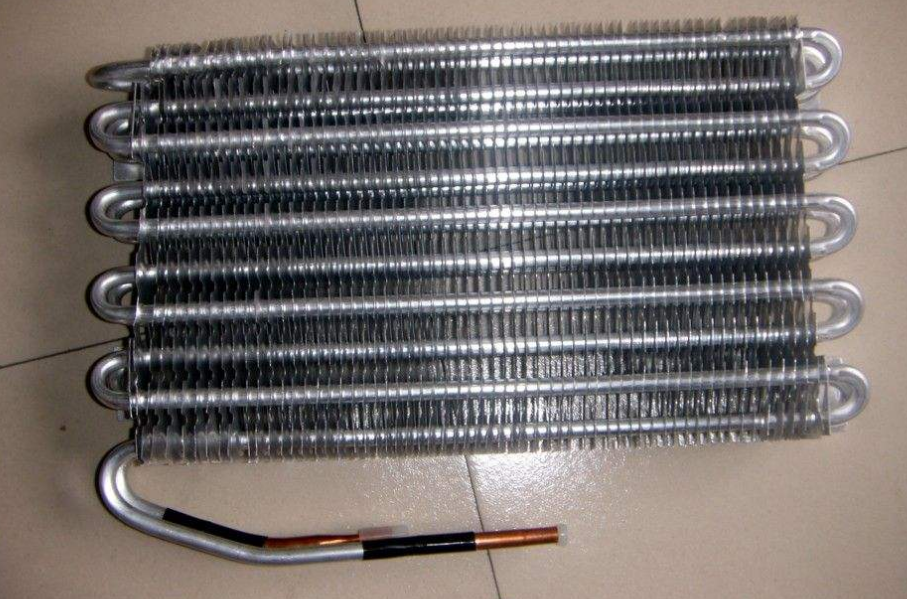

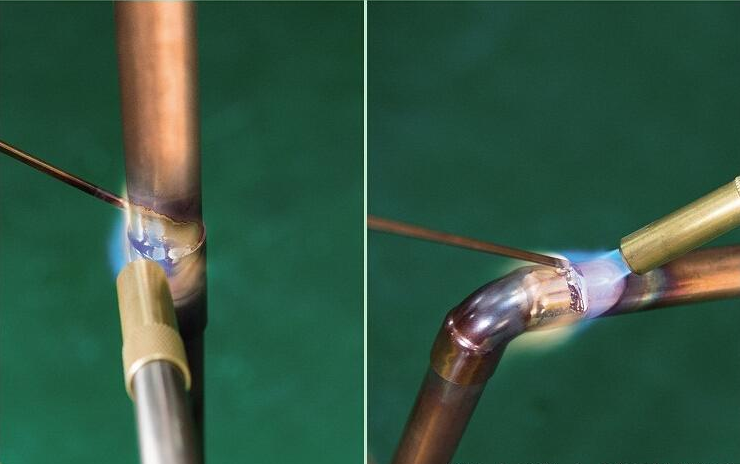

application
Quality comparison

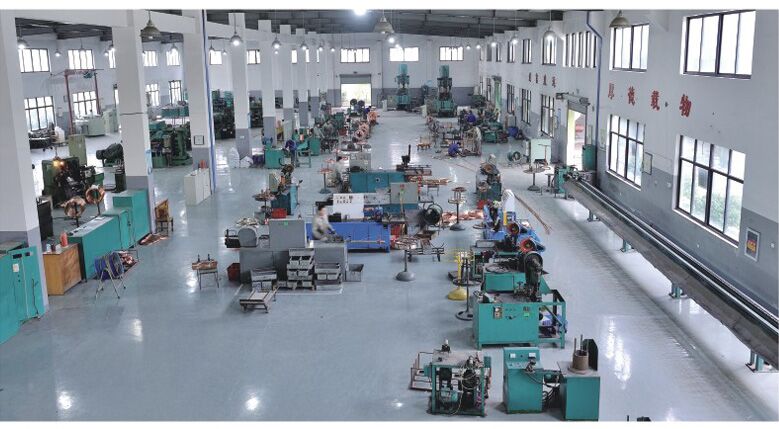

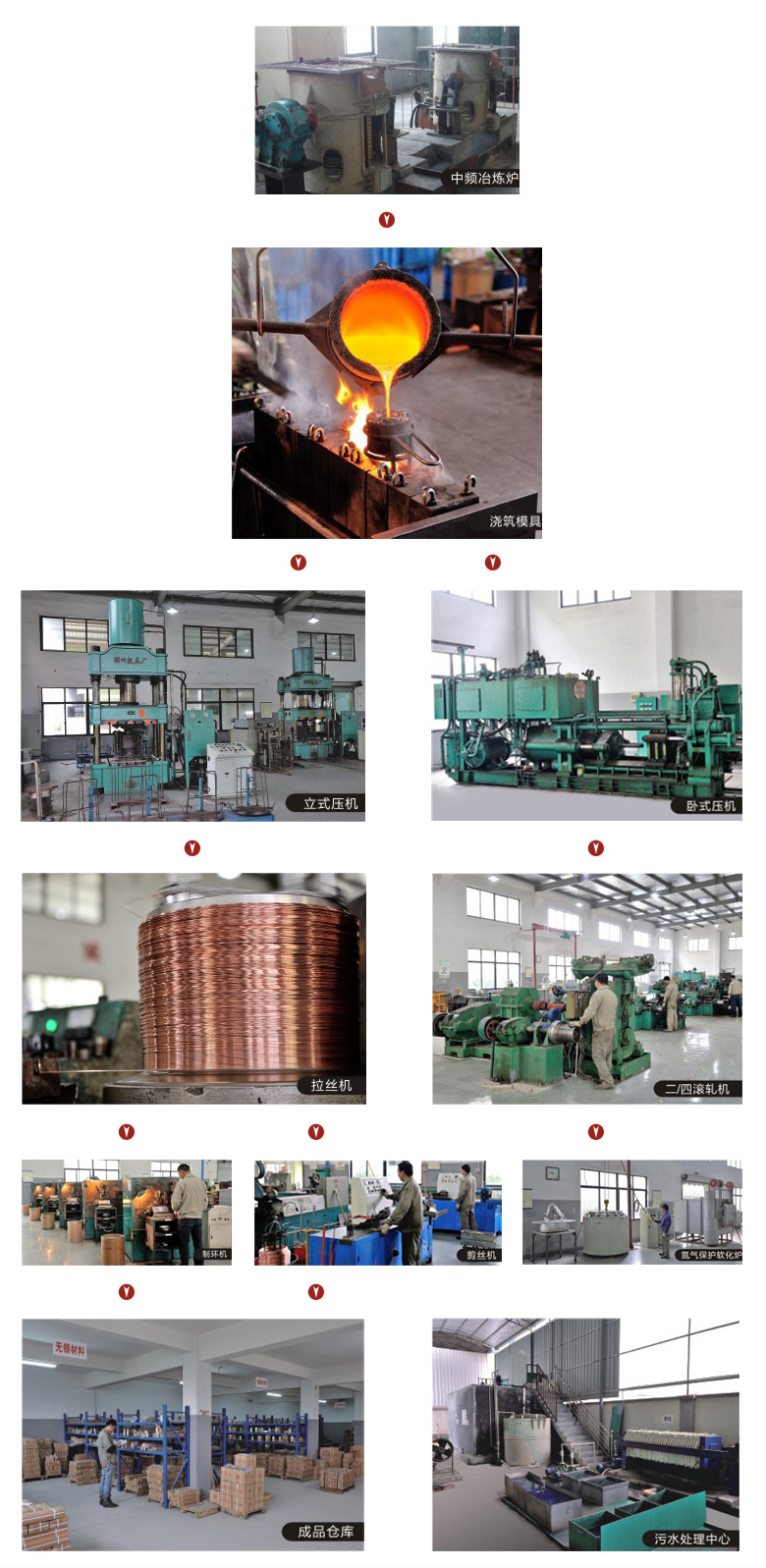

Manufacturing Technology
exhibition

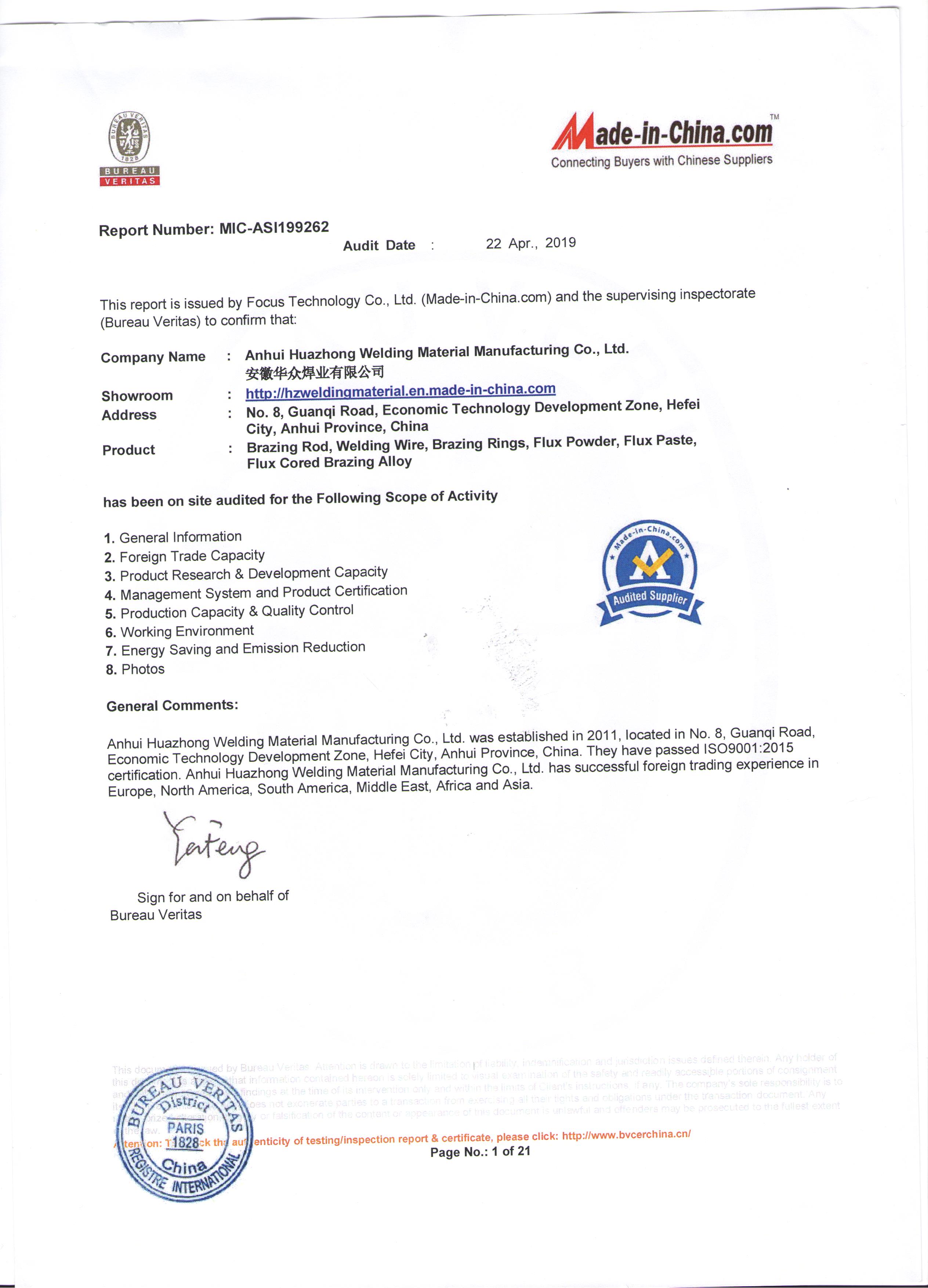

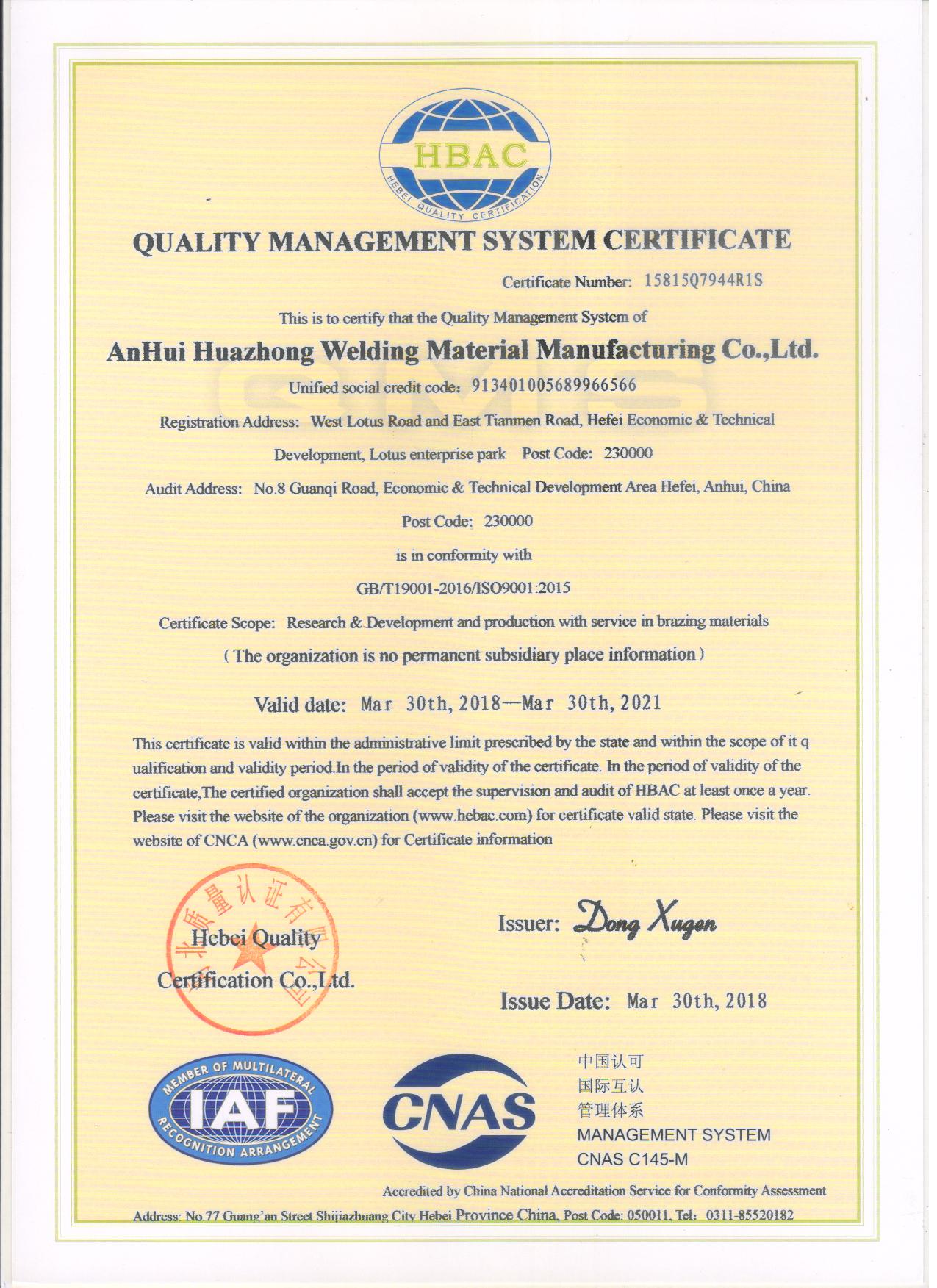

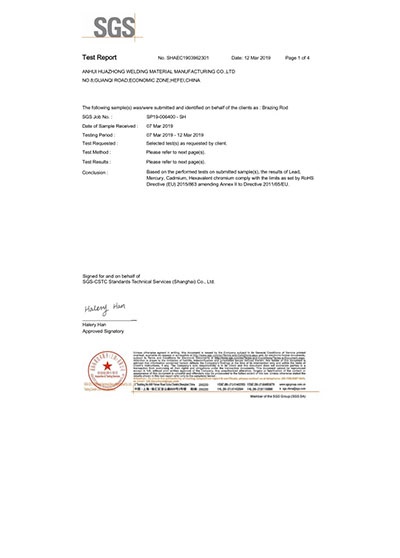

Certification
-------------------------------------------------- -------------------------------------------------- ------------------------------------------------
Company Profile
-------------------------------------------------- -------------------------------------------------- ------------------------------------------------

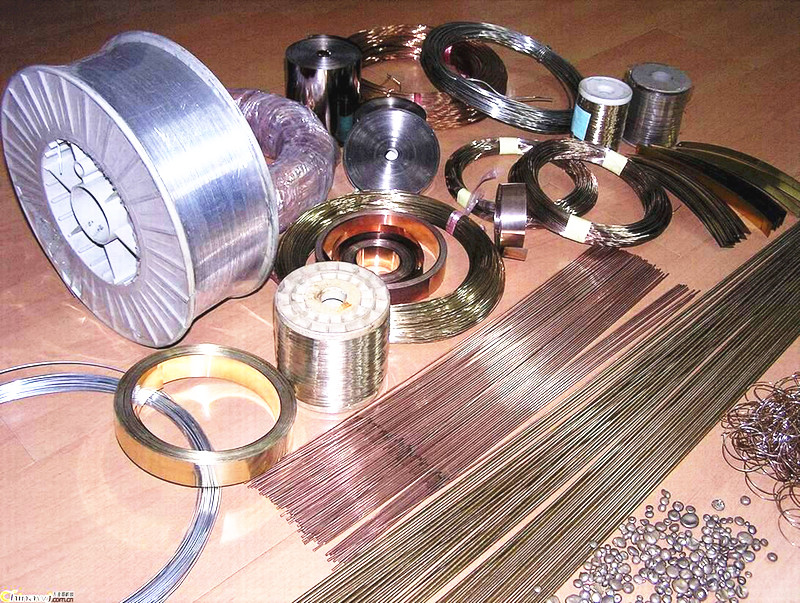

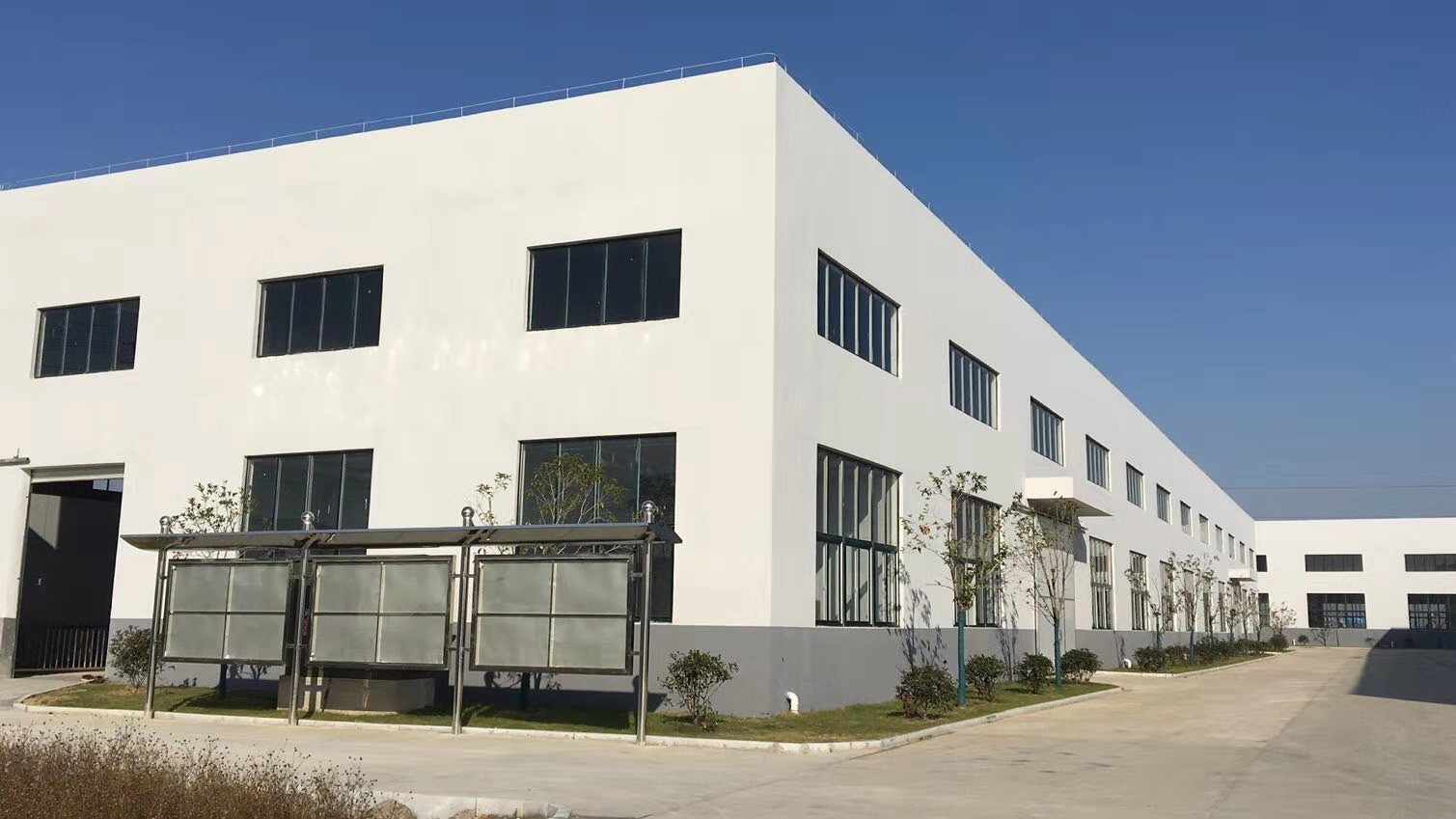

Anhui Huazhong Welding Materials Manufacturing Co., Ltd. was established in 2004 and has become a world leader in metal processing products for the brazing, welding, cutting and gas distribution industries. Located in Hefei, China's national science and technology center city, it has the most advanced testing equipment, professional production equipment, and national-level R&D personnel. Our main products include: silver-based solder, copper-based solder, aluminum-based solder, associated flux, flux-cored wire, etc. Brazing alloy forms include: round bar, flat bar, square bar, ring, wire, chaff, sheet, etc. In addition, we also supply silver solder paste and powder, copper solder paste and powder, aluminum solder paste and powder, etc. . For over a decade, we have operated globally, maintaining and expanding our reputation with our bespoke services, scientific standards and modern logistics. In order to further respond to the needs of our global customers, we have established 2 more subsidiaries: Anhui Nasha Import and Export Company and Anhui Huazhong New Material Technology Co., Ltd. Each company has passed ISO 9001 quality management system certification.

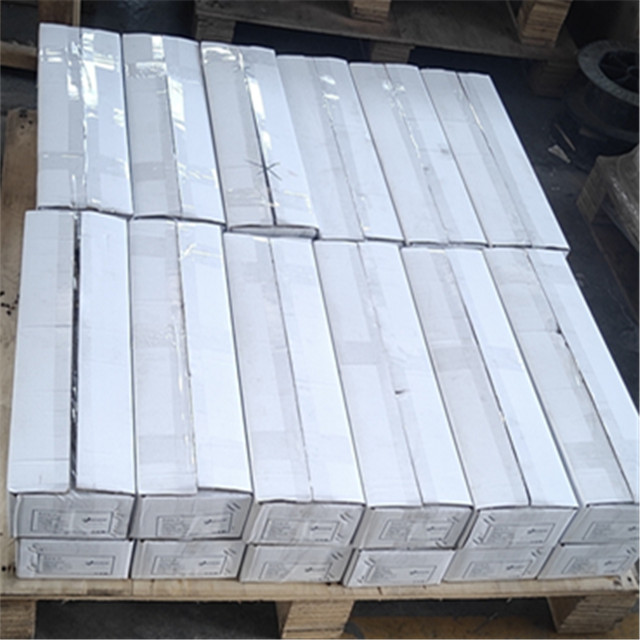

transportation
-------------------------------------------------- -------------------------------------------------- ------------------------------------------------
customer market
-------------------------------------------------- -------------------------------------------------- ------------------------------------------------
FAQ
-------------------------------------------------- -------------------------------------------------- ------------------------------------------------
