Supply capacity: | 30 sets per month | place of origin; place of origin: | Shandong China |
auxiliary system: | Conveyor cleaner | Dimensions (L*W*H): | custom made |
Silo life: | 25-50 years old | port: | Qingdao |
Applicable industries: | Hotel, Food and Beverage Factory, Farm, Restaurant, Retail, Other | Mechanical test report: | if |
Core Components Warranty: | 1 year | Core components: | steel silo |
usage: | grain storage | type: | Assembly of corrugated steel silo |
Showroom location: | not any | Material: | Hot dip galvanized 275g, steel |
Health status: | new, new | Installation and debugging: | Overseas engineer service |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal | Main selling point: | Reasonable design, reliable product |
Marketing Type: | New Products 2020 | Warranty: | 1 year |
Handling equipment: | elevator | Certification: | ISO9001 |
weight: | 16930 kg | product name: | grain silo |
Bottom Type: | Hopper cone | Packaging Preview: | |
Packaging Details: | Standard export packaging | Video external inspection: | if |
product description

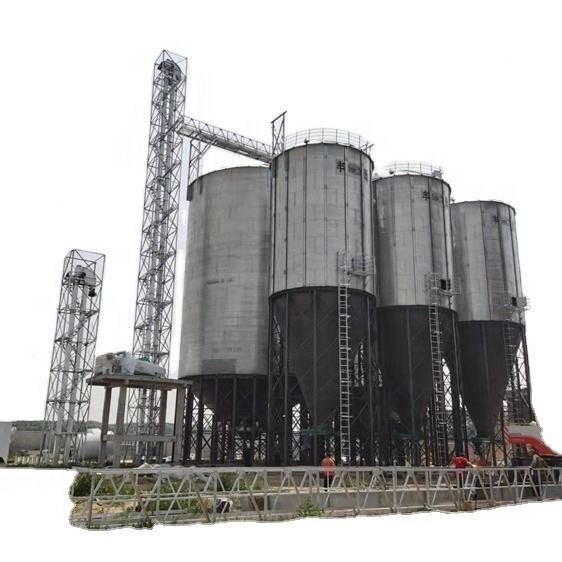

farm granary

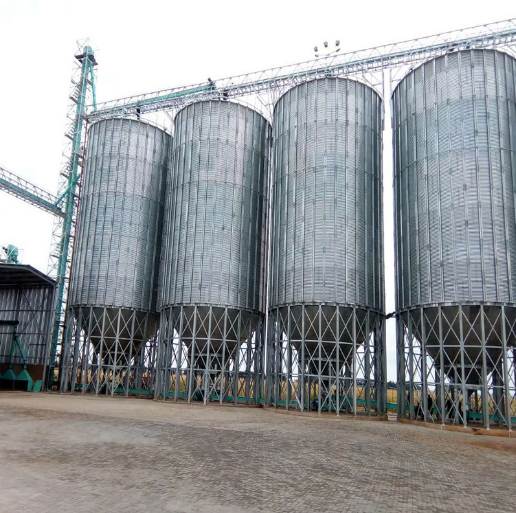

1. Our hopper bottom steel silo series is specially designed by our senior engineer and adopts high-quality galvanized sheet.
2. There are two types of hopper angles: 45° and 60°, of which the 60° conical bottom is usually used to store larger particles and high-viscosity powder materials.
3. All silos are precision designed with high strength, 80mm x 14mm thin corrugated steel sheet, usually
Galvanized to 275 g/m2.
4. The life cycle of the silo can be up to 30-50 years. The product design conforms to the national standard of GB50322-2001.
5. Our hopper bottom steel silos provide the highest quality grain storage options. Installation of the most popular 250-ton, 500-ton and 1,000-ton silos is very simple, usually in around 10 days per silo.
Function list
1. Light weight
The weight is only 1/4-1/5 of the same capacity concrete silo.
2. Mold making
Produced according to the same standard, with a high degree of standardization.
3. Interchangeability
All components are connected by high strength and interchangeable bolts.
4. Large capacity range
Large capacity silos from 5 tons to 16,000 tons can be made.

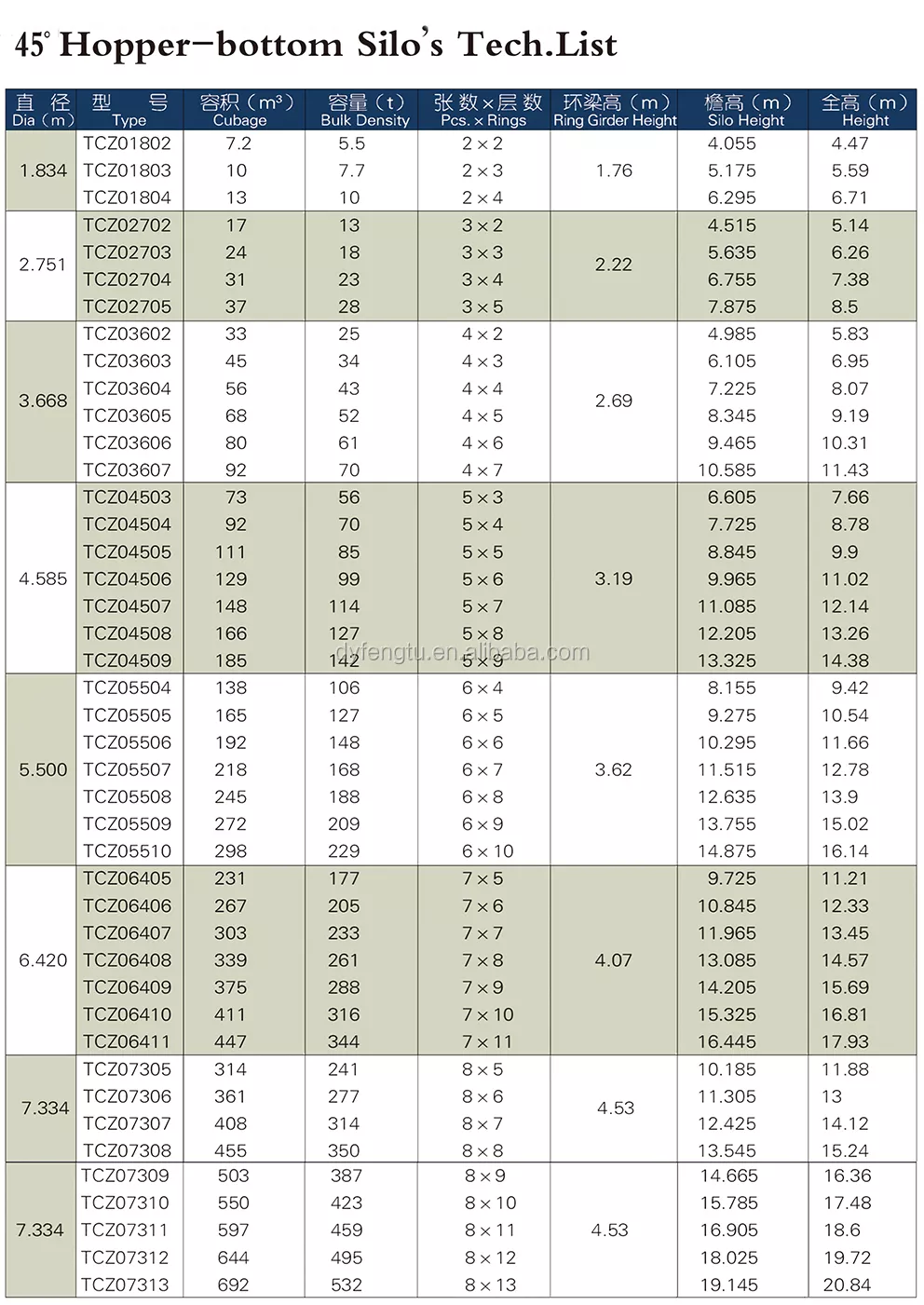

Product Specifications
Sales and Service Network

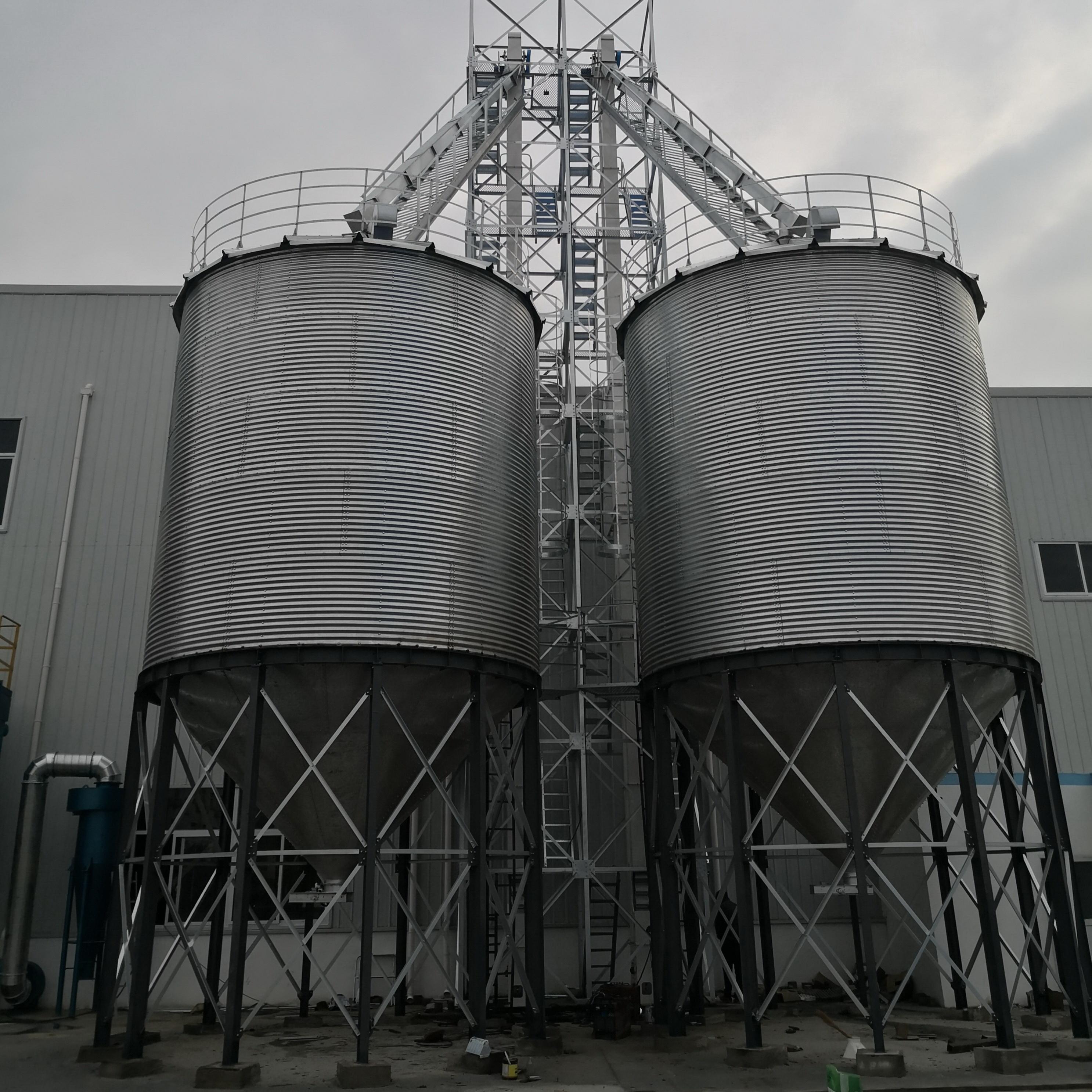

successful project
