QRT Hydraulic Crimp Tool Manual Hose Crimp Kit

Supplier: Hebei Qiruite Rubber & Plastic Products Co., Ltd.
Region: Hebei, China
Contact: Ms Jerianne Zhang
Price: $100.00 /roll
Min. Order: 1 roll

Click here to contact

Product details

Health status:	new	Packaging Preview:
model:	S0106	body fluid:	air water
Certificate:	ISO90001TS16949	Marketing Type:	New Products 2020
place of origin; place of origin:	Hebei, China, Hebei, China	Main selling point:	easy to operate
weight:	9.4	Mechanical test report:	if
Core components:	valve	product name:	Hydraulic crimping machine
Packaging Details:	Packaging Details A) Blow-molded sturdy kit B) Neutral carton C) Customized packaging is available, XHnotion brand packaging is available	Showroom location:	not any
payment terms:	Western Union, wire transfer	Material:	stainless steel, steel
Type of machine:	Hose crimping machine	Applicable industries:	Manufacturing plants, machinery repair shops
Core Components Warranty:	1 year	type:	Hydraulic crimping tool
Warranty:	1 year	port:	Tianjin or as required
Video external inspection:	if	Supply capacity:	10000 pieces per day

Product Description

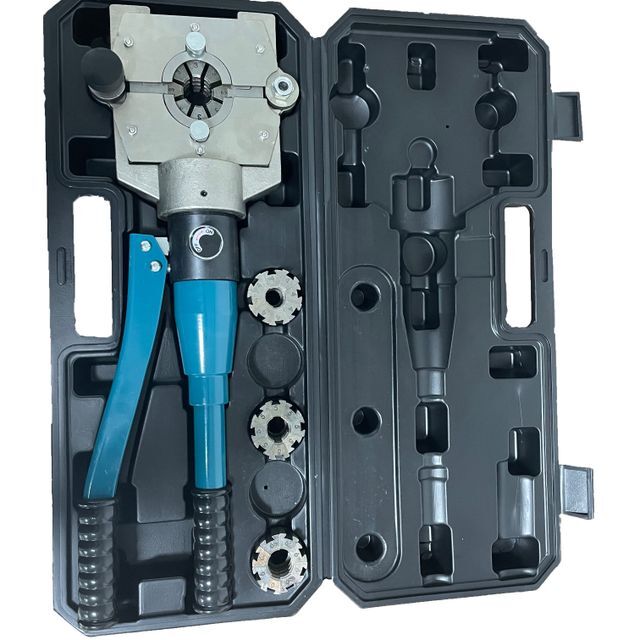

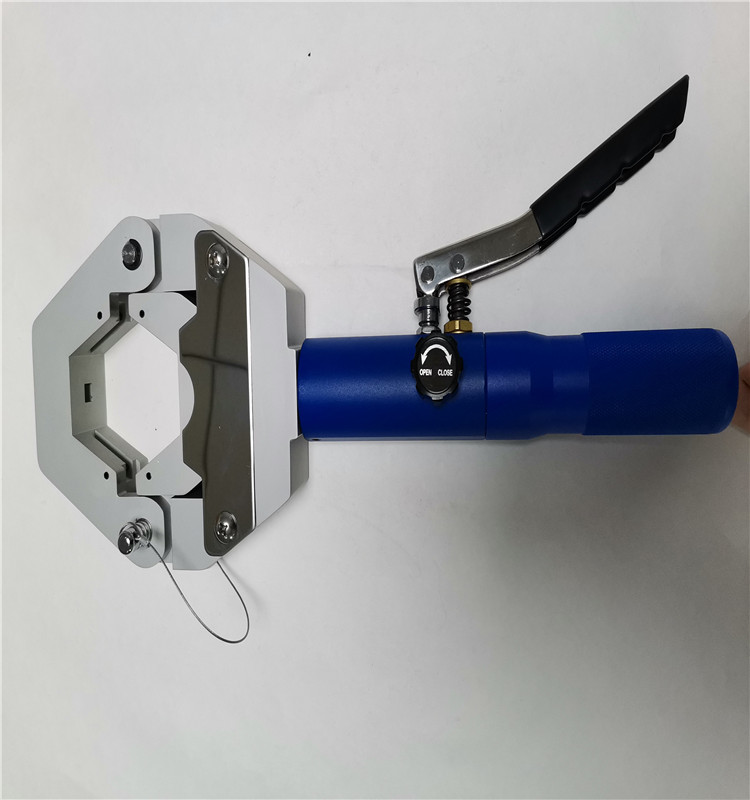

product name	Xhnotion Hydraulic Crimp Tool Press Manual Hose Crimp Kit
Piston force	70KN
piston stroke	14mm
Hose size	Nominal Diameter, Dn, 5/16"~5/8" (Reference outer diameter: Φ17~Φ30 at 2MPa)
standard module set	7
operating mode	manual
ambient temperature	-10~60℃
arm strength	≤75Kg
crimp time	about 10 seconds
noise level	≤10dB (not detected)
physical dimension (LxWxH)	780x412x43
weight	4.73Kg
Marketing area	all over the world

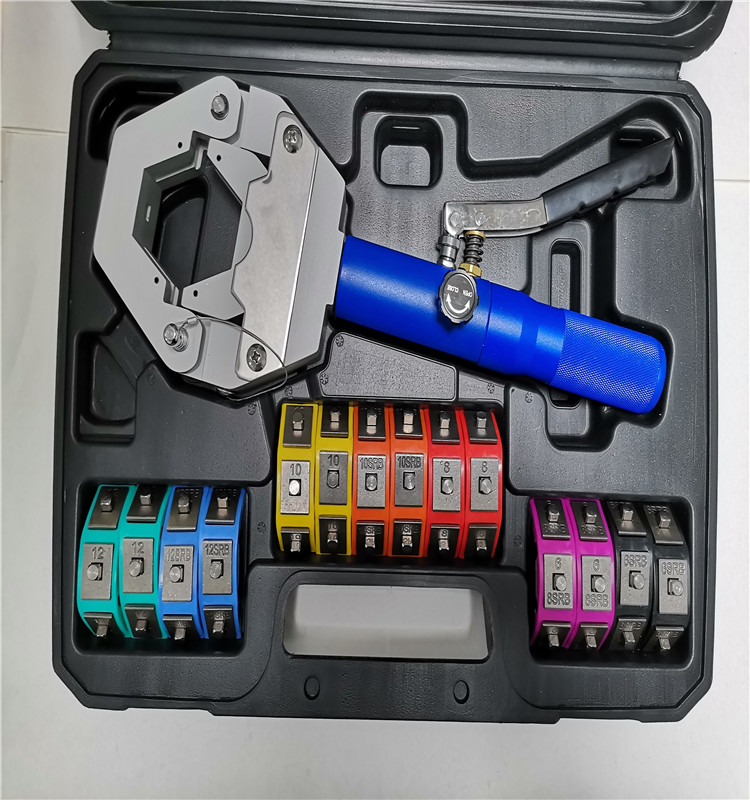

Product display

Do not.	Hose specification given conditions	Hose Size Inner Diameter	Hose Size Outer Diameter	Outer Diameter of Hose Fittings	Comment
6SRB	5/16", DN8	Φ8±0.4	Φ14.5～16.5	Aluminum joint φ19.5 Steel joint φ17.5	DN8 thin wall hose
8SRB,6	5/16", DN8	Φ8±0.4	Φ18.5～20.5	Aluminum joint φ23.5 Steel joint φ21.5	DN8 thin wall hose
8SRB,6	13/32”, 3/8”, DN10	Φ10～11.5	Φ16.5～20.5	Aluminum joint φ23.5 Steel joint φ21.5	DN10 thin wall hose
8	13/13”, DN10	Φ10～10.5	Φ22～23.5	Aluminum joint φ26.5 Steel joint φ24.6	DN10 thin wall hose
10SRB	1/2", DN13	Φ12.4～13.5	Φ19.5～22	Aluminum joint φ25	DN13 thin wall hose
10	1/2", DN13	Φ12.4～13.5	Φ23～25.5	Aluminum joint φ27.7 Steel joint φ25.5	DN13 thin wall hose
12SRB	5/8", DN16	Φ14.8～16	Φ22.5～25	Aluminum joint φ27.8	DN16 thin wall hose
12	5/8", DN16	Φ15～16.5	Φ28～29.5	Aluminum joint φ32.5	DN16 thin wall hose

Maintenance service

Maintenance and Service

1. Check whether the hydraulic crimping machine functions normally. Any damaged tools should not be used and should be sent to an authorized repair shop or our company.

2. Check that the parts of the hydraulic crimping port can move freely. Periodically inspect all pipes, shafts and screws for damage. Any damaged parts must be replaced with original parts by an authorized technician.

3. After that, the hydraulic crimping machine should be cleaned thoroughly. All moving parts are lubricated only with high quality hydraulic oil or ball bearing oil.

4. Other maintenance: adjustment and maintenance must be carried out by technical personnel authorized by our company.

5. If the seal is damaged, the quality guarantee is not cancelled.

6. The hydraulic crimping machine that has been crimped for 20,000 times or used for 2 years, whichever is earlier, must be repaired by an authorized repair shop or our company.

7. The hydraulic crimping machine must be completely drained of hydraulic oil before it can be shipped.

8. Relevant hydraulic oil: HB30 (acid value: 0.81 mg KOH/g) 57ml
