DIKAI D02 Thermal Transfer Coding Machine

Supplier: Shanghai Dikai Coding Industry Co., Ltd.
Region: Shanghai, China
Contact: Mr Bo Chen
Price: $2500.00 / 1 - 49 sets
$2400.00 / 50 - 99 sets
$2200.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	Main selling point:	competitive price
Warranty:	1 year	Voltage:	AC 110-220V
Designer Program:	free	Core components:	A printed circuit board
Operating handle size:	170*25-115mm	type of packaging:	carton
After-sales service provided:	Provide overseas third-party support, free spare parts	Auto grade:	automatic
brand:	Decay	Drive Type:	electrical
Packaging Preview:		application:	Vertical packaging machine
payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram	What to print:	Barcodes, QR codes, logos, variable information, date and time, forms, etc.
Mechanical test report:	if	product name:	D02 Thermal transfer printer
After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services	printing speed:	Up to 120PPM
port:	Chinese port	Certification:	Chief Executive; ISO9001:2008; ROHS
Supply capacity:	500 sets per month	Showroom location:	Canada, United States, Italy, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Spain, Thailand, Argentina, South Korea, Chile, Colombia, Malaysia
Marketing Type:	normal product	Local service location:	Canada, United States, Italy, Brazil, Peru, Indonesia, Pakistan, India, Russia, Thailand, Malaysia, Morocco, Argentina, South Korea, United Arab Emirates, Colombia
weight:	5KG	Printer size:	170165160mm
Print Head:	24mm, 200dpi (8dots/mm)	Materials used for packaging:	Paper
Dimensions (LWH):	170165160mm	Packaging Details:	Standard export packaging: printer and control box in one carton, mounting bracket in another carton. Packaging can also be according to customer's requirements.
Applicable ribbon size:	25mm wide, 500 meters long	print area:	24-40mm
place of origin; place of origin:	China Shanghai	Video external inspection:	if
Applicable industries:	manufacturing plant	type:	coding machine
Core Components Warranty:	1 year

product description

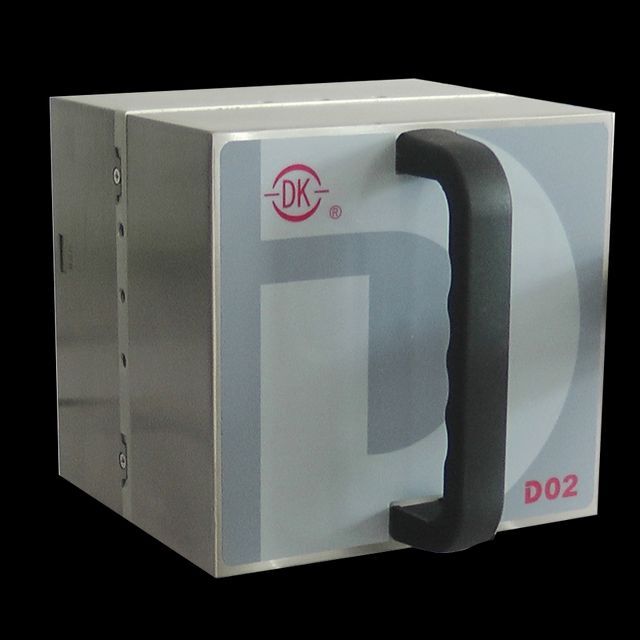

D02 Thermal transfer printer

D02 Vertical Baler Thermal Transfer Coder YesDeveloped by DIKAI's own R&D teamHas 2 national patents. possibleMounted on batch packers and labelersPrint barcodes, QR codes, Logos, images, variable data, tables, nutrition tables, serial numbers, etc. on the packaging film in various printing fonts. its24mm, 200DPIPrint HeadProvide customers with satisfactory high-quality printing. Using the D02 vertical baler thermal transfer coding machine can greatly reduce the printing cost. We rely on our D-SERIES TTO machine to promote the use of TTO worldwide, and look forward to your inquiry!

feature

-- Continuous and intermittent
-- 24mm Kyocera print head;
-- Real-time, variable dates, etc.
-- 200 DPI
- low cost
-- easy to use

32mm print head

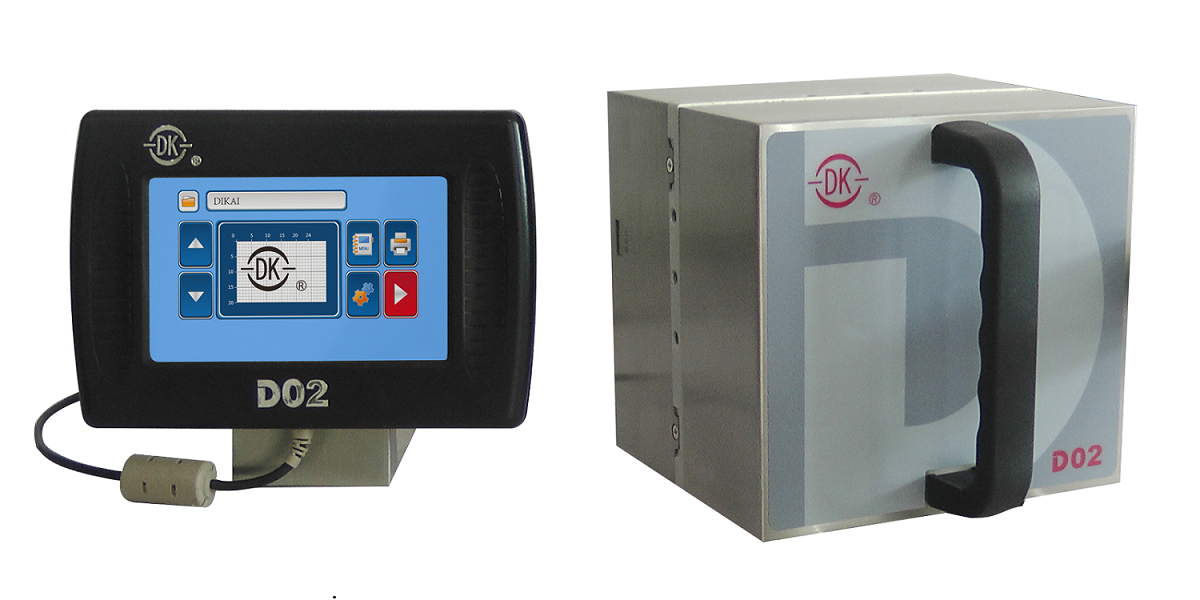

interface

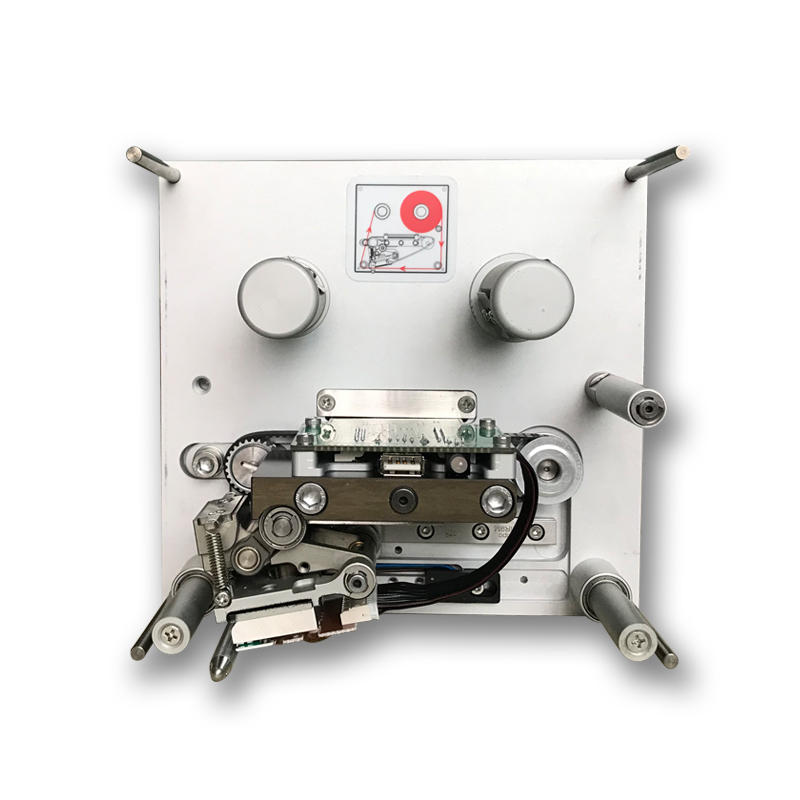

internal structure

Product Specifications

Specification
Print Head	24mm, Kyocera; 200DPI
print area	Intermittent: 24mm*40mm
Ribbon size	25mm*500m
print frequency	Intermittent: up to 120PPM
strength	AC110~220V, 50/60Hz, 120W
Ambient operating temperature	0-40℃
Relative humidity	10%~95% (non-condensing)
Gas source	no need
weight	Print head: 5kg, operating handle: 0.4kg
Size (LWH)	Printing unit: 210mm210mm185mm Controller box: 233mm180mm128mm

attention:The price shown on Alibaba is not the final price, please consult us to provide you with an appropriate solution.

Packaging and Shipping

1. Standard carton, filled with sponge for packaging protection 2. Wooden box free of fumigation, suitable for sea and air transportation. 3. Customized packaging according to customer requirements.

After-sales service

Technical Support

--R&D support;

--Operation manual guidance

--Professional online support within 24 hours

--Video support

--Possible on-site support...
