63A Automatic Generator 2P 3P 4P Transfer Switch Controller Ats Dual Power Transfer Switch

Supplier: Yueqing Yirui Electric Appliance Co., Ltd.
Region: Zhejiang, China
Price: $13.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

frequency:	50 Hz	Rated current:	63A/125A
maximum. Voltage:	230V	brand:	year
Supply capacity:	50,000 pieces per month	port:	Ningbo/Shanghai/Shenzhen
Certification:	EU standard	Rated current:	63
Key words:	Dual Power ATS	place of origin; place of origin:	Zhejiang, China
model:	YRQ2CB-63	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Packaging Details:	carton	product name:	ATS transfer switch
type:	CB	color:	white
pole:	2P/3P/4P	Warranty:	1 year
Is it smart:	Yes

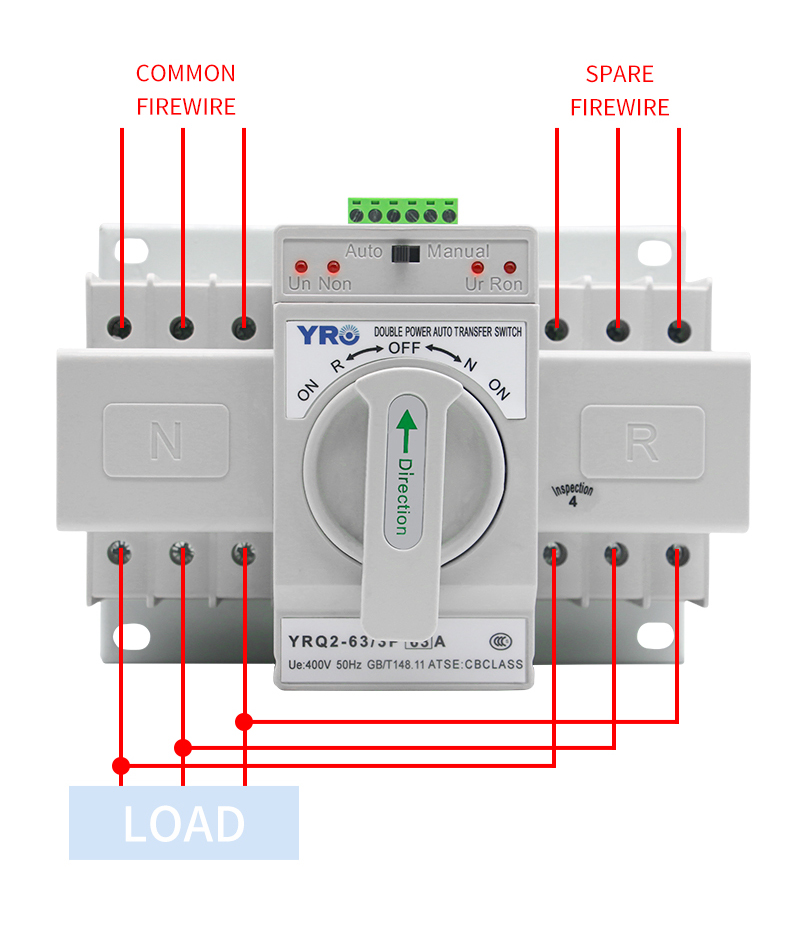

63A Automatic Generator 2P 3P 4P Transfer Switch Controller Ats Dual Power Transfer Switch

Product Description

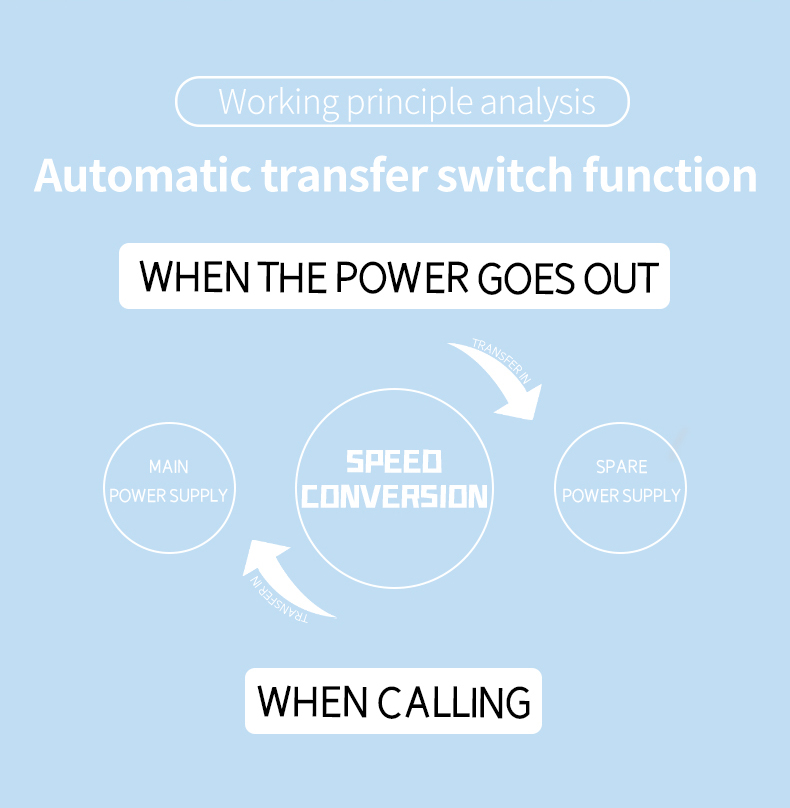

YRQ2The series of automatic transfer switches are designed and developed by our company according to the requirements of our customers.
The switch adopts DZ47 (C45=CB2) miniature circuit breaker (improved) as the action element and is equipped with a new control mechanism.
It has the smallest volume among similar products, and has functions such as fire protection and power generation. It is specially used in important power supply places where power failure is not allowed.

Technical data:

Product Category	automatic transfer switch
Specification current Ie(A)	63
Rated working voltage, Ue (V)	AC230V
Rated insulation voltage Ui (V)	AC 690V
Rated impulse withstand voltage (KV)	4KV
Rated short-circuit making capacity Icm	6KA
Rated short-circuit breaking capacity Icn	4.5KA
service life	5000 times
Electrical equipment class	CB class
controller	Type A (Basic Type)
Rated control supply voltage, Us(V)	230V 50Hz
Running transfer time (no delay)	≤3s
