30kg 50kg payload 6-8 hours flight time Inspection patrol gasoline powered drones and drones

Supplier: Honeycomb Aerospace Technologies (beijing) Co., Ltd.
Region: Beijing, China
Contact: Mr Malick Wang
Price: $135000.00 / 1 - 10 units
$108800.00 / >=11 units
Min. Order: 1 unit

Click here to contact

Product details

endurance:	up to 6 hours	Control radius:	≥120km (without obstacles)
Maximum payload:	50kg	Packaging Preview:
Health status:	new	Maximum altitude:	5000m (above sea level)
Cruising speed:	100～130km/h	use:	airplane
model:	HC-140	place of origin; place of origin:	Beijing China
Supply capacity:	5 units per month	Body length:	3251mm
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal	brand:	cellular aerospace
Wind resistance level:	Level 5	power plant:	gasoline engine
type:	Fixed-wing UAV	Packaging Details:	We provide industrial grade special services for drone packaging.
port:	Beijing	Airplane Mode:	Manual / Auto
Maximum takeoff weight:	120kg

Product Description

Product Image Details

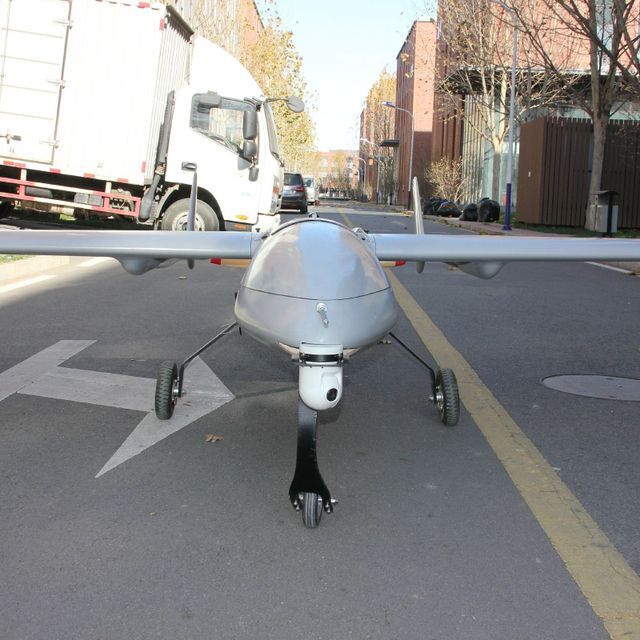

The HC-140 fixed-wing gasoline-powered UAV adopts an engine push-back layout, with high aerodynamic efficiency, a flight time of up to 8 hours, and easy assembly and transportation. The whole fuselage adopts advanced aviation composite material manufacturing technology, which has high structural strength, good fatigue resistance, long service life and beautiful appearance. It can be used for emergency disaster reduction, border defense surveillance, maritime reconnaissance, pipeline inspection, aerial photography and aerial survey, land security rights protection, etc.

Specification

category	Specification	scope
flight system & power plant	body length	3251mm
		span	5270mm
		Payload	custom made
		manufacturing materials	carbon fiber
		empty weight	55kg
		Maximum takeoff weight (sea level)	120kg
		standard payload	40.0kg
		maximum payload	50.0kg
		standard propeller	36 x 12 inches
		cruising speed	100~130km/h
		maximum flight speed	160 km/h
		maximum height	5000m (above sea level)
		endurance	up to 8 hours
		endurance		maximum payload
		power plant	gasoline engine
		engine	3W275 gasoline engine
		electric motor
		Electric Speed Controller (ESC)	60A brushless ESC
		Fuel tank capacity	50L
		Fuel Consumption Rate (SFC)	5~10L/h
		Assembly method	Detachable
flight control system	Attitude angle navigation accuracy	Static 0.5˚ / Dynamic 1˚
		Positioning and Navigation Accuracy	Horizontal 10cm / Vertical 50cm
		positioning accuracy	Normal 10cm / Difference 1cm
		Attitude control accuracy	±1˚
		Direction control accuracy	±2˚
		Position control accuracy	±10cm
		Location Algorithm	RTK GNSS/GNSS+INS
		range of working temperature	-20°C ~ 40°C
		airplane mode	Manual / Auto
		Emergency measures	Runaway return, low voltage return, fault alarm
link system	control radius	≥120km (without obstacles)
link system		Video output resolution	1080P@60fps
Operating environment	Wind resistance rating	Level 5
		Operating temperature	-20°C ~ 40°C
		Rain resistance rating	IP54
aircraft logistics	control radius	5-10km (without obstacles)
aircraft logistics		Video output resolution	1080P@60fps
Operating environment	Wind resistance rating	Level 5
		Operating temperature	-20°C ~ 40°C
	remote control	Rain resistance rating	IP54
aircraft logistics	expand, collapse time	≤10 minutes
aircraft logistics		gasoline	92 gasoline and motor oil 25:1 mixed fuel
remote control	Model	Futaba T8FG
		working frequency	2.4GHz
		Maximum signal effective distance (no interference, no blockage)	2 km
