small forges EN1677 Powder Coated Side Lifting Rings

Supplier: Tianjin Yiyun Rigging Co., Ltd.
Region: Tianjin, China
Contact: Mr Jerry Lei
Price: $2.12 /piece
Min. Order: 1 piece

Click here to contact

Product details

size:	M12	R:	90 lbs, 100 lbs, 44 lbs, 40 lbs
factory:	Tianjin Yiyun	Material:	alloy steel
payment terms:	Western Union, T/T, MoneyGram	Packaging Preview:
Safety elements:	4 times	product name:	Universal rotating ring
color:	Orange/OEM	Custom Support:	OEM
Packaging Details:	carton	grade:	80
place of origin; place of origin:	Tianjing, China	Supply capacity:	1000 pieces per month
Lifting point inspection:	load test	port:	Newport
WLL:	0.7T	surface:	powder coating
Warranty:	6 months	model:	YD083

detailed picture

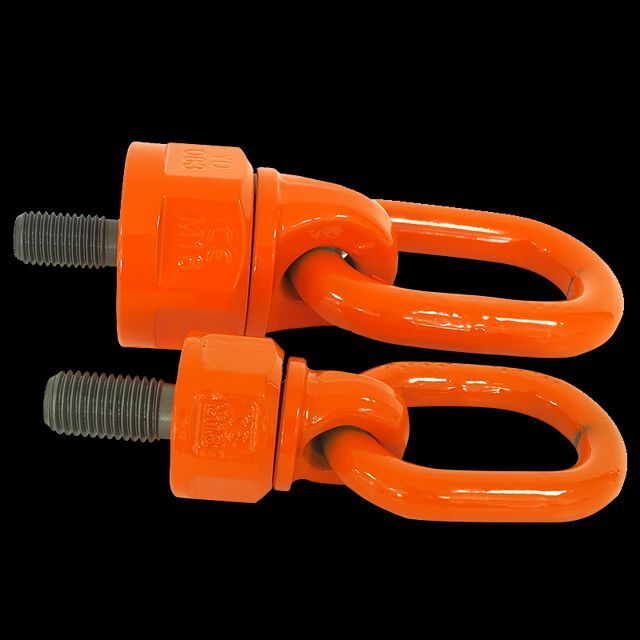

Product name: YD083 Universal rotating ring

The universal rotating lifting ring is forged with special alloy steel, and is treated with high-strength quenching and tempering. It has superior mechanical properties. The eyebolts are the eyebolts of the load pair. They are designed to be mounted from the center or side and can be pivoted or rotated. Some rings are attached directly to webbing, chains or shackles. Others have a hook end instead of the standard bail, eye or loop.

Load: 230° pivot, 360° swivel
Standard: EN1677-1:2000
Application: unknown power, wind power, tool and mould manufacturing and traditional lifting industries.
Purpose: Vertically hoisting the largest WLL
Assemble multiple swivel rings, the angle of the wire rope is less than 120°
Assembled with multiple swivel rings, WLL slightly lower or more
Assembled with multiple swivel rings, side pulls have the same WLL as vertical pulls.
Metric thread: standard from M 8 to M 150; suitable for loads from 0,3 t to 40 t
UNC Threads: Standard from UNC 5/16'' to UNC 4''; for loads from 661 lbs to 88,184 lbs
Safety factor: 4:1
Rotating under load, can be used for any type of lifting operation, two types of tightening

Product Description 100% Magnaflux crack detection. Rated to 100% at 90° angle. Lifting rings Lifting rings are designed in forged alloy steel, which has been quenched and tempered. 360° rotation with 180° pivot function. Bolts are hexagon socket head cap screws with a metric thread gauge of grade 10.9 alloy.

Our advantage

Advantages of lifting rings1 The raw material is optimized to select high-quality alloy steel 42CrMo. Optimization of raw materials can significantly improve WLL 2 The improved WLL lifting ring is inherently stronger for linear use. 3 Safety factor and marking We offer certified lifting rings with WLL, thread size marking and a 4:1 safety factor as defined by the EN 1677-1 standard. 4 Anti-corrosion coating The anti-corrosion coating means that the unpainted part of the swivel lifter is resistant to salt spray 5 The more effective lifter is 100% compliant than traditional DIN 580 lifter bolts In keeping with its mission statement, it pays special attention to its lifter's appearance orange.

Manufacturing Technology

WLL series (M8-M150, 0.3-50T) can provide standard metric thread, metric fine thread, UNC, UNF thread, BSW (British Standard Whitworth thread), etc. on request.
