CIMC Qingdao 20ft 40ft gooseneck light frame trailer container chassis

Supplier: Qingdao Cimc Special Vehicles Co., Ltd.
Region: Shandong, China
Contact: Ms Lisa Wu
Price: $7000.00 / 2 - 9 units
$6000.00 / >=10 units
Min. Order: 2 units

Click here to contact

Product details

Packaging Details:	2 uint/40ft container trailer chassis	pause:	Mechanical Suspension Skeleton Trailer
use:	truck trailer	Element:	Trailer Plug Skeleton Trailer
place of origin; place of origin:	Shandong, China Skeleton Trailer, Shandong, China	brand:	CIMC skeleton trailer, CIMC
color:	Customer Request Skeleton Trailer	Material:	steel
type:	semi-trailer	King Needle:	3.5" JOST Skeleton Trailer
landing gear:	Standard 28 Ton Skeleton Trailer	Maximum payload:	40 tons
fetal:	11R22.5 12r22.5 315 385 Skeleton Trailer	payment terms:	L/C,D/P,D/A,T/T
size:	1225024801550mm	product name:	40ft container trailer chassis with 3 fuwa axles
axis:	FUWA Skeleton Trailer

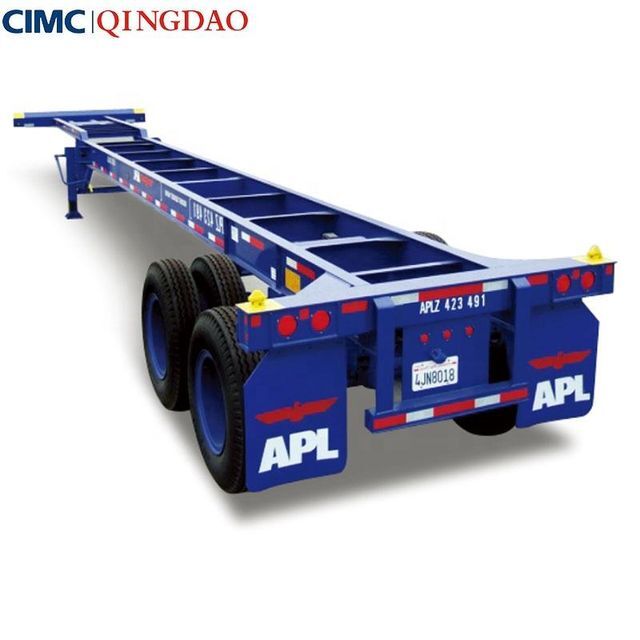

CIMC 40ft Gooseneck Frame Trailer Container Chassis

Specification:
1) Dimensions and weights:
a) Nominal Dimensions (L x W x H): 12,489 x 2,480 x 1,460mm
b) Kingpin height: 1,220mm
c) Kingpin setting: 760mm from the back of the front bolster
d) maximum. Payload: 35,000kg
e) Tare weight: 3,000kg±2%
2) Running the system:
a) Suspension system: leaf spring or airbag suspension.
b) Axles: BPW, York, Fuwa and other axles, various bearings
c) Tires: Bias or radial tires of various brands
d) Kingpin: Forged steel, 2" or 3.5", welded or bolted
e) Landing gear: 28T, 30T
3) Chassis:
a) Twist lock and corner lock available
b) Main beam: high strength steel
c) Surface treatment: Shot blasting all steel surfaces to SA2.5 or SP-10
d) Painting: Zinc-rich primer and modified polyurethane topcoat for customers to choose
4) Braking system:
a) Two-wire air brake system with single air tank, standard connector on front strut
b) Optional anti-lock braking system
5) Electrical system: standard electrical equipment.

Specification

Ettel	aspect	LWH: 12489X2480X1460(MM)
		wheelbase	7200mm+1300mm+1300mm
		tare	7000KGS
		Payload	60000KGS
		GVWR	67000KGS
OEM	landing gear	Two-speed manual strap sandals
		OK	2" Bolt Type Yost
		Brake system	Two-wire pneumatic braking system.
		Main beam	16/ 6/ 18
		brake chamber	30/30 spring brake chamber
		pause	spring suspension
		axis	FUWA axle, 13 tons capacity/set, 3pcs
		fetal	11R22.5-18PR, 12 units
		rim	8.25*22.5 ,12 units
		toolbox	1(1m)
		Spare tire rack	2
		twist lock	12 units
other	painting	According to customer requirements

Product Description

CIMC 40ft gooseneck skeleton trailer design.

After PRO E and Finite Element Analysis, we use both high strength and carbon steel to ensure the longest lifespan of the trailer while also being economical for our customers.

CIMC trailers use Fuwa axles

CIMC flatbed trailers use world-renowned axles and suspension systems, such as fuwa, bpw, etc., to reduce the cost of frequent maintenance and replacement of wearing parts by customers.

CIMC skeleton trailer landing legs.

CIMC 40-foot skeleton trailer adopts Jost or CIMC landing legs, two-speed, one-side operation or two-side operation According to customer habits and market demands, the famous landing legs ensure the safety of drop transportation

CIMC skeleton trailer tires

CIMC's 40-foot frame trailer adopts double coin, triangle, and Linglong tires. The most common sizes of flatbed trailers are 11R22.5, 12R22.5, 13R22.5, 11.00R20, and 12.00R20 to meet different market demands.
