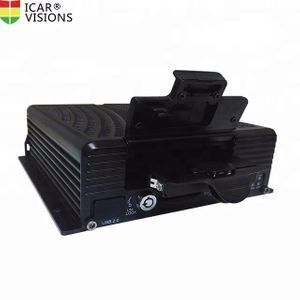

ICarVision IVMS server client 3G GPS HDD card mobile digital video recorder 8 channel

Supplier: Icarvisions (Shenzhen) Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Penelope Cheung
Price: $40.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Resolution:	1.3MP IPC/ 720P AHD/ Analog camera optional;	Brand Name:	OEM;
G-sensor:	Built-in G-sensor;	Place of Origin:	Guangdong China (Mainland);
Video format:	H.264;	Packaging Detail:	8pieces per cartons Each unit net weight is about 2.5KG Per unit box gross weight is about 3KG Per carton box gross weight is about 22KG;
Video resolution:	1080P/720P/960H/D1 Flexible;	Screen:	external 7" LCD Monitor;
Lens:	2.1mm/2.8mm etc lens optional;	View Angle:	2.1mm/2.8mm wide angle cameras optional;
Type:	Mobile AHD DVR;	Port:	Shenzhen;
Certification:	CE;	Supply Ability:	10000 Piece/Pieces per Month;
Payment Terms:	T/T;	Warranty:	15 Months;
Product name:	Mobile Digital Video Recorder;	Functions:	vehicle cctv;
Model Number:	JH8-HD;

Product Description

ICarVision IVMS server client 3G GPS HDD card mobile digital video recorder 8 channel

JH8-HD-GFW (GPS + 4G +wifi) (720P)

Features
★8 x 720P AHD / 960H / D1 / HD1 / CIF +1x IPC(720P/1080P )Video input, support 960P AHD camera
★ accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 128GB) for backup(at 3G/4G/Wi-Fi model option)
★ Internal G-Sensor, with GPS, 4G and Wi-Fi (5.8 Ghz)
★ 2 WIFI Antennas (download speed up to 3Mb/s)
★ Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard)
★ Hard drive automatic heating startup in cold weather
★ On board UPS 8 seconds delay power-off for data protection
★ Operating temperature -40℃ ~ +80℃
★ 8V-36V wide voltage power supply

Our Mobile DVR with 3G / 4G, GPS, WiFi modules optional, according to different demands.
GPS: For map, location and route tracking
3G / 4G: For real-time video and monitoring
Wi-Fi: For automatically downloading video file

JH8-HD series model names:

Model Name	JH8-HD-NNN	JH8-HD-GNN	JH8-HD-GNW	JH8-HD-GWN	JH8-HD-GWW	JH8-HD-GFN	JH8-HD-GFW
Details	N/A	GPS	GPS WIFI 5.8G	GPS 3G(WCDMA)	GPS 3G(WCDMA) WIFI 5.8G	GPS 4G FDD	GPS 4G FDD WIFI 5.8G

Function		JH8-HD
System	Language	English / Chinese
	Operation Interface	Graphical User Interface (OSD menu)
	Password Security	2 Levels: Administrator & User
Video	Video Input	Supports 8 channels CIF/HD1/D1/960H camera Video input Supports 8 channels 720P AHD Video input Supports 4 channels 720P AHD + 4 channels CIF/HD1/D1/960H Video input Supports 1-CH 720P/1080P IPC + 8-CH 960H/D1/CIF Video input Supports 1-CH 720P/1080P IPC +8-CH 720P AHD Video input
	Video Output	2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port)
	Video Display	Single picture, 1~9 pictures
	Signal System	PAL / NTSC ( PAL@200 frame 720P/sec; NTSC@240 frame 720P/sec )
	Image Compression	H.264 Main profile
Audio	Audio Input	8 Channels
	Audio Output	2 Channels (Front Panel 3.5mm Jack, 1 in the 24pin connector)
	Record Format	Synchronized A/V recording
Recording & Storage	Image Resolution	CIF / HD1 / D1 / 960H / 720P /1080Poptions
	Video Coding	ISO14496-10 Industry Standard
	Video Bit Rate	CIF: 1536Kbps ~ 128Kbps,
		HD1/D1: 2048Kbps ~ 400Kbps,
		960H: 2048Kbps ~ 400Kbps,
		720P:4096Kbps ~ 400Kbps
		1080P:4096Kbps ~ 400Kbps
		Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
	Audio Bit Rate	40Kbps
	Storage	Up to 2TB HDD/SSD and 1 SD card for backup(at 3G/4G/WIFI model option)
Alarm	Alarm Input	8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
Alarm	Alarm Output	1 Channel, 12V output
Communication Ports	RS485	1 Port for PTZ control or Data Device usage
	RS232	2 Port for communication or data usage
	RJ45 Network	4 Ports of RJ45, For connection to an IP camera with maximum of 1080P
	USB	2 Ports for USB 2.0, the front panel one to download video files & upgrade firmware; the rear panel one is optional.
Wireless Communication*	3G*	3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module
	4G*	4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier
	Wi-Fi*	Internal Wi-Fi 802.11b/g/n ( 2.4 / 5.8 Ghz) optional
GPS	Int'l Standard GPS*	Internal GPS module. Real-time geographic coordinates, speed information
G-Sensor	Internal G-Sensor	Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
Software	PC Playback	A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
Software	IVMS	Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.
Software Upgrade	Local or Remotely	Upgrade through the front USB2.0 or remotely via IVMS platform
Voltage Input	+8~+36V	8~36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
Voltage Output	12V	12V(+/-0.2V),Max 3A
ACC Detection	≤4V	Power Off
ACC Detection	≥6V	Power On
Video Input Resistance	75Ω	75Ω
Video Output Voltage	2Vp-p	2VP-P CVBS output analog signal, screen input requires 75Ω resistance
I / O port	<1V	Low voltage trigger
I / O port	>5V	High voltage trigger
Operation Temperature	-40℃~80℃	Install in well ventilated area, protected from moisture, heat, dust and vibration
Dimensions	192x184x61mm	Including Security Cover 248x184x61mm

Detailed Images

PC Client and APP

Customized IVMS Server,Client and APP are all available,which developped by ourselves.

IVMS Client (Intelligent vehicle monitoring system)

Through this platform, wireless remote real-time video monitoring, GPS map positioning, historical track playback, voice intercom, alarm linkage, remote video recording, remote video downloading,remote video playback, equipment area management and remote upgrading can be realized.

"ICarView" APP for Android&IOS system

User-friendly and easy control intergace,the ICarView APP help users to remote check:
Real-time video

GPS tracking

vehicle movement histroy playback

Speed information

Specific video research

Playback

Snapshot

Other functions

Company &Factory

ABOUT ICAVISIONS

ICARvisions was established by a group of senior R&D software and hardware engineers who have specialized in MDVR development internationally for over 10 years with one goal in mind; we are a solutions based, global leader specializing in vehicle related hardware and software design, manufacture and deployment of Mobile Digital Video Recorders (MDVR), Mobile Network Video Recorders (MNVR) and Sensors, Cameras, Cables, and Accessories.
