Packaging Preview: | enlarge: | x2, x3, x4 | |
Key words: | binoculars military night vision | Warranty: | 1 year |
model: | S750MH | polarity: | white heat/black heat |
Exit pupil diameter: | Vehicle 4600m | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
Detector field of view: | Standard lens (9°*6.75°)/(5.1°*3.8°, retractable) | Supply capacity: | 100 pieces per month |
Image Resolution: | 384*288 | Certification: | PCOC, IECEE |
network: | ≤60mk 30℃ | port: | Shanghai, Qingdao, Shenzhen |
CCD imager: | 1/3" CCD, 795(H)*596(V) | brand: | Dali |
place of origin; place of origin: | Zhejiang, China | storage: | Over 10,000 photos or 4 hours of video |
Detector Type: | Uncooled FPA Microbolometer | Custom Support: | OEM |
Packaging Details: | Ordinary carton |

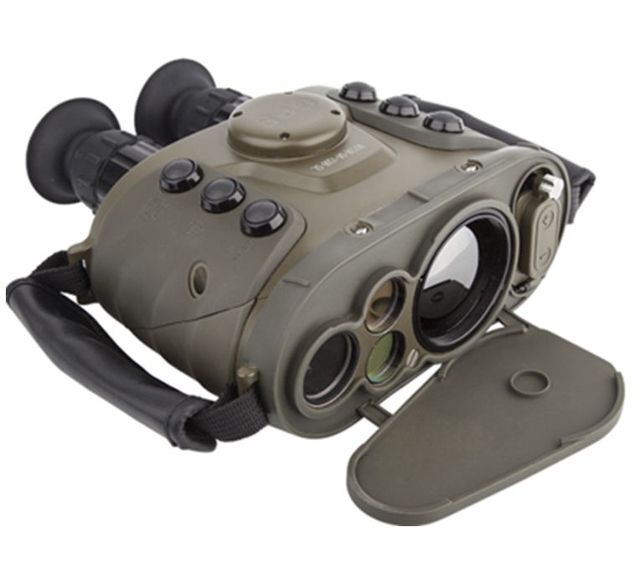

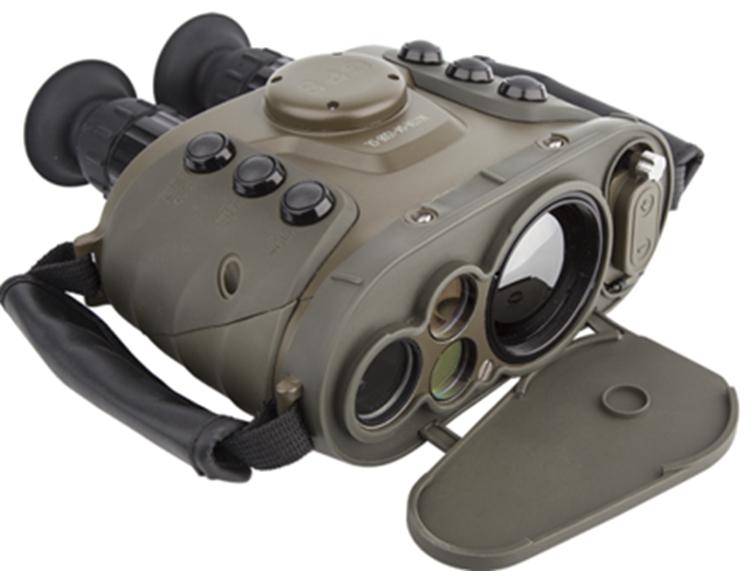

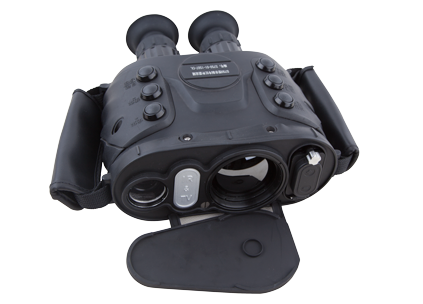

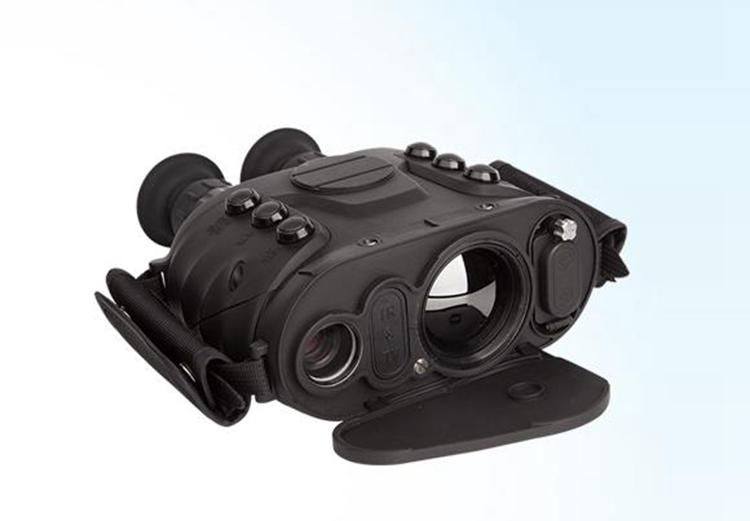

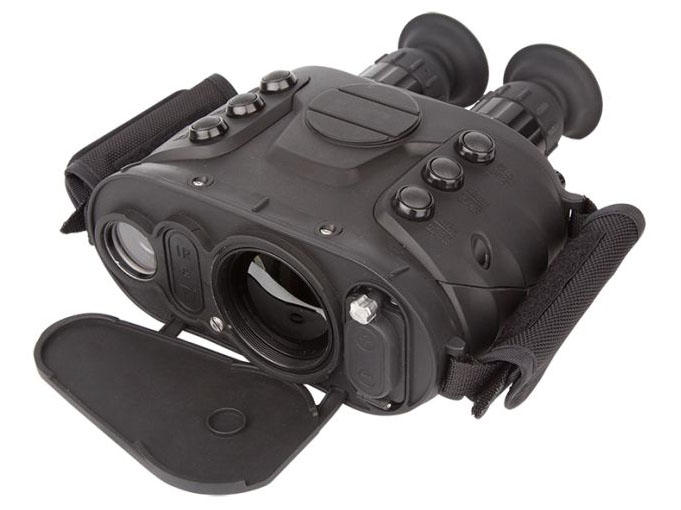

project | S750MH-384 | S750MH-640 | ||
Detector performance | detector type | Uncooled focal plane microthermal | ||
wavelength coverage | 8 - 14 microns | |||
Image Resolution | 384×288 | 640×480 | ||
frame rate | 50 Hz | |||
field of view | 9°×6.75°/5.1°×3.8° | 15.2°×11.4°/8.6°×6.5° | ||
NETD | ≤60mk@30℃ | |||
Focus method | Auto or motorized focus | |||
Image display | display device | HD OLED binocular display, 800×600 | ||
image polarity | white heat/black heat | |||
CCD | Imager | 1/3"CCD, pixel 795(H)×596(V) | ||
field of view | 9°×6.75° | |||
Image storage | storage card | internal memory | ||
storage method | Photo/Video | |||
file format | BMP/AVI | |||
Memory Capacity | > (10000 or 8 hours of video) | |||
Function | Brightness/Gain | automatic / manual | ||
polarity reversal | black hot/white hot | |||
Electronic variable time | x2, x3, x4 | |||
image enhancement | include | |||
Image Denoising | include | |||
Power Systems | Battery Type | Rechargeable Lithium Battery | ||
Battery continuous working time | >5 hours | |||
href="#/javascript:;" battery charging | special charger | |||
Environmental suitability | Operating temperature | -30℃~50℃ | ||
Storage temperature | -40℃~70℃ | |||
environmental value | Humidity | ≦90% (non-condensing) | ||
Protection class | IP67 | |||
physical property | weight | ≤1.6Kg | ||
shell color | (specify) | |||
aspect | 220(L)mm × 195(W)mm × 85(H)mm | |||
External interface | External power supply | include | ||
external video | friend | |||
USB interface | include | |||
Installation interface | 1/4"-20-UNC | |||
detect distance | Person (1.7×0.5) m | 1900m (standard lens) | ||
Vehicle (2.3×2.3) m | 2700m (standard lens) | |||
Recognition distance | Person (1.7×0.5) m | 600m (standard lens) | ||
Vehicle (2.3×2.3) m | 900m (standard lens) |
