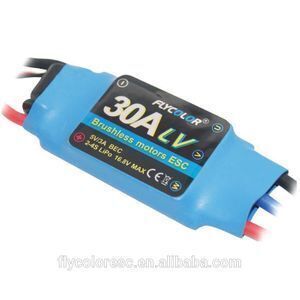

30A Brushless Motor Speed Controller with 3A UBEC for RC Aircraft

Product details
Scale:1:8;Model Number:FW030004;
Delivery Detail:0 days after payment;Power:Battery;
Package Type:ESD bag and standard carton;Package Preview:https://sc02.alicdn.com/kf/HTB1GYxABZyYBuNkSnfoq6AWgVXa8.jpg_640x640.jpg;
Motor Type:DC Motor;Type:Brushless Motor Speed Controller;
Single gross weight:12 KG;Input voltage:2-4S(7.4V-14.8V);
Radio Control Style:RC Hobby;Style:Radio Control Toy;
Size:60mm*24mm*11mm;Single package size:40X40X30 cm;
BEC Type:5V/3A Linear BEC;Place of Origin:China;
Burst current:40A up to 10 seonds;Selling Units:Single item;
Brand Name:Flycolor;Rated current:30A;

30A ESC Brushless Motor Speed Controller 4S 30A 3A UBEC ESC for RC Aircraft

Main Features

1.Smooth and accurate throttle linearity.



2.Throttle range can be calibrated to be compatible with different transmitters.



3.Extremely low internal resistance.Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.



4.Programmable with transmitter stick, Program Card.



5.Regardless the throttle stick position, the motor will not spin after battery connected.



6.Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.



7.Supports high RPM motors,max Speed: 240000rpm for 2 Poles BLM, 80000rpm for 6 poles BLM, 40000rpm for 12 poles BLM.(BLM = BrushLess Motor).



 Specifications



Models

FW030004WA

Continuous current

30A

Burst cunrrent

40A up to 10 seconds

Battery cells

2-4S Lipo

BEC output

5V/3A Linear BEC

Weight

31g

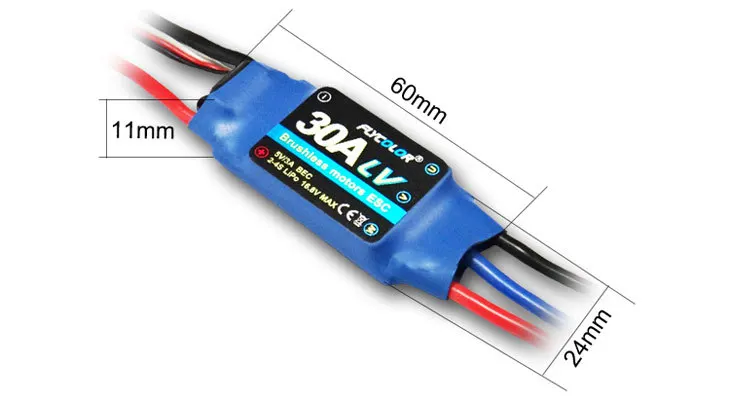

Size

60*24*11mm

Warranty

12 month

Certifications

CE,RoHS

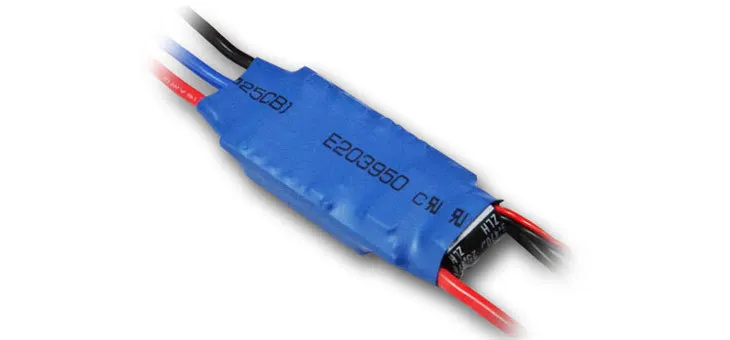

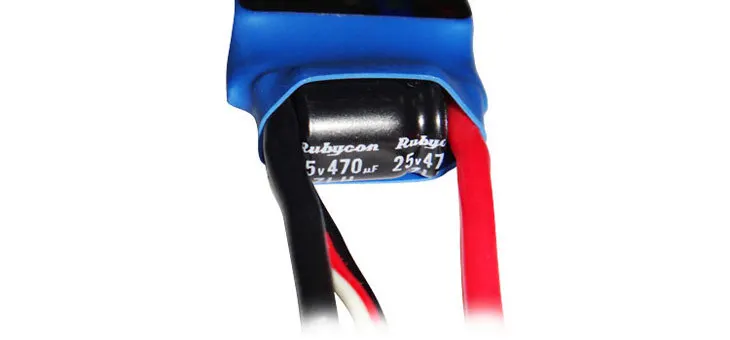

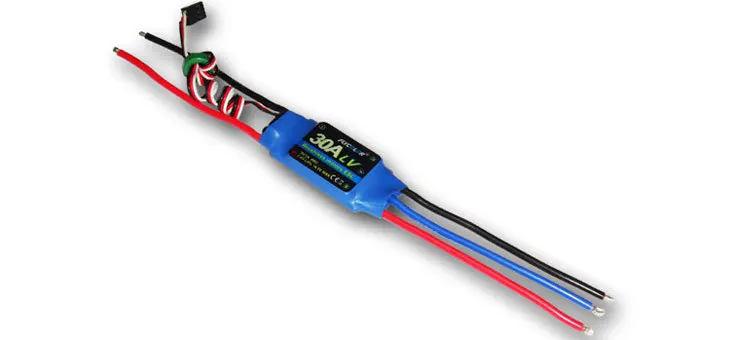

   Product Presentation







  Packing





  Shipping & Payment terms

 Shipping
1.FedEx/DHL/UPS/TNT,Door- to-Door;
2.By Air or by Sea
3.Delivery Time:Sample Order: 2-5 working days ,Standard order: 5-7  working days, OEM Order: 7- 15 working days.



Payment Terms
T/T, Western Union, Paypal



  Why choose us? ?

1.We are Alibaba assessed gold supplier and leading ESC exporter.
2.We are professional ESC manufacturer and relevant accessories.

3.Eco-frirndly and imported materials.
4. High production capacity,strict quality control,competitive price and best service.
5.100% QC inspection to make sure the quality before shipping

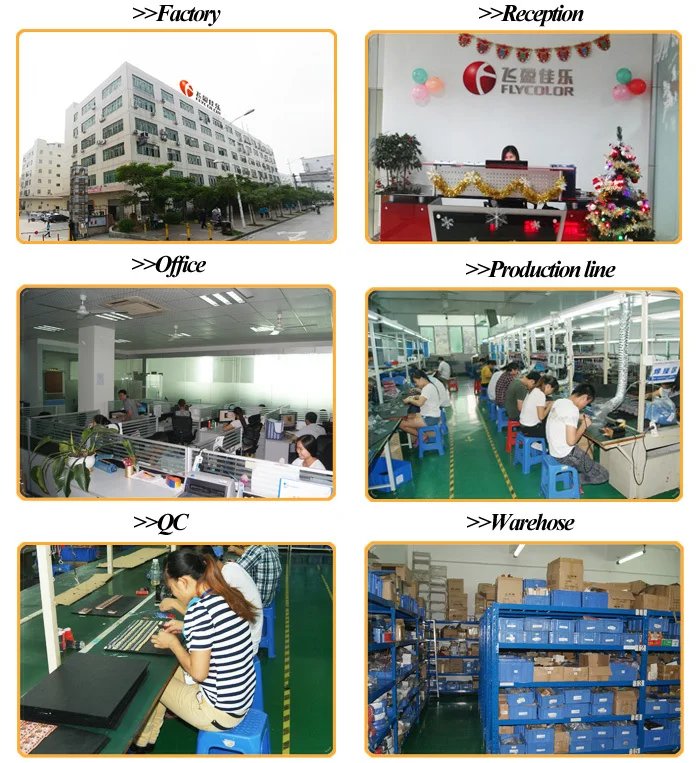

Company Info

Shenzhen Flycolor Electronic Co.,Ltd. is a professional manufacturer of ESC and revelant accessories.
We are specialized in design,research and development ,  production ESC for RC models more than 5 years.
Choose us,you will buy guaranteed products at competitive price, because we are the factory, we are the source.




  Our customers





  Certifications







  FAQ



Q1: How does your company make sure the quality?
A1: 1)Incoming quality control
   2) In-process quality control
   3) Final quality control
   4) Outgoing quality control
   5) CE,RoHs certifications
Q2:What is the warranty of your products?
A2:Warranty:12 months for ESC,
Any natural defective products please take pictures or video as provement,after our confirmation ,the free replacement will be sent to you with your next order.
Q3:What's the MOQ( minimum order quantity )?
A3: 10pcs.
Q4:What's the MOQ of OEM& Customized?
A4:OEM MOQ:≥200pcs
Q5: How to order?
A5:
First,please tell us which models you want.
Second,we will make PI for your confirmation.
Third,After confirming,pleae arrange the payment .
Fourth,we will arrange production after receiving payment.

Fifth,The goods will be sent to you within the delivery time.
Q6:What's the delivery time?
A6:Sample order : 2-3 working days,Normal order:3 -6 working days,OEM order:7-15 working days.
