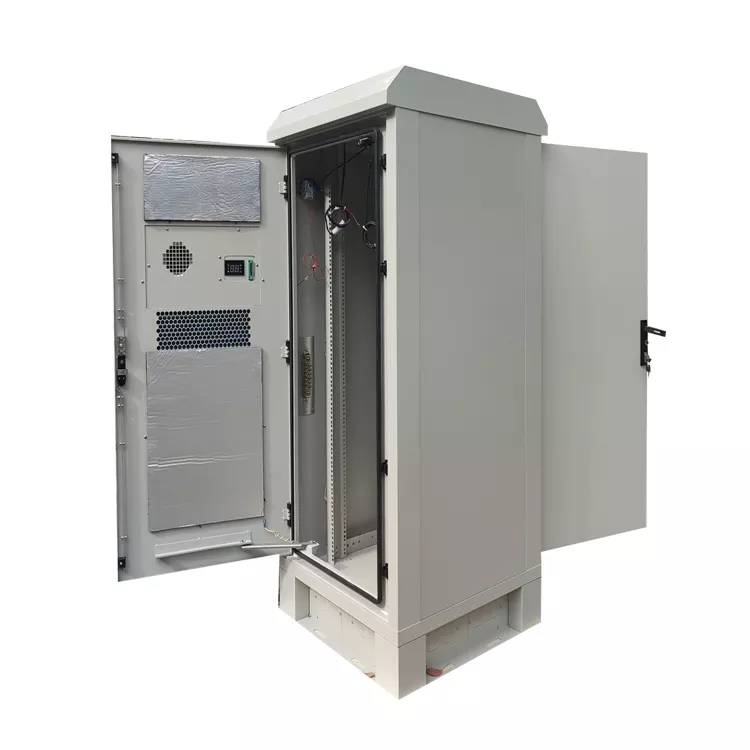

IP55 Rack 19 Inch 30U Outdoor Telecom Cabinet

Supplier: Suzhou Langji Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Bo Feng
Price: $200.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

product name:	Outdoor equipment cabinet	payment terms:	L/C,Western Union,T/T
port:	Shanghai	Intellectual property level:	IP55
Protection class:	IP55	brand:	Langji
External Dimensions:	1700750750MM	place of origin; place of origin:	Jiangsu, China
color:	RAL7035 or customized	Material:	Galvanized steel; double wall, or customer request.
Operating temperature:	-40~55℃	Supply capacity:	2000 units per month
type:	Outdoor telecommunication equipment cabinet	Packaging Details:	Wooden box on export pallet or as customer's request
Serve:	OEM	Certificate:	CE/ISO9001/ISO14001
Warranty:	1 year	application:	Telecom/Wireless
structure:	Welding/Frame/Assembly	model:	OEC1400-AC1500

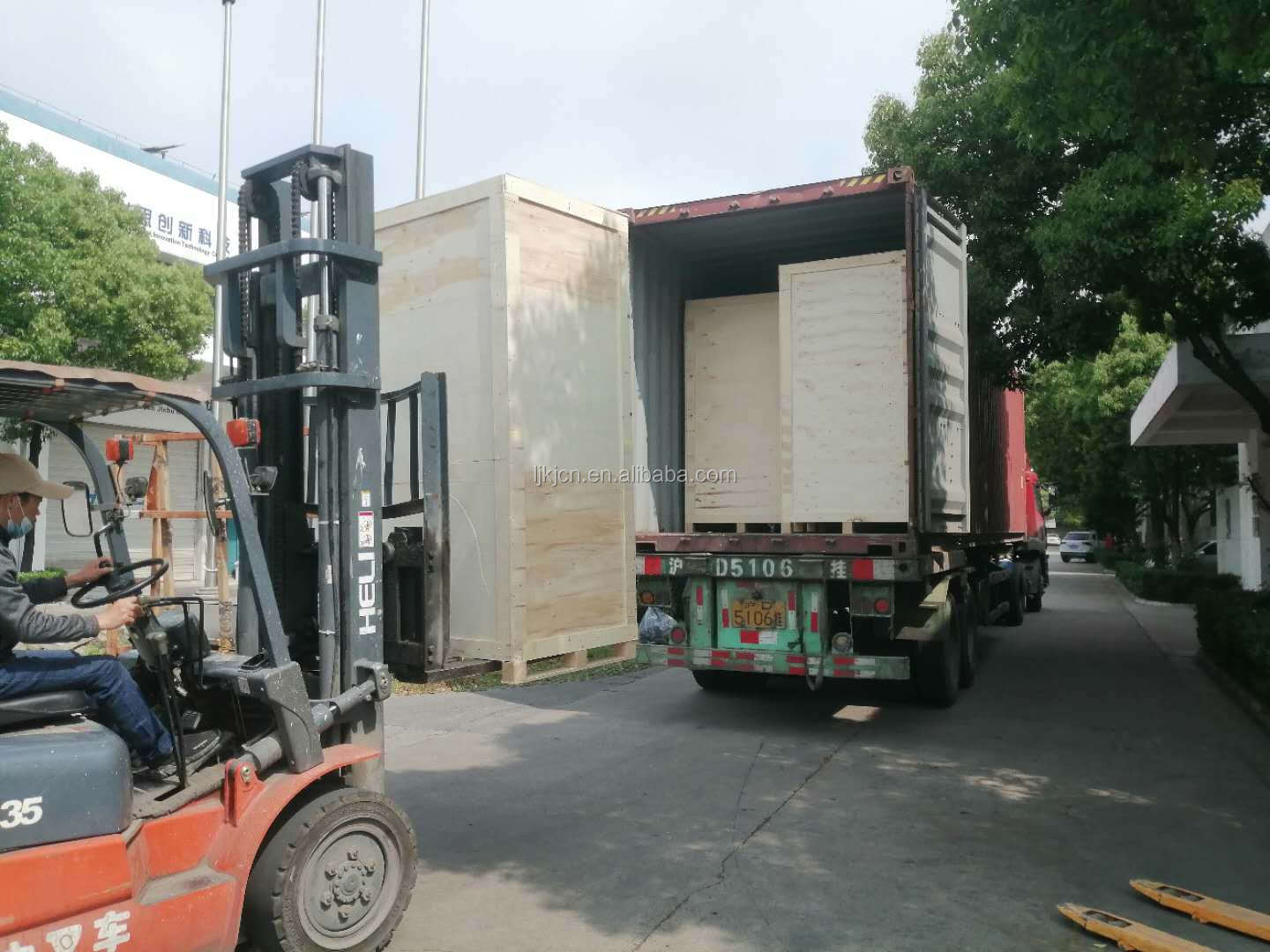

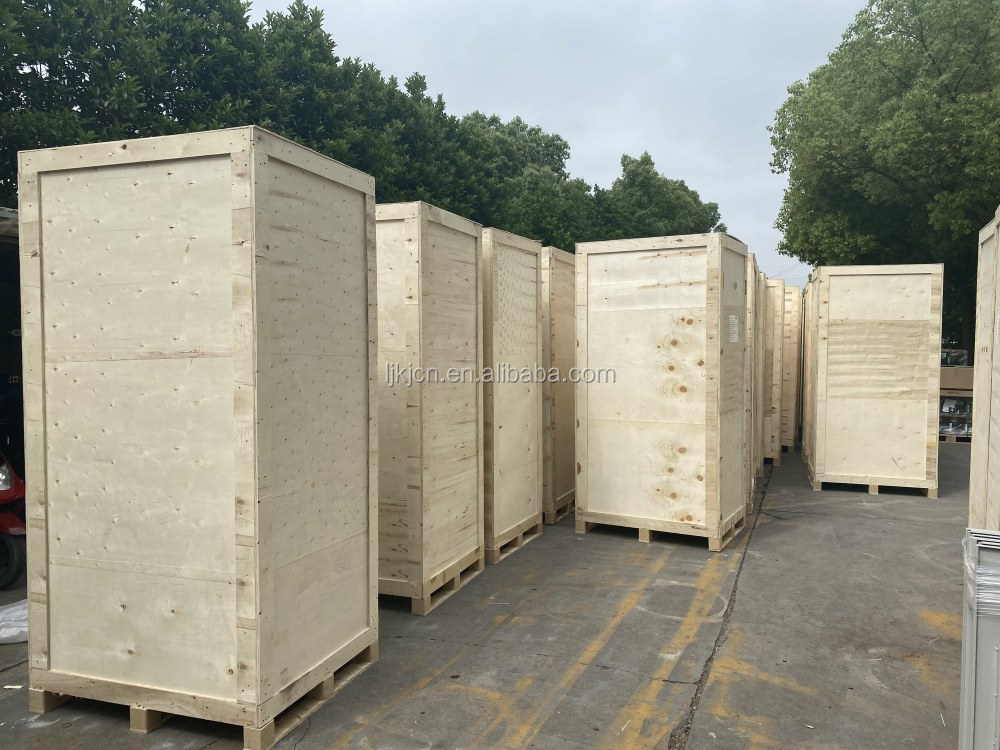

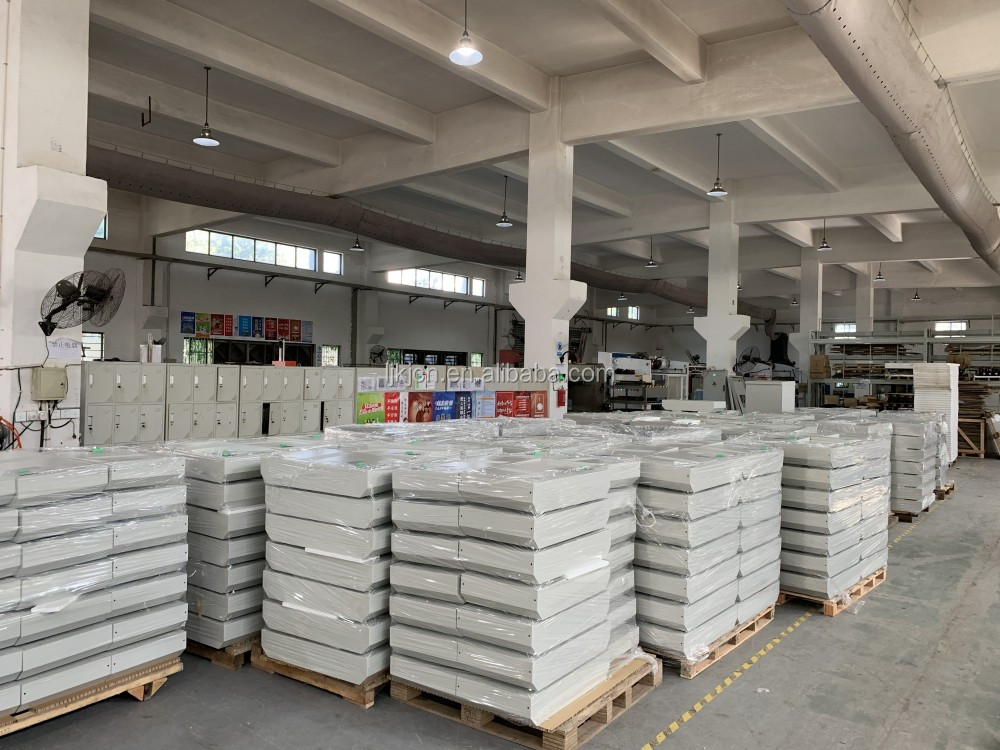

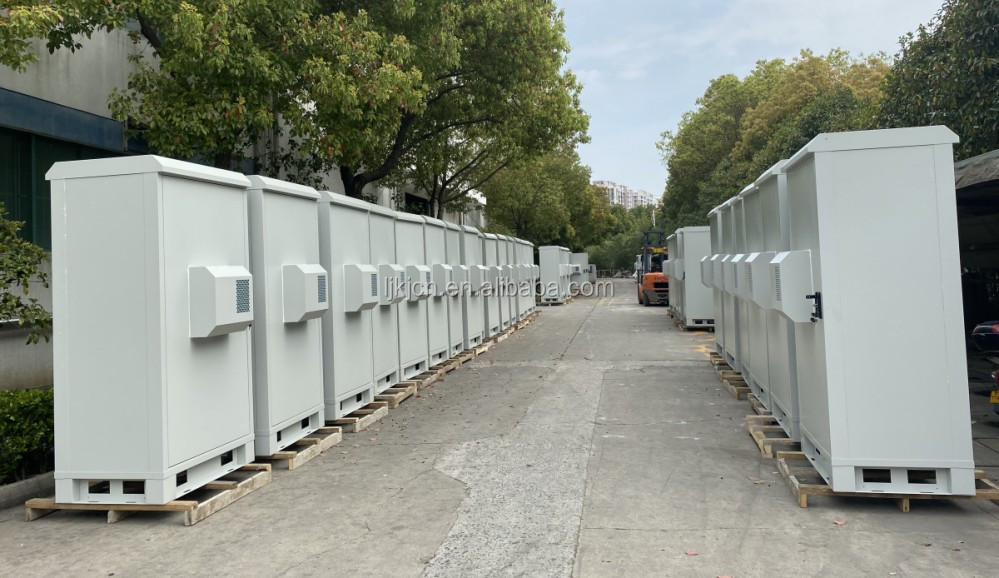

Packaging Preview:

Product Description

Equipment cabinets are designed to hold a variety of batteries and equipment, they are protected from vandalism, dust, rain, snow and dripping water. The air conditioner (option: heat exchanger/TEC/fan) is mounted on the cabinet to keep the temperature inside the cabinet stable, thus increasing the life and stability of the battery and equipment. It provides a safe thermal

Management environment for battery backup systems for telecom and cable applications.

Features

· Sandwich panel construction
· Attractive powder coat finish
19'' free space 30U
· Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
· Double-layer steel with high-quality insulation for IP55 cabinets, walls and roof
· Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
· High-performance air conditioning heat removal
· Doorstop keeps door open while in service
· Passed the seismic performance test of seismic intensity level 8
· Support customization

Technical data sheet

Model	LAE1400
Internal Dimensions (HWD)	1400650650MM
Dimensions (HWD)	1700750750MM
Internal use space	30U
brand	Langji
Certification	ISO9001/ISO14001/CE/IP55
Material	Galvanized Steel/Aluminum/Stainless Steel/Painted Steel
color	RAL7035 GREY/Pantone428C/custom
Door	One front door, one back door
structure	Welding/Frame/Assembly
hinge	embedded
light	48V LED light
Lock	4 point safety lock
Equipment installation method	19'' rack
Line entry	bottom of cabinet
cool down	1500W AC 220V 50HZ (optional DC48V/110V 60HZ)
Operating temperature	-40～55℃
IP level	IP55
Ground protection	Cooper's Bar
Minimum order quantity	1 unit
pack	Wooden case/export pallet
pay	T/T,L/C,Western Union
Warranty	1 year
delivery time	15~20 working days

Product Details

Applications

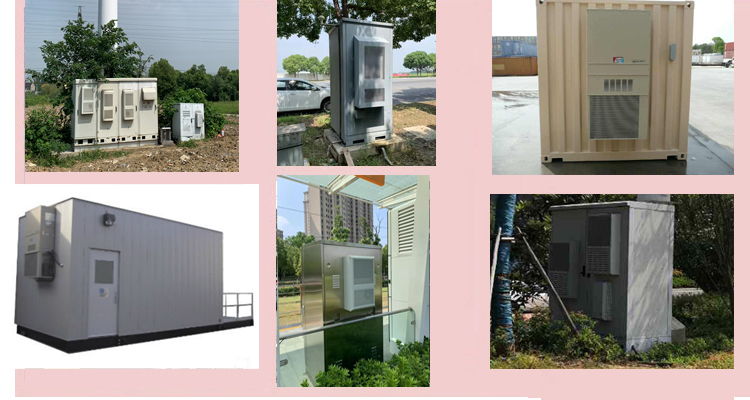

Outdoor communication cabinets are mainly used for wireless communication base stations, including new generation 4G systems, communication networks/network integrated services, access/transmission switching stations, emergency communication/transmission, etc.

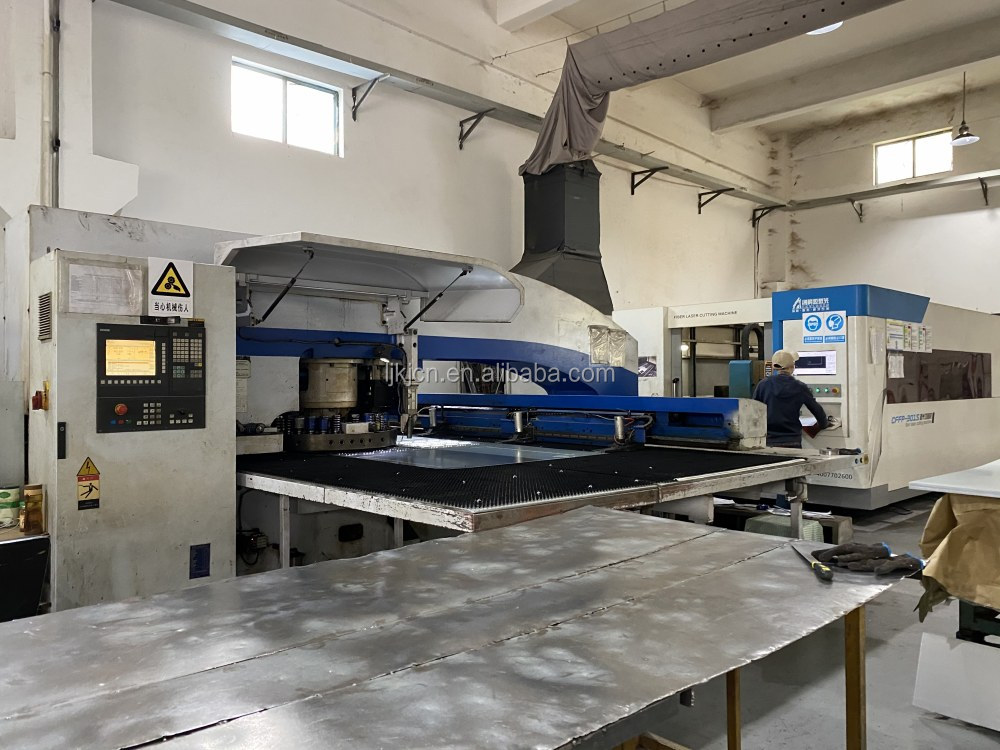

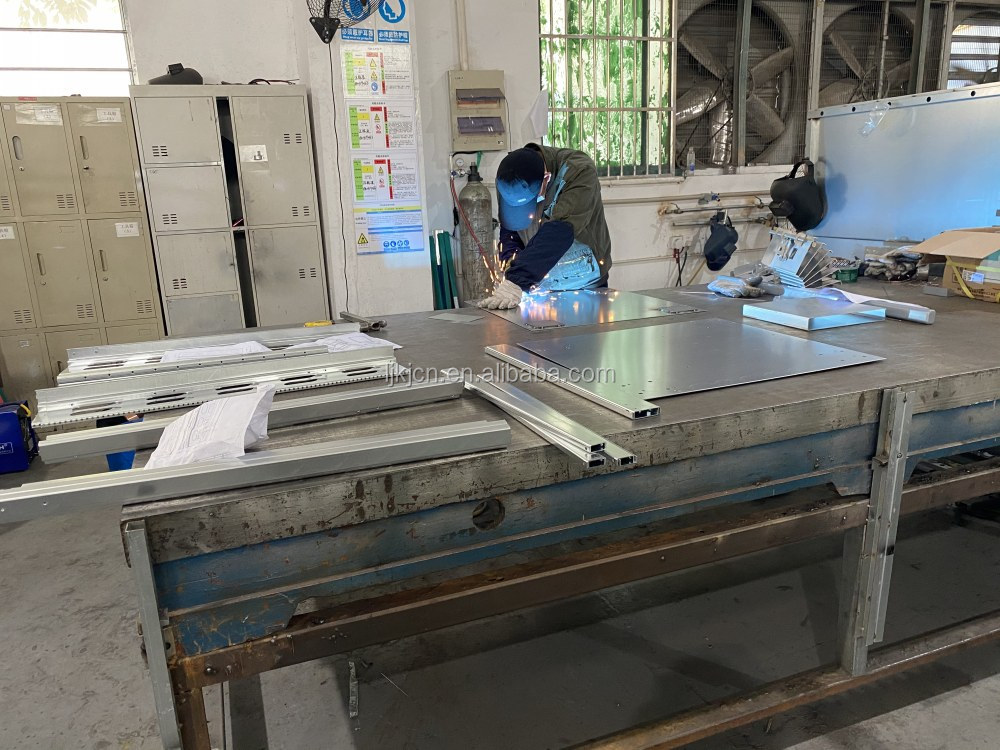

Suzhou Longkey is a professional manufacturer of outdoor telecommunication cabinets, cabinet air conditioners, and plate heat exchangers with more than 13 years of experience. The products have passed CE and CCC certification. Products are exported to Southeast Asia, Russia, Europe, South America, the United States and many other countries and regions. Our excellent quality has earned us a good reputation at home and abroad.
