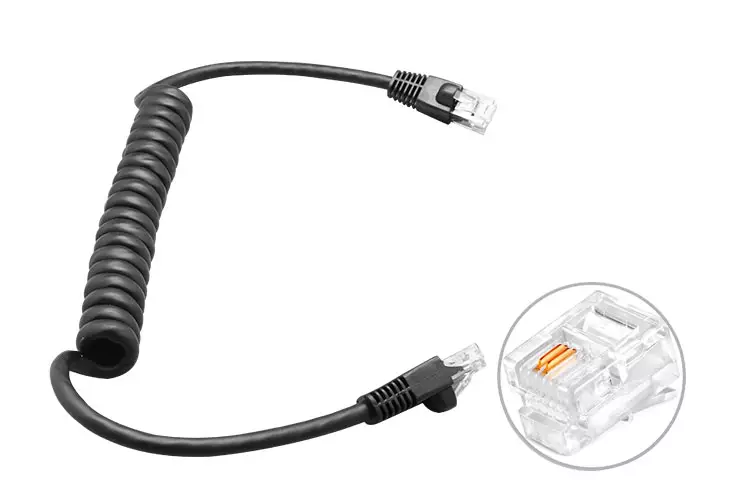

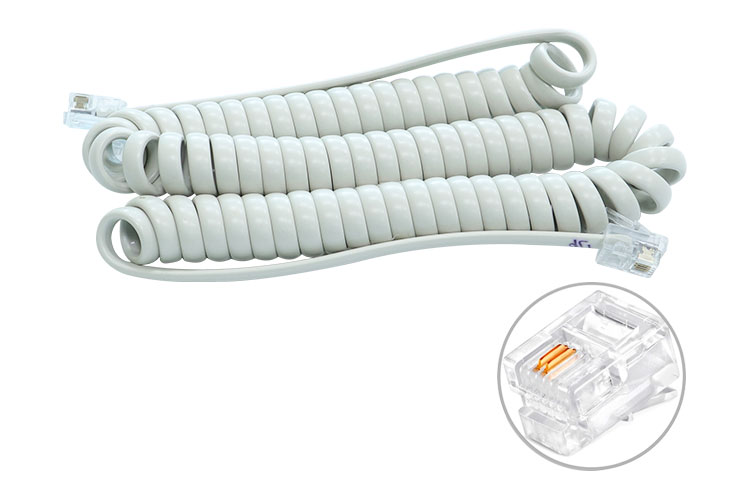

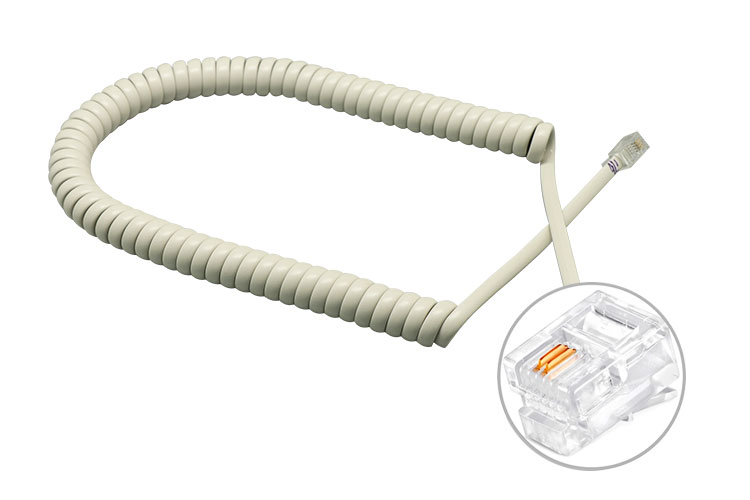

4P4C RJ9 to RJ9 Telephone Spiral Cable

Click here to contact

Product details

payment terms:	L/C,D/P,T/T	conductor:	Copper CCA
Supply capacity:	100000 pieces/month	port:	Hong Kong/Shenzhen
Outer diameter:	2.4*4.8mm	application:	In-room phone connection
model:	CPP, CPP	K1:	Cost-effective telephone accessories spiral
K3:	Custom Length 4P4C Mobile Phone Extension Cable	brand:	custom made
Certificate:	#E139423, RoHS Compliant	Cable jacket:	PVC, LSZH
Jacket Color:	White, Black, Ivory, Grey...etc.	Shielded cable:	Do not
Conductor material:	PP (Polypropylene)	type:	indoor
K2:	Telephone extension handset with coiled cord	plug:	RJ9-4p4c
length:	6FT, 2M, 10FT....customized length	Jacket Material:	PVC or LSZH
place of origin; place of origin:	China

Product Description

Specification. / aspect

Product Description:

1. Stranded metal ribbon conductor (4*T250 x H Stranded)

2. Connector: RJ9 4P4C plug at both ends

3. Gold plating: 3U" / 0.7um, 6U" / 0.15um, 15U" / 0.38um, 30U" / 0.76um, 50U" / 1.27um

4. The telephone fixed line cable used between the phone and the phone, not the cable from the phone to the wall plug.

5. Just plug into the jack on your phone

6. Has good elasticity and flexibility

7. Coiled length from 270mm - 1180mm, **special request is also welcome

Before crimping, our rope length is measured from end to end (foot)	length after crimping (unstretched) (mm)	Before crimping, our rope length is measured from end to end (in meters)	length after crimping (unstretched) (mm)
6 feet	270mm	2M	310mm
7 feet	320mm	3M	460mm
12 feet	560mm	4M	610mm
15 feet	700mm	5M	760mm
25 feet	1180mm	6M	920mm
