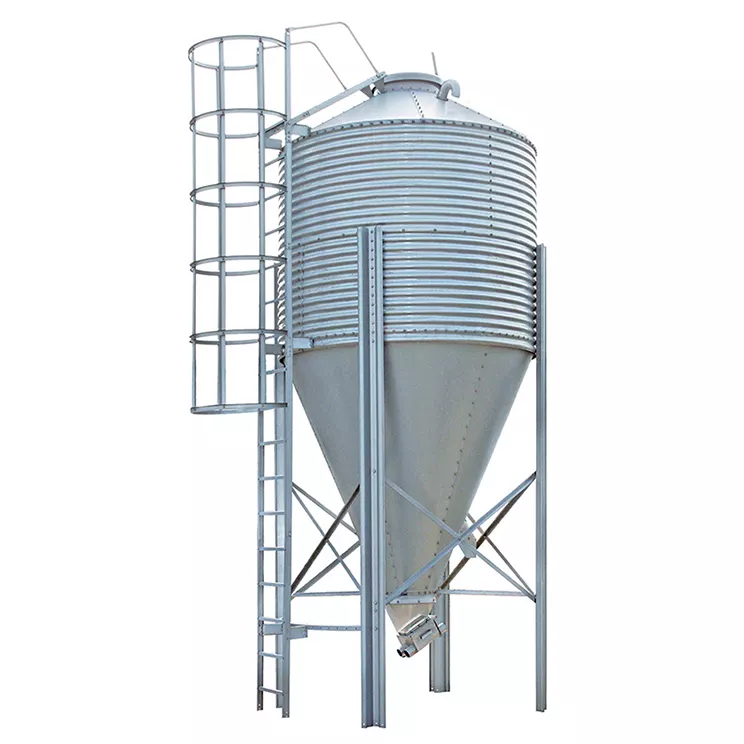

Main selling point: | durable | Showroom location: | not any |
Core Components Warranty: | 1 year | Core components: | Galvanized sheet |
Silo Material: | Galvanized steel | After-sales service provided: | Online support |
payment terms: | letter of credit, wire transfer | port: | Qingdao |
Material: | 275g double-sided galvanized sheet | Applicable industries: | farm, other |
Bottom Type: | Hopper cone | usage: | feedlot |
Silo Type: | Assembly silo | Health status: | new, new |
color: | silver bullion | place of origin; place of origin: | Shandong China |
weight: | 820kg | Mechanical test report: | if |
Marketing Type: | normal product | Warranty: | 1 year |
Video external inspection: | if |
core selling point | Durable and easy to install |
feature | durable |
part | 275g double-sided galvanized sheet |
color | silver |
Key words | automatic feeding bin |
Do not. | Item Number | describe | capacity (Based on density 0.6/m3) | Upper T cone thickness (mm) | Corrugated plate thickness (mm) | corrugated ring | ||||||
superior | middle | reduce | ring | detail | ||||||||
1 | 60010001 | Silo 2.7m3/Φ1530 | About 1.7T | 1.0 | 1.2 | 1 | 2 | |||||
2 | 60010002 | Silos 4.1m3/Φ1530 | About 2.7T | 1.0 | 1.0 | 1.2 | 2 | Up 2 + Down 2 | ||||
3 | 60010003 | Silo 6.4m3/Φ2140 | About 3.6T | 1.0 | 1.2 | 1 | 2 | |||||
4 | 60010004 | Silo 9.3m3/Φ2140 | About 5.4T | 1.0 | 1.0 | 1.2 | 2 | Up 2 + Down 2 | ||||
5 | 60010005 | Silo 12.2m3/Φ2140 | About 7.3T | 1.0 | 1.0 | 1.0 | 1.2 | 3 | Top 2+ Middle 2+ Bottom 2 | |||
6 | 60010006 | Silo 15.8m3/Φ2750 | About 10.5T | 1.2 | 1.0 | 1.2 | 2 | Up 3 + Down 3 | ||||
7 | 60010007 | Silo 20.6m3/Φ2750 | About 13.8T | 1.2 | 1.0 | 1.2 | 1.2 | 3 | Top 3+ Middle 3+ Bottom 3 | |||
8 | 60010008 | Silo 25.5m3/Φ2750 | About 17.1T | 1.2 | 1.0 | 1.2 | 1.2 | 4 | Top 3+ Middle 6+ Bottom 3 | |||
9 | 60010009 | Silo 32.1m3/Φ3669 | About 22T | 1.5 | 1.2 | 1.2 | 2 | Up 4+ Down 4 | ||||
10 | 60010010 | Silos 40.6m3/Φ3669 | About 27T | 1.5 | 1.2 | 1.2 | 1.2 | 3 | Top 4+ Middle 4+ Bottom 4 | |||
11 | 60010011 | Silo 49.1m3/Φ3669 | About 32T | 1.5 | 1.2 | 1.2 | 1.2 | 4 | Top 4+ Middle 8+ Bottom 4 |
Do not. | Item Number | Thickness of lower T cone (mm) | Leg thickness (mm) | number of legs | weight (Kilogram) | maximum height (mm) |
1 | 60010001 | 1.0 | 2.0 | 4 | 238 | 3800 |
2 | 60010002 | 1.0 | 2.0 | 4 | 282 | 4616 |
3 | 60010003 | 1.2 | 2.5 | 4 | 370 | 4705 |
4 | 60010004 | 1.2 | 2.5 | 4 | 434 | 5521 |
5 | 60010005 | 1.2 | 2.5 | 4 | 495 | 6337 |
6 | 60010006 | 1.2 | 2.5 | 6 | 637 | 5716 |
7 | 60010007 | 1.2 | 2.5 | 6 | 730 | 6532 |
8 | 60010008 | 1.2 | 2.5 | 6 | 820 | 7348 |
9 | 60010009 | 1.5 | 2.5 | 8 | 1082 | 6780 |
10 | 60010010 | 1.5 | 2.5 | 8 | 1221 | 7596 |
11 | 60010011 | 1.5 | 2.5 | 8 | 1360 | 8412 |
Do not. | Item Number | describe | tower weight (kg) | Tray model | Pallet weight (kg) | cube/tray | Column length/m | Pallet size (m) |
1 | 60010001 | Material tower 2.7m3/Φ1530 (1.7T) | 282 | φ1530 | 9.6 (within 2 sets) | 3 | 3 | 1.7*1.0 |
2 | 60010002 | Material tower 4.1m3/Φ1530 (2.7T) | 330 | 17.8 (more than 2 sets and less than or equal to 4 sets) | ||||
3 | 60010003 | Material tower 6.4m3/Φ2140 (3.6T) | 375 | φ2140 | 18.5 (within 2 sets) 36 (more than 2 sets and less than or equal to 5 sets) | 4 | 3.7 | 2.35*1.15 |
4 | 60010004 | Material tower 9.3m3/Φ2140 (5.4T) | 441 | |||||
5 | 60010005 | Material tower 12.2m3/Φ2140 (7.3T) | 510 | |||||
6 | 60010006 | Material tower 15.8m3/Φ2750 (10.5T) | 600 | φ2750 | 21.6 (within 2 sets) 39.9 (more than 2 sets and less than or equal to 5 sets) | 5.5 | 3.708 | 2.54*1.48 |
7 | 60010007 | Material tower 20.6m3/Φ2750 (13.8T) | 730 | |||||
8 | 60010008 | Material tower 25.5m3/Φ2750 (17.1T) | 820 | |||||
9 | 60010009 | Material tower 32.1m3/Φ3669 (22T) | 1100 | φ3669 | 48.2 | 7 | 3.5*1.5 | |
10 | 60010010 | Material tower 40.6m3/Φ3669 (27T) | 1221 | |||||
11 | 60010011 | Material tower 49.1m3/Φ3669 (32T) | 1310 |
